SHPR400 Multi-Cavity Mold for Switch Parts

Work material: DC53 (60HRC)
Work size: 100x100x20 mm
Coolant: Oil mist
Machining time: 16hr 28min

Tool

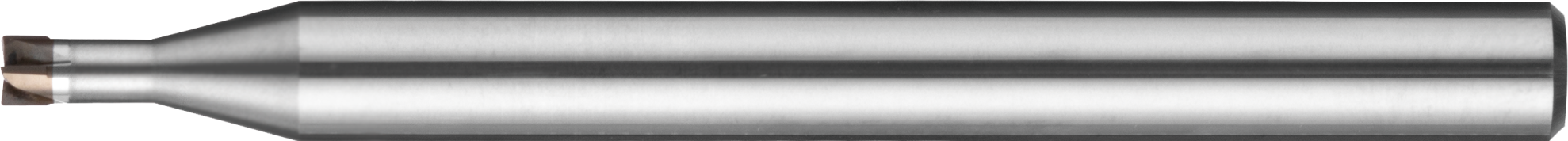

SHPR400



●New tool design has been developed to reduce the cutting resistance and upgrade the finishing accuracy!
●Realized 4-Flute type from Φ0.1! Achieved higher efficient machining and more stable tool life in micro machining!
●Shank diameter accuracy range is 0.002mm, from -0.001mm to -0.003mm, and also supports high precision shrink fit holders.
●Line up from Φ0.1~Φ3, total 142 sizes.

Cutting condition

Result
