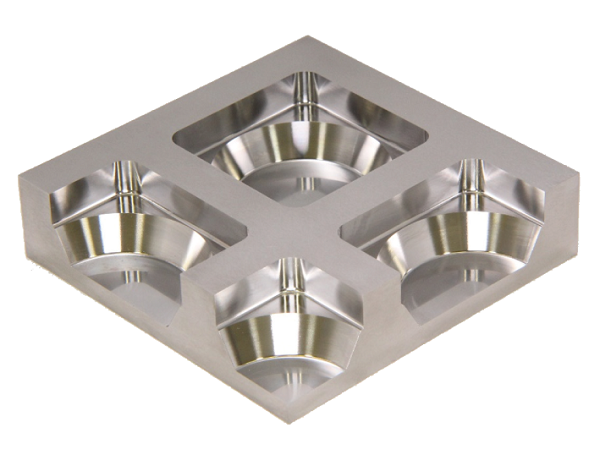

MHRSH430RSF Two-stage pocket model

Achieved stable machining accuracy on hardened steels from the beginning to the end by long tool life

Work material : SKH55(64HRC)
Work size : 100×100×25mm
Coolant : Oil mist
Machining time : 2hr 59min (Only finishing)




●MUGEN COATING PREMIUM Plus for hardened steels with strong back taper reduce chattering to realize long tool life and excellent finishing surface.
●4-flute end mill for high efficiency machining.
●4-flute type standardized from the smallest diameter Φ0.1 to Φ6,total 205 sizes.

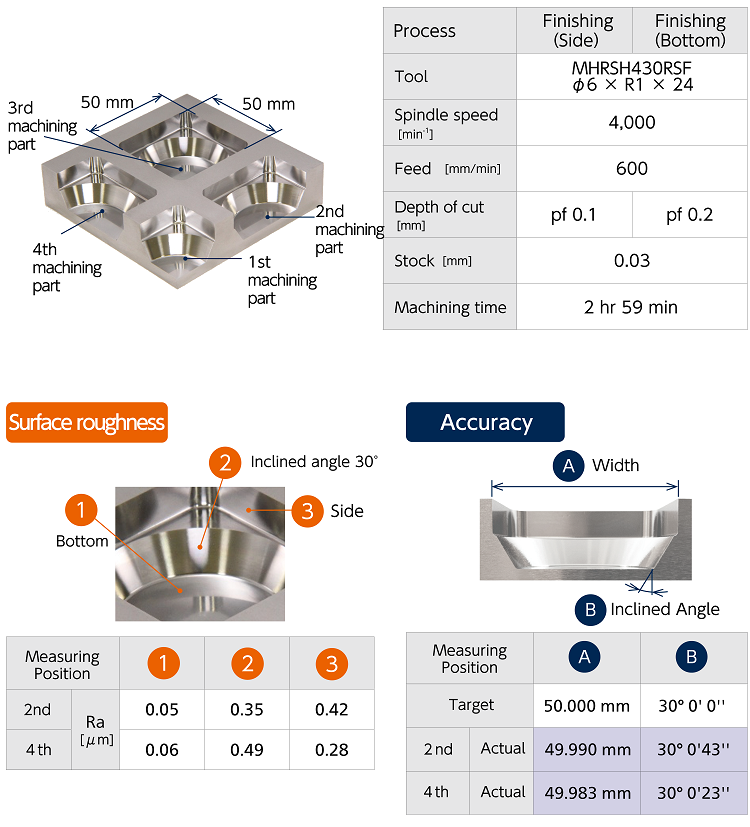

Cutting condition and result
