High Efficient Milling on Aluminum
A5052
ALZ345/AL3D-5 / End Mills for Aluminum

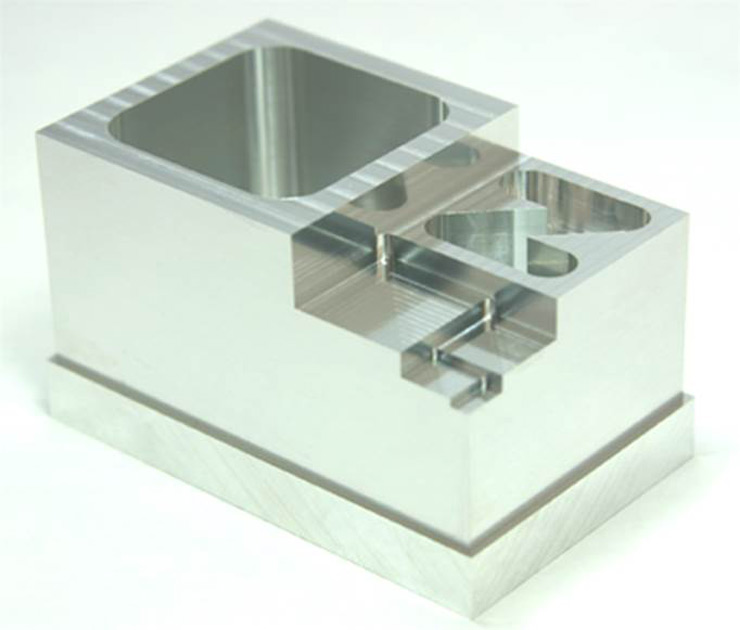

Work size: 40×63.5×38(mm)

Work Material : A5052
Cutting time : 6min.

Deflection of side wall within 2μm, surface roughness is within Rz 1μm.

Tool

AL3D-2
Φ10


•AL-series realized a stable and high efficient machining.
•It exhibits stable excellent surface on a wide area and no chattering occurs even during high speed cutting.


ALZ345
Φ1 · Φ2 · Φ3 · Φ6 · Φ10


•AL-series realized a stable and high efficient machining.
•Improved drilling capacity!
•High performance, heavy machining with better chip disposal.

Cutting Condition


Cutting rocess Pocket Slot Side Plane surface Plane surface Plane surface
Tool ALZ345
Φ10
ALZ345
Φ6
AL3D-2
Φ10
ALZ345
Φ3
ALZ345
Φ2
ALZ345
Φ1
Spindle Speed
(min-1)
Roughing 11,000 18,600 10,500 20,000 20,000 20,000
Finishing 20,000 20,000 20,000 20,000 20,000 20,000
Feed
(mm/min)
Plunging 300 400 - - - -
Roughing 3,000 2,200 1,700 2,200 1,500 1,100
Finishing 2,000 1,100 2,000 1,100 700 500
Depth of Cut
ap×ae(mm)
Roughing 10×3 ap 5.95 30×0.5 3×0.9 2×0.6 1×0.3
Finishing 15×0.01 6×0.05 30×0.01 3×0.01 2×0.01 1×0.005
Coolant Water soluble fluid
Time 6min

Work size: 40×63.5×38mm
