Technology
MSCZ440 Slot・Pocket High Efficient Machining
Realize continuous high efficient machining on prehardened steel from plunge to grooving.

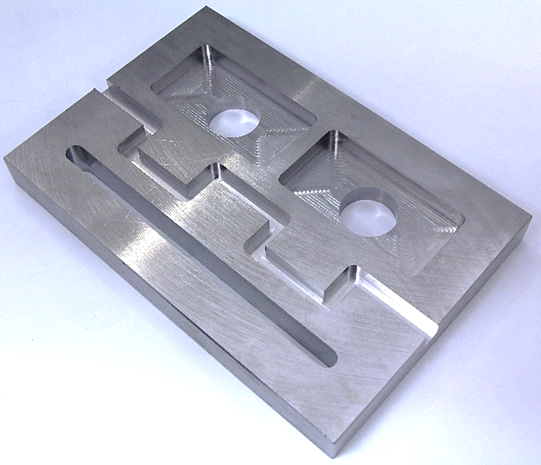

![](/en/technology/case/sample64/img/sample64.png)
Work material: SCM415
Work size: 150x100 mm
Machining depth: 15mm
Coolant: Air blow
Machining time: 8min 30sec

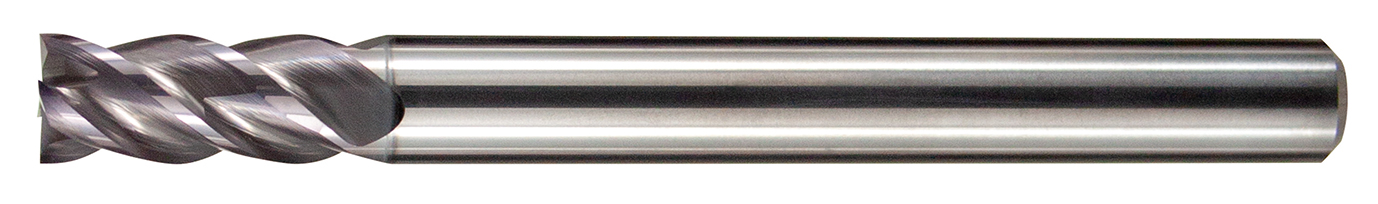

Tool
MSCZ440
●Unequal flute spacing,unequal helix angle and high rigid end profile design to minimize chatter realize high efficient machining.
●Newly developed special edge profile increase the multi-functional performance of side milling,slot milling and drilling on stainless steels.
●Long time stable machining is realized by adopting MUGEN COATING.
●Total 62 sizes,some sizes line up with L/D=2 or 3.

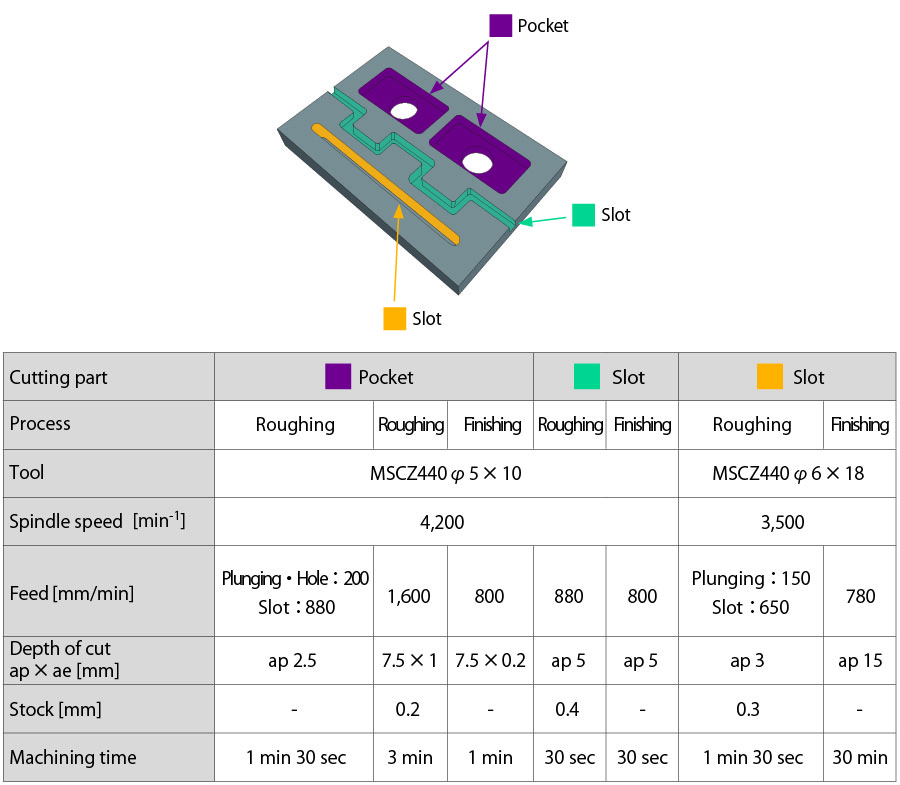

Cutting condition
![](/en/technology/case/sample64/img/Cutting-conditions.jpg)
