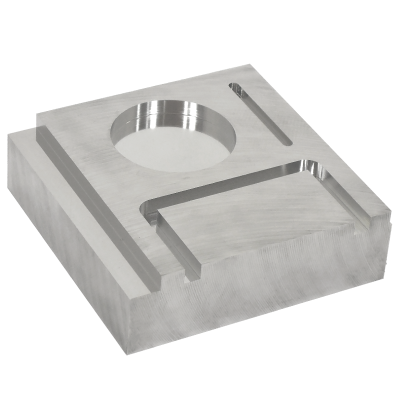

MHDSH445 Multi Profiles Sample

Support many requests of machining, such as slotting, side milling and trochoid milling

Work material : HAP40(65HRC)
                                 as the same as SKH40

Work size : 100×100mm
Machining depth : 6mm
Coolant : Oil Mist
Total machining time : 1h55min




●4-flute is lineup of length of cut expands 2D and 3D.
●MUGEN COATING PREMIUM Plus realizes long tool life even for hardened steel up to 70HRC.
●High rigidity tool design improves machining accuracy.

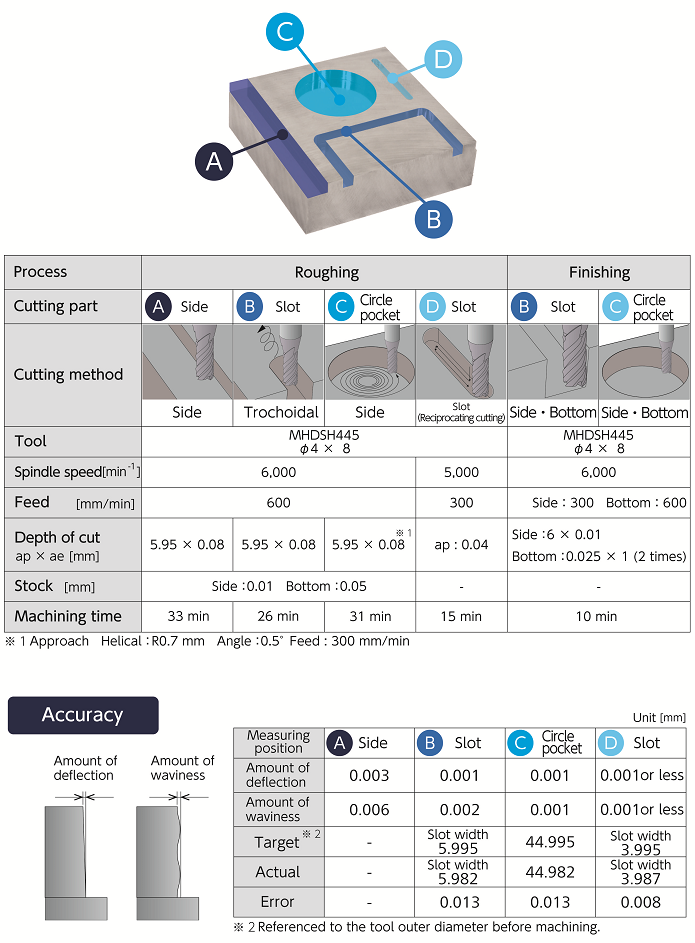

Cutting condition and result
