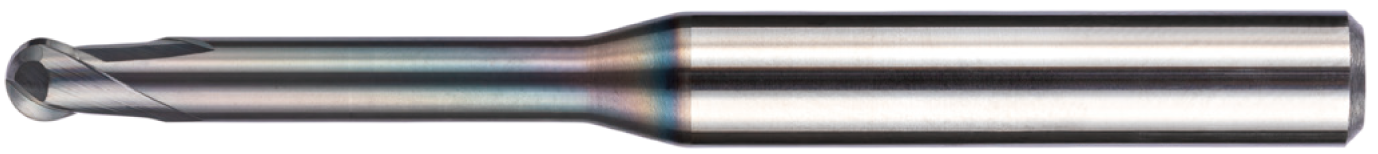

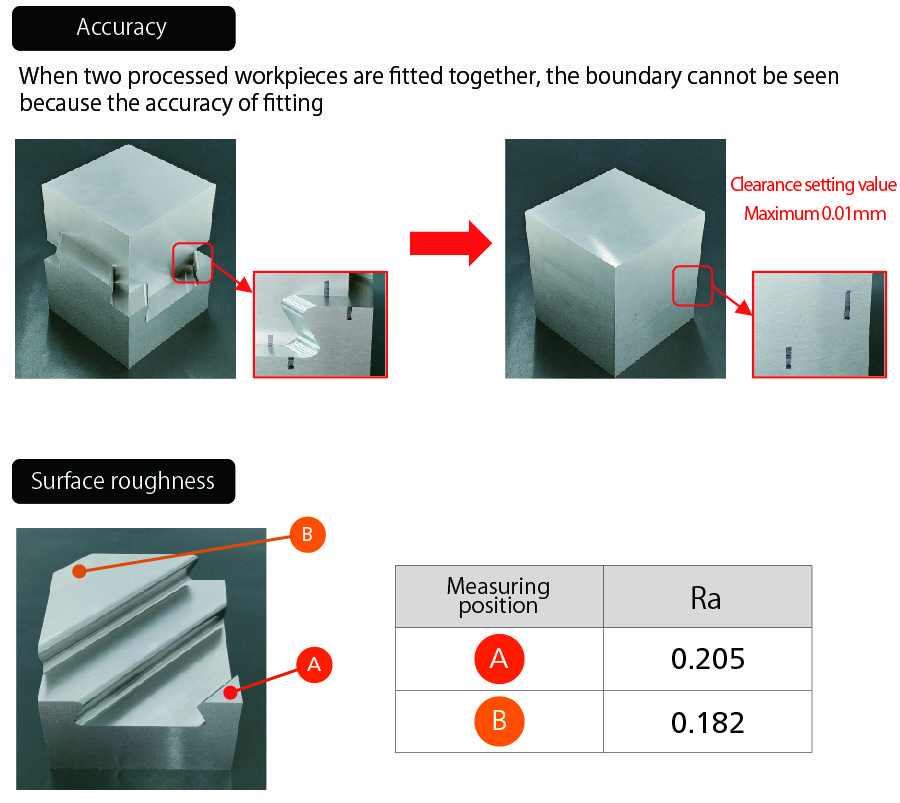

MRBSH230SF 5-Axis Machined Fitting Sample
Work material: STAVAX（52HRC）
Work size: 80x80x60 mm
Coolant: Oil mist
Machining time: 5hr 18min
●Realize stable cutting performance even for 70 HRC hardened steels.
●Developed new MUGEN COATING PREMIUM Plus to upgrade oxidation resistance and abrasion resistance.
●Adopt optimized new tool material and tool design to reduce cutting load.
●R accuracy is ±0.003mm (R accuracy is based on a half value of actual diameter).
●Shank diameter tolerance, high accuracy type, is - 0.001mm / - 0.003mm.
