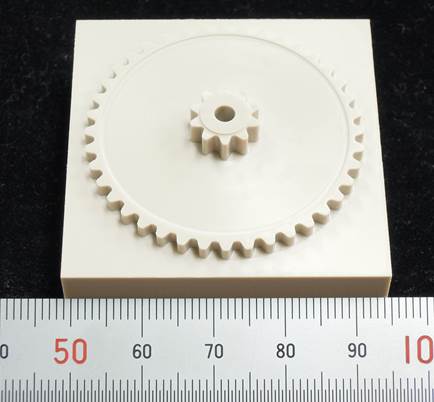

Resin Gear Model PEEK Resin RSES230 / Short Flute End Mill for Resin
Work size:45×45×20(mm)
(Profile height: 6.5mm)
Material: PEEK resin
Cutting time: 1 hr 40 min
RSES230 has developed for resin machining, realizes burr reducing milling with peerless sharpness.
Tool
RSES230
Φ1×1.5×4 · Φ6×9
•Applicable to nonferrous material such as Aluminum and copper.
•Eliminate the conventional problem of the long flute length.
Cutting Condition
| Cutting process | Roughing | Semi-finishing | Finishing | |
| Side | Flat | |||
| Tool | RSES230 φ6×9 |
RSES230 φ1×1.5×4 |
RSES230 φ1×1.5×4 |
|
| Spindle speed (min-1) |
3,000 | 20,000 | 20,000 | |
| Feed （mm/min） |
1,250 | 800 | 400 | |
| Depth of cut ap×ae(mm) |
6.47×1 | 0.3×0.5 | 0.3×0.03 | 0.03×0.3 |
| Stock (mm) |
0.03 | 0.03 | - | |
| Coolant | Water-soluble fluid | |||
| Cutting time | 4min30sec | 7min | 1hr28min30sec | |
Comment
Fine surface at corner is realized even long neck type by adopting short length of cut.
