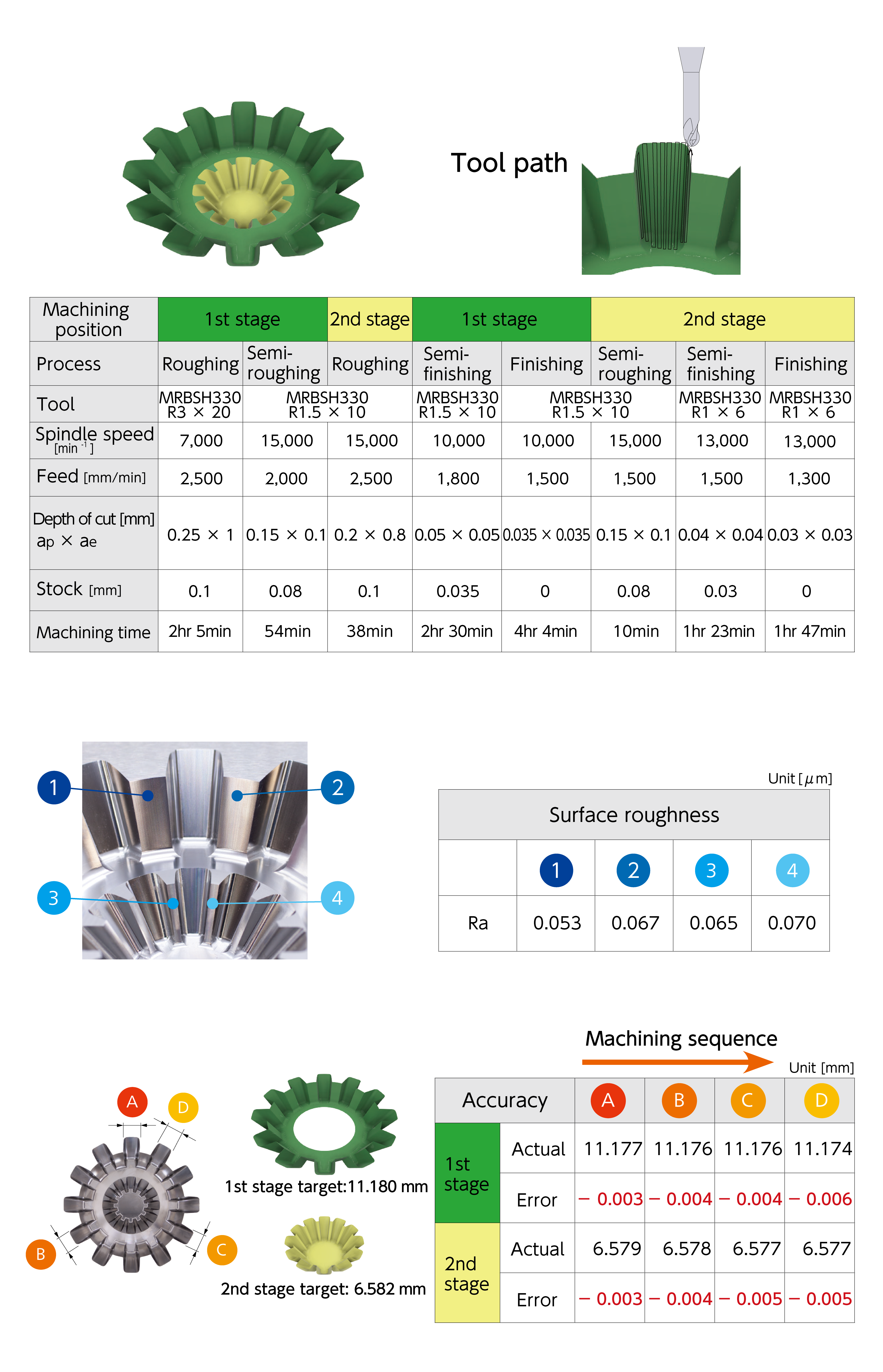

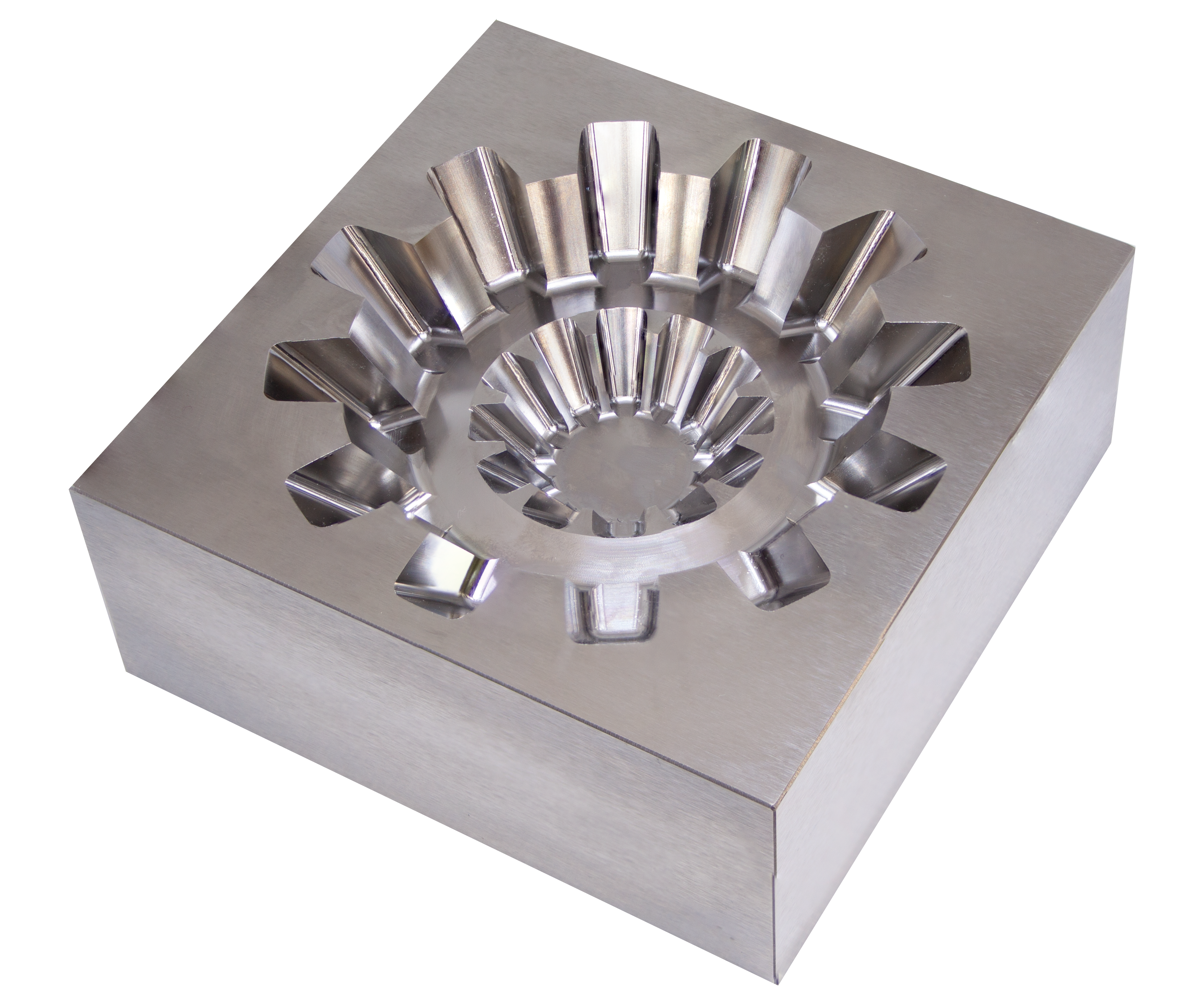

MRBSH330 Two-stage pocket mold
Realize long tool life and high efficiency machining for complex shapes even on hardened steels
Work Material : HAP40(64HRC) as the same as SKH40
Work size : 100×100mm
Coolant : Oil mist
Machining time : 13hr 31min
●High efficiency 3-flute ball end mill optimizes a shape of central edge and enables high depth of cutting.
●Even hardened steel of 45 to 70HRC can be machining with long tool life and high efficiency.
●Shank diameter tolerance, high accuracy type, is -0.001mm~0.003mm.
