Thread Milling Model
Alloy718
MMTM / M-Thread Mill

Work size: 56×36×46(mm)

Material: Alloy718(Equivalent Inconel®718)
Cutting Time: 18 sec per thread

Sample of machining super heat-resistance alloy with the MMTM reduced cutting deflection remarkably compare to taps. By the blade shape that attached great importance to the sharpness, machining precision improved. MUGEN-COATING realized to prolong tool life.

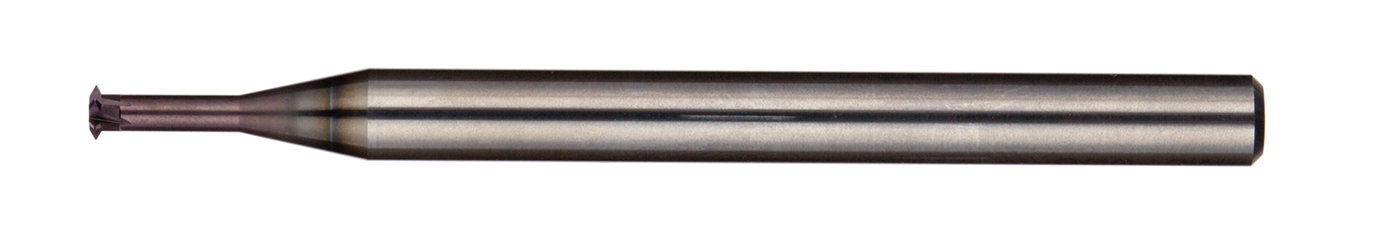

Tool

MMTM
M3


•Improvement of cutting accuracy by adoption of tool design focusing on sharpness.
•MUGEN-COATING realized long tool life.

Cutting Conditions


Cutting process Thread milling
Tool MMTM M3
Spindle speed
(min-1)
3,000
Feed
(mm/min)
200
Depth of cut
ae(mm)
0.145 × 2 times + Zero-cut
(Helical R0.36)
Depth of thread
(mm)
6.0
Coolant Water-soluble fluid
Cutting time 18 sec/hole

Comment

MMTM can cut super heat-resistance alloy stably which was difficult with conventional type of tap.
