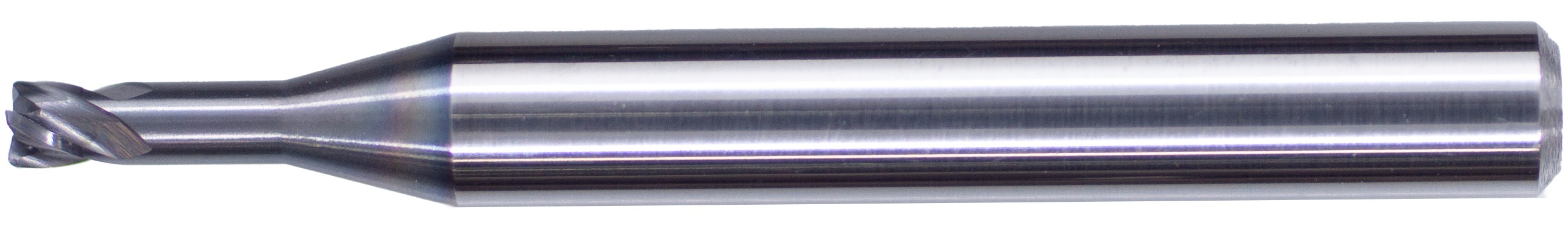

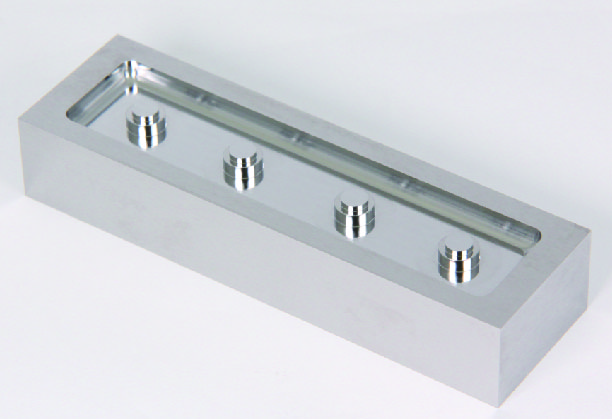

MHRSH430RSF Forging Die Model
Work material: SKD55（64HRC）
Work size: 85x25x15 mm
Machining depth: 3mm
Coolant: Oil mist
Machining time: 3hr 39min
●MUGEN COATING PREMIUM Plus for hardened steels with strong back taper reduce chattering to realize long tool life and excellent finishing surface.
●4-flute end mill specialized for high efficiency machining.
●4-Flute end mill has 205 sizes in total that lineup from the smallest diameterφ0.1 to φ6.
