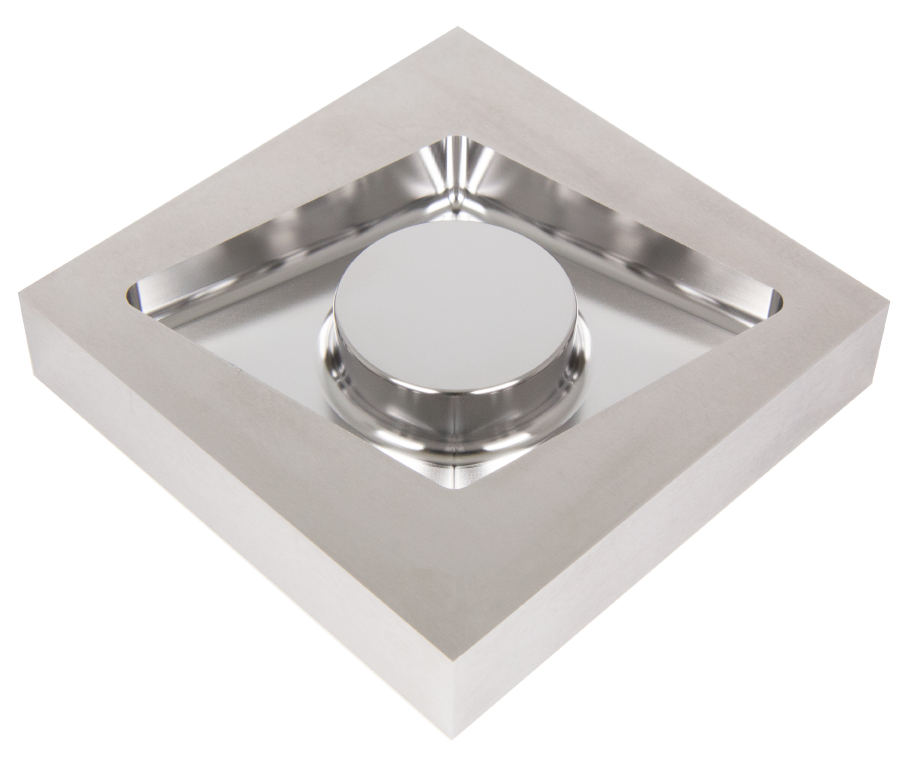

MRBSH330 Forging mold

Realize high efficient machining on hardened steels with high depth of cut and high feed rate

Work Material : YXM1(62HRC) as the same as SKH51
Work size : 100×100mm
Coolant : Oil mist
Machining time : 3hr 35min




●High efficiency 3-flute ball end mill optimizes a shape of central edge and enables high depth of cutting.
●Even hardened steel of 45 to 70HRC can be machining with long tool life and high efficiency.
●Shank diameter tolerance, high accuracy type, is -0.001mm~0.003mm.

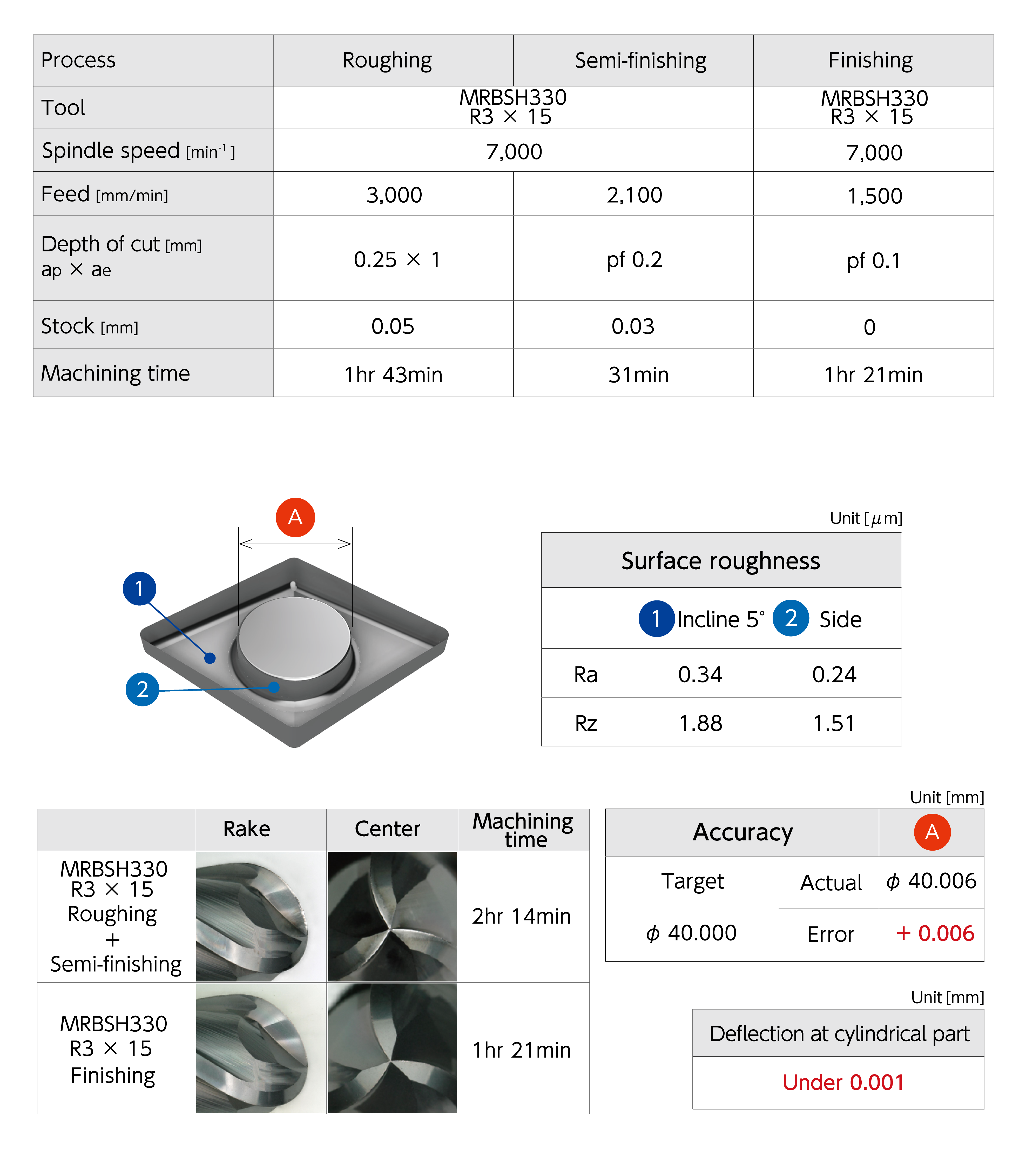

Cutting condition and result
