Technology

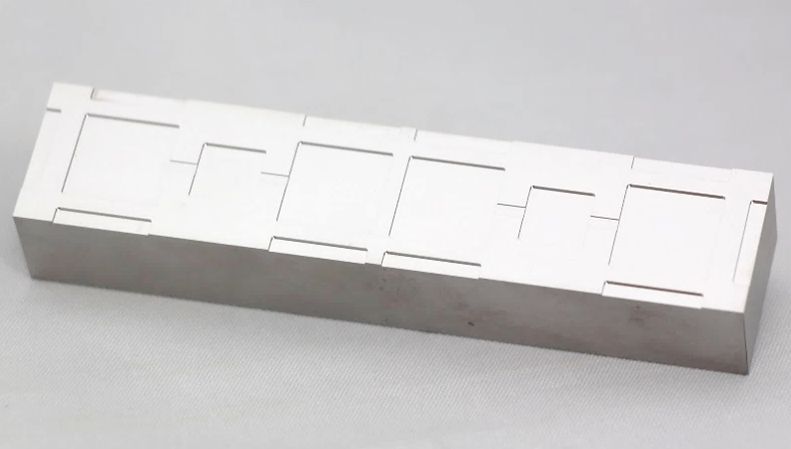

MHRH430R Sealed Mold
![](/en/technology/case/sample66/img/sample66.png)
Work material: HPM31 (60HRC)
Work size: 90x20 mm
Machining depth : 0.35mm
Coolant: Oil mist
Machining time: 3hr 59min
Tool

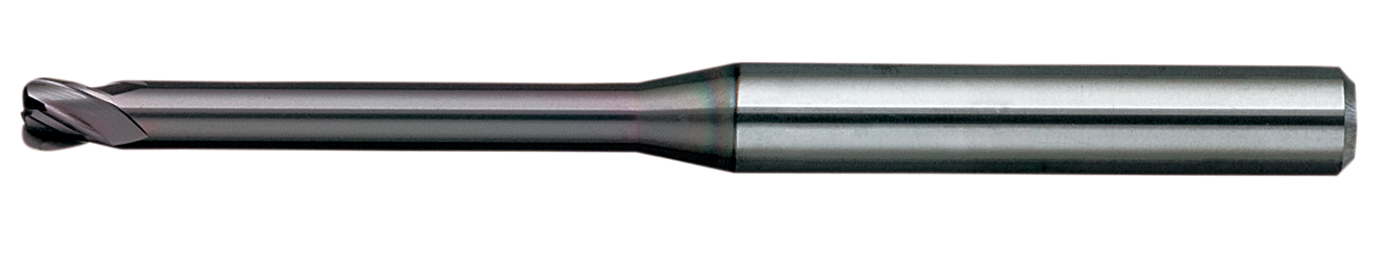

MHRH430R
●MUGEN COATING PREMIUM for hardened steels and unique new design excel in chipping revention and resolve chattering to realize excellent finished surface.
●4-flutes end mill for higher efficiency.
●Total 336 sizes.

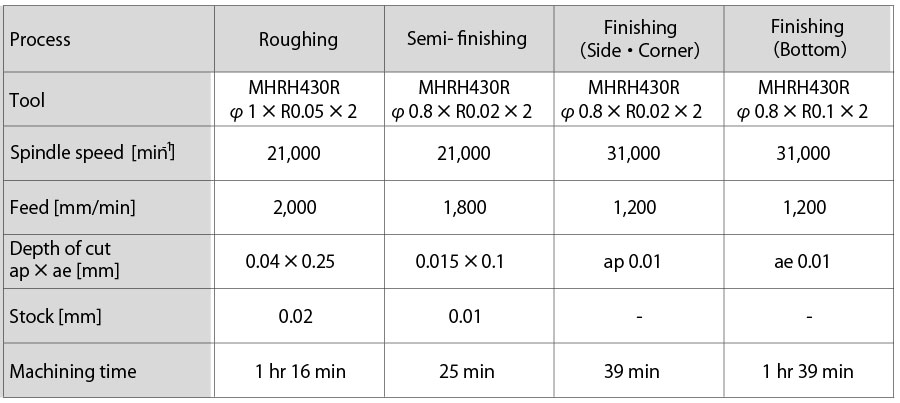

Cutting condition
![](/en/technology/case/sample66/img/Cutting-conditions.jpg)

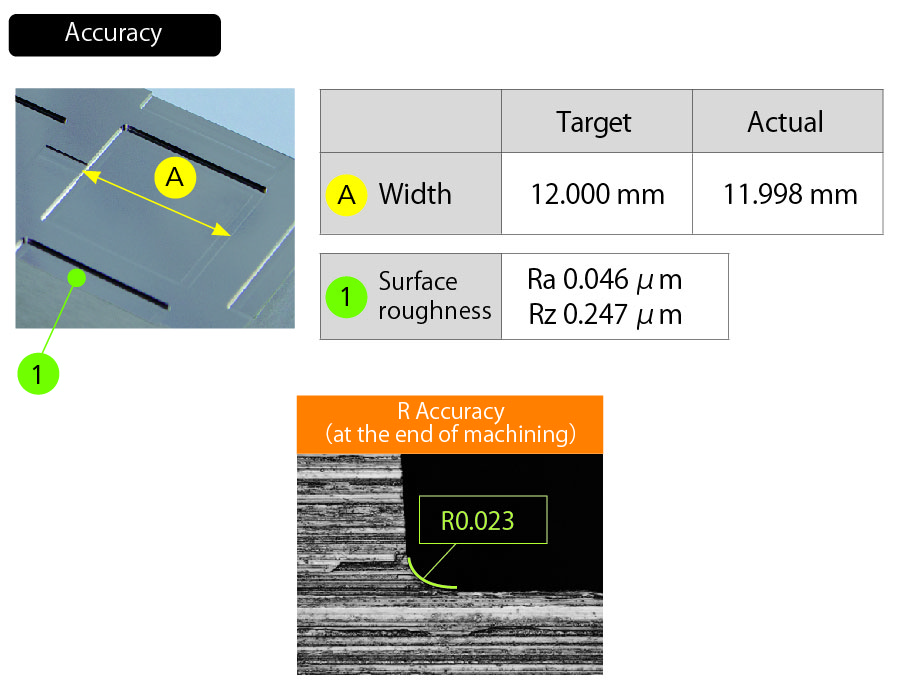

Result
![](/en/technology/case/sample66/img/accuracy.jpg)
