DHR237 Tough-Pitch Copper Comparison of cutting surface
![](/en/technology/case/sample38/img/sample38.jpg)

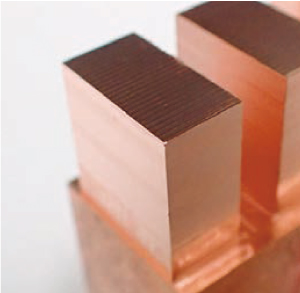

Material: Tough-Pitch Copper
Work size: 8x15 mm
Cutting depth: 12 mm
Tool
DHR237(Long Neck Square Type)
![](/en/technology/case/sample38/img/DHR237.jpg)
●Long neck end mill specialized for machining copper alloy.
●Helix angle 【37.5°】 degrees to achieve both sharpness and finished surface quality that prevents scratches on cutting surface.
●High quality and stable milling performance with long tool life by optimized design and DLC coating.
●Machining copper tungsten electrodes is also effective.
Cutting Conditions
Process | Finishing | ||
Tool | DHR230 Φ3×15 |
Other tool brand 1 Φ3×12 |
Other tool brand 2 Φ3×15 |
Spindle speed (min-1) |
10,000 | ||
Feed (mm/min) |
600 | ||
Depth of cut ap×ae(mm) |
4.5×0.03 | ||
Coolant | Water-insoluble fluid |
Comment

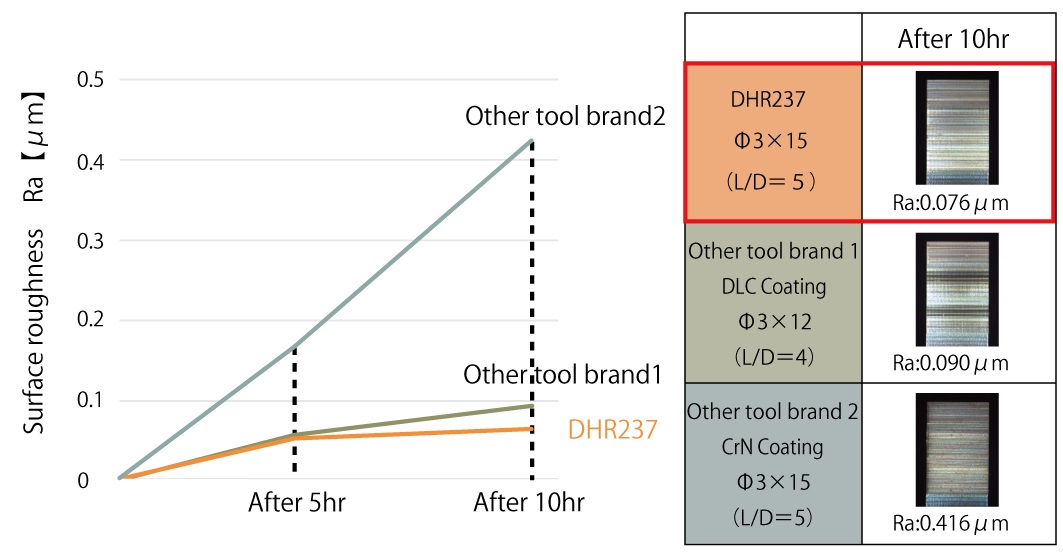

Comparison of cutting surface
After 10 hours machining, DHR237 still can achieve high quality cutting surface.
In the rival products, the processing surface roughness could not be kept constant.
![](/en/technology/case/sample38/img/comm1.jpg)

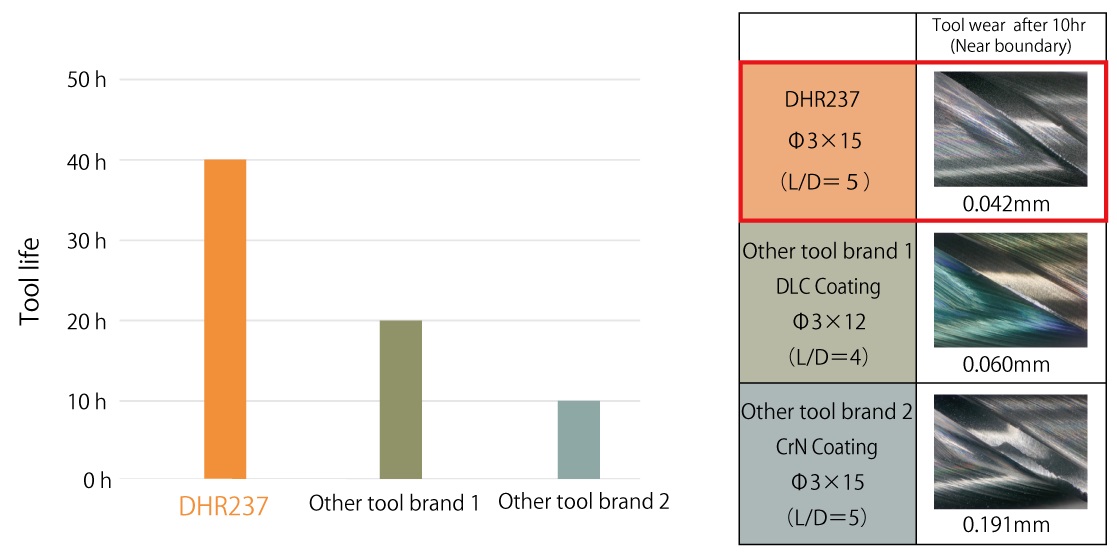

Comparison of tool wear
Because of the 37.5°helix angle, burrs, wave and cutting resistance have been effectively decreased!
DHR237 has 2 times tool life comparing to the rival products.
![](/en/technology/case/sample38/img/comm2.jpg)

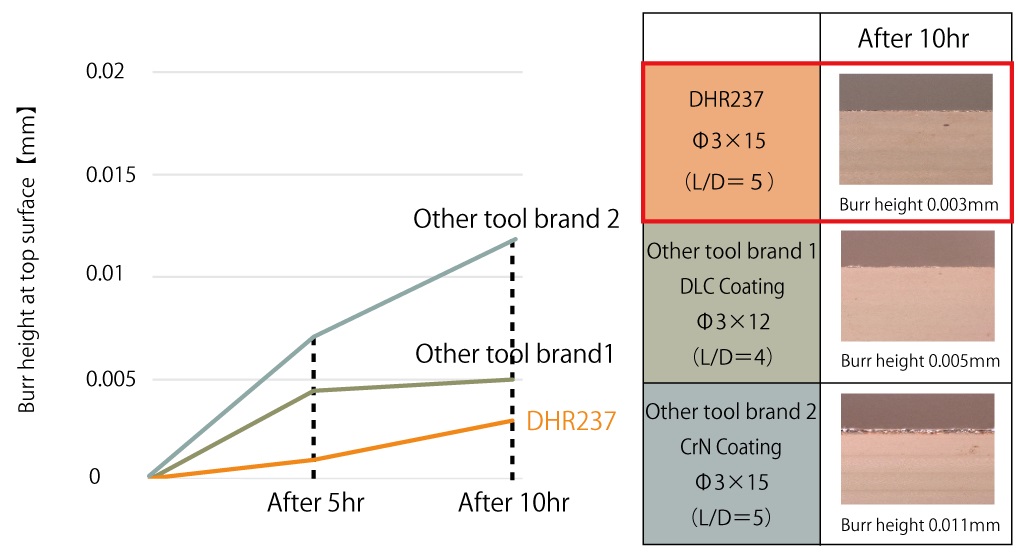

Upper burr amount
DHR237 suppressed the occurrence of burrs and achieved the sharp edges.
![](/en/technology/case/sample38/img/comm3.jpg)
