AL5D-2 Aluminum Heat Sink Model
![](/en/technology/case/sample113/img/sample113.png)
Work material: A1020
Work size: 100x50x45mm
Machining depth: 30mm
Coolant: Water soluble fluid
Machining time: 17hr 30min

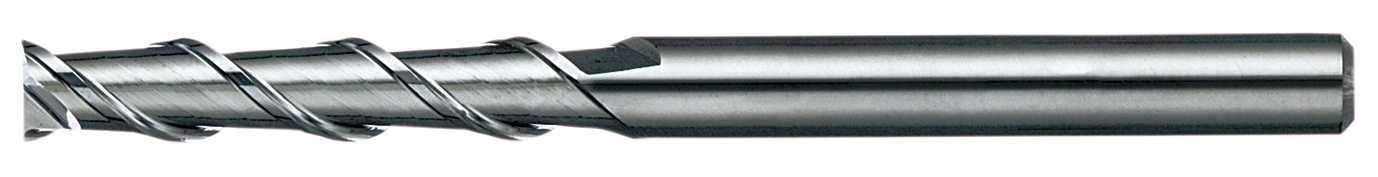

Tool
AL5D-2
●AL-series realized a stable and high efficient machining.
●It exhibits stable excellent surface on a wide area and no chattering occurs even during high speed cutting.

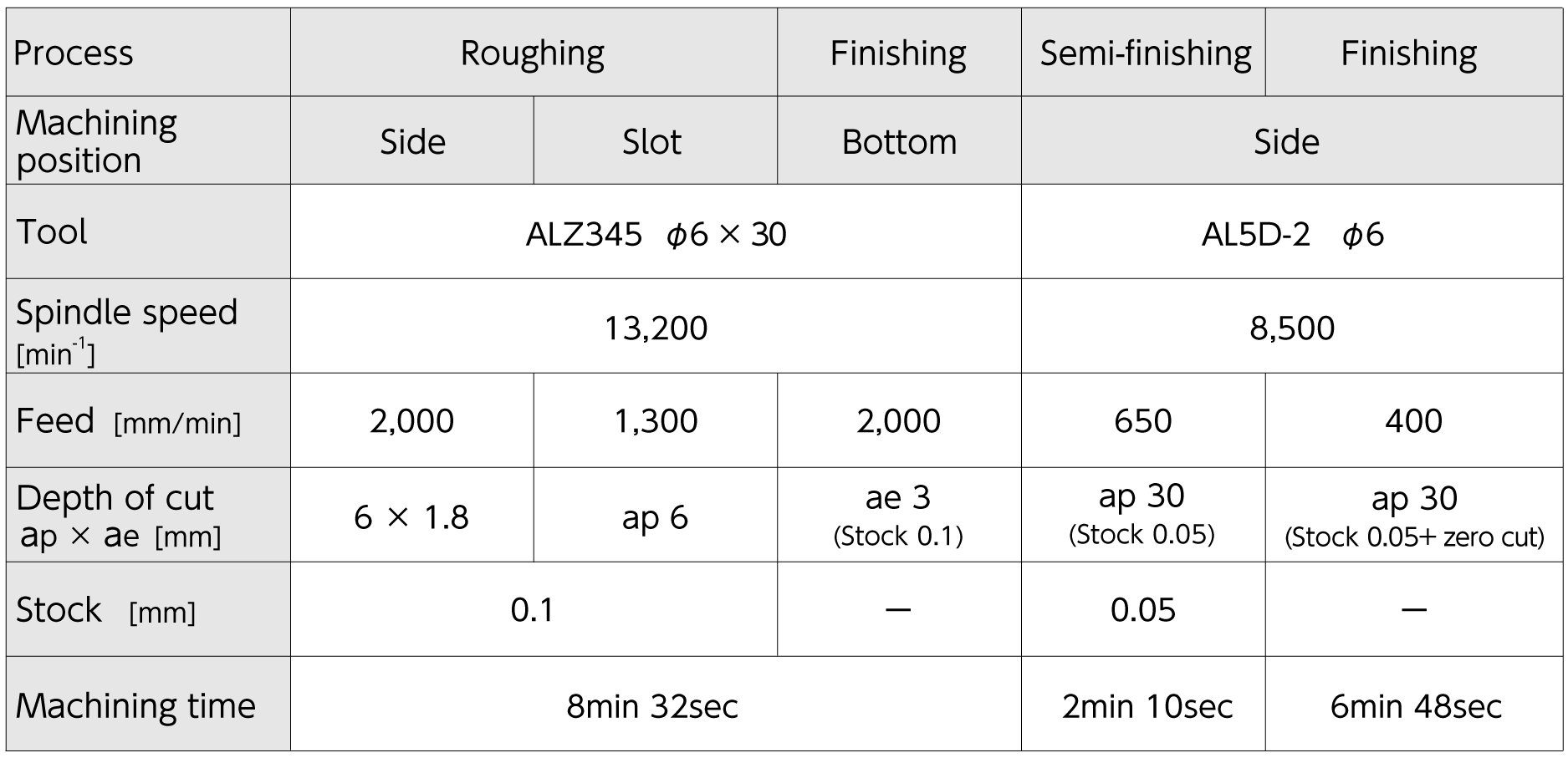

Cutting condition
![](/en/technology/case/sample113/img/Cutting-conditions.png)

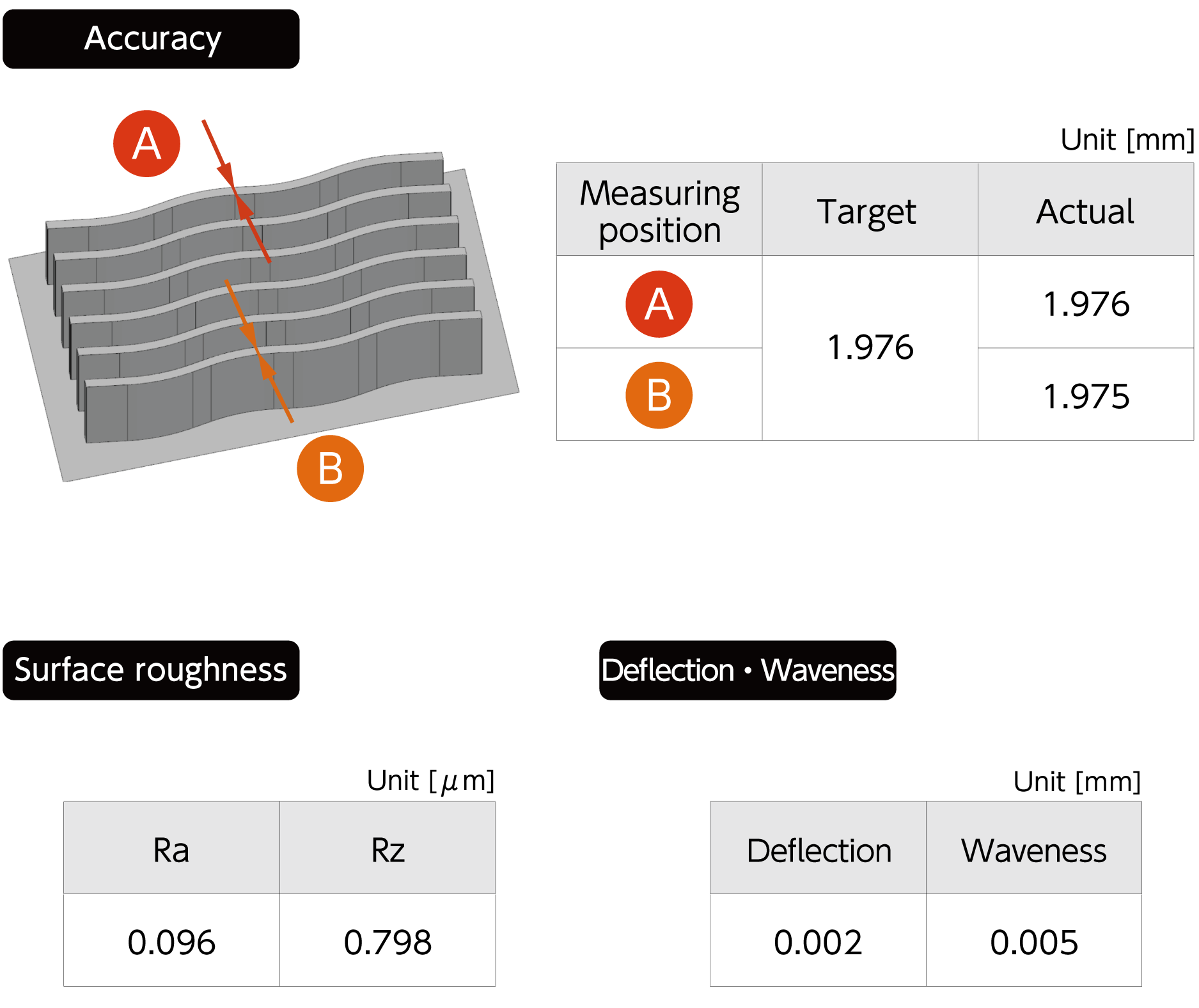

Result
![](/en/technology/case/sample113/img/accuracy.png)
