MSBSH330-5X Square End Mill Shape

Work material: SKH51 (59HRC)
Coolant: Oil mist

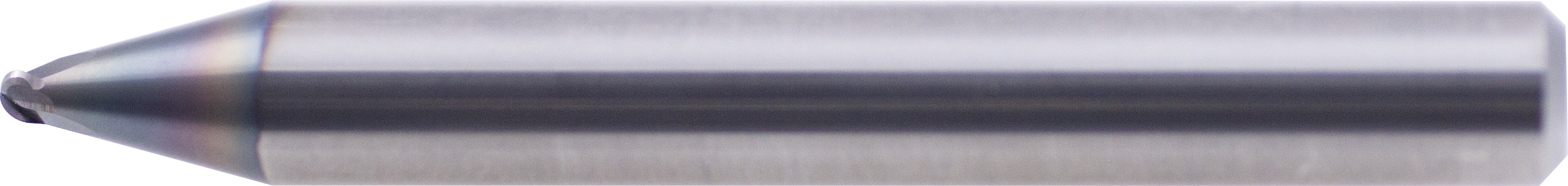

●3-flute high rigidity ball design conforms features of 5-axis machine to reduce total manufacturing cost with high precision and high efficiency machining.
●Even hardened steel of 45 to 70HRC can be machining with long tool life and high efficiency.
●By adopting positive cutting edge for carbide material emphasized breakage resistance that suppresses chattering by 3-flute and unequal flute.

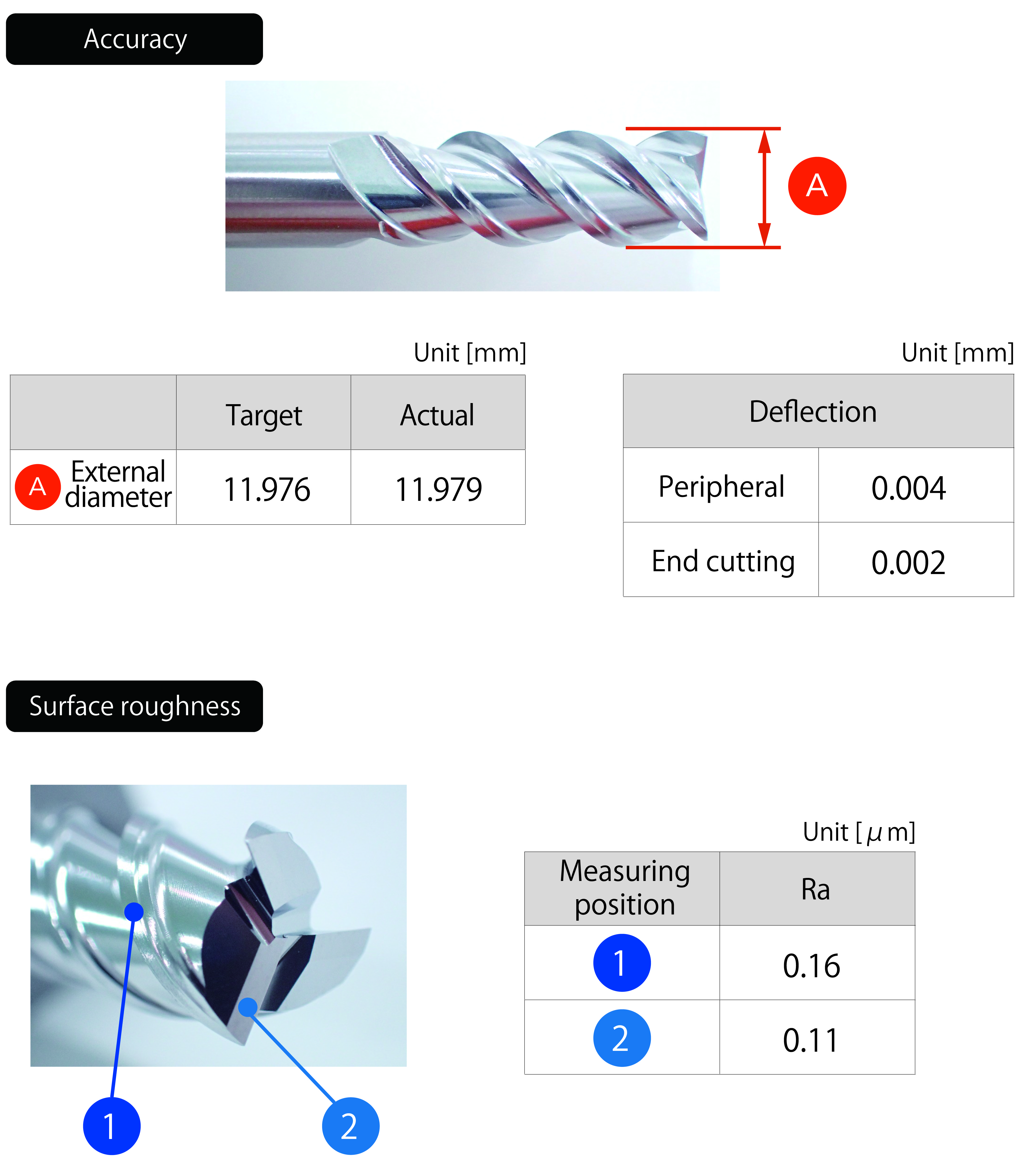

●R accuracy is ±0.005mm (R accuracy is based on a half value of actual diameter).
●Shank diameter tolerance, high accuracy type, is - 0.001~- 0.003.

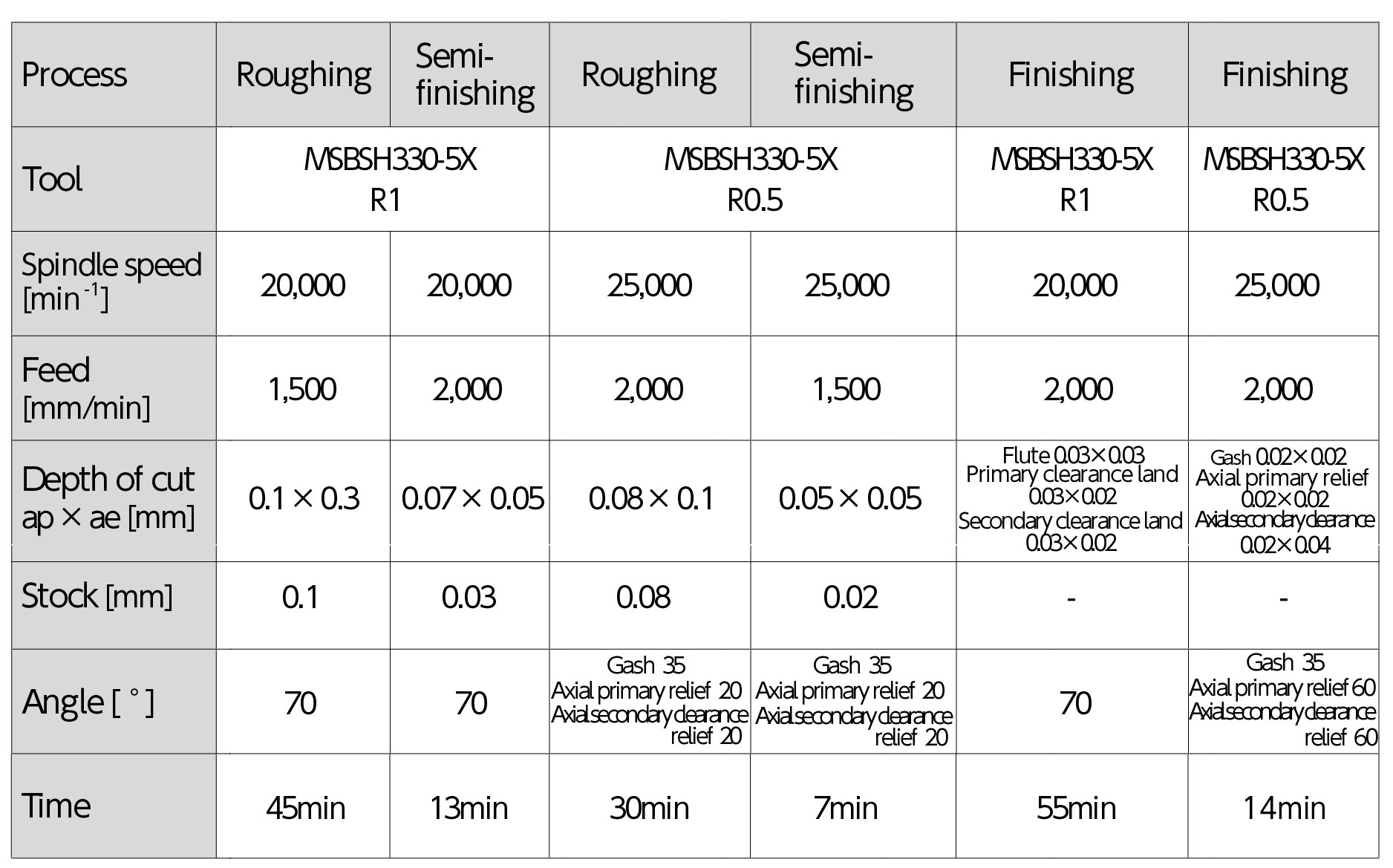

Cutting condition


Related movie

MSBSH330-5X SKH51(59HRC) Square End Mill Shape
