Technology

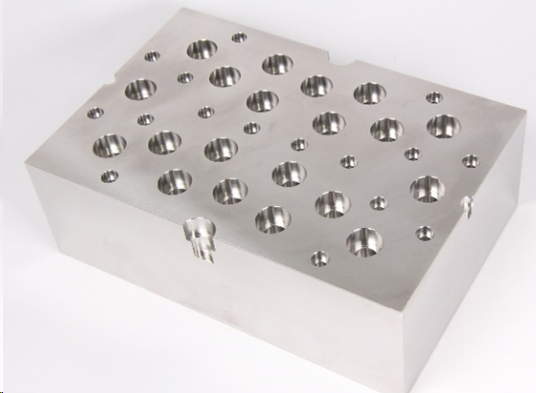

MSUSZ440-LN Two-Step-Holes high efficiency machining

Work material: SUS304
Work size: 150x100mm
Coolant: Water-soluble fluid
Machining time: 27min 9sec

Tool



MSUSZ440-LN



●Unequal flute spacing,unequal helix angle and high rigid end profile design to minimize chatter realize high efficient machining.
●Newly developed special edge profile increase the multi-functional performance of side milling,slot milling and drilling on stainless steels.
●Optimized high heat-resistance MUGEN COATING PREMIUM to realize stable long time machining.
●Long neck type prevent interference with work material,the effective length lined up with L/D=3 to 5.

Cutting condition

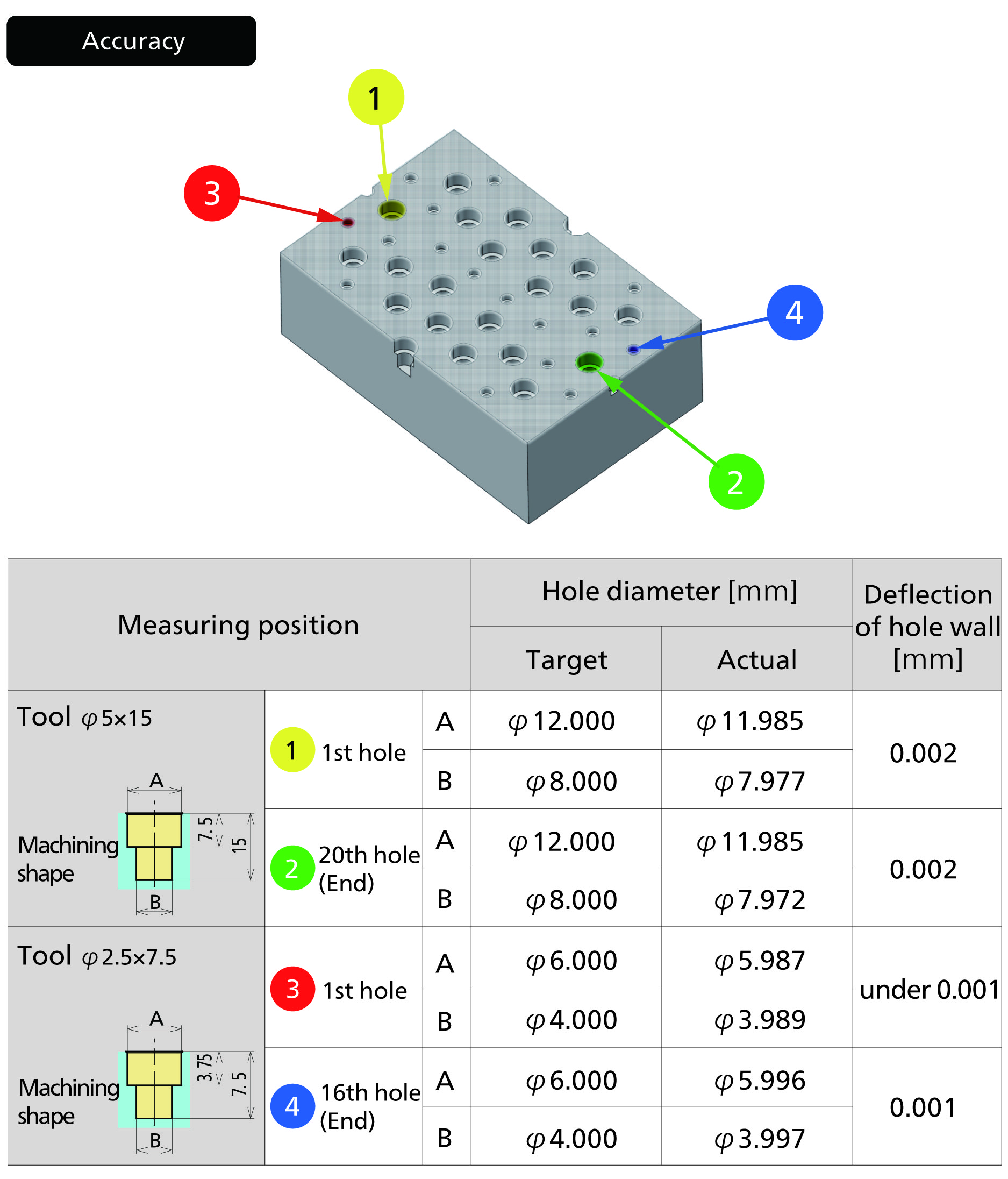

Result
