Technology

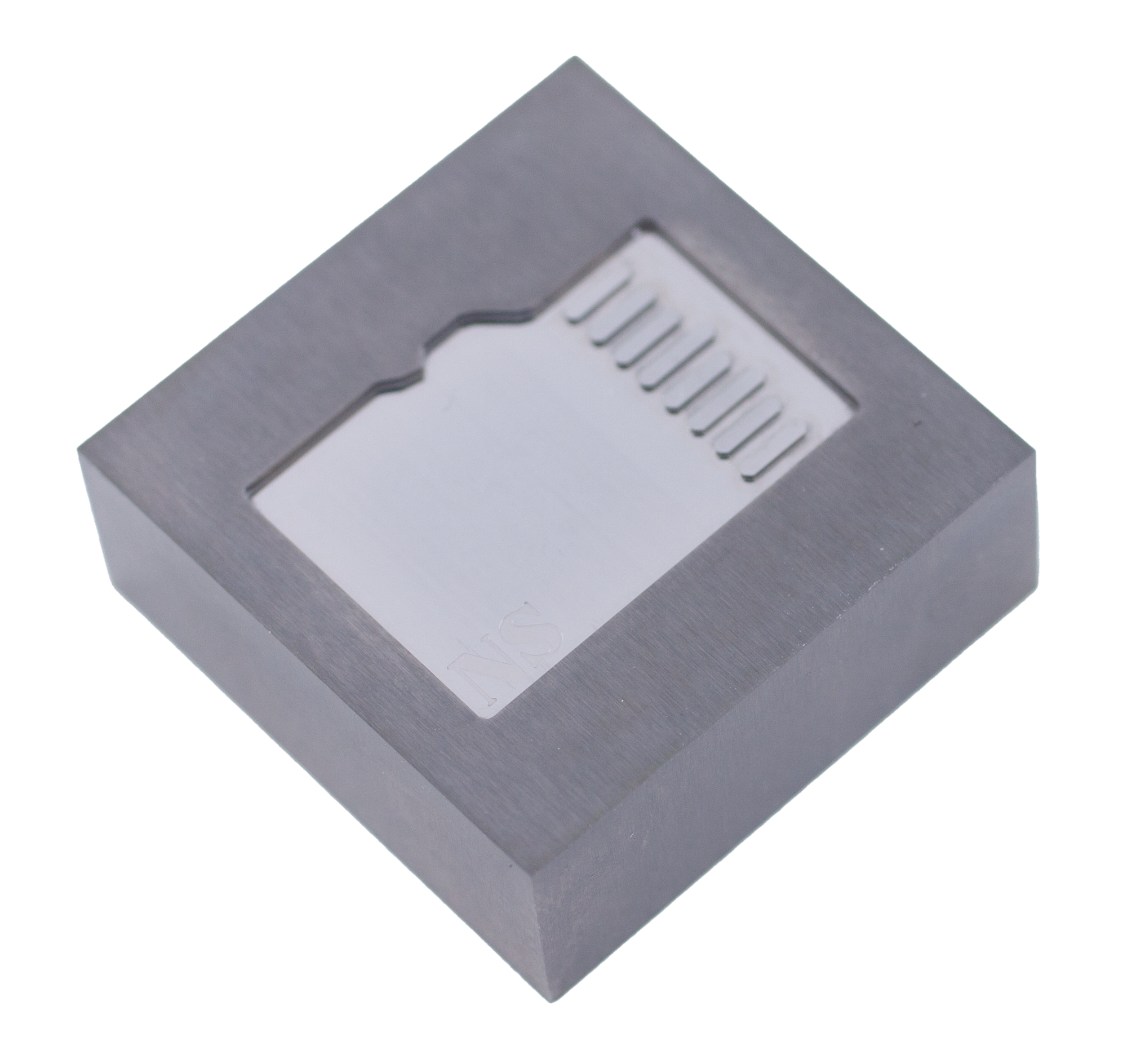

PCDSE SD Card Mold

Work material: Cemented Carbide                     (92.5HRA)
Work size: 20x20 mm
Machining depth: 0.415mm
Coolant: Water-insoluble fluid
Machining time: 24hr 30min

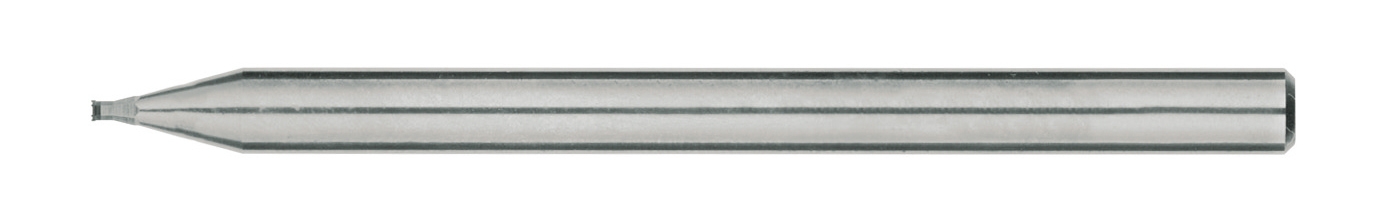

Tool



PCDSE



●Fine and stable milling surface realized on cemented carbide material.
●Possible to get the nano-level surface roughness required on ultra-high precision machining.
●NS original flute design of cutting edge enabled a strong resistance against wear and chipping.

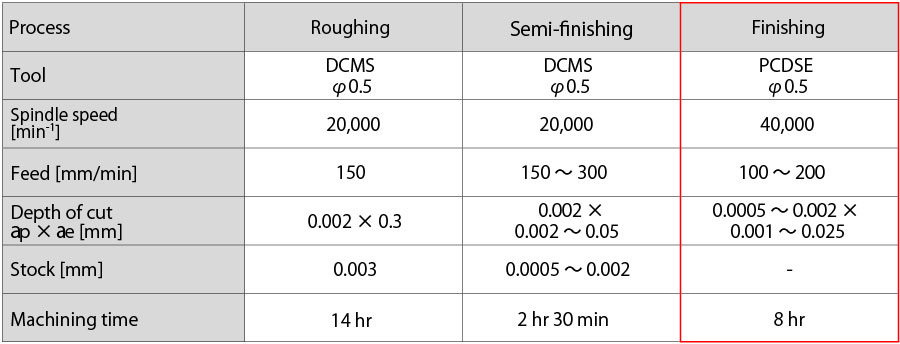

Cutting condition

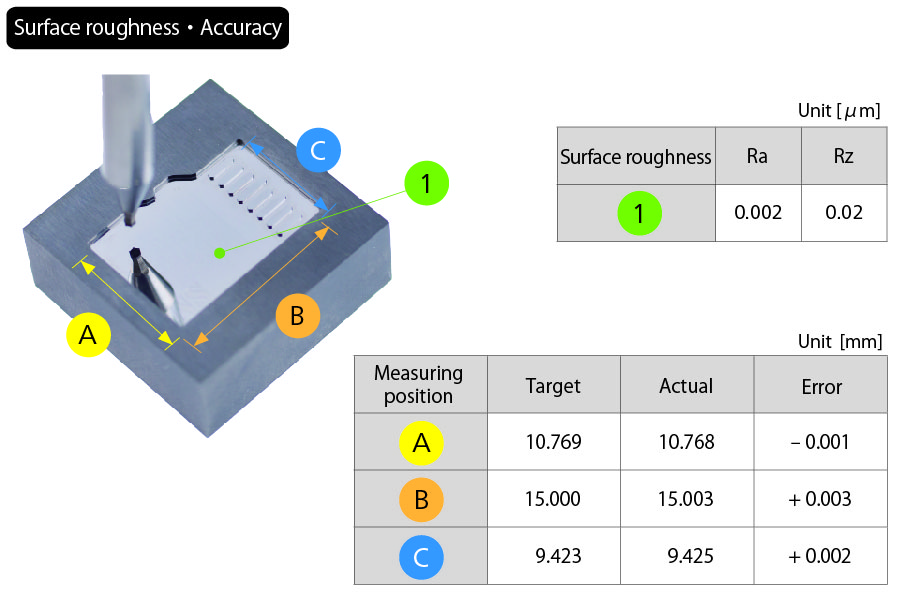

Result
