Technology

MRBTNH345 Valve Body Vol.2

Work material: DAC-S(44HRC)
Work size: 80x80 mm
Machining depth: 30mm
Coolant: Oil mist
Machining time: 35hr 37min

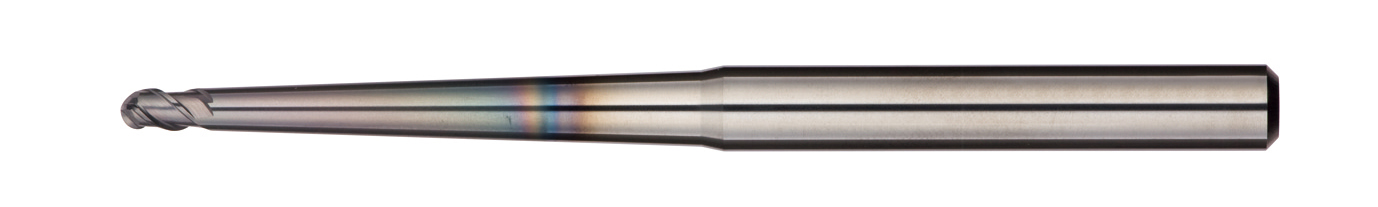

Tool



MRBTNH345



●Higher rigidity brought by taper neck than existing long neck.
●MUGEN COATING PREMIUM because of high heat resistance,realized long tool life for hardened steels.
●High effective machining achieved by NS original 3-flute design.

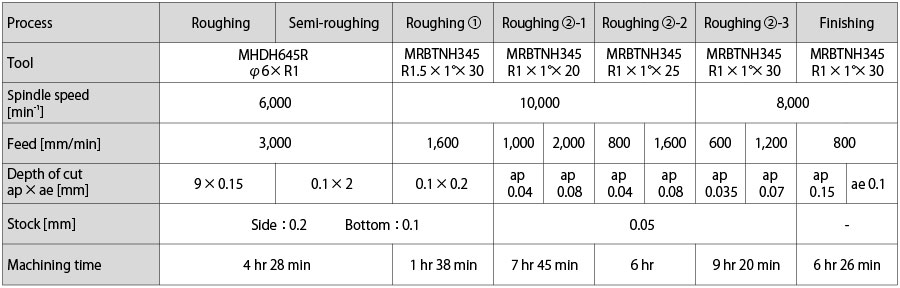

Cutting condition

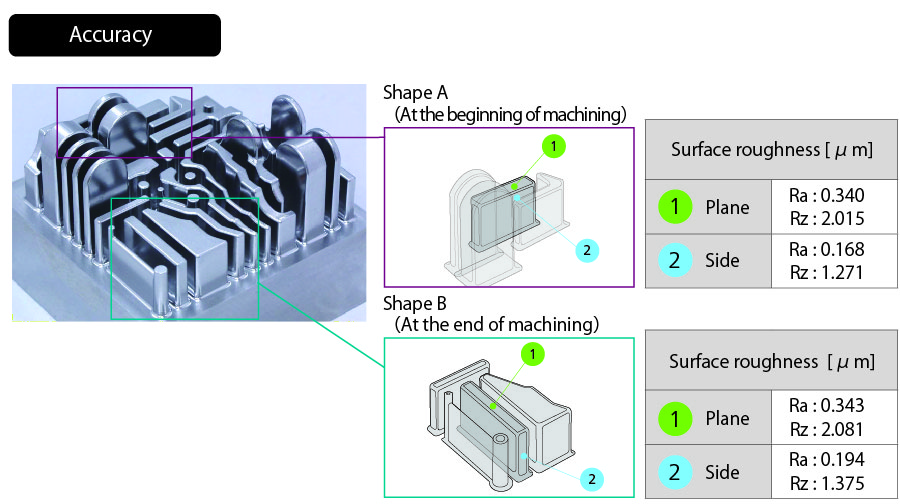

Result
