MUGEN COATING PREMIUM Plus
3-Flute Ball End Mill for 5-axis Machining
MSBSH330-5X
● 3-flute high rigidity ball design conforms features of 5-axis machine to reduce total manufacturing cost with high precision and high efficiency machining.

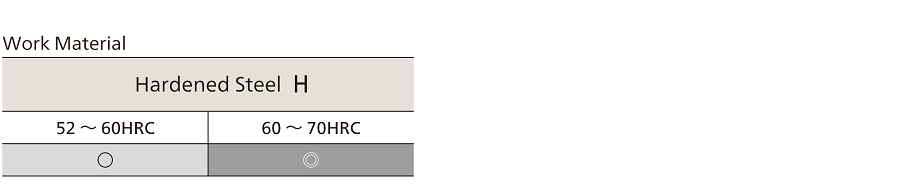

● Even hardened steel of 45 to 70HRC can be machining with long tool life and high efficiency.
● By adopting positive cutting edge for carbide material emphasized breakage resistance that suppresses chattering by 3-flute and unequal flute.
● R accuracy is ±0.005mm (R accuracy is based on a half value of actual diameter).
● Shank diameter tolerance, high accuracy type, is - 0.001～- 0.003.
Size details please Click
Feature
3-flute with unequal flute spacing reduces chattering and realizes high feed.In addition, adopt positive cutting edge to carbide material with fracture resistance ability to reduce cutting load.
| Unequal flute spacing to reduce chattering | Positive cutting edge | |
|---|---|---|
|
|
|
Specialized neck design for 5-axis machining, andΦ6 shank even for the smaller diameter suppress a tool deflection excellently.
| Tool design for high rigidity to maximize advantages of 5-axis machining | Suppressing the amount of deflection | |
|---|---|---|
|
|
|
Machining case
