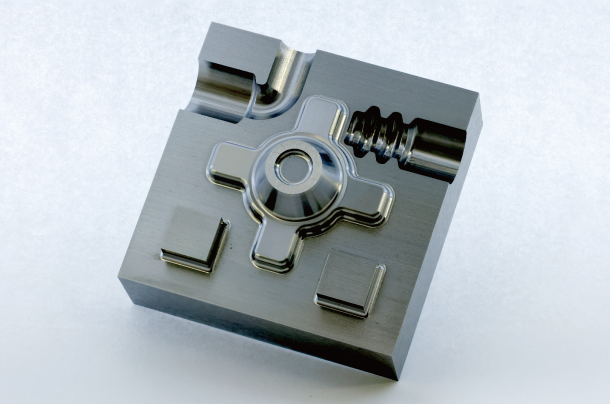

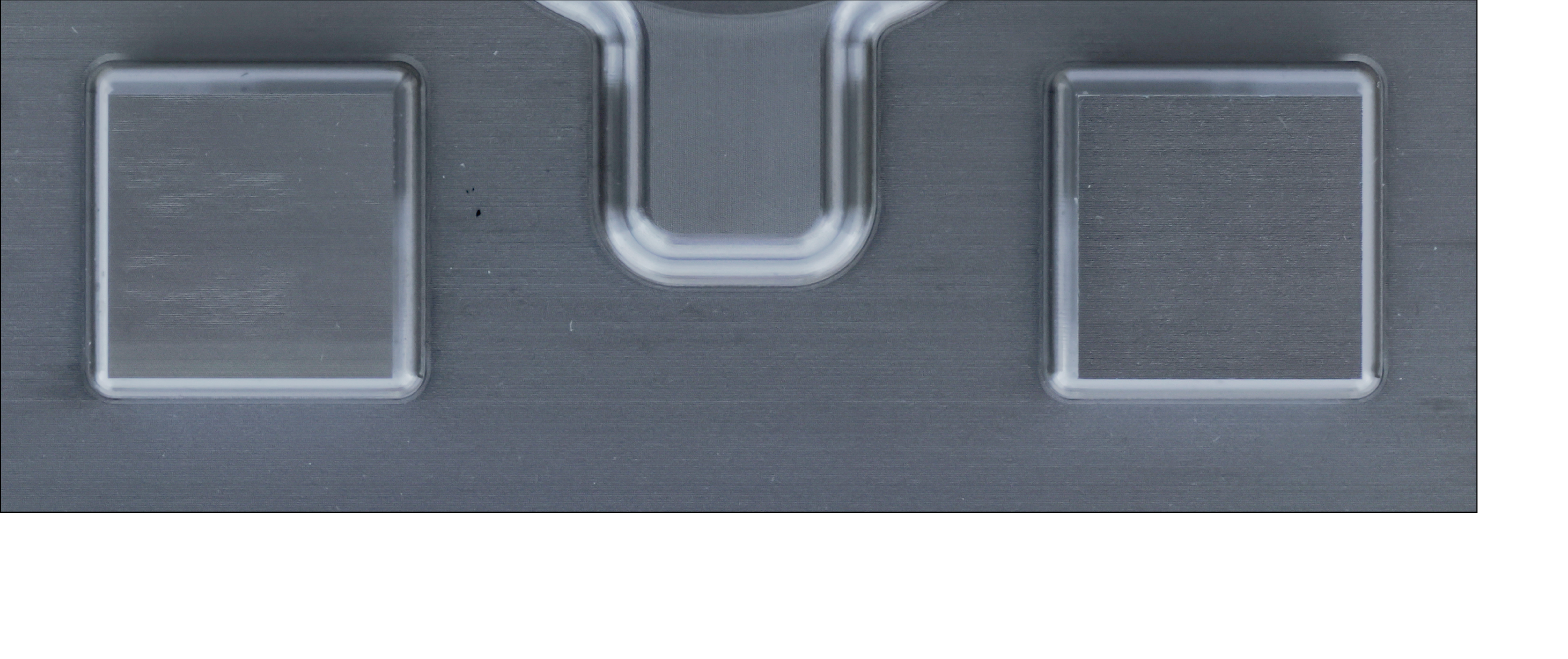

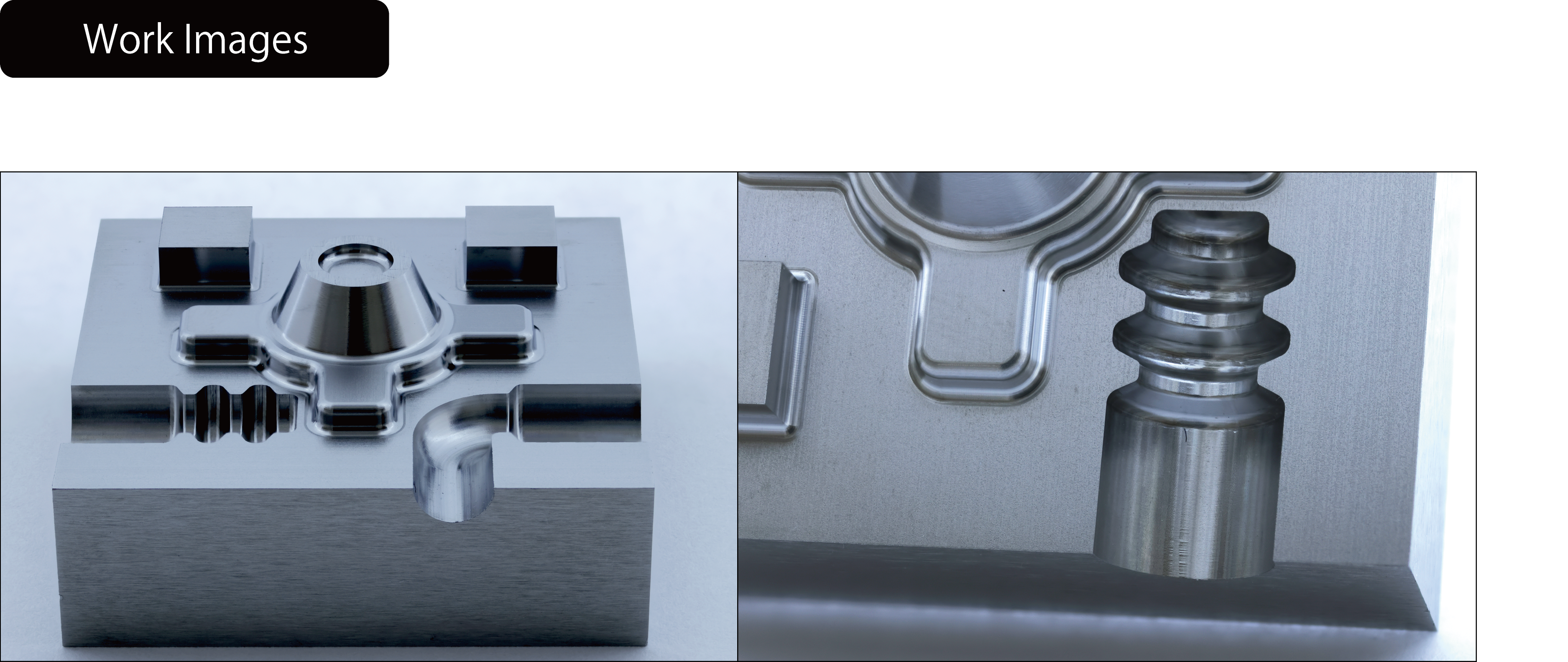

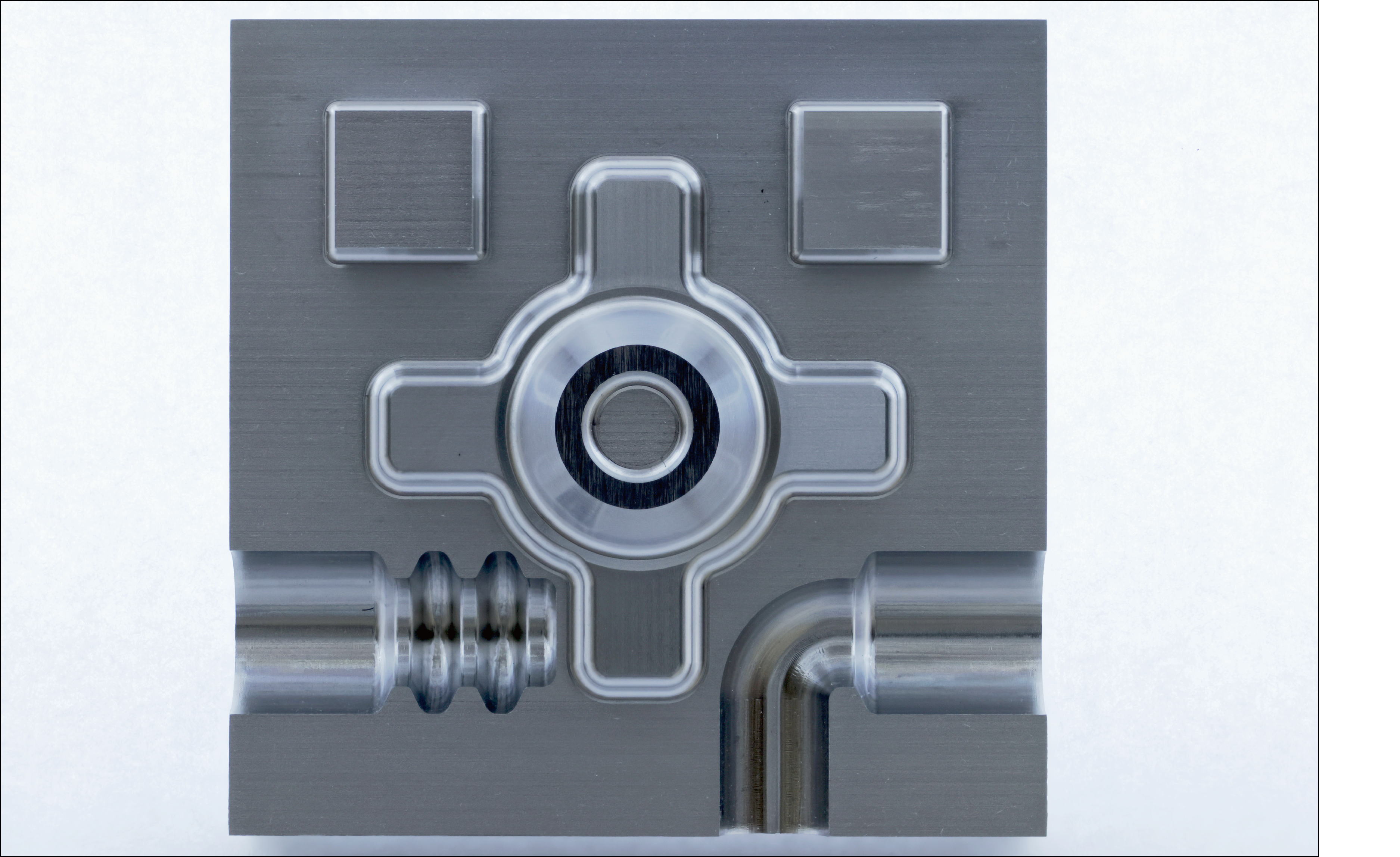

SSPB320 Composite Press Mold
Work material: YXR7 (64HRC)
Work size: 30×30×15mm
Coolant: Oil Mist
Machining time: 3hr28min
Tool

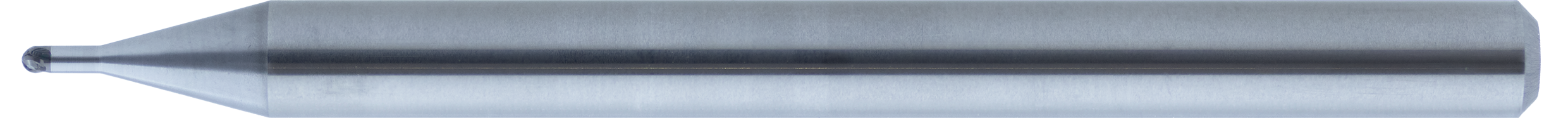

SSPB320
● Adopt spiral ball shape to improve sharpness of cutting edge.
● 3-flute shape from R0.1 enables high efficiency machining even with small diameter.
● Strong back taper shape reduces cutting load and chattering.
MRBSH330
●High-efficiency 3-flute ball end mill optimizes a shape of central edge and enables high depth of cutting.
●Even hardened steel of 60 to 70HRC can be machining with long tool life and high efficiency.
●Shank diameter tolerance，high accuracy type，is - 0.001mm / - 0.003mm.

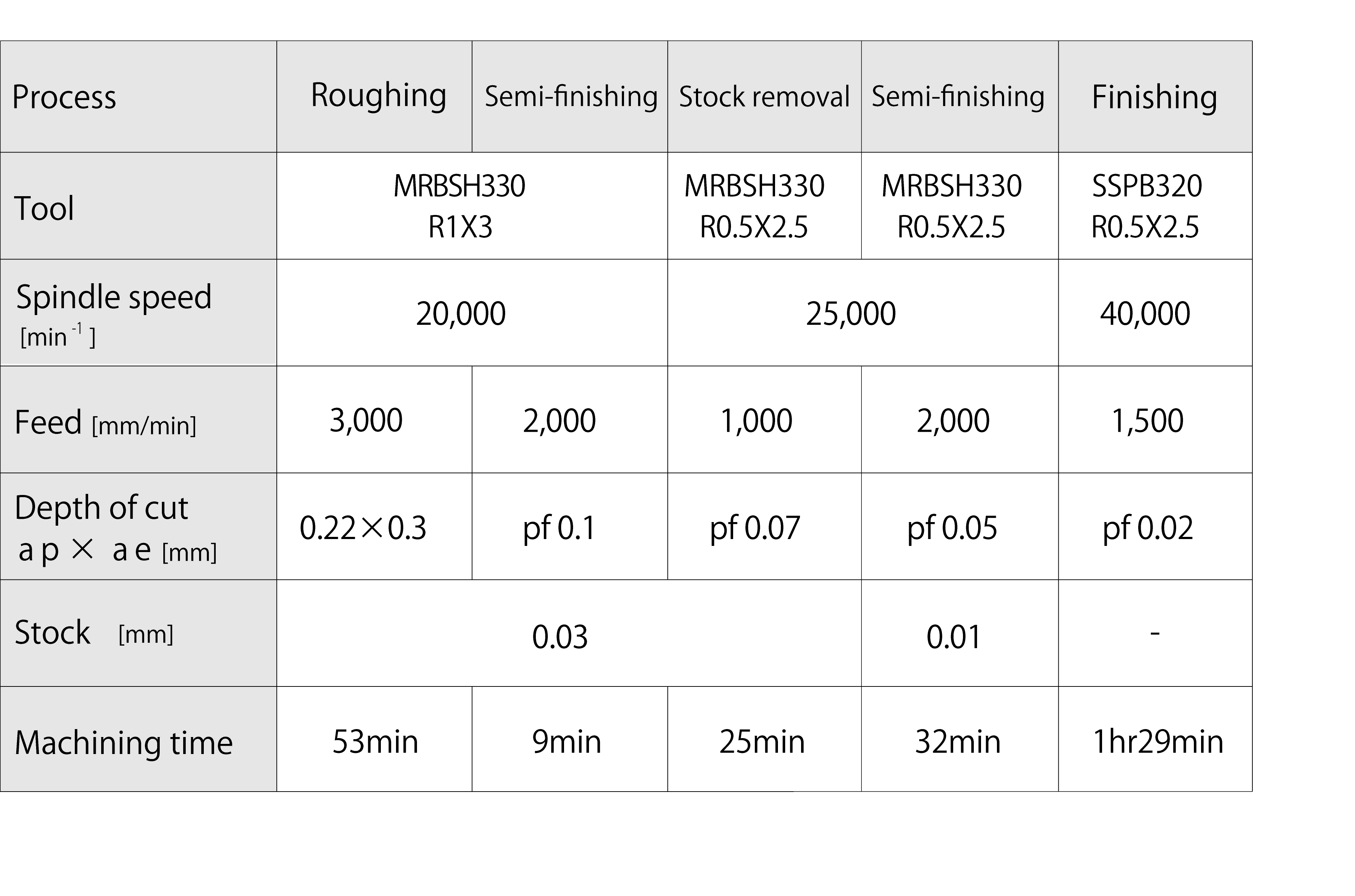

Cutting Condition

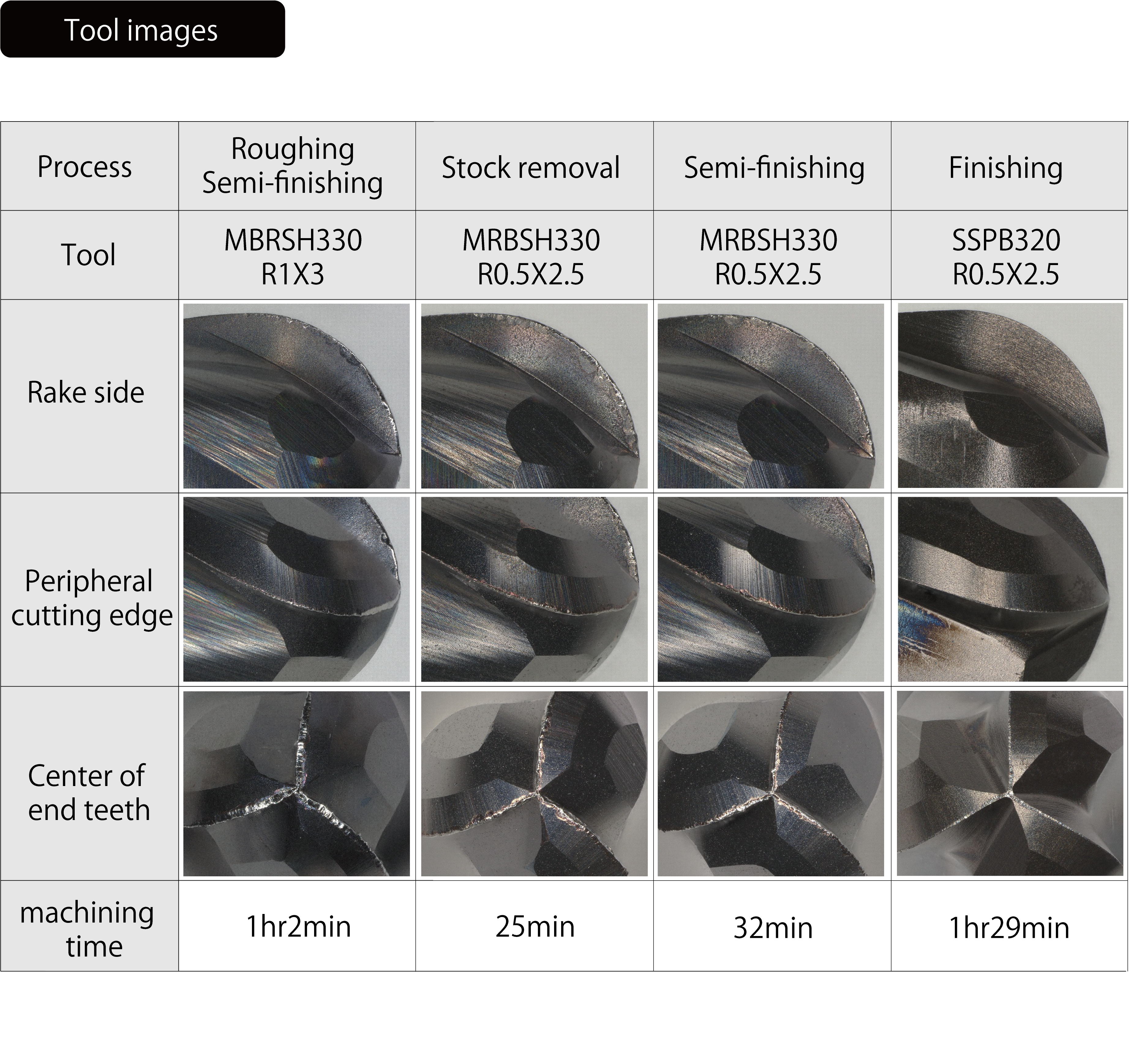

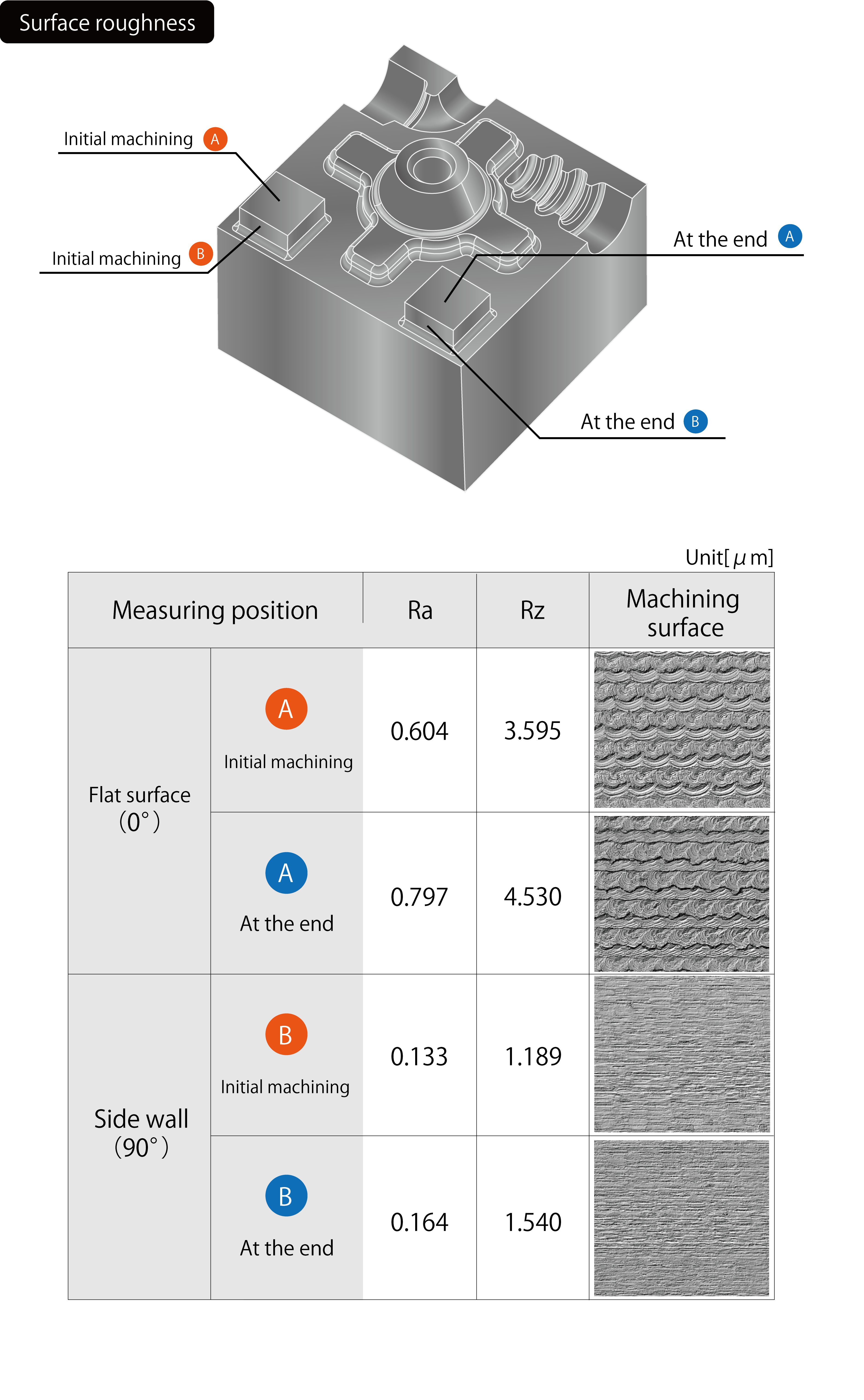

Result
