Technology

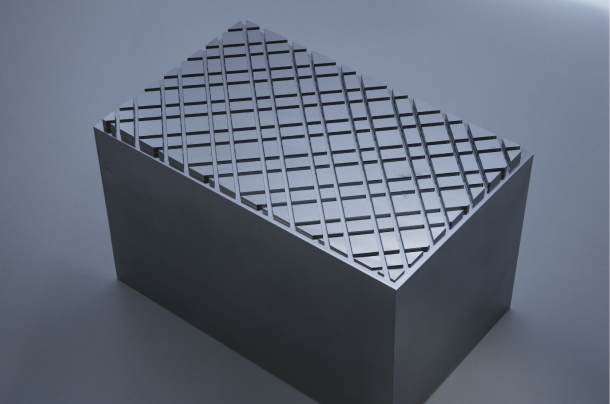

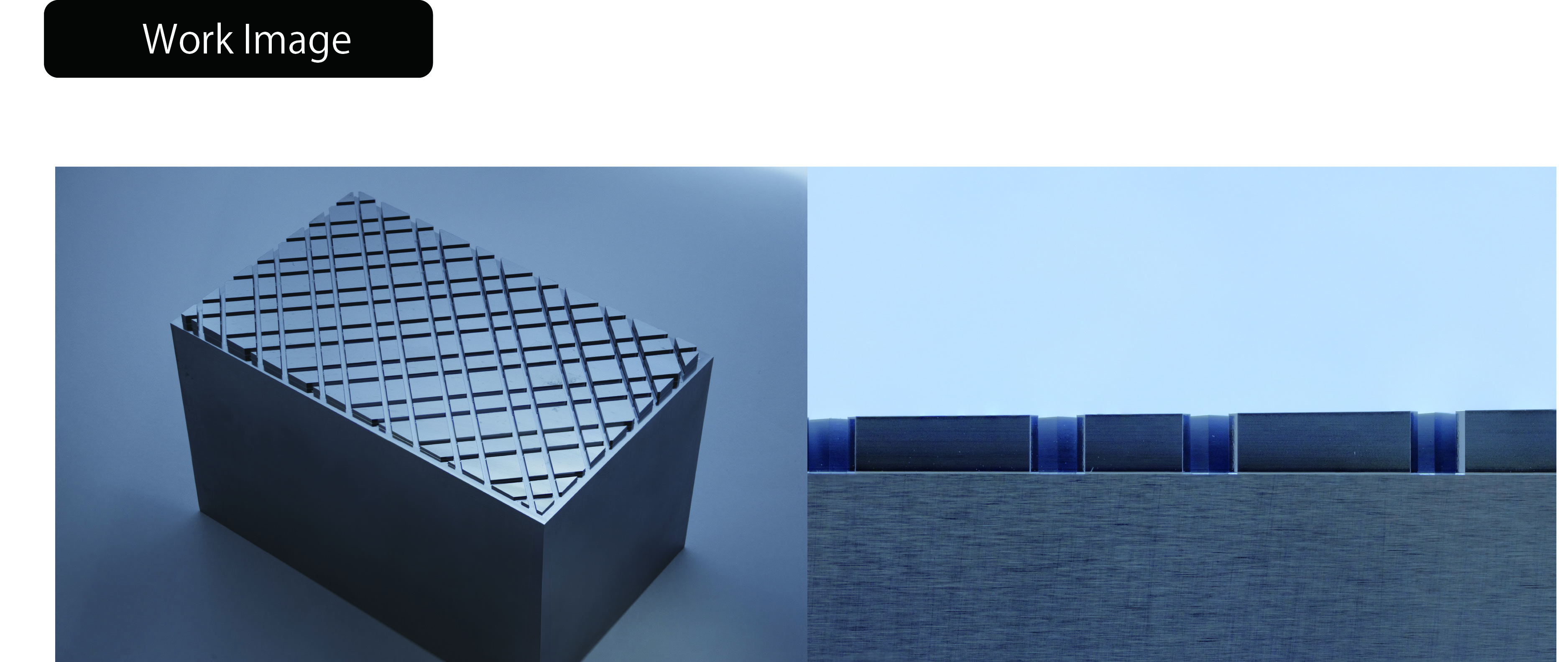

SSR400 Tartan Check Pattern Slotting
Work material: PD613 (57HRC)
Work size: 50×80×50mm
Max machining depth: 3mm
Coolant: Oil Mist
Machining time: 12hr16min

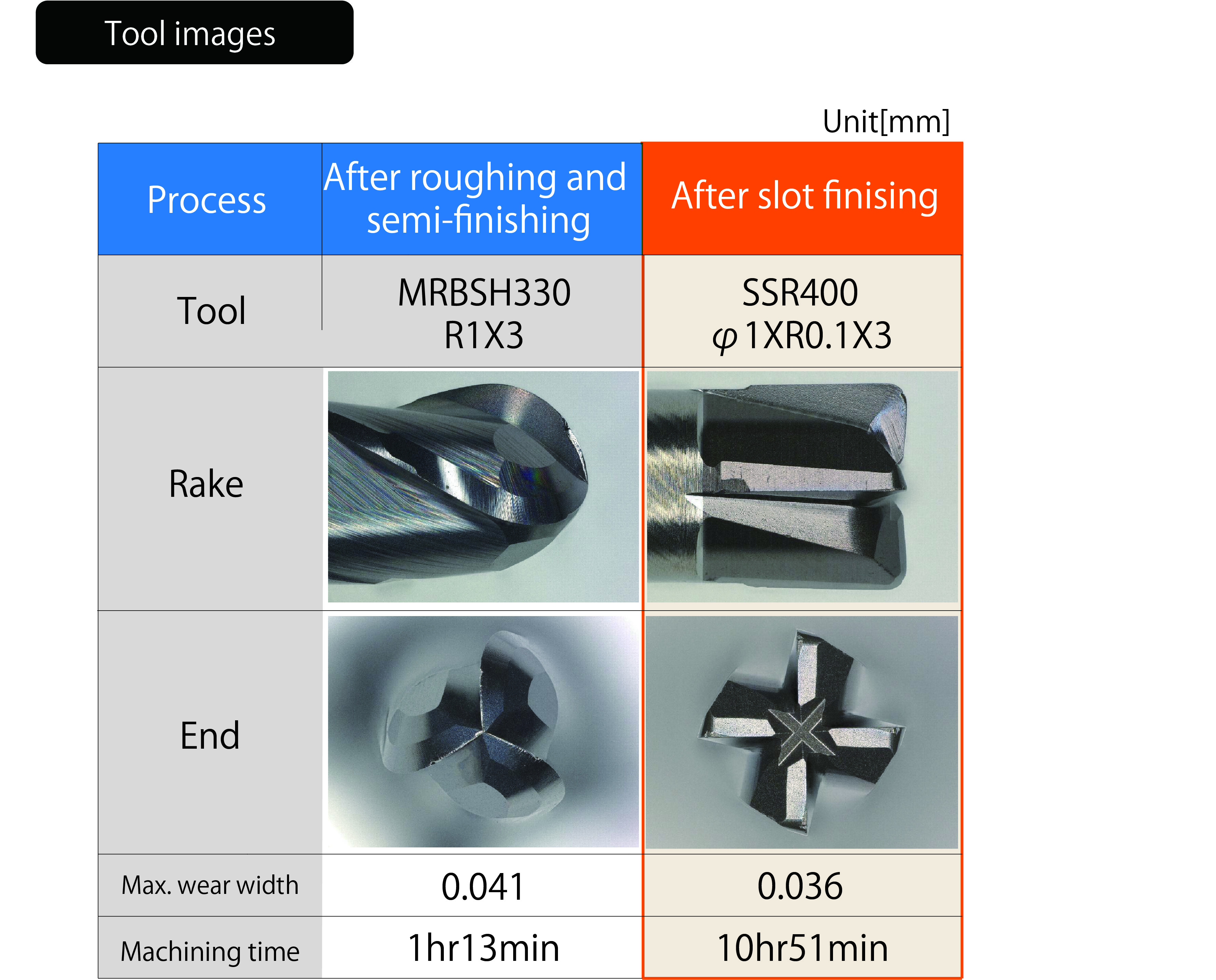

Tool
SSR400
● 4-flute design realizes high feed rate even with small diameter.
● By providing corner radius accuracy of ±2μm and actual outer diameter indication supports high precision machining.
MHDSH445
●4-flute lineup of length of cut expands 2D，3D and 5D.
●MUGEN COATING PREMIUM Plus realizes long tool life even for hardened steel up to 70HRC.
●High rigidity tool design improves machining accuracy.
MRBSH330
●High-efficiency 3-flute ball end mill optimizes a shape of central edge and enables large depth of cutting.
●Even hardened steel of 60 to 70HRC can be machining with long tool life and high efficiency.
●Shank diameter tolerance，high accuracy type，is - 0.001mm / - 0.003mm.

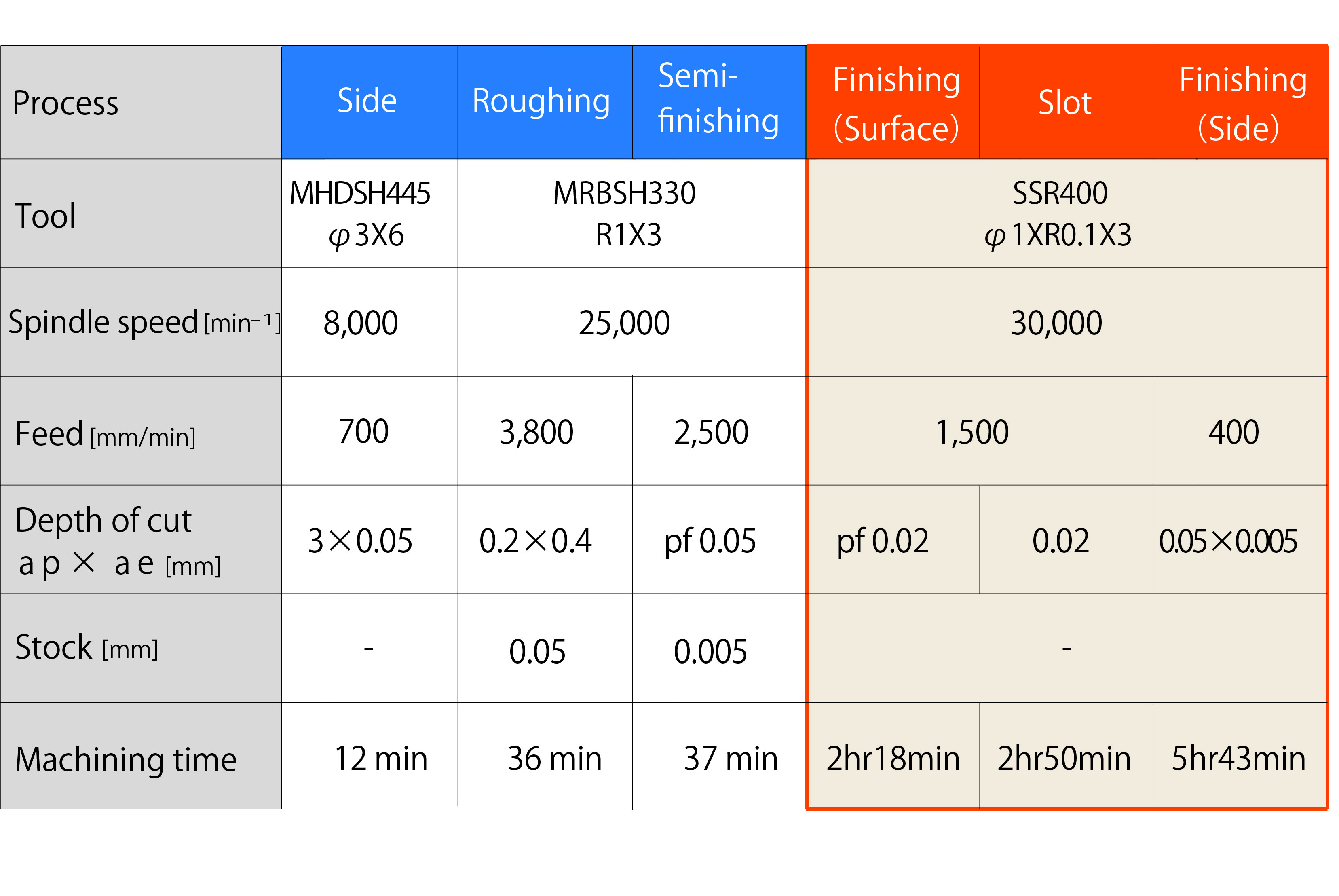

Cutting Condition

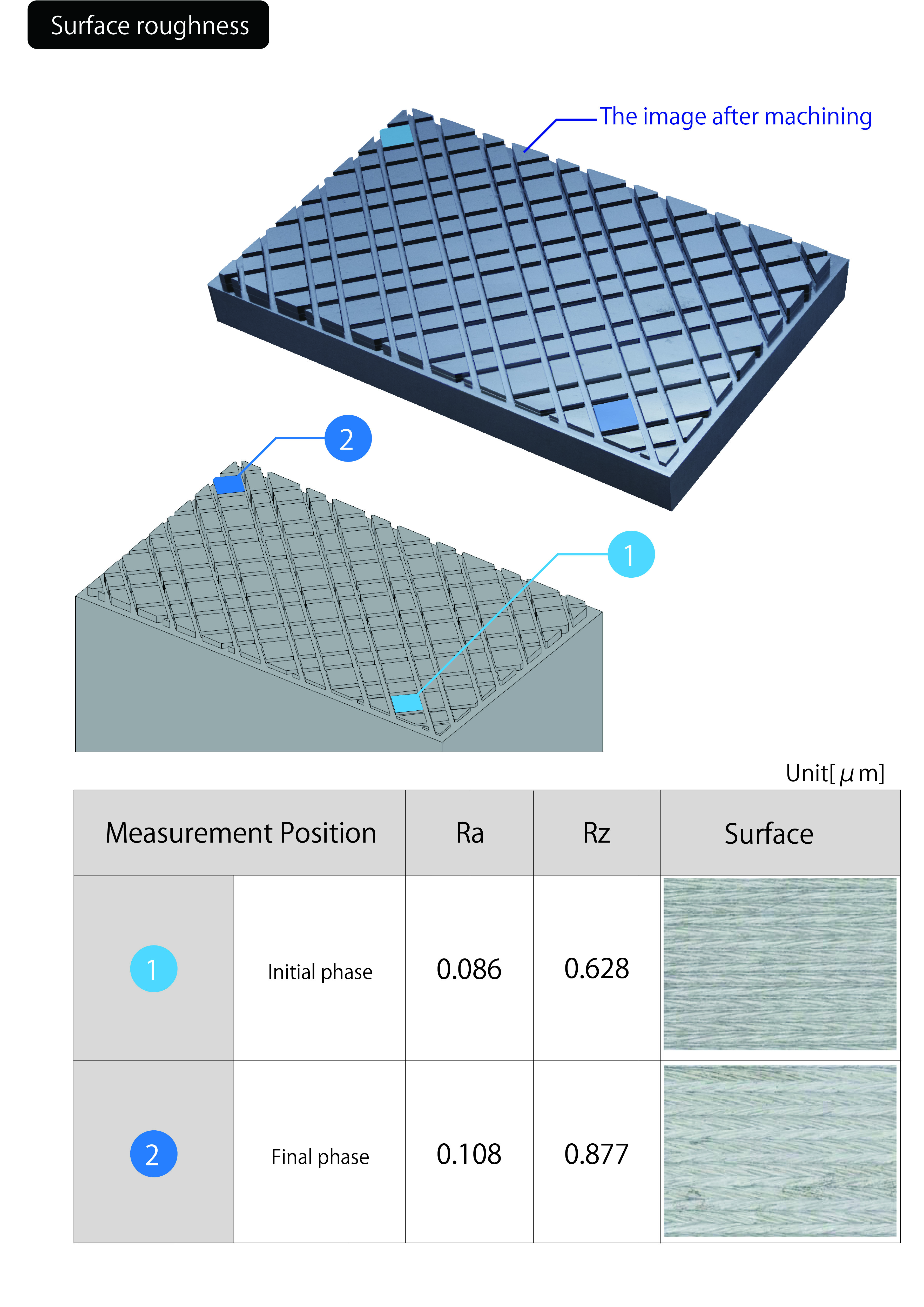

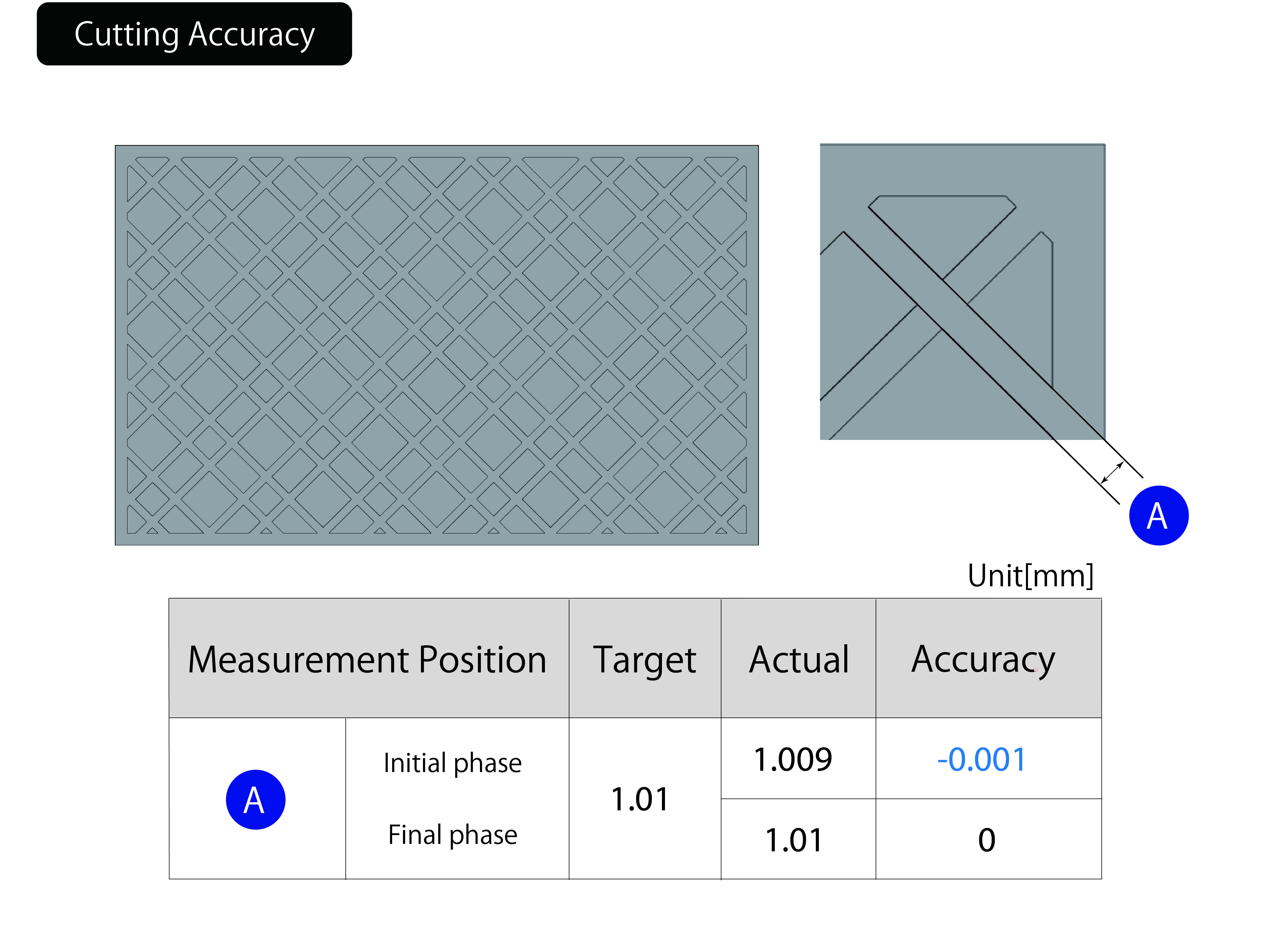

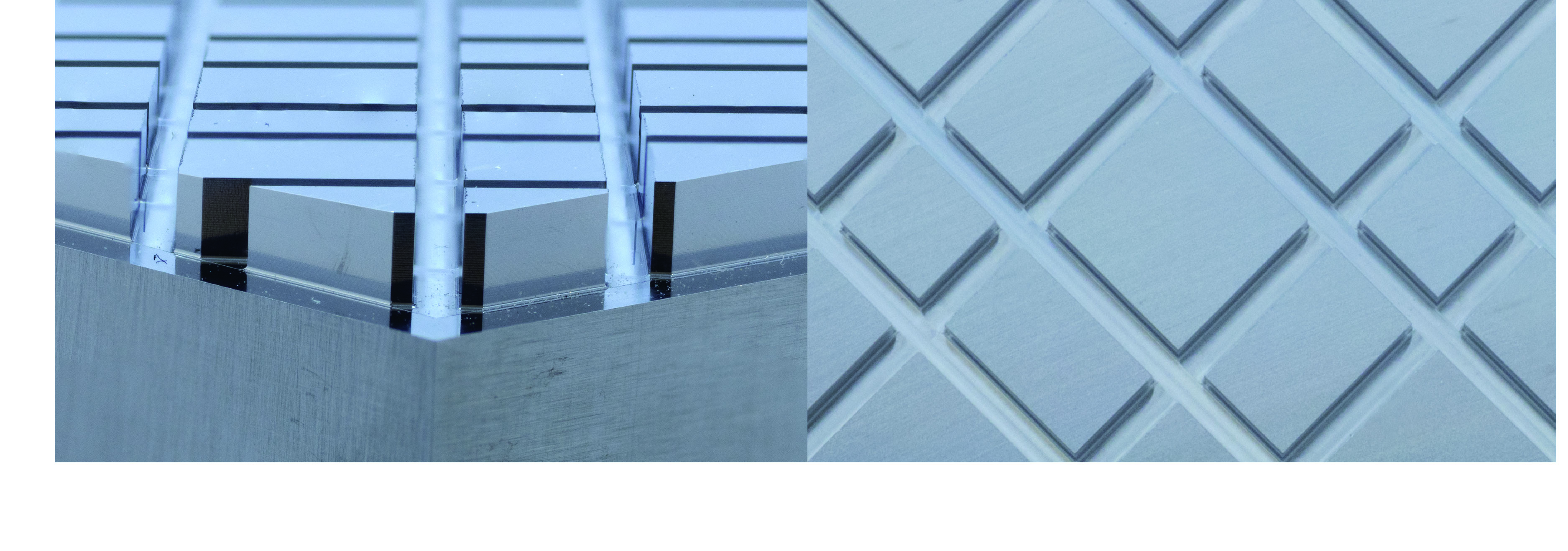

Result
Video
SSR400 Tartan Check Pattern Slotting
