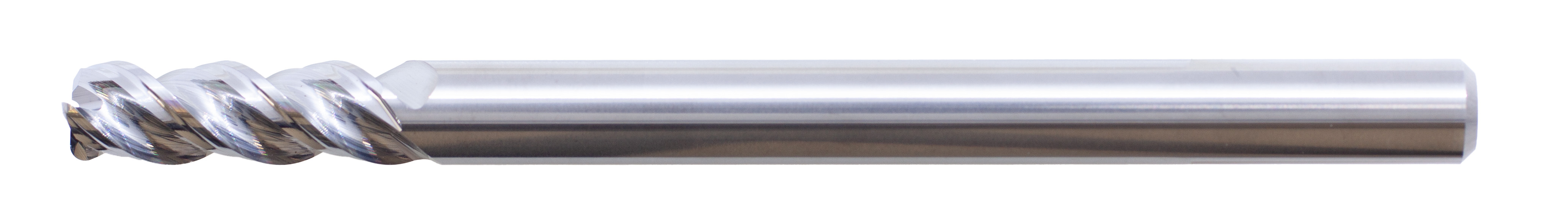

AL3D-345R

Size list

High efficient 3-Flute Corner Radius End Mill for Aluminium L/D=3

Size:Φ2～Φ12

Material
Regular Grain Carbide
Number of Flutes
3 Flutes
Helix Angle
45°
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling
Applications
Pulunging Milling

DHR237R

Size list

Long Neck Corner Radius End Mill for Copper Electrode

Size:Φ0.2～Φ6

Coating
DLC COATING
Material
Micro Grain Carbide
Number of Flutes
2 Flutes
Helix Angle
37.5°
Conner Radius
±0.005
φd h5
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

MHDH445R

Size list

MUGEN COATING PREMIUM 4-Flute Corner Radius End Mill for Hardened Steel

Size:Φ3～Φ4

Coating
MUGEN COATING PREMIUM
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 65HRC
Number of Flutes
4 Flutes
Helix Angle
45°
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

MHDH645R

Size list

MUGEN COATING PREMIUM 6-Flute Corner Radius End Mill for Hardened Steel

Size:Φ5～Φ12

Coating
MUGEN COATING PREMIUM
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 65HRC
Number of Flutes
6 Flutes
Helix Angle
45°
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

MHR230R

Size list

MUGEN COATING 2-Flute Long Neck Corner Radius End Mill

Size:Φ0.2～Φ6

Coating
MUGEN COATING
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 52HRC
Number of Flutes
2 Flutes
Helix Angle
30°
Conner Radius
±0.005（D≦2.5）
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

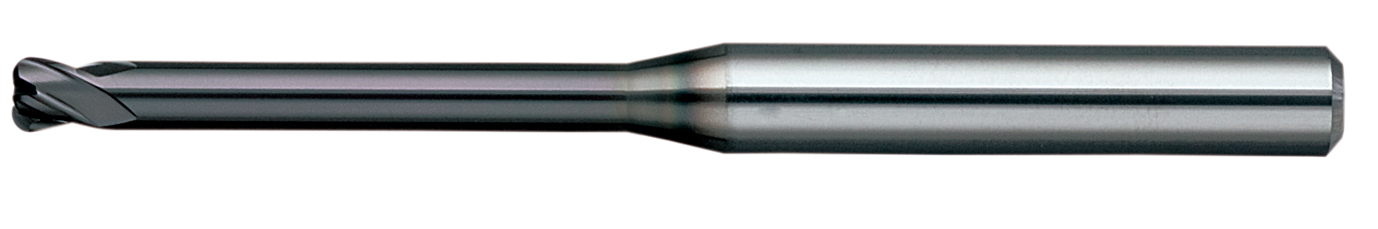

MHR430R

Size list

MUGEN COATING 4-Flute Long Neck Corner Radius End Mill

Size:Φ1～Φ6

Coating
MUGEN COATING
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 52HRC
Number of Flutes
4 Flutes
Helix Angle
30°
Conner Radius
±0.005（D≦2.5）
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

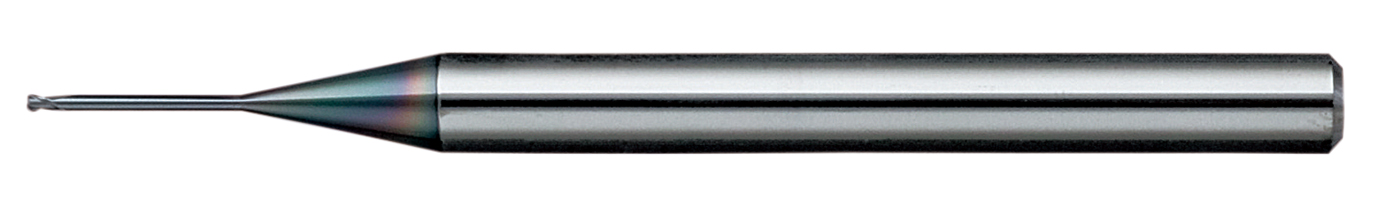

MHRH230R

Size list

MUGEN COATING PREMIUM 2-Flute Long Neck Corner Radius End Mill for Hardened Steel

Size:Φ0.2～Φ0.9

Coating
MUGEN COATING PREMIUM
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 65HRC
Number of Flutes
2 Flutes
Helix Angle
30°
Conner Radius
±0.005
φd h5
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

MHRH430R

Size list

MUGEN COATING PREMIUM 4-Flute Long Neck Corner Radius End Mill for Hardened Steel

Size:Φ0.1～Φ6

Coating
MUGEN COATING PREMIUM
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 65HRC
Number of Flutes
4 Flutes
Helix Angle
30°
Conner Radius
±0.003（D≦0.15）&
±0.005（0.15<D≦2.5）
φd - 0.001/- 0.003（D≦0.15）&
h5（0.15<D）
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

MHRSH430RSF

Size list

MUGEN COATING PREMIUM Plus 4-Flute Long Neck Corner Radius End Mill with short shank for Hardened Steel and High Accuracy Cutting

Size:Φ0.1～Φ6

Coating
MUGEN COATING PREMIUM Plus
Material
Super Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 70HRC
Number of Flutes
4 Flutes
Helix Angle
30°
φd - 0.001/- 0.003
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

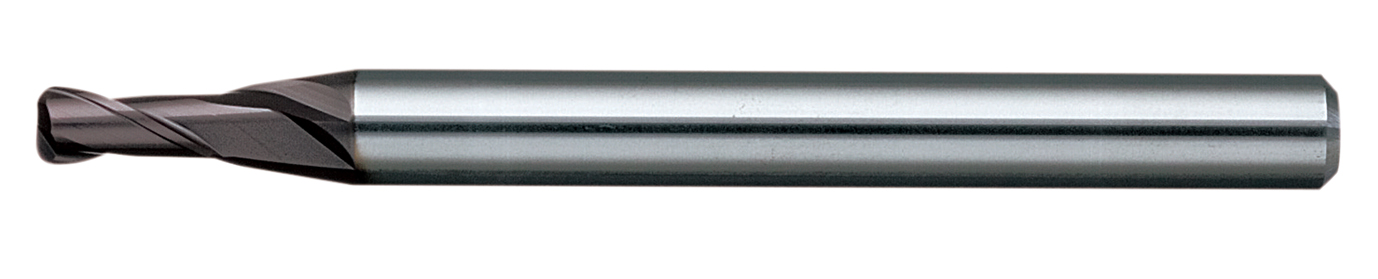

MSRS230

Size list

MUGEN COATING 2-Flute Corner Radius End Mill

Size:Φ1～Φ6

Coating
MUGEN COATING
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 52HRC
Number of Flutes
2 Flutes
Helix Angle
30°
Conner Radius
±0.005（D≦2.5）
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

MSRS430

Size list

MUGEN COATING 4-Flute Corner Radius End Mill

Size:Φ1～Φ12

Coating
MUGEN COATING
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 52HRC
Number of Flutes
4 Flutes
Helix Angle
30°
Conner Radius
±0.005（D≦2.5）
Applications
Side Milling
Applications
Face Milling

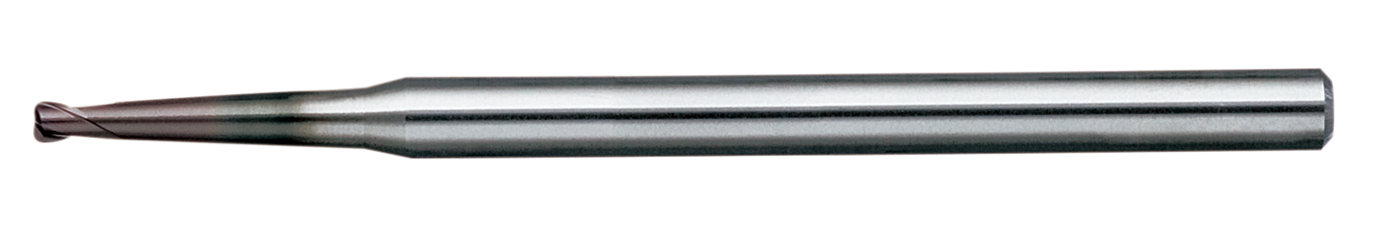

MSTNR230

Size list

MUGEN COATING 2-Flute Long Taper Neck Corner Radius End Mill

Size:Φ0.2～Φ3

Coating
MUGEN COATING
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 52HRC
Number of Flutes
2 Flutes
Helix Angle
30°
Conner Radius
±0.005
φd h5
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

MSX440

Size list

MUGEN COATING Power Corner Radius End Mill

Size:Φ3～Φ20

Coating
MUGEN COATING
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 40HRC
Number of Flutes
4 Flutes
Helix Angle
35°/38°
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

MSXH440R

Size list

MUGEN COATING PREMIUM Power Corner Radius End Mill

Size:Φ3～Φ12

Coating
MUGEN COATING PREMIUM
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 40HRC
Number of Flutes
4 Flutes
Helix Angle
40°/42°
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

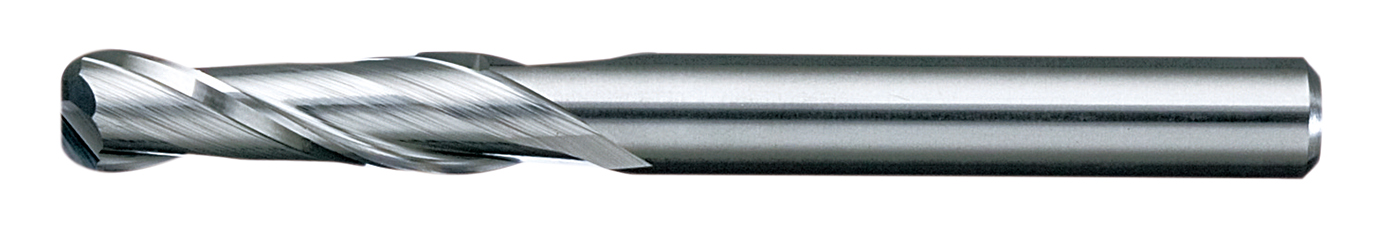

NSR-2

Size list

2-Flute Corner Radius End Mill

Size:Φ1～Φ20

Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 40HRC
Number of Flutes
2 Flutes
Helix Angle
30°
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling

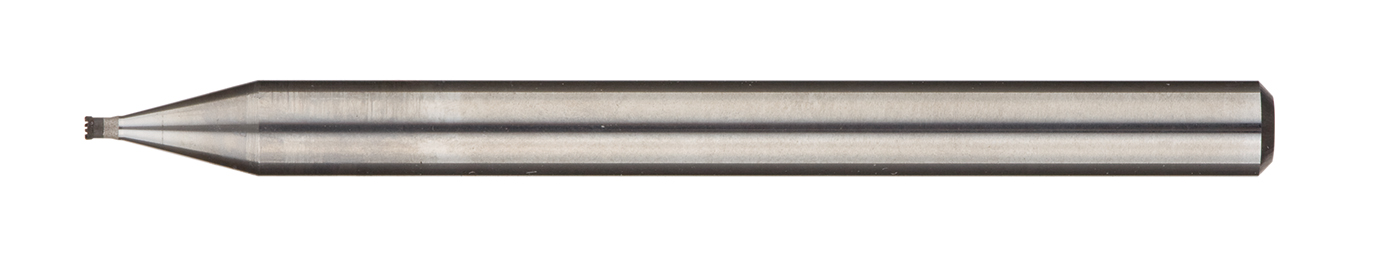

PCDRS

Size list

PCD Corner Radius End Mill

Size:Φ0.3～Φ1

Material
Polycrystalline Diamond
Cutting Possibility of Work Material Hardness
Up to 92.5HRA
Number of Flutes
2 Flutes · 4 Flutes · 6 Flutes
Helix Angle
0°
Conner Radius
±0.005
φd h3
Applications
Face Milling

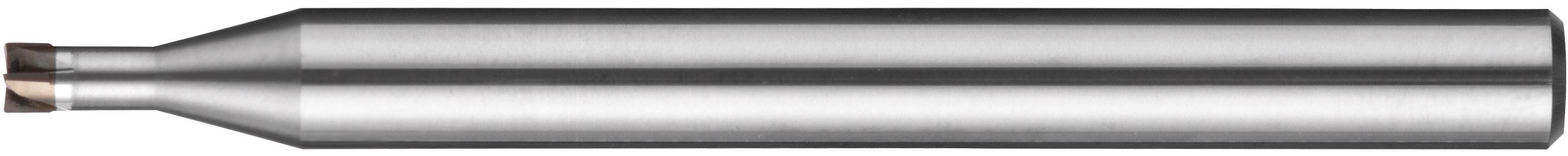

SHPR400

Size list

CBN Super High Precision Corner Radius End Mill

Size:Φ0.1～Φ3

Material
CubicBoron Nitride
Cutting Possibility of Work Material Hardness
Up to 70HRC
Number of Flutes
4 Flutes
Helix Angle
0°
Conner Radius
±0.002
φd - 0.001/- 0.003
Applications
Slot Milling
Applications
Face Milling

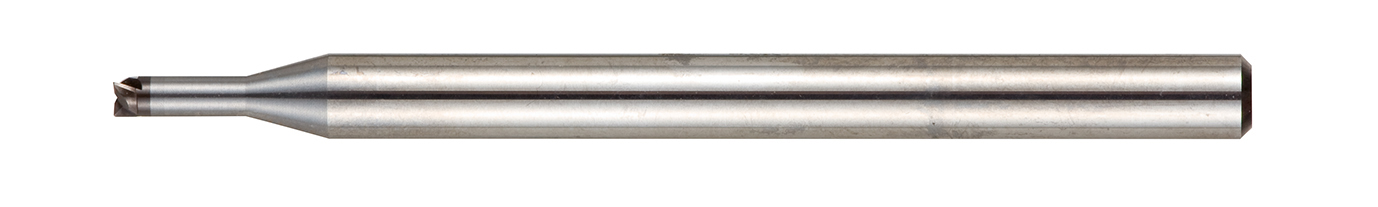

SHR320

Size list

CBN High Efficient Corner Radius End Mill

Size:Φ0.5～Φ2

Material
CubicBoron Nitride
Cutting Possibility of Work Material Hardness
Up to 70HRC
Number of Flutes
3 Flutes
Helix Angle
20°
Conner Radius
±0.005
φd h4
Applications
Slot Milling
Applications
Face Milling

SSF120

Size list

CBN Super Surface End Mill

Size:Φ0.2～Φ2

Material
CubicBoron Nitride
Cutting Possibility of Work Material Hardness
Up to 70HRC
Number of Flutes
1 Flutes
Helix Angle
-20°
Conner Radius
±0.005
φd h4
Applications
Face Milling

SSR200

Size list

CBN Super Speed Corner Radius End Mill

Size:Φ0.1～Φ2

Material
CubicBoron Nitride
Cutting Possibility of Work Material Hardness
Up to 70HRC
Number of Flutes
2 Flutes
Helix Angle
0°
Conner Radius
±0.002（R≦0.03）&
±0.005（R>0.03）
φd h4
Applications
Slot Milling
Applications
Face Milling

SSR400NEW

Size list

CBN 4-Flute Long Neck Corner Radius End Mill

Size:Φ0.1～Φ3

Material
CubicBoron Nitride
Cutting Possibility of Work Material Hardness
Up to 70HRC
Number of Flutes
4 Flutes
Helix Angle
0°
Conner Radius
±0.002
φd - 0.001/- 0.003
Applications
Slot Milling
Applications
Face Milling

Search by

Search by tool size: Radius End Mill

2. Select Coating/Input Tool Size

[optional]

Coating・Material	MUGEN COATING PREMIUM Plus MUGEN COATING PREMIUM MUGEN COATING MUGEN MICRO COATING X COATING Diamond Coating DLC Coating None Coating cBN (Tool Material) Diamond (Tool Material) To serch Thread Mill or Chamfer Cutter, please select Work Materials. (Work Materials are optional.)
Shank Dia.	Φ3 Shank Under Shank(Dia.＞Shank Dia.)
Outer Diameter	〜
Radius	〜
Dia.	〜
Dia	〜
Length of Cut	〜
Corner Radius	〜
Flute Length	〜
Taper Angle	〜
Under Neck Length	〜
Length of Cut	〜
Taper Angle	〜
Overall Length	〜

Corner Shape: Sharp Edge

3. Select Work Material

[optional]

Uncheck a radio button on its second click.

Carbon Steels	Optimal Compatible
Alloy Steels	Optimal Compatible
Prehardened Steels	Optimal Compatible
Stainless Steel	Optimal Compatible
Aluminium Alloy	Optimal Compatible
Copper	Optimal Compatible
Copper Tungusten	Optimal Compatible
Resin	Optimal Compatible
Graphite	Optimal Compatible
Hard Brittle Material	Optimal Compatible
Titanium Alloy・Heat Resistant Alloy	Optimal Compatible
Hardened Steel (~52HRC)	Optimal Compatible
Hardened Steel (~60HRC)	Optimal Compatible
Hardened Steel (~65HRC)	Optimal Compatible
Hardened Steel (~70HRC)	Optimal Compatible

Re-searchClose

Site Search

Product Search

Search Results

Search by

1. Select Shape

2. Select Coating/Input Tool Size

3. Select Work Material

High efficient 3-Flute Corner Radius End Mill for Aluminium L/D=3

Long Neck Corner Radius End Mill for Copper Electrode

MUGEN COATING PREMIUM 4-Flute Corner Radius End Mill for Hardened Steel

MUGEN COATING PREMIUM 6-Flute Corner Radius End Mill for Hardened Steel

MUGEN COATING 2-Flute Long Neck Corner Radius End Mill

MUGEN COATING 4-Flute Long Neck Corner Radius End Mill

MUGEN COATING PREMIUM 2-Flute Long Neck Corner Radius End Mill for Hardened Steel

MUGEN COATING PREMIUM 4-Flute Long Neck Corner Radius End Mill for Hardened Steel

MUGEN COATING PREMIUM Plus 4-Flute Long Neck Corner Radius End Mill with short shank for Hardened Steel and High Accuracy Cutting

MUGEN COATING 2-Flute Corner Radius End Mill

MUGEN COATING 4-Flute Corner Radius End Mill

MUGEN COATING 2-Flute Long Taper Neck Corner Radius End Mill

MUGEN COATING Power Corner Radius End Mill

MUGEN COATING PREMIUM Power Corner Radius End Mill

2-Flute Corner Radius End Mill

PCD Corner Radius End Mill

CBN Super High Precision Corner Radius End Mill

CBN High Efficient Corner Radius End Mill

CBN Super Surface End Mill

CBN Super Speed Corner Radius End Mill

CBN 4-Flute Long Neck Corner Radius End Mill

Search by

1. Select Shape

2. Select Coating/Input Tool Size

3. Select Work Material
