MHDH445R

MUGEN-COATING PREMIUM 4-Flute Radius End Mill for Hardened Steel

●Realized stably long tool life against high hardened steels (48～65HRC)．
●Corner radius to prevent flute chipping，and high helix angle for cutting sharpness．

  • Material
    Micro Grain Carbide

  • Helix Angle
    45°

  • Cutting Possibility of Work Material Hardness
    Up to 65HRC

  • Coating
    MUGEN-COATING PREMIUM

  • Number of Flutes
    4 Flutes

  • Applications
    Slot Milling

  • Applications
    Side Milling

  • Applications
    Face Milling

  • Corner Shape
    Corner Radius

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide
〜
55HRC		 55HRC
〜
Carbon Steels Titanium
Alloy Steels
/ Tool Steels		 Aluminum
Prehardened
Steels		 Copper
Hardened
Steels		 〜
55HRC		 Plastic
55HRC
〜		 Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code

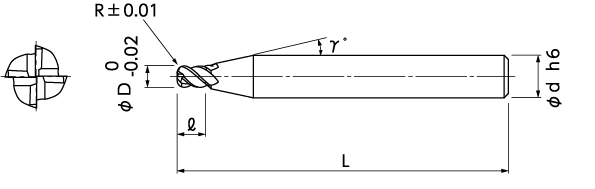

No.		 (D)Dia. (R)Corner Radius (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price		 Quantity Semi-standard
08-00437-03002 3 R0.2 6 12° 6 60 12,500
08-00437-03003 3 R0.3 6 12° 6 60 12,500
08-00437-03005 3 R0.5 6 12° 6 60 12,500
08-00437-04002 4 R0.2 8 12° 6 60 13,500
08-00437-04003 4 R0.3 8 12° 6 60 13,500
08-00437-04005 4 R0.5 8 12° 6 60 13,500
