MHR230R

MUGEN-COATING 2-Flute Long Neck Radius End Mill

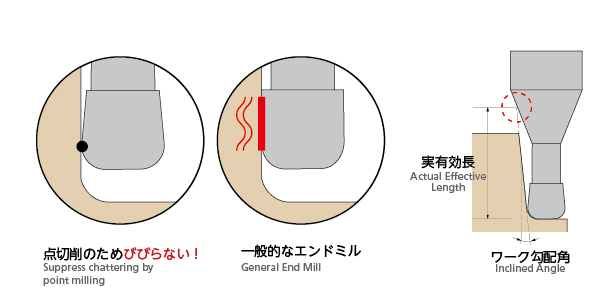

●Minimized chattering by peripheral cutting edge designed for minimal contact to work material.
●Realized high efficiency milling by obtaining larger radial depth of cutting comparing with Ball End Mill.
●Corner R accuracy : ±5μm (2.5D and below)
●Upgraded MUGEN-COATING brings outstanding performance for milling of Prehardened Steels and Copper Electrode as well.

  • Material
    Micro Grain Carbide

  • Helix Angle
    30°

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Coating
    MUGEN-COATING

  • Number of Flutes
    2 Flutes

  • Applications
    Slot Milling

  • Applications
    Side Milling

  • Applications
    Face Milling

  • Corner Shape
    Corner Radius

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.
(D)Dia. (R)Corner Radius (l1)Effective Length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
08-00221-02050 0.2 R0.05 0.5 0.15 0.18 12° 4 45 9,000
08-00220-02001 0.2 R0.05 0.5 0.15 0.18 12° 6 50 10,900
08-00221-02051 0.2 R0.05 1 0.15 0.18 12° 4 45 9,000
08-00220-02002 0.2 R0.05 1 0.15 0.18 12° 6 50 10,900
08-00221-02052 0.2 R0.05 1.5 0.15 0.18 12° 4 45 9,000
08-00221-02053 0.2 R0.05 2 0.15 0.18 12° 4 45 9,000
08-00221-03050 0.3 R0.05 1 0.25 0.28 12° 4 45 8,700
08-00220-03001 0.3 R0.05 1 0.25 0.28 12° 6 50 10,500
08-00221-03051 0.3 R0.05 1.5 0.25 0.28 12° 4 45 8,700
08-00221-03052 0.3 R0.05 2 0.25 0.28 12° 4 45 8,700
08-00220-03002 0.3 R0.05 2 0.25 0.28 12° 6 50 10,500
08-00221-03053 0.3 R0.05 2.5 0.25 0.28 12° 4 45 9,600
08-00221-03054 0.3 R0.05 3 0.25 0.28 12° 4 45 9,600
08-00221-04050 0.4 R0.05 1 0.3 0.37 12° 4 45 5,800
08-00221-04051 0.4 R0.05 1.5 0.3 0.37 12° 4 45 5,800
08-00221-04052 0.4 R0.05 2 0.3 0.37 12° 4 45 5,800
08-00220-04005 0.4 R0.05 2 0.3 0.37 12° 6 50 7,000
08-00221-04053 0.4 R0.05 3 0.3 0.37 12° 4 45 5,800
08-00220-04006 0.4 R0.05 3 0.3 0.37 12° 6 50 7,000
08-00221-04054 0.4 R0.05 4 0.3 0.37 12° 4 45 5,800
08-00220-04007 0.4 R0.05 4 0.3 0.37 12° 6 50 7,000
08-00221-04100 0.4 R0.1 1 0.3 0.37 12° 4 45 5,800
08-00221-04101 0.4 R0.1 1.5 0.3 0.37 12° 4 45 5,800
08-00221-04102 0.4 R0.1 2 0.3 0.37 12° 4 45 5,800
08-00220-04011 0.4 R0.1 2 0.3 0.37 12° 6 50 7,000
08-00221-04103 0.4 R0.1 3 0.3 0.37 12° 4 45 5,800
08-00220-04013 0.4 R0.1 3 0.3 0.37 12° 6 50 7,000
08-00221-04104 0.4 R0.1 4 0.3 0.37 12° 4 45 5,800
08-00220-04012 0.4 R0.1 4 0.3 0.37 12° 6 50 7,000
08-00221-05050 0.5 R0.05 1 0.4 0.46 12° 4 45 4,700
08-00221-05051 0.5 R0.05 2 0.4 0.46 12° 4 45 4,700
08-00220-05005 0.5 R0.05 2 0.4 0.46 12° 6 50 5,700
08-00221-05052 0.5 R0.05 3 0.4 0.46 12° 4 45 4,700
08-00220-05006 0.5 R0.05 3 0.4 0.46 12° 6 50 5,700
08-00221-05053 0.5 R0.05 4 0.4 0.46 12° 4 45 4,700
08-00220-05007 0.5 R0.05 4 0.4 0.46 12° 6 50 5,700
08-00221-05054 0.5 R0.05 5 0.4 0.46 12° 4 45 4,700
08-00220-05008 0.5 R0.05 5 0.4 0.46 12° 6 50 5,700
08-00221-05055 0.5 R0.05 6 0.4 0.46 12° 4 45 4,700
08-00221-05100 0.5 R0.1 1 0.4 0.46 12° 4 45 4,700
08-00221-05101 0.5 R0.1 2 0.4 0.46 12° 4 45 4,700
08-00220-05011 0.5 R0.1 2 0.4 0.46 12° 6 50 5,700
08-00221-05102 0.5 R0.1 3 0.4 0.46 12° 4 45 4,700
08-00220-05013 0.5 R0.1 3 0.4 0.46 12° 6 50 5,700
08-00221-05103 0.5 R0.1 4 0.4 0.46 12° 4 45 4,700
08-00220-05012 0.5 R0.1 4 0.4 0.46 12° 6 50 5,700
08-00221-05104 0.5 R0.1 5 0.4 0.46 12° 4 45 4,700
08-00220-05014 0.5 R0.1 5 0.4 0.46 12° 6 50 5,700
08-00221-05105 0.5 R0.1 6 0.4 0.46 12° 4 45 4,700
08-00221-06050 0.6 R0.05 2 0.5 0.56 12° 4 45 4,700
08-00220-06005 0.6 R0.05 2 0.5 0.56 12° 6 50 5,700
08-00221-06051 0.6 R0.05 3 0.5 0.56 12° 4 45 4,700
08-00221-06052 0.6 R0.05 4 0.5 0.56 12° 4 45 4,700
08-00220-06007 0.6 R0.05 4 0.5 0.56 12° 6 50 5,700
08-00221-06053 0.6 R0.05 6 0.5 0.56 12° 4 45 4,700
08-00220-06009 0.6 R0.05 6 0.5 0.56 12° 6 50 5,700
08-00221-06054 0.6 R0.05 8 0.5 0.56 12° 4 50 4,700
08-00221-06100 0.6 R0.1 2 0.5 0.56 12° 4 45 4,700
08-00221-06101 0.6 R0.1 3 0.5 0.56 12° 4 45 4,700
08-00221-06102 0.6 R0.1 4 0.5 0.56 12° 4 45 4,700
08-00220-06011 0.6 R0.1 4 0.5 0.56 12° 6 50 5,700
08-00221-06103 0.6 R0.1 6 0.5 0.56 12° 4 45 4,700
08-00220-06012 0.6 R0.1 6 0.5 0.56 12° 6 50 5,700
08-00221-06104 0.6 R0.1 8 0.5 0.56 12° 4 50 4,700
08-00221-06200 0.6 R0.2 2 0.5 0.56 12° 4 45 4,700
08-00221-06201 0.6 R0.2 3 0.5 0.56 12° 4 45 4,700
08-00221-06202 0.6 R0.2 4 0.5 0.56 12° 4 45 4,700
08-00221-06203 0.6 R0.2 6 0.5 0.56 12° 4 45 4,700
08-00221-06204 0.6 R0.2 8 0.5 0.56 12° 4 50 4,700
08-00221-07050 0.7 R0.05 4 0.55 0.66 12° 4 45 5,000
08-00220-07005 0.7 R0.05 4 0.55 0.66 12° 6 50 6,000
08-00221-07051 0.7 R0.05 6 0.55 0.66 12° 4 45 5,000
08-00220-07006 0.7 R0.05 6 0.55 0.66 12° 6 50 6,000
08-00221-07100 0.7 R0.1 4 0.55 0.66 12° 4 45 5,000
08-00220-07011 0.7 R0.1 4 0.55 0.66 12° 6 50 6,000
08-00221-07101 0.7 R0.1 6 0.55 0.66 12° 4 45 5,000
08-00220-07012 0.7 R0.1 6 0.55 0.66 12° 6 50 6,000
08-00221-08050 0.8 R0.05 4 0.65 0.76 12° 4 45 5,400
08-00220-08005 0.8 R0.05 4 0.65 0.76 12° 6 50 6,500
08-00221-08051 0.8 R0.05 6 0.65 0.76 12° 4 45 5,400
08-00220-08006 0.8 R0.05 6 0.65 0.76 12° 6 50 6,500
08-00221-08052 0.8 R0.05 8 0.65 0.76 12° 4 50 5,400
08-00220-08007 0.8 R0.05 8 0.65 0.76 12° 6 50 6,500
08-00221-08100 0.8 R0.1 4 0.65 0.76 12° 4 45 5,400
08-00220-08011 0.8 R0.1 4 0.65 0.76 12° 6 50 6,500
08-00221-08101 0.8 R0.1 6 0.65 0.76 12° 4 45 5,400
08-00220-08012 0.8 R0.1 6 0.65 0.76 12° 6 50 6,500
08-00221-08102 0.8 R0.1 8 0.65 0.76 12° 4 50 5,400
08-00220-08013 0.8 R0.1 8 0.65 0.76 12° 6 50 6,500
08-00221-08200 0.8 R0.2 4 0.65 0.76 12° 4 45 5,400
08-00220-08021 0.8 R0.2 4 0.65 0.76 12° 6 50 6,500
08-00221-08201 0.8 R0.2 6 0.65 0.76 12° 4 45 5,400
08-00220-08022 0.8 R0.2 6 0.65 0.76 12° 6 50 6,500
08-00221-08202 0.8 R0.2 8 0.65 0.76 12° 4 50 5,400
08-00220-08023 0.8 R0.2 8 0.65 0.76 12° 6 50 6,500
08-00221-09100 0.9 R0.1 4 0.7 0.85 12° 4 45 6,000
08-00220-09011 0.9 R0.1 4 0.7 0.85 12° 6 50 6,800
08-00221-09101 0.9 R0.1 8 0.7 0.85 12° 4 50 6,000
08-00220-09012 0.9 R0.1 8 0.7 0.85 12° 6 50 6,800
08-00221-10050 1 R0.05 2 0.8 0.95 12° 4 50 4,600
08-00221-10051 1 R0.05 3 0.8 0.95 12° 4 50 4,600
08-00220-10001 1 R0.05 3 0.8 0.95 12° 6 50 6,000
08-00221-10052 1 R0.05 4 0.8 0.95 12° 4 50 4,600
08-00220-10002 1 R0.05 4 0.8 0.95 12° 6 50 6,000
08-00221-10053 1 R0.05 5 0.8 0.95 12° 4 50 4,600
08-00220-10003 1 R0.05 5 0.8 0.95 12° 6 50 6,000
08-00221-10054 1 R0.05 6 0.8 0.95 12° 4 50 5,000
08-00220-10004 1 R0.05 6 0.8 0.95 12° 6 50 6,000
08-00221-10055 1 R0.05 8 0.8 0.95 12° 4 50 5,000
08-00220-10006 1 R0.05 8 0.8 0.95 12° 6 50 6,000
08-00221-10056 1 R0.05 10 0.8 0.95 12° 4 50 5,000
08-00220-10008 1 R0.05 10 0.8 0.95 12° 6 50 6,000
08-00221-10057 1 R0.05 12 0.8 0.95 12° 4 50 5,000
08-00220-10009 1 R0.05 12 0.8 0.95 12° 6 50 6,000
08-00221-10058 1 R0.05 16 0.8 0.95 12° 4 60 6,600
08-00221-10059 1 R0.05 20 0.8 0.95 12° 4 60 7,300
08-00221-10100 1 R0.1 2 0.8 0.95 12° 4 50 4,600
08-00221-10101 1 R0.1 3 0.8 0.95 12° 4 50 4,600
08-00220-10010 1 R0.1 3 0.8 0.95 12° 6 50 6,000
08-00221-10102 1 R0.1 4 0.8 0.95 12° 4 50 4,600
08-00220-10011 1 R0.1 4 0.8 0.95 12° 6 50 6,000
08-00221-10103 1 R0.1 5 0.8 0.95 12° 4 50 4,600
08-00220-10014 1 R0.1 5 0.8 0.95 12° 6 50 6,000
08-00221-10104 1 R0.1 6 0.8 0.95 12° 4 50 5,000
08-00220-10015 1 R0.1 6 0.8 0.95 12° 6 50 6,000
08-00221-10105 1 R0.1 8 0.8 0.95 12° 4 50 5,000
08-00220-10012 1 R0.1 8 0.8 0.95 12° 6 50 6,000
08-00221-10106 1 R0.1 10 0.8 0.95 12° 4 50 5,000
08-00220-10016 1 R0.1 10 0.8 0.95 12° 6 50 6,000
08-00221-10107 1 R0.1 12 0.8 0.95 12° 4 50 5,000
08-00220-10013 1 R0.1 12 0.8 0.95 12° 6 50 6,000
08-00221-10108 1 R0.1 16 0.8 0.95 12° 4 60 6,600
08-00221-10109 1 R0.1 20 0.8 0.95 12° 4 60 7,300
08-00221-10200 1 R0.2 2 0.8 0.95 12° 4 50 4,600
08-00221-10201 1 R0.2 3 0.8 0.95 12° 4 50 4,600
08-00220-10024 1 R0.2 3 0.8 0.95 12° 6 50 6,000
08-00221-10202 1 R0.2 4 0.8 0.95 12° 4 50 4,600
08-00220-10021 1 R0.2 4 0.8 0.95 12° 6 50 6,000
08-00221-10203 1 R0.2 5 0.8 0.95 12° 4 50 4,600
08-00220-10025 1 R0.2 5 0.8 0.95 12° 6 50 6,000
08-00221-10204 1 R0.2 6 0.8 0.95 12° 4 50 5,000
08-00220-10026 1 R0.2 6 0.8 0.95 12° 6 50 6,000
08-00221-10205 1 R0.2 8 0.8 0.95 12° 4 50 5,000
08-00220-10022 1 R0.2 8 0.8 0.95 12° 6 50 6,000
08-00221-10206 1 R0.2 10 0.8 0.95 12° 4 50 5,000
08-00220-10027 1 R0.2 10 0.8 0.95 12° 6 50 6,000
08-00221-10207 1 R0.2 12 0.8 0.95 12° 4 50 5,000
08-00220-10023 1 R0.2 12 0.8 0.95 12° 6 50 6,000
08-00221-10208 1 R0.2 16 0.8 0.95 12° 4 60 6,600
08-00221-10209 1 R0.2 20 0.8 0.95 12° 4 60 7,300
08-00221-10300 1 R0.3 2 0.8 0.95 12° 4 50 4,600
08-00221-10301 1 R0.3 3 0.8 0.95 12° 4 50 4,600
08-00220-10034 1 R0.3 3 0.8 0.95 12° 6 50 6,000
08-00221-10302 1 R0.3 4 0.8 0.95 12° 4 50 4,600
08-00220-10031 1 R0.3 4 0.8 0.95 12° 6 50 6,000
08-00221-10303 1 R0.3 5 0.8 0.95 12° 4 50 4,600
08-00220-10035 1 R0.3 5 0.8 0.95 12° 6 50 6,000
08-00221-10304 1 R0.3 6 0.8 0.95 12° 4 50 5,000
08-00220-10036 1 R0.3 6 0.8 0.95 12° 6 50 6,000
08-00221-10305 1 R0.3 8 0.8 0.95 12° 4 50 5,000
08-00220-10032 1 R0.3 8 0.8 0.95 12° 6 50 6,000
08-00221-10306 1 R0.3 10 0.8 0.95 12° 4 50 5,000
08-00220-10037 1 R0.3 10 0.8 0.95 12° 6 50 6,000
08-00221-10307 1 R0.3 12 0.8 0.95 12° 4 50 5,000
08-00220-10033 1 R0.3 12 0.8 0.95 12° 6 50 6,000
08-00221-10308 1 R0.3 16 0.8 0.95 12° 4 60 6,600
08-00221-10309 1 R0.3 20 0.8 0.95 12° 4 60 7,300
08-00220-12011 1.2 R0.1 5 1 1.14 12° 6 50 6,200
08-00221-12100 1.2 R0.1 6 1 1.14 12° 4 50 5,100
08-00221-12101 1.2 R0.1 8 1 1.14 12° 4 50 5,100
08-00221-12102 1.2 R0.1 10 1 1.14 12° 4 50 5,100
08-00220-12013 1.2 R0.1 10 1 1.14 12° 6 50 6,200
08-00221-12103 1.2 R0.1 12 1 1.14 12° 4 50 5,100
08-00220-12015 1.2 R0.1 15 1 1.14 12° 6 60 9,100
08-00221-12104 1.2 R0.1 16 1 1.14 12° 4 60 5,100
08-00221-12105 1.2 R0.1 20 1 1.14 12° 4 60 7,800
08-00220-12021 1.2 R0.2 5 1 1.14 12° 6 50 6,200
08-00221-12200 1.2 R0.2 6 1 1.14 12° 4 50 5,100
08-00221-12201 1.2 R0.2 8 1 1.14 12° 4 50 5,100
08-00221-12202 1.2 R0.2 10 1 1.14 12° 4 50 5,100
08-00220-12022 1.2 R0.2 10 1 1.14 12° 6 50 6,200
08-00221-12203 1.2 R0.2 12 1 1.14 12° 4 50 5,100
08-00220-12023 1.2 R0.2 15 1 1.14 12° 6 60 9,400
08-00221-12204 1.2 R0.2 16 1 1.14 12° 4 60 5,100
08-00221-12205 1.2 R0.2 20 1 1.14 12° 4 60 7,800
08-00220-12031 1.2 R0.3 5 1 1.14 12° 6 50 6,200
08-00221-12300 1.2 R0.3 6 1 1.14 12° 4 50 5,100
08-00221-12301 1.2 R0.3 8 1 1.14 12° 4 50 5,100
08-00221-12302 1.2 R0.3 10 1 1.14 12° 4 50 5,100
08-00220-12032 1.2 R0.3 10 1 1.14 12° 6 50 6,200
08-00221-12303 1.2 R0.3 12 1 1.14 12° 4 50 5,100
08-00220-12033 1.2 R0.3 15 1 1.14 12° 6 60 9,100
08-00221-12304 1.2 R0.3 16 1 1.14 12° 4 60 5,100
08-00221-12305 1.2 R0.3 20 1 1.14 12° 4 60 7,800
08-00221-15100 1.5 R0.1 4 1.2 1.45 12° 4 50 4,900
08-00221-15101 1.5 R0.1 6 1.2 1.45 12° 4 50 4,900
08-00220-15011 1.5 R0.1 6 1.2 1.45 12° 6 50 6,200
08-00221-15102 1.5 R0.1 8 1.2 1.45 12° 4 50 5,100
08-00221-15103 1.5 R0.1 10 1.2 1.45 12° 4 50 5,100
08-00221-15104 1.5 R0.1 12 1.2 1.45 12° 4 50 5,100
08-00220-15013 1.5 R0.1 12 1.2 1.45 12° 6 50 6,200
08-00221-15105 1.5 R0.1 16 1.2 1.45 12° 4 60 5,100
08-00221-15106 1.5 R0.1 18 1.2 1.45 12° 4 60 5,100
08-00220-15015 1.5 R0.1 18 1.2 1.45 12° 6 60 6,200
08-00221-15107 1.5 R0.1 20 1.2 1.45 12° 4 60 5,100
08-00221-15200 1.5 R0.2 4 1.2 1.45 12° 4 50 4,900
08-00221-15201 1.5 R0.2 6 1.2 1.45 12° 4 50 4,900
08-00220-15021 1.5 R0.2 6 1.2 1.45 12° 6 50 6,200
08-00221-15202 1.5 R0.2 8 1.2 1.45 12° 4 50 5,100
08-00221-15203 1.5 R0.2 10 1.2 1.45 12° 4 50 5,100
08-00221-15204 1.5 R0.2 12 1.2 1.45 12° 4 50 5,100
08-00220-15023 1.5 R0.2 12 1.2 1.45 12° 6 50 6,200
08-00221-15205 1.5 R0.2 16 1.2 1.45 12° 4 60 5,100
08-00221-15206 1.5 R0.2 18 1.2 1.45 12° 4 60 5,100
08-00220-15025 1.5 R0.2 18 1.2 1.45 12° 6 60 6,200
08-00221-15207 1.5 R0.2 20 1.2 1.45 12° 4 60 5,100
08-00221-15300 1.5 R0.3 4 1.2 1.45 12° 4 50 4,900
08-00221-15301 1.5 R0.3 6 1.2 1.45 12° 4 50 4,900
08-00220-15031 1.5 R0.3 6 1.2 1.45 12° 6 50 6,200
08-00221-15302 1.5 R0.3 8 1.2 1.45 12° 4 50 5,100
08-00221-15303 1.5 R0.3 10 1.2 1.45 12° 4 50 5,100
08-00221-15304 1.5 R0.3 12 1.2 1.45 12° 4 50 5,100
08-00220-15032 1.5 R0.3 12 1.2 1.45 12° 6 50 6,200
08-00221-15305 1.5 R0.3 16 1.2 1.45 12° 4 60 5,100
08-00221-15306 1.5 R0.3 18 1.2 1.45 12° 4 60 5,100
08-00220-15033 1.5 R0.3 18 1.2 1.45 12° 6 60 6,200
08-00221-15307 1.5 R0.3 20 1.2 1.45 12° 4 60 5,100
08-00221-15500 1.5 R0.5 4 1.2 1.45 12° 4 50 4,900
08-00221-15501 1.5 R0.5 6 1.2 1.45 12° 4 50 4,900
08-00220-15051 1.5 R0.5 6 1.2 1.45 12° 6 50 6,200
08-00221-15502 1.5 R0.5 8 1.2 1.45 12° 4 50 5,100
08-00221-15503 1.5 R0.5 10 1.2 1.45 12° 4 50 5,100
08-00221-15504 1.5 R0.5 12 1.2 1.45 12° 4 50 5,100
08-00220-15052 1.5 R0.5 12 1.2 1.45 12° 6 50 6,200
08-00221-15505 1.5 R0.5 16 1.2 1.45 12° 4 60 5,100
08-00221-15506 1.5 R0.5 18 1.2 1.45 12° 4 60 5,100
08-00220-15053 1.5 R0.5 18 1.2 1.45 12° 6 60 6,200
08-00221-15507 1.5 R0.5 20 1.2 1.45 12° 4 60 5,100
08-00221-20100 2 R0.1 4 1.6 1.91 12° 4 50 4,900
08-00221-20101 2 R0.1 6 1.6 1.91 12° 4 50 4,900
08-00221-20102 2 R0.1 8 1.6 1.91 12° 4 50 5,100
08-00220-20011 2 R0.1 8 1.6 1.91 12° 6 50 6,300
08-00221-20103 2 R0.1 10 1.6 1.91 12° 4 50 5,100
08-00221-20104 2 R0.1 12 1.6 1.91 12° 4 50 5,100
08-00220-20014 2 R0.1 12 1.6 1.91 12° 6 50 6,300
08-00221-20105 2 R0.1 16 1.6 1.91 12° 4 60 5,100
08-00220-20012 2 R0.1 16 1.6 1.91 12° 6 60 6,300
08-00221-20106 2 R0.1 20 1.6 1.91 12° 4 60 5,100
08-00220-20015 2 R0.1 20 1.6 1.91 12° 6 60 6,300
08-00221-20107 2 R0.1 24 1.6 1.91 12° 4 70 5,100
08-00220-20013 2 R0.1 24 1.6 1.91 12° 6 70 6,300
08-00221-20108 2 R0.1 26 1.6 1.91 12° 4 70 5,100
08-00221-20109 2 R0.1 30 1.6 1.91 12° 4 70 5,100
08-00221-20200 2 R0.2 4 1.6 1.91 12° 4 50 4,900
08-00221-20201 2 R0.2 6 1.6 1.91 12° 4 50 4,900
08-00221-20202 2 R0.2 8 1.6 1.91 12° 4 50 5,100
08-00220-20021 2 R0.2 8 1.6 1.91 12° 6 50 6,300
08-00221-20203 2 R0.2 10 1.6 1.91 12° 4 50 5,100
08-00221-20204 2 R0.2 12 1.6 1.91 12° 4 50 5,100
08-00220-20023 2 R0.2 12 1.6 1.91 12° 6 50 6,300
08-00221-20205 2 R0.2 16 1.6 1.91 12° 4 60 5,100
08-00220-20025 2 R0.2 16 1.6 1.91 12° 6 60 6,300
08-00221-20206 2 R0.2 20 1.6 1.91 12° 4 60 5,100
08-00220-20027 2 R0.2 20 1.6 1.91 12° 6 60 6,300
08-00221-20207 2 R0.2 24 1.6 1.91 12° 4 70 5,100
08-00220-20029 2 R0.2 24 1.6 1.91 12° 6 70 6,300
08-00221-20208 2 R0.2 26 1.6 1.91 12° 4 70 5,100
08-00221-20209 2 R0.2 30 1.6 1.91 12° 4 70 5,100
08-00221-20300 2 R0.3 4 1.6 1.91 12° 4 50 4,900
08-00221-20301 2 R0.3 6 1.6 1.91 12° 4 50 4,900
08-00221-20302 2 R0.3 8 1.6 1.91 12° 4 50 5,100
08-00220-20031 2 R0.3 8 1.6 1.91 12° 6 50 6,300
08-00221-20303 2 R0.3 10 1.6 1.91 12° 4 50 5,100
08-00221-20304 2 R0.3 12 1.6 1.91 12° 4 50 5,100
08-00220-20034 2 R0.3 12 1.6 1.91 12° 6 50 6,300
08-00221-20305 2 R0.3 16 1.6 1.91 12° 4 60 5,100
08-00220-20032 2 R0.3 16 1.6 1.91 12° 6 60 6,300
08-00221-20306 2 R0.3 20 1.6 1.91 12° 4 60 5,100
08-00220-20035 2 R0.3 20 1.6 1.91 12° 6 60 6,300
08-00221-20307 2 R0.3 24 1.6 1.91 12° 4 70 5,100
08-00220-20033 2 R0.3 24 1.6 1.91 12° 6 70 6,300
08-00221-20308 2 R0.3 26 1.6 1.91 12° 4 70 5,100
08-00221-20309 2 R0.3 30 1.6 1.91 12° 4 70 5,100
08-00221-20500 2 R0.5 4 1.6 1.91 12° 4 50 4,900
08-00221-20501 2 R0.5 6 1.6 1.91 12° 4 50 4,900
08-00221-20502 2 R0.5 8 1.6 1.91 12° 4 50 5,100
08-00220-20051 2 R0.5 8 1.6 1.91 12° 6 50 6,300
08-00221-20503 2 R0.5 10 1.6 1.91 12° 4 50 5,100
08-00221-20504 2 R0.5 12 1.6 1.91 12° 4 50 5,100
08-00220-20054 2 R0.5 12 1.6 1.91 12° 6 50 6,300
08-00221-20505 2 R0.5 16 1.6 1.91 12° 4 60 5,100
08-00220-20052 2 R0.5 16 1.6 1.91 12° 6 60 6,300
08-00221-20506 2 R0.5 20 1.6 1.91 12° 4 60 5,100
08-00220-20055 2 R0.5 20 1.6 1.91 12° 6 60 6,300
08-00221-20507 2 R0.5 24 1.6 1.91 12° 4 70 5,100
08-00220-20053 2 R0.5 24 1.6 1.91 12° 6 70 6,300
08-00221-20508 2 R0.5 26 1.6 1.91 12° 4 70 5,100
08-00221-20509 2 R0.5 30 1.6 1.91 12° 4 70 5,100
08-00221-25100 2.5 R0.1 10 2 2.39 12° 4 50 5,400
08-00220-25011 2.5 R0.1 10 2 2.39 12° 6 50 6,500
08-00221-25101 2.5 R0.1 20 2 2.39 12° 4 60 5,500
08-00220-25013 2.5 R0.1 20 2 2.39 12° 6 60 6,700
08-00221-25102 2.5 R0.1 30 2 2.39 12° 4 70 5,700
08-00220-25015 2.5 R0.1 30 2 2.39 12° 6 70 7,000
08-00221-25200 2.5 R0.2 10 2 2.39 12° 4 50 5,400
08-00220-25021 2.5 R0.2 10 2 2.39 12° 6 50 6,500
08-00221-25201 2.5 R0.2 20 2 2.39 12° 4 60 5,500
08-00220-25023 2.5 R0.2 20 2 2.39 12° 6 60 6,700
08-00221-25202 2.5 R0.2 30 2 2.39 12° 4 70 5,700
08-00220-25025 2.5 R0.2 30 2 2.39 12° 6 70 7,000
08-00221-25300 2.5 R0.3 10 2 2.39 12° 4 50 5,400
08-00220-25031 2.5 R0.3 10 2 2.39 12° 6 50 6,500
08-00221-25301 2.5 R0.3 20 2 2.39 12° 4 60 5,500
08-00220-25032 2.5 R0.3 20 2 2.39 12° 6 60 6,700
08-00221-25302 2.5 R0.3 30 2 2.39 12° 4 70 5,700
08-00220-25033 2.5 R0.3 30 2 2.39 12° 6 70 6,900
08-00221-25500 2.5 R0.5 10 2 2.39 12° 4 50 5,400
08-00220-25051 2.5 R0.5 10 2 2.39 12° 6 50 6,500
08-00221-25501 2.5 R0.5 20 2 2.39 12° 4 60 5,500
08-00220-25052 2.5 R0.5 20 2 2.39 12° 6 60 6,700
08-00221-25502 2.5 R0.5 30 2 2.39 12° 4 70 5,700
08-00220-25053 2.5 R0.5 30 2 2.39 12° 6 70 6,900
08-00220-30011 3 R0.1 12 4.5 2.85 12° 6 50 8,600
08-00220-30013 3 R0.1 18 4.5 2.85 12° 6 60 8,800
08-00220-30015 3 R0.1 24 4.5 2.85 12° 6 70 9,100
08-00220-30017 3 R0.1 30 4.5 2.85 12° 6 70 9,500
08-00220-30019 3 R0.1 36 4.5 2.85 12° 6 80 9,500
08-00220-30021 3 R0.2 12 4.5 2.85 12° 6 50 8,600
08-00220-30023 3 R0.2 18 4.5 2.85 12° 6 60 8,800
08-00220-30025 3 R0.2 24 4.5 2.85 12° 6 70 9,100
08-00220-30027 3 R0.2 30 4.5 2.85 12° 6 70 9,500
08-00220-30029 3 R0.2 36 4.5 2.85 12° 6 80 9,500
08-00220-30031 3 R0.3 12 4.5 2.85 12° 6 50 8,600
08-00220-30034 3 R0.3 18 4.5 2.85 12° 6 60 8,800
08-00220-30032 3 R0.3 24 4.5 2.85 12° 6 70 9,100
08-00220-30035 3 R0.3 30 4.5 2.85 12° 6 70 9,500
08-00220-30033 3 R0.3 36 4.5 2.85 12° 6 80 9,500
08-00220-30051 3 R0.5 12 4.5 2.85 12° 6 50 8,600
08-00220-30054 3 R0.5 18 4.5 2.85 12° 6 60 8,800
08-00220-30052 3 R0.5 24 4.5 2.85 12° 6 70 9,100
08-00220-30055 3 R0.5 30 4.5 2.85 12° 6 70 9,500
08-00220-30053 3 R0.5 36 4.5 2.85 12° 6 80 9,500
08-00220-30101 3 R1 12 4.5 2.85 12° 6 50 8,600
08-00220-30104 3 R1 18 4.5 2.85 12° 6 60 8,800
08-00220-30102 3 R1 24 4.5 2.85 12° 6 70 9,100
08-00220-30105 3 R1 30 4.5 2.85 12° 6 70 9,500
08-00220-30103 3 R1 36 4.5 2.85 12° 6 80 9,500
08-00220-40011 4 R0.1 16 6 3.8 12° 6 60 8,600
08-00220-40013 4 R0.1 24 6 3.8 12° 6 70 8,600
08-00220-40015 4 R0.1 32 6 3.8 12° 6 70 8,600
08-00220-40017 4 R0.1 48 6 3.8 12° 6 100 13,700
08-00220-40021 4 R0.2 16 6 3.8 12° 6 60 8,600
08-00220-40023 4 R0.2 24 6 3.8 12° 6 70 8,600
08-00220-40025 4 R0.2 32 6 3.8 12° 6 70 8,600
08-00220-40027 4 R0.2 48 6 3.8 12° 6 100 13,700
08-00220-40031 4 R0.3 16 6 3.8 12° 6 60 8,600
08-00220-40034 4 R0.3 24 6 3.8 12° 6 70 8,600
08-00220-40032 4 R0.3 32 6 3.8 12° 6 70 8,600
08-00220-40033 4 R0.3 48 6 3.8 12° 6 100 13,700
08-00220-40051 4 R0.5 16 6 3.8 12° 6 60 8,600
08-00220-40054 4 R0.5 24 6 3.8 12° 6 70 8,600
08-00220-40052 4 R0.5 32 6 3.8 12° 6 70 8,600
08-00220-40053 4 R0.5 48 6 3.8 12° 6 100 13,700
08-00220-40101 4 R1 16 6 3.8 12° 6 60 8,600
08-00220-40104 4 R1 24 6 3.8 12° 6 70 8,600
08-00220-40102 4 R1 32 6 3.8 12° 6 70 8,600
08-00220-40103 4 R1 48 6 3.8 12° 6 100 13,700
08-00220-50011 5 R0.1 20 7.5 4.8 12° 6 70 10,900
08-00220-50013 5 R0.1 40 7.5 4.8 12° 6 90 13,700
08-00220-50021 5 R0.2 20 7.5 4.8 12° 6 70 10,900
08-00220-50023 5 R0.2 40 7.5 4.8 12° 6 90 13,700
08-00220-50031 5 R0.3 20 7.5 4.8 12° 6 70 10,900
08-00220-50032 5 R0.3 40 7.5 4.8 12° 6 90 13,700
08-00220-50051 5 R0.5 20 7.5 4.8 12° 6 70 10,900
08-00220-50052 5 R0.5 40 7.5 4.8 12° 6 90 13,700
08-00220-50101 5 R1 20 7.5 4.8 12° 6 70 10,900
08-00220-50102 5 R1 40 7.5 4.8 12° 6 90 13,700
08-00220-60011 6 R0.1 24 9 5.8 6 90 10,900
08-00220-60013 6 R0.1 48 9 5.8 6 110 17,100
08-00220-60021 6 R0.2 24 9 5.8 6 90 10,900
08-00220-60023 6 R0.2 48 9 5.8 6 110 17,100
08-00220-60031 6 R0.3 24 9 5.8 6 90 10,900
08-00220-60032 6 R0.3 48 9 5.8 6 110 17,100
08-00220-60051 6 R0.5 24 9 5.8 6 90 10,900
08-00220-60052 6 R0.5 48 9 5.8 6 110 17,100
08-00220-60101 6 R1 24 9 5.8 6 90 10,900
08-00220-60102 6 R1 48 9 5.8 6 110 17,100
