MSRS230

MUGEN COATING 2-Flute Radius End Mill

●New Φ6 size of 2-Flute MUGEN COATING corner radius end mill.
●Total 38 sizes for suitable selection.
●【■】:Semi-Standerd item,please inquire for price and delivery.

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Conner Radius
    ±0.005(D≦2.5)

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel

55HRC

65HRC

70HRC
Carbon Steel Alloy Steel
Prehardened
Steel
Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel

55HRC

65HRC

70HRC

Leaflet

Line up

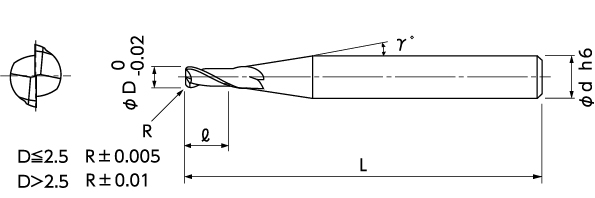

Unit [size: mm / Retail Price: JPY]

Code
No.
(D)Dia. (R)Corner Radius (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
08-00700-01001 1 R0.1 2 4 60 7,000
08-00700-01002 1 R0.2 2 4 60 7,000
08-00700-01003 1 R0.3 2 4 60 7,000
08-00700-01501 1.5 R0.1 3 4 60 7,000
08-00700-01502 1.5 R0.2 3 4 60 7,000
08-00700-01503 1.5 R0.3 3 4 60 7,000
08-00700-01505 1.5 R0.5 3 4 60 7,000
08-00700-02001 2 R0.1 4 4 60 7,000
08-00700-02002 2 R0.2 4 4 60 7,000
08-00700-02003 2 R0.3 4 4 60 7,000
08-00700-02005 2 R0.5 4 4 60 7,000
08-00700-02501 2.5 R0.1 5 4 60 7,000
08-00700-02502 2.5 R0.2 5 4 60 7,000
08-00700-02503 2.5 R0.3 5 4 60 7,700
08-00700-02505 2.5 R0.5 5 4 60 7,700
08-00700-03001 3 R0.1 6 6 60 8,600
08-00700-03002 3 R0.2 6 6 60 8,600
08-00700-03003 3 R0.3 6 6 60 8,600
08-00700-03005 3 R0.5 6 6 60 8,600
08-00700-03010 3 R1 6 6 60 9,400
08-00700-04001 4 R0.1 8 6 65 8,700
08-00700-04002 4 R0.2 8 6 65 8,700
08-00700-04003 4 R0.3 8 6 65 8,700
08-00700-04005 4 R0.5 8 6 65 8,700
08-00700-04010 4 R1 8 6 65 9,500
08-00700-05001 5 R0.1 10 6 70 8,800
08-00700-05002 5 R0.2 10 6 70 8,800
08-00700-05003 5 R0.3 10 6 70 8,800
08-00700-05005 5 R0.5 10 6 70 8,800
08-00700-05010 5 R1 10 6 70 9,600
08-00700-05015 5 R1.5 10 6 70 10,000
08-00700-06001 6 R0.1 12 6 80 17,400
08-00700-06002 6 R0.2 12 6 80 17,400
08-00700-06003 6 R0.3 12 6 80 17,400
08-00700-06005 6 R0.5 12 6 80 17,400
08-00700-06010 6 R1 12 6 80 18,600
08-00700-06015 6 R1.5 12 6 80 18,600
08-00700-06020 6 R2 12 6 80 18,600
