MSX440

MUGEN-COATING 4-Flute POWER End Mill

●It is very suitable for roughing and semi-finishing on stainless steels and tough materials by unequal flute design.
●High performance for reducing roughing time.

  • Material
    Micro Grain Carbide

  • Helix Angle
    35°/38°

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Coating
    MUGEN-COATING

  • Number of Flutes
    4 Flutes

  • Applications
    Slot Milling

  • Applications
    Side Milling

  • Applications
    Face Milling

  • Corner Shape
    Corner Radius

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

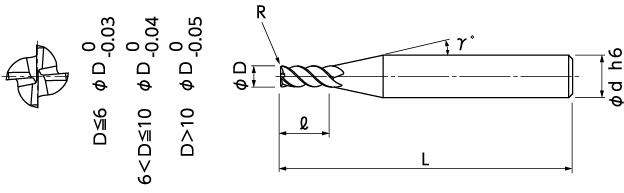

(D)Dia. (l)Length of Cut (R)Corner Radius (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
08-00144-00300 3 8 R0.2 12° 6 55 6,200
08-00144-00400 4 11 R0.2 12° 6 55 6,500
08-00144-00500 5 13 R0.2 12° 6 55 7,100
08-00144-00600 6 13 R0.3 6 55 7,200
08-00144-00700 7 19 R0.3 12° 8 60 10,400
08-00144-00800 8 19 R0.3 8 60 10,400
08-00144-00900 9 22 R0.3 12° 10 70 12,100
08-00144-01000 10 22 R0.3 10 70 12,100
08-00144-01100 11 26 R0.3 12° 12 80 19,800
08-00144-01200 12 26 R0.3 12 80 17,900
08-00144-01300 13 26 R0.7 12° 16 90 35,700
08-00144-01400 14 26 R0.7 12° 16 90 35,700
08-00144-01500 15 32 R1 12° 16 90 35,700
08-00144-01600 16 32 R1 16 90 35,700
08-00144-01800 18 32 R1 12° 20 105 59,900
08-00144-02000 20 38 R1 20 105 58,700

means the sizes will no longer be on sale after the stock runs out.
