SHR320

CBN High Efficient Radius End Mill

●Realized high accuracy and high efficiency machining by adopting 3 flutes and corner R with spiral shape.

  • Material
    CubicBoron Nitride

  • Helix Angle
    20°

  • Cutting Possibility of Work Material Hardness
    Up to 68HRC

  • Number of Flutes
    3 Flutes

  • Applications
    Slot Milling

  • Applications
    Face Milling

  • Corner Shape
    Corner Radius

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

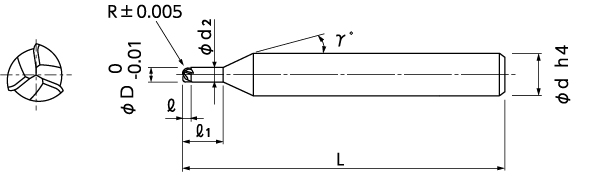

(D)Dia. (R)Corner Radius (l1)Effective Length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
01-00495-05011 0.5 R0.1 1.5 0.25 0.46 15° 4 50 26,000
01-00495-05012 0.5 R0.1 2.5 0.25 0.46 15° 4 50 29,000
01-00495-10011 1 R0.1 3 0.5 0.95 15° 4 50 24,000
01-00495-10012 1 R0.1 5 0.5 0.95 15° 4 52 27,000
01-00495-10021 1 R0.2 3 0.5 0.95 15° 4 50 24,000
01-00495-10022 1 R0.2 5 0.5 0.95 15° 4 52 27,000
01-00495-15011 1.5 R0.1 4.5 0.75 1.45 15° 4 52 28,000
01-00495-15012 1.5 R0.1 7.5 0.75 1.45 15° 4 52 31,000
01-00495-15021 1.5 R0.2 4.5 0.75 1.45 15° 4 52 28,000
01-00495-15022 1.5 R0.2 7.5 0.75 1.45 15° 4 52 31,000
01-00495-20011 2 R0.1 6 1 1.94 15° 4 52 29,000
01-00495-20012 2 R0.1 10 1 1.94 15° 4 52 32,000
01-00495-20031 2 R0.3 6 1 1.94 15° 4 52 29,000
01-00495-20032 2 R0.3 10 1 1.94 15° 4 52 32,000
