PCDRS

PCD Radius End Mill

●Ultimate high quality surface is realized in the corner radius shape with superior cutting performance on curved and plane surface!

  • Material
    Polycrystalline Diamond

  • Cutting Possibility of Work Material Hardness
    Up to 92.5HRA

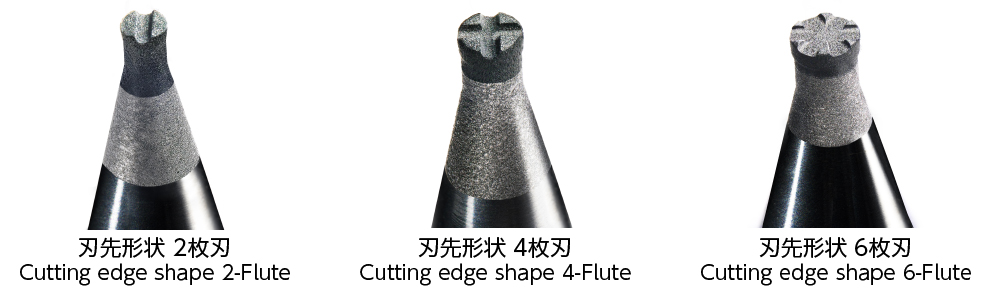

  • Number of Flutes
    2 Flutes · 4 Flutes · 6 Flutes

  • Helix Angle

  • Conner Radius
    ±0.005

  • φd h3

  • Applications
    Face Milling

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel

55HRC

65HRC

70HRC
Carbon Steel Alloy Steel
Prehardened
Steel
Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel

55HRC

65HRC

70HRC

Leaflet

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

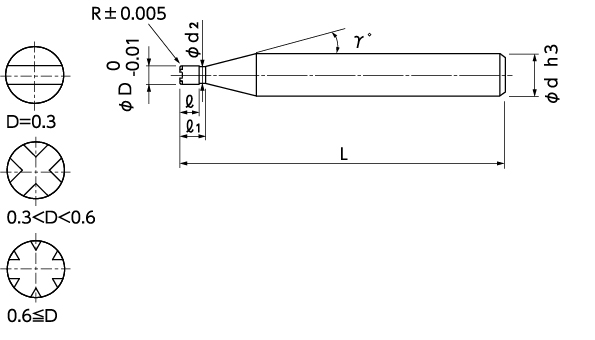

(D)Dia. (R)Corner Radius (l1)Under Neck Length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Number of Flute Retail
Price
04-00700-03050 0.3 R0.05 0.3 0.09 0.27 15° 4 48 2 60,000
04-00700-04050 0.4 R0.05 0.4 0.12 0.36 15° 4 48 4 60,000
04-00700-05050 0.5 R0.05 0.5 0.15 0.45 15° 4 48 4 60,000
04-00700-05100 0.5 R0.1 0.5 0.15 0.45 15° 4 48 4 60,000
04-00700-06050 0.6 R0.05 0.6 0.18 0.54 15° 4 48 6 50,000
04-00700-06100 0.6 R0.1 0.6 0.18 0.54 15° 4 48 6 50,000
04-00700-08050 0.8 R0.05 0.8 0.24 0.72 15° 4 48 6 50,000
04-00700-08100 0.8 R0.1 0.8 0.24 0.72 15° 4 48 6 50,000
04-00700-10050 1 R0.05 1 0.3 0.9 15° 4 48 6 50,000
04-00700-10100 1 R0.1 1 0.3 0.9 15° 4 48 6 50,000
