MHRSH430RSF

MUGEN COATING PREMIUM Plus 4-Flute Long Neck Radius End Mill with short shank for Hardened Steel and High Accuracy Cutting

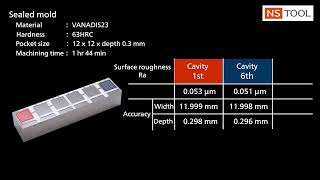

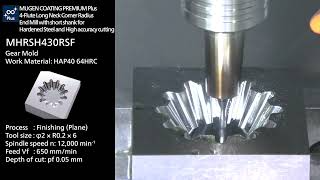

●MUGEN COATING PREMIUM Plus for hardened steels with strong back taper reduce chattering to realize long tool life and excellent finishing surface.
●4-flute end mill specialized for high efficiency machining.
●4-Flute end mill has 205 sizes in total that lineup from the smallest diameterφ0.1 to φ6.

  • Coating
    MUGEN COATING PREMIUM Plus

  • Material
    Super Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 70HRC

  • Number of Flutes
    4 Flutes

  • Helix Angle
    30°

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material

55HRC

65HRC

70HRC

Carbon Stee Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel

55HRC
Resin

65HRC
Graphite

70HRC
Hard Brittle
Material
Stainless Steel

Leaflet

Line up

Unit [size: mm]

Code
No.
(D)Dia. (R)Corner Radius (l1)Under Neck Length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length
08-00239-01002 0.1 R0.01 0.2 0.08 0.085 15° 4 35
08-00239-01003 0.1 R0.01 0.3 0.08 0.085 15° 4 35
08-00239-01503 0.15 R0.01 0.3 0.12 0.135 15° 4 35
08-00239-01505 0.15 R0.01 0.5 0.12 0.135 15° 4 35
08-00239-01523 0.15 R0.02 0.3 0.12 0.135 15° 4 35
08-00239-01525 0.15 R0.02 0.5 0.12 0.135 15° 4 35
08-00239-02203 0.2 R0.02 0.3 0.15 0.18 15° 4 35
08-00239-02205 0.2 R0.02 0.5 0.15 0.18 15° 4 35
08-00239-02207 0.2 R0.02 0.75 0.15 0.18 15° 4 35
08-00239-02210 0.2 R0.02 1 0.15 0.18 15° 4 35
08-00239-02403 0.2 R0.05 0.3 0.15 0.18 15° 4 35
08-00239-02405 0.2 R0.05 0.5 0.15 0.18 15° 4 35
08-00239-02407 0.2 R0.05 0.75 0.15 0.18 15° 4 35
08-00239-02410 0.2 R0.05 1 0.15 0.18 15° 4 35
08-00239-03205 0.3 R0.02 0.5 0.25 0.28 15° 4 35
08-00239-03207 0.3 R0.02 0.75 0.25 0.28 15° 4 35
08-00239-03210 0.3 R0.02 1 0.25 0.28 15° 4 35
08-00239-03215 0.3 R0.02 1.5 0.25 0.28 15° 4 35
08-00239-03405 0.3 R0.05 0.5 0.25 0.28 15° 4 35
08-00239-03407 0.3 R0.05 0.75 0.25 0.28 15° 4 35
08-00239-03410 0.3 R0.05 1 0.25 0.28 15° 4 35
08-00239-03415 0.3 R0.05 1.5 0.25 0.28 15° 4 35
08-00239-04205 0.4 R0.02 0.5 0.3 0.37 15° 4 35
08-00239-04210 0.4 R0.02 1 0.3 0.37 15° 4 35
08-00239-04215 0.4 R0.02 1.5 0.3 0.37 15° 4 35
08-00239-04220 0.4 R0.02 2 0.3 0.37 15° 4 35
08-00239-04405 0.4 R0.05 0.5 0.3 0.37 15° 4 35
08-00239-04410 0.4 R0.05 1 0.3 0.37 15° 4 35
08-00239-04415 0.4 R0.05 1.5 0.3 0.37 15° 4 35
08-00239-04420 0.4 R0.05 2 0.3 0.37 15° 4 35
08-00239-05210 0.5 R0.02 1 0.4 0.46 15° 4 35
08-00239-05215 0.5 R0.02 1.5 0.4 0.46 15° 4 35
08-00239-05220 0.5 R0.02 2 0.4 0.46 15° 4 35
08-00239-05225 0.5 R0.02 2.5 0.4 0.46 15° 4 35
08-00239-05410 0.5 R0.05 1 0.4 0.46 15° 4 35
08-00239-05415 0.5 R0.05 1.5 0.4 0.46 15° 4 35
08-00239-05420 0.5 R0.05 2 0.4 0.46 15° 4 35
08-00239-05425 0.5 R0.05 2.5 0.4 0.46 15° 4 35
08-00239-05510 0.5 R0.1 1 0.4 0.46 15° 4 35
08-00239-05515 0.5 R0.1 1.5 0.4 0.46 15° 4 35
08-00239-05520 0.5 R0.1 2 0.4 0.46 15° 4 35
08-00239-05525 0.5 R0.1 2.5 0.4 0.46 15° 4 35
08-00239-06210 0.6 R0.02 1 0.5 0.56 15° 4 35
08-00239-06220 0.6 R0.02 2 0.5 0.56 15° 4 35
08-00239-06230 0.6 R0.02 3 0.5 0.56 15° 4 35
08-00239-06410 0.6 R0.05 1 0.5 0.56 15° 4 35
08-00239-06420 0.6 R0.05 2 0.5 0.56 15° 4 35
08-00239-06430 0.6 R0.05 3 0.5 0.56 15° 4 35
08-00239-06510 0.6 R0.1 1 0.5 0.56 15° 4 35
08-00239-06520 0.6 R0.1 2 0.5 0.56 15° 4 35
08-00239-06530 0.6 R0.1 3 0.5 0.56 15° 4 35
08-00239-08202 0.8 R0.02 2 0.65 0.76 15° 4 35
08-00239-08203 0.8 R0.02 3 0.65 0.76 15° 4 35
08-00239-08204 0.8 R0.02 4 0.65 0.76 15° 4 35
08-00239-08402 0.8 R0.05 2 0.65 0.76 15° 4 35
08-00239-08403 0.8 R0.05 3 0.65 0.76 15° 4 35
08-00239-08404 0.8 R0.05 4 0.65 0.76 15° 4 35
08-00239-08502 0.8 R0.1 2 0.65 0.76 15° 4 35
08-00239-08503 0.8 R0.1 3 0.65 0.76 15° 4 35
08-00239-08504 0.8 R0.1 4 0.65 0.76 15° 4 35
08-00239-08602 0.8 R0.2 2 0.65 0.76 15° 4 35
08-00239-08603 0.8 R0.2 3 0.65 0.76 15° 4 35
08-00239-08604 0.8 R0.2 4 0.65 0.76 15° 4 35
08-00239-10202 1 R0.02 2 0.8 0.95 15° 4 35
08-00239-10203 1 R0.02 3 0.8 0.95 15° 4 35
08-00239-10204 1 R0.02 4 0.8 0.95 15° 4 35
08-00239-10205 1 R0.02 5 0.8 0.95 15° 4 40
08-00239-10402 1 R0.05 2 0.8 0.95 15° 4 35
08-00239-10403 1 R0.05 3 0.8 0.95 15° 4 35
08-00239-10404 1 R0.05 4 0.8 0.95 15° 4 35
08-00239-10405 1 R0.05 5 0.8 0.95 15° 4 40
08-00239-10502 1 R0.1 2 0.8 0.95 15° 4 35
08-00239-10503 1 R0.1 3 0.8 0.95 15° 4 35
08-00239-10504 1 R0.1 4 0.8 0.95 15° 4 35
08-00239-10505 1 R0.1 5 0.8 0.95 15° 4 40
08-00239-10602 1 R0.2 2 0.8 0.95 15° 4 35
08-00239-10603 1 R0.2 3 0.8 0.95 15° 4 35
08-00239-10604 1 R0.2 4 0.8 0.95 15° 4 35
08-00239-10605 1 R0.2 5 0.8 0.95 15° 4 40
08-00239-10702 1 R0.3 2 0.8 0.95 15° 4 35
08-00239-10703 1 R0.3 3 0.8 0.95 15° 4 35
08-00239-10704 1 R0.3 4 0.8 0.95 15° 4 35
08-00239-10705 1 R0.3 5 0.8 0.95 15° 4 40
08-00239-15203 1.5 R0.02 3 1.2 1.43 15° 4 35
08-00239-15204 1.5 R0.02 4 1.2 1.43 15° 4 35
08-00239-15206 1.5 R0.02 6 1.2 1.43 15° 4 40
08-00239-15208 1.5 R0.02 8 1.2 1.43 15° 4 40
08-00239-15403 1.5 R0.05 3 1.2 1.43 15° 4 35
08-00239-15404 1.5 R0.05 4 1.2 1.43 15° 4 35
08-00239-15406 1.5 R0.05 6 1.2 1.43 15° 4 40
08-00239-15408 1.5 R0.05 8 1.2 1.43 15° 4 40
08-00239-15503 1.5 R0.1 3 1.2 1.43 15° 4 35
08-00239-15504 1.5 R0.1 4 1.2 1.43 15° 4 35
08-00239-15506 1.5 R0.1 6 1.2 1.43 15° 4 40
08-00239-15508 1.5 R0.1 8 1.2 1.43 15° 4 40
08-00239-15603 1.5 R0.2 3 1.2 1.43 15° 4 35
08-00239-15604 1.5 R0.2 4 1.2 1.43 15° 4 35
08-00239-15606 1.5 R0.2 6 1.2 1.43 15° 4 40
08-00239-15608 1.5 R0.2 8 1.2 1.43 15° 4 40
08-00239-15703 1.5 R0.3 3 1.2 1.43 15° 4 35
08-00239-15704 1.5 R0.3 4 1.2 1.43 15° 4 35
08-00239-15706 1.5 R0.3 6 1.2 1.43 15° 4 40
08-00239-15708 1.5 R0.3 8 1.2 1.43 15° 4 40
08-00239-15803 1.5 R0.5 3 1.2 1.43 15° 4 35
08-00239-15804 1.5 R0.5 4 1.2 1.43 15° 4 35
08-00239-15806 1.5 R0.5 6 1.2 1.43 15° 4 40
08-00239-15808 1.5 R0.5 8 1.2 1.43 15° 4 40
08-00239-20204 2 R0.02 4 1.6 1.91 15° 4 35
08-00239-20206 2 R0.02 6 1.6 1.91 15° 4 35
08-00239-20208 2 R0.02 8 1.6 1.91 15° 4 40
08-00239-20210 2 R0.02 10 1.6 1.91 15° 4 40
08-00239-20404 2 R0.05 4 1.6 1.91 15° 4 35
08-00239-20406 2 R0.05 6 1.6 1.91 15° 4 35
08-00239-20408 2 R0.05 8 1.6 1.91 15° 4 40
08-00239-20410 2 R0.05 10 1.6 1.91 15° 4 40
08-00239-20504 2 R0.1 4 1.6 1.91 15° 4 35
08-00239-20506 2 R0.1 6 1.6 1.91 15° 4 35
08-00239-20508 2 R0.1 8 1.6 1.91 15° 4 40
08-00239-20510 2 R0.1 10 1.6 1.91 15° 4 40
08-00239-20604 2 R0.2 4 1.6 1.91 15° 4 35
08-00239-20606 2 R0.2 6 1.6 1.91 15° 4 35
08-00239-20608 2 R0.2 8 1.6 1.91 15° 4 40
08-00239-20610 2 R0.2 10 1.6 1.91 15° 4 40
08-00239-20704 2 R0.3 4 1.6 1.91 15° 4 35
08-00239-20706 2 R0.3 6 1.6 1.91 15° 4 35
08-00239-20708 2 R0.3 8 1.6 1.91 15° 4 40
08-00239-20710 2 R0.3 10 1.6 1.91 15° 4 40
08-00239-20804 2 R0.5 4 1.6 1.91 15° 4 35
08-00239-20806 2 R0.5 6 1.6 1.91 15° 4 35
08-00239-20808 2 R0.5 8 1.6 1.91 15° 4 40
08-00239-20810 2 R0.5 10 1.6 1.91 15° 4 40
08-00239-30404 3 R0.05 4 2.5 2.85 15° 6 45
08-00239-30406 3 R0.05 6 2.5 2.85 15° 6 45
08-00239-30408 3 R0.05 8 2.5 2.85 15° 6 45
08-00239-30410 3 R0.05 10 2.5 2.85 15° 6 50
08-00239-30412 3 R0.05 12 2.5 2.85 15° 6 50
08-00239-30415 3 R0.05 15 2.5 2.85 15° 6 55
08-00239-30504 3 R0.1 4 2.5 2.85 15° 6 45
08-00239-30506 3 R0.1 6 2.5 2.85 15° 6 45
08-00239-30508 3 R0.1 8 2.5 2.85 15° 6 45
08-00239-30510 3 R0.1 10 2.5 2.85 15° 6 50
08-00239-30512 3 R0.1 12 2.5 2.85 15° 6 50
08-00239-30515 3 R0.1 15 2.5 2.85 15° 6 55
08-00239-30604 3 R0.2 4 2.5 2.85 15° 6 45
08-00239-30606 3 R0.2 6 2.5 2.85 15° 6 45
08-00239-30608 3 R0.2 8 2.5 2.85 15° 6 45
08-00239-30610 3 R0.2 10 2.5 2.85 15° 6 50
08-00239-30612 3 R0.2 12 2.5 2.85 15° 6 50
08-00239-30615 3 R0.2 15 2.5 2.85 15° 6 55
08-00239-30704 3 R0.3 4 2.5 2.85 15° 6 45
08-00239-30706 3 R0.3 6 2.5 2.85 15° 6 45
08-00239-30708 3 R0.3 8 2.5 2.85 15° 6 45
08-00239-30710 3 R0.3 10 2.5 2.85 15° 6 50
08-00239-30712 3 R0.3 12 2.5 2.85 15° 6 50
08-00239-30715 3 R0.3 15 2.5 2.85 15° 6 55
08-00239-30804 3 R0.5 4 2.5 2.85 15° 6 45
08-00239-30806 3 R0.5 6 2.5 2.85 15° 6 45
08-00239-30808 3 R0.5 8 2.5 2.85 15° 6 45
08-00239-30810 3 R0.5 10 2.5 2.85 15° 6 50
08-00239-30812 3 R0.5 12 2.5 2.85 15° 6 50
08-00239-30815 3 R0.5 15 2.5 2.85 15° 6 55
08-00239-40508 4 R0.1 8 3.2 3.8 15° 6 45
08-00239-40512 4 R0.1 12 3.2 3.8 15° 6 50
08-00239-40516 4 R0.1 16 3.2 3.8 15° 6 55
08-00239-40520 4 R0.1 20 3.2 3.8 15° 6 55
08-00239-40608 4 R0.2 8 3.2 3.8 15° 6 45
08-00239-40612 4 R0.2 12 3.2 3.8 15° 6 50
08-00239-40616 4 R0.2 16 3.2 3.8 15° 6 55
08-00239-40620 4 R0.2 20 3.2 3.8 15° 6 55
08-00239-40708 4 R0.3 8 3.2 3.8 15° 6 45
08-00239-40712 4 R0.3 12 3.2 3.8 15° 6 50
08-00239-40716 4 R0.3 16 3.2 3.8 15° 6 55
08-00239-40720 4 R0.3 20 3.2 3.8 15° 6 55
08-00239-40808 4 R0.5 8 3.2 3.8 15° 6 45
08-00239-40812 4 R0.5 12 3.2 3.8 15° 6 50
08-00239-40816 4 R0.5 16 3.2 3.8 15° 6 55
08-00239-40820 4 R0.5 20 3.2 3.8 15° 6 55
08-00239-50515 5 R0.1 15 4 4.75 15° 6 50
08-00239-50520 5 R0.1 20 4 4.75 15° 6 55
08-00239-50615 5 R0.2 15 4 4.75 15° 6 50
08-00239-50620 5 R0.2 20 4 4.75 15° 6 55
08-00239-50715 5 R0.3 15 4 4.75 15° 6 50
08-00239-50720 5 R0.3 20 4 4.75 15° 6 55
08-00239-50815 5 R0.5 15 4 4.75 15° 6 50
08-00239-50820 5 R0.5 20 4 4.75 15° 6 55
08-00239-60512 6 R0.1 12 5 5.7 6 45
08-00239-60518 6 R0.1 18 5 5.7 6 50
08-00239-60524 6 R0.1 24 5 5.7 6 60
08-00239-60530 6 R0.1 30 5 5.7 6 65
08-00239-60612 6 R0.2 12 5 5.7 6 45
08-00239-60618 6 R0.2 18 5 5.7 6 50
08-00239-60624 6 R0.2 24 5 5.7 6 60
08-00239-60630 6 R0.2 30 5 5.7 6 65
08-00239-60712 6 R0.3 12 5 5.7 6 45
08-00239-60718 6 R0.3 18 5 5.7 6 50
08-00239-60724 6 R0.3 24 5 5.7 6 60
08-00239-60730 6 R0.3 30 5 5.7 6 65
08-00239-60812 6 R0.5 12 5 5.7 6 45
08-00239-60818 6 R0.5 18 5 5.7 6 50
08-00239-60824 6 R0.5 24 5 5.7 6 60
08-00239-60830 6 R0.5 30 5 5.7 6 65
08-00239-60912 6 R1 12 5 5.7 6 45
08-00239-60918 6 R1 18 5 5.7 6 50
08-00239-60924 6 R1 24 5 5.7 6 60
08-00239-60930 6 R1 30 5 5.7 6 65
