MTNH430RNEW

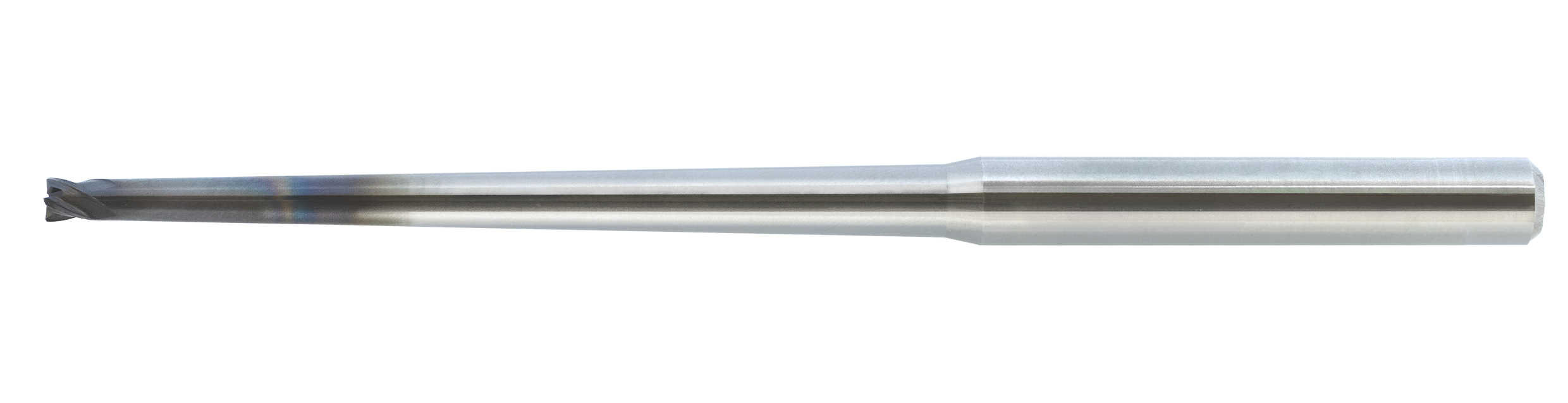

MUGEN COATING PREMIUM 4-Flute Taper Neck Corner Radius End Mill

●Corner radius end mill with taper neck design that enables high precision deepmachining with minimal deflection．

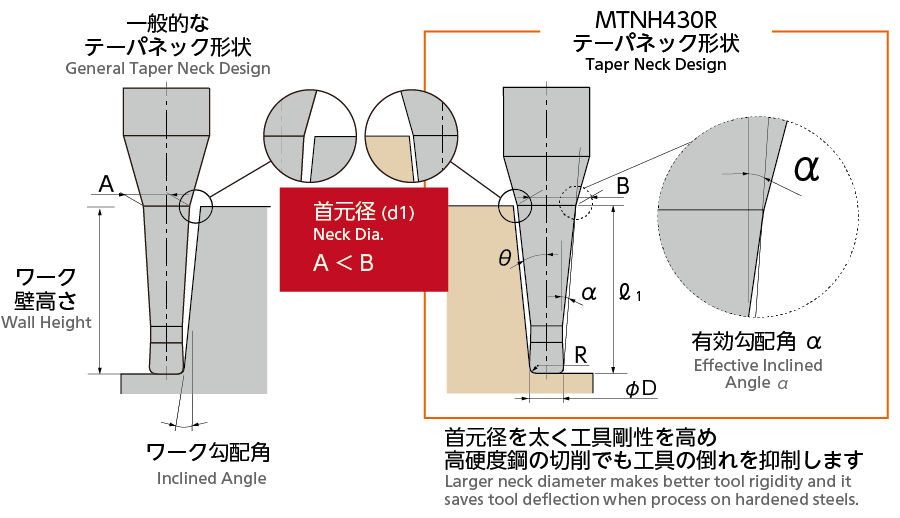

●Optimized taper neck design and MUGEN COATING PREMIUM realizes higher ability for hardened steels．
●4-flute design even with small diameter， lineup of 93 sizes in total．

  • Coating
    MUGEN COATING PREMIUM

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 65HRC

  • Number of Flutes
    4 Flutes

  • Helix Angle
    30°

  • Conner Radius
    ±0.005

  • φd-0.001/-0.003

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Leaflet

Line up

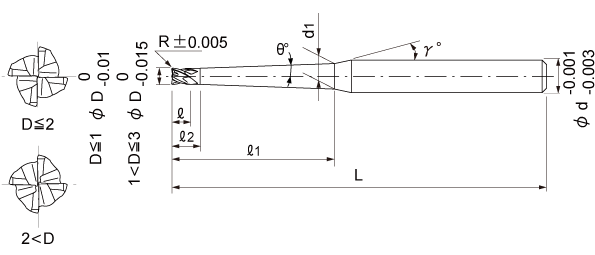

Unit [size: mm]

Code
No.		 (D)Dia. (R)Corner Radius (θ)Neck Taper Angle (l1)Under Neck Length (d1)Neck Dia. (l)Length of Cut (l2)Under Neck Length2 (γ)Neck Taper Angle2 (α)Effective InclinedAngle (d)Shank Dia. (L)Overall Length Semi-standard
08-00777-02311 0.2 R0.03 1° 1 0.22 0.15 0.4 12° 0°59′ 4 45
08-00777-02312 0.2 R0.03 1° 1.5 0.24 0.15 0.4 12° 0°59′ 4 45
08-00777-02313 0.2 R0.03 1° 2 0.26 0.15 0.4 12° 0°59′ 4 45
08-00777-02342 0.2 R0.03 3° 1.5 0.34 0.15 0.4 12° 2°59′ 4 45
08-00777-02343 0.2 R0.03 3° 2 0.39 0.15 0.4 12° 2°59′ 4 45
08-00777-02411 0.2 R0.05 1° 1 0.22 0.15 0.4 12° 0°59′ 4 45
08-00777-02412 0.2 R0.05 1° 1.5 0.24 0.15 0.4 12° 0°59′ 4 45
08-00777-02413 0.2 R0.05 1° 2 0.26 0.15 0.4 12° 0°59′ 4 45
08-00777-02442 0.2 R0.05 3° 1.5 0.34 0.15 0.4 12° 2°59′ 4 45
08-00777-02443 0.2 R0.05 3° 2 0.39 0.15 0.4 12° 2°59′ 4 45
08-00777-03312 0.3 R0.03 1° 1.5 0.34 0.25 0.6 12° 0°59′ 4 45
08-00777-03313 0.3 R0.03 1° 2 0.35 0.25 0.6 12° 0°59′ 4 45
08-00777-03315 0.3 R0.03 1° 3 0.39 0.25 0.6 12° 0°59′ 4 45
08-00777-03343 0.3 R0.03 3° 2 0.49 0.25 0.6 12° 2°59′ 4 45
08-00777-03345 0.3 R0.03 3° 3 0.6 0.25 0.6 12° 2°59′ 4 45
08-00777-03412 0.3 R0.05 1° 1.5 0.34 0.25 0.6 12° 0°59′ 4 45
08-00777-03413 0.3 R0.05 1° 2 0.35 0.25 0.6 12° 0°59′ 4 45
08-00777-03415 0.3 R0.05 1° 3 0.39 0.25 0.6 12° 0°59′ 4 45
08-00777-03443 0.3 R0.05 3° 2 0.49 0.25 0.6 12° 2°59′ 4 45
08-00777-03445 0.3 R0.05 3° 3 0.6 0.25 0.6 12° 2°59′ 4 45
08-00777-05411 0.5 R0.05 1° 4 0.62 0.4 1 12° 0°59′ 4 45
08-00777-05412 0.5 R0.05 1° 5 0.65 0.4 1 12° 0°59′ 4 45
08-00777-05413 0.5 R0.05 1° 6 0.69 0.4 1 12° 0°59′ 4 45
08-00777-05415 0.5 R0.05 1° 8 0.76 0.4 1 12° 0°59′ 4 45
08-00777-05417 0.5 R0.05 1° 10 0.83 0.4 1 12° 0°59′ 4 45
08-00777-05442 0.5 R0.05 3° 5 1 0.4 1 12° 2°59′ 4 45
08-00777-05445 0.5 R0.05 3° 8 1.31 0.4 1 12° 2°59′ 4 45
08-00777-05447 0.5 R0.05 3° 10 1.52 0.4 1 12° 2°59′ 4 45
08-00777-05511 0.5 R0.1 1° 4 0.61 0.4 1 12° 0°59′ 4 45
08-00777-05512 0.5 R0.1 1° 5 0.65 0.4 1 12° 0°59′ 4 45
08-00777-05513 0.5 R0.1 1° 6 0.68 0.4 1 12° 0°59′ 4 45
08-00777-05515 0.5 R0.1 1° 8 0.75 0.4 1 12° 0°59′ 4 45
08-00777-05517 0.5 R0.1 1° 10 0.82 0.4 1 12° 0°59′ 4 45
08-00777-05542 0.5 R0.1 3° 5 0.99 0.4 1 12° 2°59′ 4 45
08-00777-05545 0.5 R0.1 3° 8 1.31 0.4 1 12° 2°59′ 4 45
08-00777-05547 0.5 R0.1 3° 10 1.52 0.4 1 12° 2°59′ 4 45
08-00777-10511 1 R0.1 1° 10 1.3 0.8 2 12° 0°59′ 6 60
08-00777-10512 1 R0.1 1° 15 1.47 0.8 2 12° 0°59′ 6 60
08-00777-10513 1 R0.1 1° 20 1.65 0.8 2 12° 0°59′ 6 60
08-00777-10514 1 R0.1 1° 25 1.82 0.8 2 12° 0°59′ 6 70
08-00777-10515 1 R0.1 1° 30 2 0.8 2 12° 0°59′ 6 70
08-00777-10542 1 R0.1 3° 15 2.52 0.8 2 12° 2°59′ 6 60
08-00777-10611 1 R0.2 1° 10 1.3 0.8 2 12° 0°59′ 6 60
08-00777-10612 1 R0.2 1° 15 1.47 0.8 2 12° 0°59′ 6 60
08-00777-10613 1 R0.2 1° 20 1.65 0.8 2 12° 0°59′ 6 60
08-00777-10614 1 R0.2 1° 25 1.82 0.8 2 12° 0°59′ 6 70
08-00777-10615 1 R0.2 1° 30 1.99 0.8 2 12° 0°59′ 6 70
08-00777-10642 1 R0.2 3° 15 2.51 0.8 2 12° 2°59′ 6 60
08-00777-10711 1 R0.3 1° 10 1.29 0.8 2 12° 0°59′ 6 60
08-00777-10712 1 R0.3 1° 15 1.47 0.8 2 12° 0°59′ 6 60
08-00777-10713 1 R0.3 1° 20 1.64 0.8 2 12° 0°59′ 6 60
08-00777-10714 1 R0.3 1° 25 1.82 0.8 2 12° 0°59′ 6 70
08-00777-10715 1 R0.3 1° 30 1.99 0.8 2 12° 0°59′ 6 70
08-00777-10742 1 R0.3 3° 15 2.5 0.8 2 12° 2°59′ 6 60
08-00777-15612 1.5 R0.2 1° 15 1.97 1.2 3 12° 0°59′ 6 60
08-00777-15613 1.5 R0.2 1° 20 2.14 1.2 3 12° 0°59′ 6 60
08-00777-15615 1.5 R0.2 1° 30 2.49 1.2 3 12° 0°59′ 6 70
08-00777-15643 1.5 R0.2 3° 20 3.53 1.2 3 12° 2°59′ 6 60
08-00777-15712 1.5 R0.3 1° 15 1.97 1.2 3 12° 0°59′ 6 60
08-00777-15713 1.5 R0.3 1° 20 2.14 1.2 3 12° 0°59′ 6 60
08-00777-15715 1.5 R0.3 1° 30 2.49 1.2 3 12° 0°59′ 6 70
08-00777-15743 1.5 R0.3 3° 20 3.52 1.2 3 12° 2°59′ 6 60
08-00777-15812 1.5 R0.5 1° 15 1.96 1.2 3 12° 0°59′ 6 60
08-00777-15813 1.5 R0.5 1° 20 2.13 1.2 3 12° 0°59′ 6 60
08-00777-15815 1.5 R0.5 1° 30 2.48 1.2 3 12° 0°59′ 6 70
08-00777-15843 1.5 R0.5 3° 20 3.5 1.2 3 12° 2°59′ 6 60
08-00777-20613 2 R0.2 1° 20 2.64 1.6 4 12° 0°59′ 6 60
08-00777-20615 2 R0.2 1° 30 2.99 1.6 4 12° 0°59′ 6 70
08-00777-20617 2 R0.2 1° 40 3.34 1.6 4 12° 0°59′ 6 80
08-00777-20645 2 R0.2 3° 30 5.07 1.6 4 12° 2°59′ 6 70
08-00777-20713 2 R0.3 1° 20 2.64 1.6 4 12° 0°59′ 6 60
08-00777-20715 2 R0.3 1° 30 2.99 1.6 4 12° 0°59′ 6 70
08-00777-20717 2 R0.3 1° 40 3.34 1.6 4 12° 0°59′ 6 80
08-00777-20745 2 R0.3 3° 30 5.06 1.6 4 12° 2°59′ 6 70
08-00777-20813 2 R0.5 1° 20 2.63 1.6 4 12° 0°59′ 6 60
08-00777-20815 2 R0.5 1° 30 2.98 1.6 4 12° 0°59′ 6 70
08-00777-20817 2 R0.5 1° 40 3.33 1.6 4 12° 0°59′ 6 80
08-00777-20845 2 R0.5 3° 30 5.04 1.6 4 12° 2°59′ 6 70
08-00777-30611 3 R0.2 1° 30 3.94 2.5 6 12° 0°59′ 6 70
08-00777-30613 3 R0.2 1° 40 4.29 2.5 6 12° 0°59′ 6 80
08-00777-30615 3 R0.2 1° 50 4.64 2.5 6 12° 0°59′ 6 90
08-00777-30617 3 R0.2 1° 60 4.99 2.5 6 12° 0°59′ 6 100
08-00777-30642 3 R0.2 3° 29.8 6 2.5 6 - 2°59′ 6 70
08-00777-30711 3 R0.3 1° 30 3.93 2.5 6 12° 0°59′ 6 70
08-00777-30713 3 R0.3 1° 40 4.28 2.5 6 12° 0°59′ 6 80
08-00777-30715 3 R0.3 1° 50 4.63 2.5 6 12° 0°59′ 6 90
08-00777-30717 3 R0.3 1° 60 4.98 2.5 6 12° 0°59′ 6 100
08-00777-30742 3 R0.3 3° 29.9 6 2.5 6 - 2°59′ 6 70
08-00777-30811 3 R0.5 1° 30 3.93 2.5 6 12° 0°59′ 6 70
08-00777-30813 3 R0.5 1° 40 4.28 2.5 6 12° 0°59′ 6 80
08-00777-30815 3 R0.5 1° 50 4.63 2.5 6 12° 0°59′ 6 90
08-00777-30817 3 R0.5 1° 60 4.98 2.5 6 12° 0°59′ 6 100
08-00777-30842 3 R0.5 3° 30.1 6 2.5 6 - 2°59′ 6 70
