SHPR400

CBN Super High Precision Radius End Mill

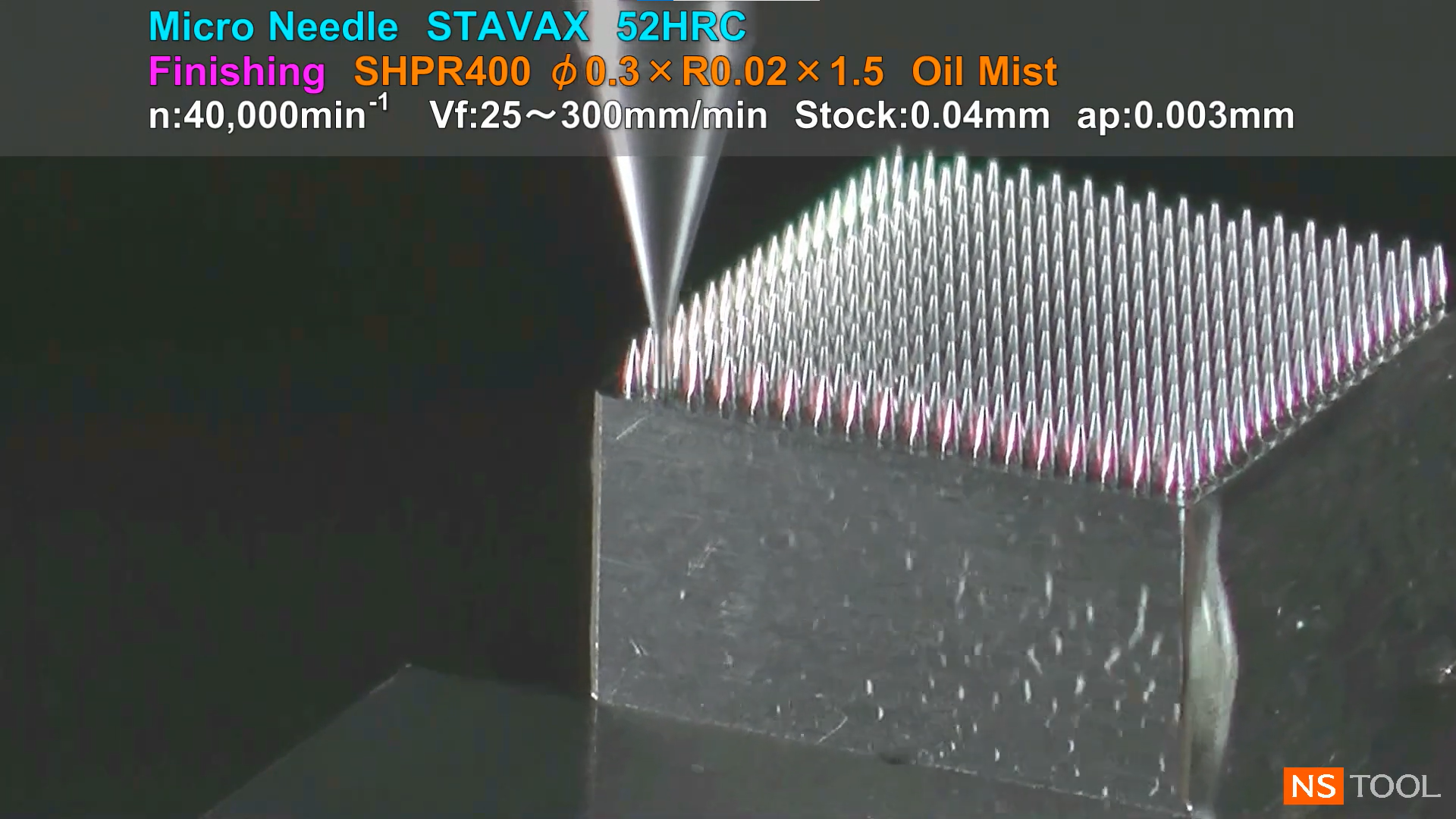

●New tool design has been developed to reduce the cutting resistance and upgrade the finishing accuracy!
●Realized 4-Flute type from φ0.1! Achieved higher efficient machining and more stable tool life in micro machining!
●Shank diameter accuracy range is 0.002mm, from -0.001mm to -0.003mm, and also supports high precision shrink fit holders.
●Line up from φ0.1~φ3, total 142 sizes.
● Beware of stocks because there is no cutting edge to center of bottom,φ0.1 and φ0.15.

  • Material
    CubicBoron Nitride

  • Helix Angle

  • Cutting Possibility of Work Material Hardness
    Up to 70HRC

  • Number of Flutes
    4 Flutes

  • Applications
    Slot Milling

  • Applications
    Face Milling

  • Corner Shape
    Corner Radius

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.
(D)Dia. (R)Corner Radius (l1)Effective Length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
01-00485-01002 0.1 R0.01 0.2 0.04 0.09 15° 4 50 48,300
01-00485-01003 0.1 R0.01 0.3 0.04 0.09 15° 4 50 48,900
01-00485-01005 0.1 R0.01 0.5 0.04 0.09 15° 4 50 49,800
01-00485-01022 0.1 R0.02 0.2 0.04 0.09 15° 4 50 48,300
01-00485-01023 0.1 R0.02 0.3 0.04 0.09 15° 4 50 48,900
01-00485-01025 0.1 R0.02 0.5 0.04 0.09 15° 4 50 49,800
01-00485-01522 0.15 R0.02 0.2 0.06 0.14 15° 4 50 48,300
01-00485-01523 0.15 R0.02 0.3 0.06 0.14 15° 4 50 48,900
01-00485-01525 0.15 R0.02 0.5 0.06 0.14 15° 4 50 49,800
01-00485-01532 0.15 R0.03 0.2 0.06 0.14 15° 4 50 46,100
01-00485-01533 0.15 R0.03 0.3 0.06 0.14 15° 4 50 46,800
01-00485-01535 0.15 R0.03 0.5 0.06 0.14 15° 4 50 48,300
01-00485-02203 0.2 R0.02 0.3 0.08 0.19 15° 4 50 36,800
01-00485-02205 0.2 R0.02 0.5 0.08 0.19 15° 4 50 36,800
01-00485-02210 0.2 R0.02 1 0.08 0.19 15° 4 50 37,800
01-00485-02303 0.2 R0.03 0.3 0.08 0.19 15° 4 50 33,000
01-00485-02305 0.2 R0.03 0.5 0.08 0.19 15° 4 50 33,000
01-00485-02310 0.2 R0.03 1 0.08 0.19 15° 4 50 34,000
01-00485-03205 0.3 R0.02 0.5 0.13 0.285 15° 4 50 36,300
01-00485-03207 0.3 R0.02 0.75 0.13 0.285 15° 4 50 36,500
01-00485-03210 0.3 R0.02 1 0.13 0.285 15° 4 50 36,800
01-00485-03215 0.3 R0.02 1.5 0.13 0.285 15° 4 50 37,200
01-00485-03220 0.3 R0.02 2 0.13 0.285 15° 4 50 37,800
01-00485-03405 0.3 R0.05 0.5 0.13 0.285 15° 4 50 32,700
01-00485-03407 0.3 R0.05 0.75 0.13 0.285 15° 4 50 32,900
01-00485-03410 0.3 R0.05 1 0.13 0.285 15° 4 50 33,000
01-00485-03415 0.3 R0.05 1.5 0.13 0.285 15° 4 50 33,500
01-00485-03420 0.3 R0.05 2 0.13 0.285 15° 4 50 34,000
NEW 01-00485-04205 0.4 R0.02 0.5 0.24 0.37 15° 4 50 34,400
NEW 01-00485-04210 0.4 R0.02 1 0.24 0.37 15° 4 50 34,700
NEW 01-00485-04215 0.4 R0.02 1.5 0.24 0.37 15° 4 50 35,000
NEW 01-00485-04220 0.4 R0.02 2 0.24 0.37 15° 4 50 35,400
NEW 01-00485-04225 0.4 R0.02 2.5 0.24 0.37 15° 4 50 36,000
NEW 01-00485-04405 0.4 R0.05 0.5 0.24 0.37 15° 4 50 31,000
NEW 01-00485-04410 0.4 R0.05 1 0.24 0.37 15° 4 50 31,200
NEW 01-00485-04415 0.4 R0.05 1.5 0.24 0.37 15° 4 50 31,200
NEW 01-00485-04420 0.4 R0.05 2 0.24 0.37 15° 4 50 31,900
NEW 01-00485-04425 0.4 R0.05 2.5 0.24 0.37 15° 4 50 32,400
NEW 01-00485-04505 0.4 R0.1 0.5 0.24 0.37 15° 4 50 31,000
NEW 01-00485-04510 0.4 R0.1 1 0.24 0.37 15° 4 50 31,200
NEW 01-00485-04515 0.4 R0.1 1.5 0.24 0.37 15° 4 50 31,200
NEW 01-00485-04520 0.4 R0.1 2 0.24 0.37 15° 4 50 31,900
NEW 01-00485-04525 0.4 R0.1 2.5 0.24 0.37 15° 4 50 32,400
01-00485-05205 0.5 R0.02 0.5 0.3 0.46 15° 4 48 28,400
01-00485-05210 0.5 R0.02 1 0.3 0.46 15° 4 50 28,600
01-00485-05215 0.5 R0.02 1.5 0.3 0.46 15° 4 50 28,800
NEW 01-00485-05220 0.5 R0.02 2 0.3 0.46 15° 4 50 30,200
01-00485-05225 0.5 R0.02 2.5 0.3 0.46 15° 4 50 31,600
01-00485-05405 0.5 R0.05 0.5 0.3 0.46 15° 4 48 25,500
01-00485-05410 0.5 R0.05 1 0.3 0.46 15° 4 50 25,700
01-00485-05415 0.5 R0.05 1.5 0.3 0.46 15° 4 50 26,000
NEW 01-00485-05420 0.5 R0.05 2 0.3 0.46 15° 4 50 27,200
01-00485-05425 0.5 R0.05 2.5 0.3 0.46 15° 4 50 28,400
01-00485-05505 0.5 R0.1 0.5 0.3 0.46 15° 4 48 25,500
01-00485-05510 0.5 R0.1 1 0.3 0.46 15° 4 50 25,700
01-00485-05515 0.5 R0.1 1.5 0.3 0.46 15° 4 50 26,000
NEW 01-00485-05520 0.5 R0.1 2 0.3 0.46 15° 4 50 27,200
01-00485-05525 0.5 R0.1 2.5 0.3 0.46 15° 4 50 28,400
NEW 01-00485-06205 0.6 R0.02 0.5 0.3 0.56 15° 4 48 28,400
NEW 01-00485-06210 0.6 R0.02 1 0.3 0.56 15° 4 50 28,600
NEW 01-00485-06215 0.6 R0.02 1.5 0.3 0.56 15° 4 50 28,800
NEW 01-00485-06220 0.6 R0.02 2 0.3 0.56 15° 4 50 31,200
NEW 01-00485-06225 0.6 R0.02 2.5 0.3 0.56 15° 4 50 31,500
NEW 01-00485-06405 0.6 R0.05 0.5 0.3 0.56 15° 4 48 25,500
NEW 01-00485-06410 0.6 R0.05 1 0.3 0.56 15° 4 50 25,700
NEW 01-00485-06415 0.6 R0.05 1.5 0.3 0.56 15° 4 50 26,000
NEW 01-00485-06420 0.6 R0.05 2 0.3 0.56 15° 4 50 27,000
NEW 01-00485-06425 0.6 R0.05 2.5 0.3 0.56 15° 4 50 28,400
NEW 01-00485-06505 0.6 R0.1 0.5 0.3 0.56 15° 4 48 25,500
NEW 01-00485-06510 0.6 R0.1 1 0.3 0.56 15° 4 50 25,700
NEW 01-00485-06515 0.6 R0.1 1.5 0.3 0.56 15° 4 50 26,000
NEW 01-00485-06520 0.6 R0.1 2 0.3 0.56 15° 4 50 27,000
NEW 01-00485-06525 0.6 R0.1 2.5 0.3 0.56 15° 4 50 28,400
01-00485-08215 0.8 R0.02 1.5 0.56 0.76 15° 4 50 28,800
01-00485-08225 0.8 R0.02 2.5 0.56 0.76 15° 4 50 31,600
01-00485-08250 0.8 R0.02 5 0.56 0.76 15° 4 53 32,700
01-00485-08415 0.8 R0.05 1.5 0.56 0.76 15° 4 50 26,000
01-00485-08425 0.8 R0.05 2.5 0.56 0.76 15° 4 50 28,400
01-00485-08450 0.8 R0.05 5 0.56 0.76 15° 4 53 29,300
01-00485-08515 0.8 R0.1 1.5 0.56 0.76 15° 4 50 26,000
01-00485-08525 0.8 R0.1 2.5 0.56 0.76 15° 4 50 28,400
01-00485-08550 0.8 R0.1 5 0.56 0.76 15° 4 53 29,300
01-00485-10201 1 R0.02 1 0.7 0.95 15° 4 49 26,400
01-00485-10202 1 R0.02 2 0.7 0.95 15° 4 50 26,400
01-00485-10203 1 R0.02 3 0.7 0.95 15° 4 50 26,400
01-00485-10205 1 R0.02 5 0.7 0.95 15° 4 53 29,900
01-00485-10401 1 R0.05 1 0.7 0.95 15° 4 49 23,800
01-00485-10402 1 R0.05 2 0.7 0.95 15° 4 50 23,800
01-00485-10403 1 R0.05 3 0.7 0.95 15° 4 50 23,800
01-00485-10405 1 R0.05 5 0.7 0.95 15° 4 53 26,900
01-00485-10501 1 R0.1 1 0.7 0.95 15° 4 49 23,800
01-00485-10502 1 R0.1 2 0.7 0.95 15° 4 50 23,800
01-00485-10503 1 R0.1 3 0.7 0.95 15° 4 50 23,800
01-00485-10505 1 R0.1 5 0.7 0.95 15° 4 53 26,900
01-00485-10601 1 R0.2 1 0.7 0.95 15° 4 49 23,800
01-00485-10602 1 R0.2 2 0.7 0.95 15° 4 50 23,800
01-00485-10603 1 R0.2 3 0.7 0.95 15° 4 50 23,800
01-00485-10605 1 R0.2 5 0.7 0.95 15° 4 53 26,900
01-00485-15202 1.5 R0.02 2 1 1.45 15° 4 52 31,100
01-00485-15203 1.5 R0.02 3 1 1.45 15° 4 52 31,100
01-00485-15204 1.5 R0.02 4.5 1 1.45 15° 4 52 31,100
01-00485-15207 1.5 R0.02 7.5 1 1.45 15° 4 52 35,300
01-00485-15402 1.5 R0.05 2 1 1.45 15° 4 52 28,000
01-00485-15403 1.5 R0.05 3 1 1.45 15° 4 52 28,000
01-00485-15404 1.5 R0.05 4.5 1 1.45 15° 4 52 28,000
01-00485-15407 1.5 R0.05 7.5 1 1.45 15° 4 52 31,700
01-00485-15502 1.5 R0.1 2 1 1.45 15° 4 52 28,000
01-00485-15503 1.5 R0.1 3 1 1.45 15° 4 52 28,000
01-00485-15504 1.5 R0.1 4.5 1 1.45 15° 4 52 28,000
01-00485-15507 1.5 R0.1 7.5 1 1.45 15° 4 52 31,700
01-00485-15602 1.5 R0.2 2 1 1.45 15° 4 52 28,000
01-00485-15603 1.5 R0.2 3 1 1.45 15° 4 52 28,000
01-00485-15604 1.5 R0.2 4.5 1 1.45 15° 4 52 28,000
01-00485-15607 1.5 R0.2 7.5 1 1.45 15° 4 52 31,700
01-00485-20203 2 R0.02 3 1.2 1.94 15° 4 53 32,100
01-00485-20204 2 R0.02 4 1.2 1.94 15° 4 53 32,100
01-00485-20206 2 R0.02 6 1.2 1.94 15° 4 53 32,100
01-00485-20210 2 R0.02 10 1.2 1.94 15° 4 53 35,800
01-00485-20403 2 R0.05 3 1.2 1.94 15° 4 53 28,800
01-00485-20404 2 R0.05 4 1.2 1.94 15° 4 53 28,800
01-00485-20406 2 R0.05 6 1.2 1.94 15° 4 53 28,800
01-00485-20410 2 R0.05 10 1.2 1.94 15° 4 53 32,200
01-00485-20503 2 R0.1 3 1.2 1.94 15° 4 53 28,800
01-00485-20504 2 R0.1 4 1.2 1.94 15° 4 53 28,800
01-00485-20506 2 R0.1 6 1.2 1.94 15° 4 53 28,800
01-00485-20510 2 R0.1 10 1.2 1.94 15° 4 53 32,200
01-00485-20603 2 R0.2 3 1.2 1.94 15° 4 53 28,800
01-00485-20604 2 R0.2 4 1.2 1.94 15° 4 53 28,800
01-00485-20606 2 R0.2 6 1.2 1.94 15° 4 53 28,800
01-00485-20610 2 R0.2 10 1.2 1.94 15° 4 53 32,100
01-00485-30406 3 R0.05 6 1.8 2.85 15° 6 53 37,200
01-00485-30409 3 R0.05 9 1.8 2.85 15° 6 53 38,000
01-00485-30412 3 R0.05 12 1.8 2.85 15° 6 63 38,800
01-00485-30415 3 R0.05 15 1.8 2.85 15° 6 63 39,600
01-00485-30506 3 R0.1 6 1.8 2.85 15° 6 53 37,200
01-00485-30509 3 R0.1 9 1.8 2.85 15° 6 53 38,000
01-00485-30512 3 R0.1 12 1.8 2.85 15° 6 63 38,800
01-00485-30515 3 R0.1 15 1.8 2.85 15° 6 63 39,600
01-00485-30606 3 R0.2 6 1.8 2.85 15° 6 53 37,200
01-00485-30609 3 R0.2 9 1.8 2.85 15° 6 53 38,000
01-00485-30612 3 R0.2 12 1.8 2.85 15° 6 63 38,800
01-00485-30615 3 R0.2 15 1.8 2.85 15° 6 63 39,600

NEW additional sizes
