SSF120

CBN Super Surface End Mill

●Appropriate for datum plane machining on presicion machining．
●NS original design and corner R to realize stable machining surface．

  • Material
    CubicBoron Nitride

  • Cutting Possibility of Work Material Hardness
    Up to 70HRC

  • Number of Flutes
    1 Flutes

  • Helix Angle
    -20°

  • Conner Radius
    ±0.005

  • φd h4

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel
〜
55HRC		 ～
65HRC		 ～
70HRC
Carbon Steel Alloy Steel
Prehardened
Steel		 Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel		 ～
55HRC		 ～
65HRC
～
70HRC

Leaflet

Line up

Unit [size: mm / Retail Price: JPY]

Code

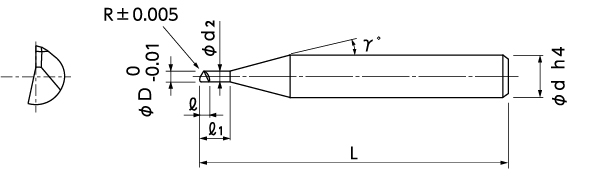

No.		 (D)Dia. (R)Corner Radius (l)Length of Cut (l1)Under Neck Length (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
01-00470-00020 0.2 R0.05 0.1 0.5 0.19 15° 4 50 35,000
01-00470-00030 0.3 R0.05 0.15 0.75 0.28 15° 4 50 30,000
01-00470-00040 0.4 R0.05 0.2 1 0.37 15° 4 50 25,000
01-00470-00050 0.5 R0.05 0.25 1.25 0.46 15° 4 50 22,000
01-00470-00060 0.6 R0.05 0.3 1.5 0.56 15° 4 50 24,000
01-00470-00080 0.8 R0.05 0.4 2 0.76 15° 4 50 23,000
01-00470-00100 1 R0.1 0.5 2.5 0.95 15° 4 50 22,000
01-00470-00150 1.5 R0.1 0.75 3.8 1.45 15° 4 52 23,000
01-00470-00200 2 R0.1 1 5 1.94 15° 4 52 25,000
