MHRH230R

MUGEN COATING PREMIUM 2-Flute Long Neck Radius End Mill for Hardened Steel

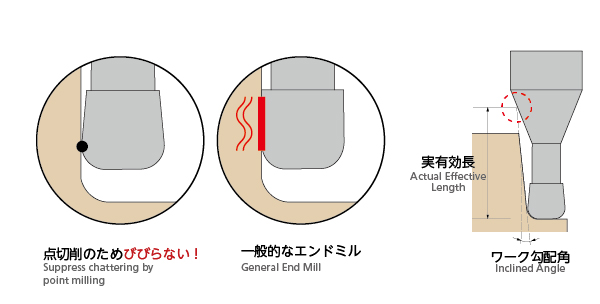

●MUGEN COATING PREMIUM for hardened steels and unique new design excel in chipping prevention and resolve chattering to realize excellent finished surface．
●Total 97 sizes．

  • Coating
    MUGEN COATING PREMIUM

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 65HRC

  • Number of Flutes
    2 Flutes

  • Helix Angle
    30°

  • Conner Radius
    ±0.005

  • φd h5

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel
〜
55HRC		 ～
65HRC		 ～
70HRC
Carbon Steel Alloy Steel
Prehardened
Steel		 Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel		 ～
55HRC		 ～
65HRC
～
70HRC

Leaflet

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.		 (D)Dia. (R)Corner Radius (l1)Under Neck Length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
08-00227-02021 0.2 R0.02 0.5 0.15 0.18 12° 4 45 10,100
08-00227-02023 0.2 R0.02 1 0.15 0.18 12° 4 45 10,100
08-00227-02025 0.2 R0.02 1.5 0.15 0.18 12° 4 45 11,900
08-00227-02027 0.2 R0.02 2 0.15 0.18 12° 4 45 13,000
08-00227-02051 0.2 R0.05 0.5 0.15 0.18 12° 4 45 10,100
08-00227-02053 0.2 R0.05 1 0.15 0.18 12° 4 45 10,100
08-00227-02055 0.2 R0.05 1.5 0.15 0.18 12° 4 45 11,900
08-00227-02057 0.2 R0.05 2 0.15 0.18 12° 4 45 13,000
08-00227-03021 0.3 R0.02 1 0.25 0.28 12° 4 45 9,800
08-00227-03022 0.3 R0.02 1.5 0.25 0.28 12° 4 45 9,800
08-00227-03023 0.3 R0.02 2 0.25 0.28 12° 4 45 9,800
08-00227-03024 0.3 R0.02 2.5 0.25 0.28 12° 4 45 12,300
08-00227-03025 0.3 R0.02 3 0.25 0.28 12° 4 45 12,300
08-00227-03051 0.3 R0.05 1 0.25 0.28 12° 4 45 9,800
08-00227-03052 0.3 R0.05 1.5 0.25 0.28 12° 4 45 9,800
08-00227-03053 0.3 R0.05 2 0.25 0.28 12° 4 45 9,800
08-00227-03054 0.3 R0.05 2.5 0.25 0.28 12° 4 45 12,300
08-00227-03055 0.3 R0.05 3 0.25 0.28 12° 4 45 12,300
08-00227-04021 0.4 R0.02 1 0.3 0.37 12° 4 45 6,500
08-00227-04022 0.4 R0.02 1.5 0.3 0.37 12° 4 45 6,500
08-00227-04023 0.4 R0.02 2 0.3 0.37 12° 4 45 6,500
08-00227-04024 0.4 R0.02 2.5 0.3 0.37 12° 4 45 6,500
08-00227-04025 0.4 R0.02 3 0.3 0.37 12° 4 45 6,500
08-00227-04027 0.4 R0.02 4 0.3 0.37 12° 4 45 6,500
08-00227-04051 0.4 R0.05 1 0.3 0.37 12° 4 45 6,500
08-00227-04052 0.4 R0.05 1.5 0.3 0.37 12° 4 45 6,500
08-00227-04053 0.4 R0.05 2 0.3 0.37 12° 4 45 6,500
08-00227-04054 0.4 R0.05 2.5 0.3 0.37 12° 4 45 6,500
08-00227-04055 0.4 R0.05 3 0.3 0.37 12° 4 45 6,500
08-00227-04057 0.4 R0.05 4 0.3 0.37 12° 4 45 6,500
08-00227-04101 0.4 R0.1 1 0.3 0.37 12° 4 45 6,500
08-00227-04103 0.4 R0.1 2 0.3 0.37 12° 4 45 6,500
08-00227-04105 0.4 R0.1 3 0.3 0.37 12° 4 45 6,500
08-00227-04107 0.4 R0.1 4 0.3 0.37 12° 4 45 6,500
08-00227-05021 0.5 R0.02 1 0.4 0.46 12° 4 45 5,300
08-00227-05022 0.5 R0.02 2 0.4 0.46 12° 4 45 5,300
08-00227-05023 0.5 R0.02 3 0.4 0.46 12° 4 45 5,300
08-00227-05024 0.5 R0.02 4 0.4 0.46 12° 4 45 5,300
08-00227-05025 0.5 R0.02 5 0.4 0.46 12° 4 45 5,300
08-00227-05026 0.5 R0.02 6 0.4 0.46 12° 4 45 5,300
08-00227-05051 0.5 R0.05 1 0.4 0.46 12° 4 45 5,300
08-00227-05052 0.5 R0.05 2 0.4 0.46 12° 4 45 5,300
08-00227-05053 0.5 R0.05 3 0.4 0.46 12° 4 45 5,300
08-00227-05054 0.5 R0.05 4 0.4 0.46 12° 4 45 5,300
08-00227-05055 0.5 R0.05 5 0.4 0.46 12° 4 45 5,300
08-00227-05056 0.5 R0.05 6 0.4 0.46 12° 4 45 5,300
08-00227-05101 0.5 R0.1 1 0.4 0.46 12° 4 45 5,300
08-00227-05102 0.5 R0.1 2 0.4 0.46 12° 4 45 5,300
08-00227-05103 0.5 R0.1 3 0.4 0.46 12° 4 45 5,300
08-00227-05104 0.5 R0.1 4 0.4 0.46 12° 4 45 5,300
08-00227-05105 0.5 R0.1 5 0.4 0.46 12° 4 45 5,300
08-00227-05106 0.5 R0.1 6 0.4 0.46 12° 4 45 5,300
08-00227-06021 0.6 R0.02 2 0.5 0.56 12° 4 45 5,700
08-00227-06023 0.6 R0.02 4 0.5 0.56 12° 4 45 5,700
08-00227-06025 0.6 R0.02 6 0.5 0.56 12° 4 45 5,700
08-00227-06027 0.6 R0.02 8 0.5 0.56 12° 4 50 5,900
08-00227-06029 0.6 R0.02 10 0.5 0.56 12° 4 50 5,900
08-00227-06051 0.6 R0.05 2 0.5 0.56 12° 4 45 5,700
08-00227-06053 0.6 R0.05 4 0.5 0.56 12° 4 45 5,700
08-00227-06055 0.6 R0.05 6 0.5 0.56 12° 4 45 5,700
08-00227-06057 0.6 R0.05 8 0.5 0.56 12° 4 50 5,900
08-00227-06059 0.6 R0.05 10 0.5 0.56 12° 4 50 5,900
08-00227-06101 0.6 R0.1 2 0.5 0.56 12° 4 45 5,300
08-00227-06103 0.6 R0.1 4 0.5 0.56 12° 4 45 5,300
08-00227-06105 0.6 R0.1 6 0.5 0.56 12° 4 45 5,300
08-00227-06107 0.6 R0.1 8 0.5 0.56 12° 4 50 5,500
08-00227-06109 0.6 R0.1 10 0.5 0.56 12° 4 50 5,500
08-00227-07020 0.7 R0.02 2 0.55 0.66 12° 4 45 6,000
08-00227-07021 0.7 R0.02 4 0.55 0.66 12° 4 45 6,000
08-00227-07023 0.7 R0.02 6 0.55 0.66 12° 4 45 6,000
08-00227-07050 0.7 R0.05 2 0.55 0.66 12° 4 45 6,000
08-00227-07051 0.7 R0.05 4 0.55 0.66 12° 4 45 6,000
08-00227-07053 0.7 R0.05 6 0.55 0.66 12° 4 45 6,000
08-00227-07100 0.7 R0.1 2 0.55 0.66 12° 4 45 6,000
08-00227-07101 0.7 R0.1 4 0.55 0.66 12° 4 45 6,000
08-00227-07103 0.7 R0.1 6 0.55 0.66 12° 4 45 6,000
08-00227-08020 0.8 R0.02 2 0.65 0.76 12° 4 45 6,000
08-00227-08021 0.8 R0.02 4 0.65 0.76 12° 4 45 6,000
08-00227-08023 0.8 R0.02 6 0.65 0.76 12° 4 45 6,000
08-00227-08025 0.8 R0.02 8 0.65 0.76 12° 4 50 6,200
08-00227-08050 0.8 R0.05 2 0.65 0.76 12° 4 45 6,000
08-00227-08051 0.8 R0.05 4 0.65 0.76 12° 4 45 6,000
08-00227-08053 0.8 R0.05 6 0.65 0.76 12° 4 45 6,000
08-00227-08055 0.8 R0.05 8 0.65 0.76 12° 4 50 6,200
08-00227-08059 0.8 R0.05 12 0.65 0.76 12° 4 50 6,200
08-00227-08100 0.8 R0.1 2 0.65 0.76 12° 4 45 6,000
08-00227-08101 0.8 R0.1 4 0.65 0.76 12° 4 45 6,000
08-00227-08103 0.8 R0.1 6 0.65 0.76 12° 4 45 6,000
08-00227-08105 0.8 R0.1 8 0.65 0.76 12° 4 50 6,200
08-00227-08109 0.8 R0.1 12 0.65 0.76 12° 4 50 6,200
08-00227-08200 0.8 R0.2 2 0.65 0.76 12° 4 45 6,000
08-00227-08201 0.8 R0.2 4 0.65 0.76 12° 4 45 6,000
08-00227-08203 0.8 R0.2 6 0.65 0.76 12° 4 45 6,000
08-00227-08205 0.8 R0.2 8 0.65 0.76 12° 4 50 6,200
08-00227-08209 0.8 R0.2 12 0.65 0.76 12° 4 50 6,200
08-00227-09101 0.9 R0.1 4 0.7 0.85 12° 4 45 6,800
08-00227-09105 0.9 R0.1 8 0.7 0.85 12° 4 50 6,800
