MSRS430

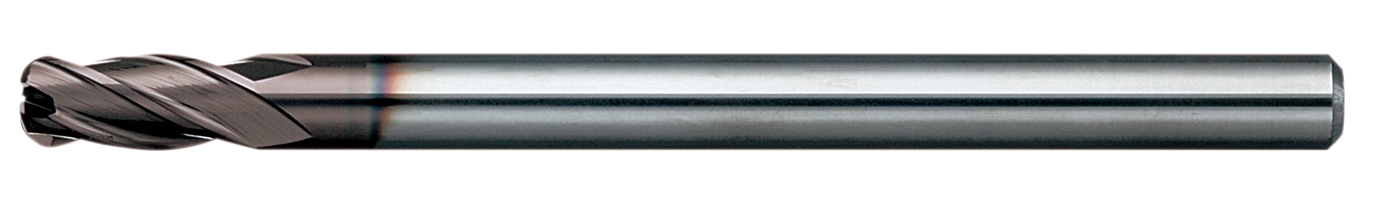

MUGEN COATING 4-Flute Radius End Mill

●Small diameter sizes of 4-Flute MUGEN COATING corner radius end mill are born．
●64sizes Line up fromΦ1toΦ12 to achieve high efficient micro machining．
●Total 64 sizes for suitable selection．
【■】：Semi-Standerd item，please inquire for price and delivery．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 55HRC

  • Number of Flutes
    4 Flutes

  • Helix Angle
    30°

  • Conner Radius
    ±0.005(D≦2.5)

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel
〜
55HRC		 ～
65HRC		 ～
70HRC
Carbon Steel Alloy Steel
Prehardened
Steel		 Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel		 ～
55HRC		 ～
65HRC
～
70HRC

Leaflet

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.		 (D)Dia. (R)Corner Radius (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
08-00710-01001 1 R0.1 2 12° 4 60 11,900
08-00710-01002 1 R0.2 2 12° 4 60 11,900
08-00710-01003 1 R0.3 2 12° 4 60 11,900
08-00710-01501 1.5 R0.1 3 12° 4 60 11,900
08-00710-01502 1.5 R0.2 3 12° 4 60 11,900
08-00710-01503 1.5 R0.3 3 12° 4 60 11,900
08-00710-01505 1.5 R0.5 3 12° 4 60 11,900
08-00710-02001 2 R0.1 4 12° 4 60 11,900
08-00710-02002 2 R0.2 4 12° 4 60 11,900
08-00710-02003 2 R0.3 4 12° 4 60 11,900
08-00710-02005 2 R0.5 4 12° 4 60 11,900
08-00710-02501 2.5 R0.1 5 12° 4 60 11,900
08-00710-02502 2.5 R0.2 5 12° 4 60 11,900
08-00710-02503 2.5 R0.3 5 12° 4 60 13,100
08-00710-02505 2.5 R0.5 5 12° 4 60 13,100
08-00710-03001 3 R0.1 6 12° 6 60 14,700
08-00710-03002 3 R0.2 6 12° 6 60 14,700
08-00710-03003 3 R0.3 6 12° 6 60 14,700
08-00710-03005 3 R0.5 6 12° 6 60 14,700
08-00710-03010 3 R1 6 12° 6 60 16,000
08-00710-04001 4 R0.1 8 12° 6 65 14,800
08-00710-04002 4 R0.2 8 12° 6 65 14,800
08-00710-04003 4 R0.3 8 12° 6 65 14,800
08-00710-04005 4 R0.5 8 12° 6 65 14,800
08-00710-04010 4 R1 8 12° 6 65 16,200
08-00710-05001 5 R0.1 10 12° 6 70 15,000
08-00710-05002 5 R0.2 10 12° 6 70 15,000
08-00710-05003 5 R0.3 10 12° 6 70 15,000
08-00710-05005 5 R0.5 10 12° 6 70 15,000
08-00710-05010 5 R1 10 12° 6 70 16,400
08-00710-05015 5 R1.5 10 12° 6 70 17,000
08-00710-06001 6 R0.1 12 － 6 80 14,500
08-00710-06002 6 R0.2 12 － 6 80 14,500
08-00710-06003 6 R0.3 12 － 6 80 14,500
08-00710-06005 6 R0.5 12 － 6 80 14,500
08-00710-06010 6 R1 12 － 6 80 15,500
08-00710-06015 6 R1.5 12 － 6 80 15,500
08-00710-06020 6 R2 12 － 6 80 15,500
08-00710-08001 8 R0.1 16 － 8 90 20,900
08-00710-08002 8 R0.2 16 － 8 90 20,900
08-00710-08005 8 R0.5 16 － 8 90 20,900
08-00710-08010 8 R1 16 － 8 90 20,900
08-00710-08015 8 R1.5 16 － 8 90 22,000
08-00710-08020 8 R2 16 － 8 90 22,000
08-00710-08025 8 R2.5 16 － 8 90 23,300
08-00710-08030 8 R3 16 － 8 90 23,300
08-00710-10001 10 R0.1 20 － 10 100 22,000
08-00710-10002 10 R0.2 20 － 10 100 22,000
08-00710-10003 10 R0.3 20 － 10 100 22,000
08-00710-10005 10 R0.5 20 － 10 100 22,000
08-00710-10010 10 R1 20 － 10 100 22,000
08-00710-10015 10 R1.5 20 － 10 100 23,300
08-00710-10020 10 R2 20 － 10 100 23,300
08-00710-10025 10 R2.5 20 － 10 100 25,600
08-00710-10030 10 R3 20 － 10 100 25,600
08-00710-12001 12 R0.1 24 － 12 110 34,800
08-00710-12002 12 R0.2 24 － 12 110 34,800
08-00710-12003 12 R0.3 24 － 12 110 34,800
08-00710-12005 12 R0.5 24 － 12 110 34,800
08-00710-12010 12 R1 24 － 12 110 34,800
08-00710-12015 12 R1.5 24 － 12 110 36,000
08-00710-12020 12 R2 24 － 12 110 36,000
08-00710-12025 12 R2.5 24 － 12 110 37,100
08-00710-12030 12 R3 24 － 12 110 37,100
