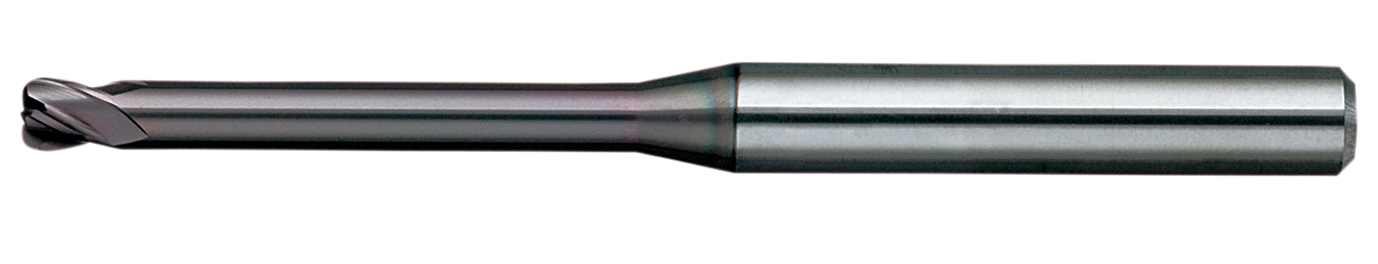

MHRH430R

MUGEN COATING PREMIUM 4-Flute Long Neck Corner Radius End Mill for Hardened Steel

●MUGEN COATING PREMIUM for hardened steels and unique new design excel in chipping revention and resolve chattering to realize excellent finished surface．
●4-flutes end mill for higher efficiency．
●4-flute end mill has 450 sizes in total that lineup from the smallest diameterΦ0.1 toΦ6．

  • Coating
    MUGEN COATING PREMIUM

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 65HRC

  • Number of Flutes
    4 Flutes

  • Helix Angle
    30°

  • Conner Radius
    ±0.003(D≦0.15) &
    ±0.005(0.15<D≦2.5)

  • φd-0.001/-0.003(D≦0.15)&
    h5(0.15<D)

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Leaflet

Machining Video
Precise Milling on Hardened Steel

Precise Milling on Hardened Steel

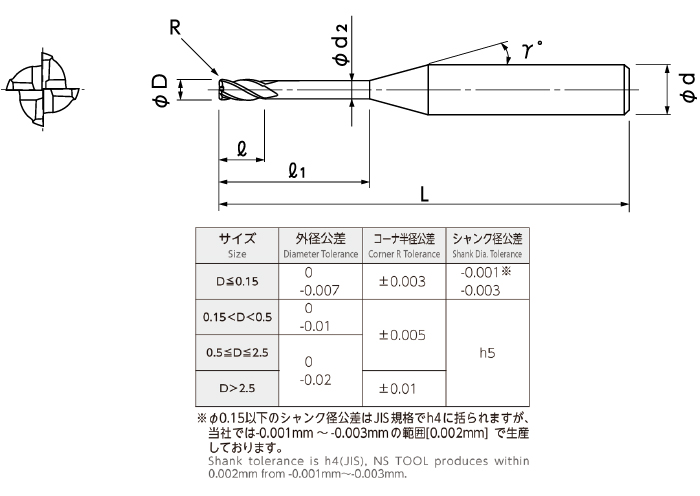

Line up

Unit [size: mm]

Code
No.		 (D)Dia. (R)Corner Radius (l1)Under Neck Length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00237-01013 0.1 R0.01 0.3 0.08 0.085 12° 4 45
08-00237-01015 0.1 R0.01 0.5 0.08 0.085 12° 4 45
08-00237-01512 0.15 R0.01 0.3 0.12 0.135 12° 4 45
08-00237-01513 0.15 R0.01 0.5 0.12 0.135 12° 4 45
08-00237-01515 0.15 R0.01 0.75 0.12 0.135 12° 4 45
08-00237-01517 0.15 R0.01 1 0.12 0.135 12° 4 45
08-00237-01522 0.15 R0.02 0.3 0.12 0.135 12° 4 45
08-00237-01523 0.15 R0.02 0.5 0.12 0.135 12° 4 45
08-00237-01525 0.15 R0.02 0.75 0.12 0.135 12° 4 45
08-00237-01527 0.15 R0.02 1 0.12 0.135 12° 4 45
08-00237-02020 0.2 R0.02 0.3 0.15 0.18 12° 4 45
08-00237-02021 0.2 R0.02 0.5 0.15 0.18 12° 4 45
08-00237-02023 0.2 R0.02 1 0.15 0.18 12° 4 45
08-00237-02025 0.2 R0.02 1.5 0.15 0.18 12° 4 45
08-00237-02027 0.2 R0.02 2 0.15 0.18 12° 4 45
08-00237-02050 0.2 R0.05 0.3 0.15 0.18 12° 4 45
08-00237-02051 0.2 R0.05 0.5 0.15 0.18 12° 4 45
08-00237-02053 0.2 R0.05 1 0.15 0.18 12° 4 45
08-00237-02055 0.2 R0.05 1.5 0.15 0.18 12° 4 45
08-00237-02057 0.2 R0.05 2 0.15 0.18 12° 4 45
08-00237-03020 0.3 R0.02 0.5 0.25 0.28 12° 4 45
08-00237-03021 0.3 R0.02 1 0.25 0.28 12° 4 45
08-00237-03022 0.3 R0.02 1.5 0.25 0.28 12° 4 45
08-00237-03023 0.3 R0.02 2 0.25 0.28 12° 4 45
08-00237-03024 0.3 R0.02 2.5 0.25 0.28 12° 4 45
08-00237-03025 0.3 R0.02 3 0.25 0.28 12° 4 45
08-00237-03050 0.3 R0.05 0.5 0.25 0.28 12° 4 45
08-00237-03051 0.3 R0.05 1 0.25 0.28 12° 4 45
08-00237-03052 0.3 R0.05 1.5 0.25 0.28 12° 4 45
08-00237-03053 0.3 R0.05 2 0.25 0.28 12° 4 45
08-00237-03054 0.3 R0.05 2.5 0.25 0.28 12° 4 45
08-00237-03055 0.3 R0.05 3 0.25 0.28 12° 4 45
08-00237-04020 0.4 R0.02 0.5 0.3 0.37 12° 4 45
08-00237-04021 0.4 R0.02 1 0.3 0.37 12° 4 45
08-00237-04022 0.4 R0.02 1.5 0.3 0.37 12° 4 45
08-00237-04023 0.4 R0.02 2 0.3 0.37 12° 4 45
08-00237-04024 0.4 R0.02 2.5 0.3 0.37 12° 4 45
08-00237-04025 0.4 R0.02 3 0.3 0.37 12° 4 45
08-00237-04027 0.4 R0.02 4 0.3 0.37 12° 4 45
08-00237-04050 0.4 R0.05 0.5 0.3 0.37 12° 4 45
08-00237-04051 0.4 R0.05 1 0.3 0.37 12° 4 45
08-00237-04052 0.4 R0.05 1.5 0.3 0.37 12° 4 45
08-00237-04053 0.4 R0.05 2 0.3 0.37 12° 4 45
08-00237-04054 0.4 R0.05 2.5 0.3 0.37 12° 4 45
08-00237-04055 0.4 R0.05 3 0.3 0.37 12° 4 45
08-00237-04057 0.4 R0.05 4 0.3 0.37 12° 4 45
08-00237-04101 0.4 R0.1 1 0.3 0.37 12° 4 45
08-00237-04103 0.4 R0.1 2 0.3 0.37 12° 4 45
08-00237-04105 0.4 R0.1 3 0.3 0.37 12° 4 45
08-00237-04107 0.4 R0.1 4 0.3 0.37 12° 4 45
08-00237-05021 0.5 R0.02 1 0.4 0.46 12° 4 45
08-00237-05022 0.5 R0.02 2 0.4 0.46 12° 4 45
08-00237-05023 0.5 R0.02 3 0.4 0.46 12° 4 45
08-00237-05024 0.5 R0.02 4 0.4 0.46 12° 4 45
08-00237-05025 0.5 R0.02 5 0.4 0.46 12° 4 45
08-00237-05026 0.5 R0.02 6 0.4 0.46 12° 4 45
08-00237-05051 0.5 R0.05 1 0.4 0.46 12° 4 45
08-00237-05052 0.5 R0.05 2 0.4 0.46 12° 4 45
08-00237-05053 0.5 R0.05 3 0.4 0.46 12° 4 45
08-00237-05054 0.5 R0.05 4 0.4 0.46 12° 4 45
08-00237-05055 0.5 R0.05 5 0.4 0.46 12° 4 45
08-00237-05056 0.5 R0.05 6 0.4 0.46 12° 4 45
08-00237-05101 0.5 R0.1 1 0.4 0.46 12° 4 45
08-00237-05102 0.5 R0.1 2 0.4 0.46 12° 4 45
08-00237-05103 0.5 R0.1 3 0.4 0.46 12° 4 45
08-00237-05104 0.5 R0.1 4 0.4 0.46 12° 4 45
08-00237-05105 0.5 R0.1 5 0.4 0.46 12° 4 45
08-00237-05106 0.5 R0.1 6 0.4 0.46 12° 4 45
08-00237-06021 0.6 R0.02 2 0.5 0.56 12° 4 45
08-00237-06023 0.6 R0.02 4 0.5 0.56 12° 4 45
08-00237-06025 0.6 R0.02 6 0.5 0.56 12° 4 45
08-00237-06027 0.6 R0.02 8 0.5 0.56 12° 4 50
08-00237-06029 0.6 R0.02 10 0.5 0.56 12° 4 50
08-00237-06051 0.6 R0.05 2 0.5 0.56 12° 4 45
08-00237-06053 0.6 R0.05 4 0.5 0.56 12° 4 45
08-00237-06055 0.6 R0.05 6 0.5 0.56 12° 4 45
08-00237-06057 0.6 R0.05 8 0.5 0.56 12° 4 50
08-00237-06059 0.6 R0.05 10 0.5 0.56 12° 4 50
08-00237-06101 0.6 R0.1 2 0.5 0.56 12° 4 45
08-00237-06103 0.6 R0.1 4 0.5 0.56 12° 4 45
08-00237-06105 0.6 R0.1 6 0.5 0.56 12° 4 45
08-00237-06107 0.6 R0.1 8 0.5 0.56 12° 4 50
08-00237-06109 0.6 R0.1 10 0.5 0.56 12° 4 50
08-00237-07020 0.7 R0.02 2 0.55 0.66 12° 4 45
08-00237-07021 0.7 R0.02 4 0.55 0.66 12° 4 45
08-00237-07023 0.7 R0.02 6 0.55 0.66 12° 4 45
08-00237-07050 0.7 R0.05 2 0.55 0.66 12° 4 45
08-00237-07051 0.7 R0.05 4 0.55 0.66 12° 4 45
08-00237-07053 0.7 R0.05 6 0.55 0.66 12° 4 45
08-00237-07100 0.7 R0.1 2 0.55 0.66 12° 4 45
08-00237-07101 0.7 R0.1 4 0.55 0.66 12° 4 45
08-00237-07103 0.7 R0.1 6 0.55 0.66 12° 4 45
08-00237-08020 0.8 R0.02 2 0.65 0.76 12° 4 45
08-00237-08021 0.8 R0.02 4 0.65 0.76 12° 4 45
08-00237-08023 0.8 R0.02 6 0.65 0.76 12° 4 45
08-00237-08025 0.8 R0.02 8 0.65 0.76 12° 4 50
08-00237-08050 0.8 R0.05 2 0.65 0.76 12° 4 45
08-00237-08051 0.8 R0.05 4 0.65 0.76 12° 4 45
08-00237-08053 0.8 R0.05 6 0.65 0.76 12° 4 45
08-00237-08055 0.8 R0.05 8 0.65 0.76 12° 4 50
08-00237-08059 0.8 R0.05 12 0.65 0.76 12° 4 50
08-00237-08100 0.8 R0.1 2 0.65 0.76 12° 4 45
08-00237-08101 0.8 R0.1 4 0.65 0.76 12° 4 45
08-00237-08103 0.8 R0.1 6 0.65 0.76 12° 4 45
08-00237-08105 0.8 R0.1 8 0.65 0.76 12° 4 50
08-00237-08109 0.8 R0.1 12 0.65 0.76 12° 4 50
08-00237-08200 0.8 R0.2 2 0.65 0.76 12° 4 45
08-00237-08201 0.8 R0.2 4 0.65 0.76 12° 4 45
08-00237-08203 0.8 R0.2 6 0.65 0.76 12° 4 45
08-00237-08205 0.8 R0.2 8 0.65 0.76 12° 4 50
08-00237-08209 0.8 R0.2 12 0.65 0.76 12° 4 50
08-00237-09101 0.9 R0.1 4 0.7 0.85 12° 4 45
08-00237-09105 0.9 R0.1 8 0.7 0.85 12° 4 50
08-00237-10024 1 R0.02 1.5 0.8 0.95 12° 4 50
08-00237-10028 1 R0.02 2 0.8 0.95 12° 4 50
08-00237-10026 1 R0.02 2.5 0.8 0.95 12° 4 50
08-00237-10020 1 R0.02 3 0.8 0.95 12° 4 50
08-00237-10021 1 R0.02 4 0.8 0.95 12° 4 50
08-00237-10022 1 R0.02 5 0.8 0.95 12° 4 50
08-00237-10023 1 R0.02 6 0.8 0.95 12° 4 50
08-00237-10025 1 R0.02 8 0.8 0.95 12° 4 50
08-00237-10027 1 R0.02 10 0.8 0.95 12° 4 50
08-00237-10054 1 R0.05 1.5 0.8 0.95 12° 4 50
08-00237-10058 1 R0.05 2 0.8 0.95 12° 4 50
08-00237-10056 1 R0.05 2.5 0.8 0.95 12° 4 50
08-00237-10050 1 R0.05 3 0.8 0.95 12° 4 50
08-00237-10051 1 R0.05 4 0.8 0.95 12° 4 50
08-00237-10052 1 R0.05 5 0.8 0.95 12° 4 50
08-00237-10053 1 R0.05 6 0.8 0.95 12° 4 50
08-00237-10055 1 R0.05 8 0.8 0.95 12° 4 50
08-00237-10057 1 R0.05 10 0.8 0.95 12° 4 50
08-00237-10104 1 R0.1 1.5 0.8 0.95 12° 4 50
08-00237-10108 1 R0.1 2 0.8 0.95 12° 4 50
08-00237-10106 1 R0.1 2.5 0.8 0.95 12° 4 50
08-00237-10100 1 R0.1 3 0.8 0.95 12° 4 50
08-00237-10101 1 R0.1 4 0.8 0.95 12° 4 50
08-00237-10102 1 R0.1 5 0.8 0.95 12° 4 50
08-00237-10103 1 R0.1 6 0.8 0.95 12° 4 50
08-00237-10105 1 R0.1 8 0.8 0.95 12° 4 50
08-00237-10107 1 R0.1 10 0.8 0.95 12° 4 50
08-00237-10204 1 R0.2 1.5 0.8 0.95 12° 4 50
08-00237-10208 1 R0.2 2 0.8 0.95 12° 4 50
08-00237-10206 1 R0.2 2.5 0.8 0.95 12° 4 50
08-00237-10200 1 R0.2 3 0.8 0.95 12° 4 50
08-00237-10201 1 R0.2 4 0.8 0.95 12° 4 50
08-00237-10202 1 R0.2 5 0.8 0.95 12° 4 50
08-00237-10203 1 R0.2 6 0.8 0.95 12° 4 50
08-00237-10205 1 R0.2 8 0.8 0.95 12° 4 50
08-00237-10207 1 R0.2 10 0.8 0.95 12° 4 50
08-00237-10304 1 R0.3 1.5 0.8 0.95 12° 4 50
08-00237-10308 1 R0.3 2 0.8 0.95 12° 4 50
08-00237-10306 1 R0.3 2.5 0.8 0.95 12° 4 50
08-00237-10300 1 R0.3 3 0.8 0.95 12° 4 50
08-00237-10301 1 R0.3 4 0.8 0.95 12° 4 50
08-00237-10302 1 R0.3 5 0.8 0.95 12° 4 50
08-00237-10303 1 R0.3 6 0.8 0.95 12° 4 50
08-00237-10305 1 R0.3 8 0.8 0.95 12° 4 50
08-00237-10307 1 R0.3 10 0.8 0.95 12° 4 50
08-00237-12101 1.2 R0.1 5 1 1.14 12° 4 50
08-00237-12103 1.2 R0.1 10 1 1.14 12° 4 50
08-00237-12201 1.2 R0.2 5 1 1.14 12° 4 50
08-00237-12203 1.2 R0.2 10 1 1.14 12° 4 50
08-00237-12301 1.2 R0.3 5 1 1.14 12° 4 50
08-00237-12303 1.2 R0.3 10 1 1.14 12° 4 50
08-00237-15020 1.5 R0.02 3 1.2 1.43 12° 4 50
08-00237-15021 1.5 R0.02 4 1.2 1.43 12° 4 50
08-00237-15023 1.5 R0.02 6 1.2 1.43 12° 4 50
08-00237-15025 1.5 R0.02 8 1.2 1.43 12° 4 50
08-00237-15026 1.5 R0.02 10 1.2 1.43 12° 4 50
08-00237-15027 1.5 R0.02 12 1.2 1.43 12° 4 50
08-00237-15029 1.5 R0.02 15 1.2 1.43 12° 4 50
08-00237-15050 1.5 R0.05 3 1.2 1.43 12° 4 50
08-00237-15051 1.5 R0.05 4 1.2 1.43 12° 4 50
08-00237-15053 1.5 R0.05 6 1.2 1.43 12° 4 50
08-00237-15055 1.5 R0.05 8 1.2 1.43 12° 4 50
08-00237-15056 1.5 R0.05 10 1.2 1.43 12° 4 50
08-00237-15057 1.5 R0.05 12 1.2 1.43 12° 4 50
08-00237-15059 1.5 R0.05 15 1.2 1.43 12° 4 50
08-00237-15100 1.5 R0.1 3 1.2 1.43 12° 4 50
08-00237-15101 1.5 R0.1 4 1.2 1.43 12° 4 50
08-00237-15103 1.5 R0.1 6 1.2 1.43 12° 4 50
08-00237-15105 1.5 R0.1 8 1.2 1.43 12° 4 50
08-00237-15106 1.5 R0.1 10 1.2 1.43 12° 4 50
08-00237-15107 1.5 R0.1 12 1.2 1.43 12° 4 50
08-00237-15109 1.5 R0.1 15 1.2 1.43 12° 4 60
08-00237-15200 1.5 R0.2 3 1.2 1.43 12° 4 50
08-00237-15201 1.5 R0.2 4 1.2 1.43 12° 4 50
08-00237-15203 1.5 R0.2 6 1.2 1.43 12° 4 50
08-00237-15205 1.5 R0.2 8 1.2 1.43 12° 4 50
08-00237-15206 1.5 R0.2 10 1.2 1.43 12° 4 50
08-00237-15207 1.5 R0.2 12 1.2 1.43 12° 4 50
08-00237-15209 1.5 R0.2 15 1.2 1.43 12° 4 60
08-00237-15300 1.5 R0.3 3 1.2 1.43 12° 4 50
08-00237-15301 1.5 R0.3 4 1.2 1.43 12° 4 50
08-00237-15303 1.5 R0.3 6 1.2 1.43 12° 4 50
08-00237-15305 1.5 R0.3 8 1.2 1.43 12° 4 50
08-00237-15306 1.5 R0.3 10 1.2 1.43 12° 4 50
08-00237-15307 1.5 R0.3 12 1.2 1.43 12° 4 50
08-00237-15309 1.5 R0.3 15 1.2 1.43 12° 4 60
08-00237-15500 1.5 R0.5 3 1.2 1.43 12° 4 50
08-00237-15501 1.5 R0.5 4 1.2 1.43 12° 4 50
08-00237-15503 1.5 R0.5 6 1.2 1.43 12° 4 50
08-00237-15505 1.5 R0.5 8 1.2 1.43 12° 4 50
08-00237-15506 1.5 R0.5 10 1.2 1.43 12° 4 50
08-00237-15507 1.5 R0.5 12 1.2 1.43 12° 4 50
08-00237-15509 1.5 R0.5 15 1.2 1.43 12° 4 60
08-00237-20022 2 R0.02 3 1.6 1.91 12° 4 50
08-00237-20020 2 R0.02 4 1.6 1.91 12° 4 50
08-00237-20021 2 R0.02 6 1.6 1.91 12° 4 50
08-00237-20023 2 R0.02 8 1.6 1.91 12° 4 50
08-00237-20024 2 R0.02 10 1.6 1.91 12° 4 50
08-00237-20025 2 R0.02 12 1.6 1.91 12° 4 50
08-00237-20027 2 R0.02 16 1.6 1.91 12° 4 60
08-00237-20029 2 R0.02 20 1.6 1.91 12° 4 60
08-00237-20052 2 R0.05 3 1.6 1.91 12° 4 50
08-00237-20050 2 R0.05 4 1.6 1.91 12° 4 50
08-00237-20051 2 R0.05 6 1.6 1.91 12° 4 50
08-00237-20053 2 R0.05 8 1.6 1.91 12° 4 50
08-00237-20054 2 R0.05 10 1.6 1.91 12° 4 50
08-00237-20055 2 R0.05 12 1.6 1.91 12° 4 50
08-00237-20057 2 R0.05 16 1.6 1.91 12° 4 60
08-00237-20059 2 R0.05 20 1.6 1.91 12° 4 60
08-00237-20102 2 R0.1 3 1.6 1.91 12° 4 50
08-00237-20100 2 R0.1 4 1.6 1.91 12° 4 50
08-00237-20101 2 R0.1 6 1.6 1.91 12° 4 50
08-00237-20103 2 R0.1 8 1.6 1.91 12° 4 50
08-00237-20104 2 R0.1 10 1.6 1.91 12° 4 50
08-00237-20105 2 R0.1 12 1.6 1.91 12° 4 50
08-00237-20107 2 R0.1 16 1.6 1.91 12° 4 60
08-00237-20109 2 R0.1 20 1.6 1.91 12° 4 60
08-00237-20202 2 R0.2 3 1.6 1.91 12° 4 50
08-00237-20200 2 R0.2 4 1.6 1.91 12° 4 50
08-00237-20201 2 R0.2 6 1.6 1.91 12° 4 50
08-00237-20203 2 R0.2 8 1.6 1.91 12° 4 50
08-00237-20204 2 R0.2 10 1.6 1.91 12° 4 50
08-00237-20205 2 R0.2 12 1.6 1.91 12° 4 50
08-00237-20207 2 R0.2 16 1.6 1.91 12° 4 60
08-00237-20209 2 R0.2 20 1.6 1.91 12° 4 60
08-00237-20302 2 R0.3 3 1.6 1.91 12° 4 50
08-00237-20300 2 R0.3 4 1.6 1.91 12° 4 50
08-00237-20301 2 R0.3 6 1.6 1.91 12° 4 50
08-00237-20303 2 R0.3 8 1.6 1.91 12° 4 50
08-00237-20304 2 R0.3 10 1.6 1.91 12° 4 50
08-00237-20305 2 R0.3 12 1.6 1.91 12° 4 50
08-00237-20307 2 R0.3 16 1.6 1.91 12° 4 60
08-00237-20309 2 R0.3 20 1.6 1.91 12° 4 60
08-00237-20502 2 R0.5 3 1.6 1.91 12° 4 50
08-00237-20500 2 R0.5 4 1.6 1.91 12° 4 50
08-00237-20501 2 R0.5 6 1.6 1.91 12° 4 50
08-00237-20503 2 R0.5 8 1.6 1.91 12° 4 50
08-00237-20504 2 R0.5 10 1.6 1.91 12° 4 50
08-00237-20505 2 R0.5 12 1.6 1.91 12° 4 50
08-00237-20507 2 R0.5 16 1.6 1.91 12° 4 60
08-00237-20509 2 R0.5 20 1.6 1.91 12° 4 60
08-00237-25100 2.5 R0.1 5 2 2.39 12° 4 50
08-00237-25101 2.5 R0.1 10 2 2.39 12° 4 50
08-00237-25102 2.5 R0.1 15 2 2.39 12° 4 60
08-00237-25103 2.5 R0.1 20 2 2.39 12° 4 60
08-00237-25105 2.5 R0.1 30 2 2.39 12° 4 70
08-00237-25200 2.5 R0.2 5 2 2.39 12° 4 50
08-00237-25201 2.5 R0.2 10 2 2.39 12° 4 50
08-00237-25202 2.5 R0.2 15 2 2.39 12° 4 60
08-00237-25203 2.5 R0.2 20 2 2.39 12° 4 60
08-00237-25205 2.5 R0.2 30 2 2.39 12° 4 70
08-00237-25300 2.5 R0.3 5 2 2.39 12° 4 50
08-00237-25301 2.5 R0.3 10 2 2.39 12° 4 50
08-00237-25302 2.5 R0.3 15 2 2.39 12° 4 60
08-00237-25303 2.5 R0.3 20 2 2.39 12° 4 60
08-00237-25305 2.5 R0.3 30 2 2.39 12° 4 70
08-00237-25500 2.5 R0.5 5 2 2.39 12° 4 50
08-00237-25501 2.5 R0.5 10 2 2.39 12° 4 50
08-00237-25502 2.5 R0.5 15 2 2.39 12° 4 60
08-00237-25503 2.5 R0.5 20 2 2.39 12° 4 60
08-00237-25505 2.5 R0.5 30 2 2.39 12° 4 70
08-00237-30058 3 R0.05 4 2.5 2.85 12° 6 50
08-00237-30050 3 R0.05 6 2.5 2.85 12° 6 50
08-00237-30051 3 R0.05 8 2.5 2.85 12° 6 50
08-00237-30052 3 R0.05 10 2.5 2.85 12° 6 50
08-00237-30053 3 R0.05 12 2.5 2.85 12° 6 50
08-00237-30054 3 R0.05 14 2.5 2.85 12° 6 50
08-00237-30055 3 R0.05 16 2.5 2.85 12° 6 60
08-00237-30057 3 R0.05 20 2.5 2.85 12° 6 60
08-00237-30112 3 R0.1 4 2.5 2.85 12° 6 50
08-00237-30100 3 R0.1 6 2.5 2.85 12° 6 50
08-00237-30101 3 R0.1 8 2.5 2.85 12° 6 50
08-00237-30102 3 R0.1 10 2.5 2.85 12° 6 50
08-00237-30103 3 R0.1 12 2.5 2.85 12° 6 50
08-00237-30104 3 R0.1 14 2.5 2.85 12° 6 50
08-00237-30105 3 R0.1 16 2.5 2.85 12° 6 60
08-00237-30107 3 R0.1 20 2.5 2.85 12° 6 60
08-00237-30109 3 R0.1 25 2.5 2.85 12° 6 70
08-00237-30111 3 R0.1 30 2.5 2.85 12° 6 70
08-00237-30212 3 R0.2 4 2.5 2.85 12° 6 50
08-00237-30200 3 R0.2 6 2.5 2.85 12° 6 50
08-00237-30201 3 R0.2 8 2.5 2.85 12° 6 50
08-00237-30202 3 R0.2 10 2.5 2.85 12° 6 50
08-00237-30203 3 R0.2 12 2.5 2.85 12° 6 50
08-00237-30204 3 R0.2 14 2.5 2.85 12° 6 50
08-00237-30205 3 R0.2 16 2.5 2.85 12° 6 60
08-00237-30207 3 R0.2 20 2.5 2.85 12° 6 60
08-00237-30209 3 R0.2 25 2.5 2.85 12° 6 70
08-00237-30211 3 R0.2 30 2.5 2.85 12° 6 70
08-00237-30312 3 R0.3 4 2.5 2.85 12° 6 50
08-00237-30300 3 R0.3 6 2.5 2.85 12° 6 50
08-00237-30301 3 R0.3 8 2.5 2.85 12° 6 50
08-00237-30302 3 R0.3 10 2.5 2.85 12° 6 50
08-00237-30303 3 R0.3 12 2.5 2.85 12° 6 50
08-00237-30304 3 R0.3 14 2.5 2.85 12° 6 50
08-00237-30305 3 R0.3 16 2.5 2.85 12° 6 60
08-00237-30307 3 R0.3 20 2.5 2.85 12° 6 60
08-00237-30309 3 R0.3 25 2.5 2.85 12° 6 70
08-00237-30311 3 R0.3 30 2.5 2.85 12° 6 70
08-00237-30512 3 R0.5 4 2.5 2.85 12° 6 50
08-00237-30500 3 R0.5 6 2.5 2.85 12° 6 50
08-00237-30501 3 R0.5 8 2.5 2.85 12° 6 50
08-00237-30502 3 R0.5 10 2.5 2.85 12° 6 50
08-00237-30503 3 R0.5 12 2.5 2.85 12° 6 50
08-00237-30504 3 R0.5 14 2.5 2.85 12° 6 50
08-00237-30505 3 R0.5 16 2.5 2.85 12° 6 60
08-00237-30507 3 R0.5 20 2.5 2.85 12° 6 60
08-00237-30509 3 R0.5 25 2.5 2.85 12° 6 70
08-00237-30511 3 R0.5 30 2.5 2.85 12° 6 70
08-00237-31000 3 R1 6 2.5 2.85 12° 6 50
08-00237-31001 3 R1 8 2.5 2.85 12° 6 50
08-00237-31002 3 R1 10 2.5 2.85 12° 6 50
08-00237-31003 3 R1 12 2.5 2.85 12° 6 50
08-00237-31004 3 R1 14 2.5 2.85 12° 6 50
08-00237-31005 3 R1 16 2.5 2.85 12° 6 60
08-00237-31007 3 R1 20 2.5 2.85 12° 6 60
08-00237-31009 3 R1 25 2.5 2.85 12° 6 70
08-00237-31011 3 R1 30 2.5 2.85 12° 6 70
08-00237-40051 4 R0.05 8 3.2 3.8 12° 6 60
08-00237-40053 4 R0.05 12 3.2 3.8 12° 6 60
08-00237-40054 4 R0.05 16 3.2 3.8 12° 6 60
08-00237-40055 4 R0.05 20 3.2 3.8 12° 6 65
08-00237-40056 4 R0.05 24 3.2 3.8 12° 6 70
08-00237-40057 4 R0.05 28 3.2 3.8 12° 6 70
08-00237-40058 4 R0.05 32 3.2 3.8 12° 6 70
08-00237-40106 4 R0.1 8 3.2 3.8 12° 6 60
08-00237-40107 4 R0.1 10 3.2 3.8 12° 6 60
08-00237-40100 4 R0.1 12 3.2 3.8 12° 6 60
08-00237-40101 4 R0.1 16 3.2 3.8 12° 6 60
08-00237-40102 4 R0.1 20 3.2 3.8 12° 6 65
08-00237-40103 4 R0.1 24 3.2 3.8 12° 6 70
08-00237-40104 4 R0.1 28 3.2 3.8 12° 6 70
08-00237-40105 4 R0.1 32 3.2 3.8 12° 6 70
08-00237-40108 4 R0.1 40 3.2 3.8 12° 6 80
08-00237-40206 4 R0.2 8 3.2 3.8 12° 6 60
08-00237-40207 4 R0.2 10 3.2 3.8 12° 6 60
08-00237-40200 4 R0.2 12 3.2 3.8 12° 6 60
08-00237-40201 4 R0.2 16 3.2 3.8 12° 6 60
08-00237-40202 4 R0.2 20 3.2 3.8 12° 6 65
08-00237-40203 4 R0.2 24 3.2 3.8 12° 6 70
08-00237-40204 4 R0.2 28 3.2 3.8 12° 6 70
08-00237-40205 4 R0.2 32 3.2 3.8 12° 6 70
08-00237-40208 4 R0.2 40 3.2 3.8 12° 6 80
08-00237-40306 4 R0.3 8 3.2 3.8 12° 6 60
08-00237-40307 4 R0.3 10 3.2 3.8 12° 6 60
08-00237-40300 4 R0.3 12 3.2 3.8 12° 6 60
08-00237-40301 4 R0.3 16 3.2 3.8 12° 6 60
08-00237-40302 4 R0.3 20 3.2 3.8 12° 6 65
08-00237-40303 4 R0.3 24 3.2 3.8 12° 6 70
08-00237-40304 4 R0.3 28 3.2 3.8 12° 6 70
08-00237-40305 4 R0.3 32 3.2 3.8 12° 6 70
08-00237-40308 4 R0.3 40 3.2 3.8 12° 6 80
08-00237-40506 4 R0.5 8 3.2 3.8 12° 6 60
08-00237-40507 4 R0.5 10 3.2 3.8 12° 6 60
08-00237-40500 4 R0.5 12 3.2 3.8 12° 6 60
08-00237-40501 4 R0.5 16 3.2 3.8 12° 6 60
08-00237-40502 4 R0.5 20 3.2 3.8 12° 6 65
08-00237-40503 4 R0.5 24 3.2 3.8 12° 6 70
08-00237-40504 4 R0.5 28 3.2 3.8 12° 6 70
08-00237-40505 4 R0.5 32 3.2 3.8 12° 6 70
08-00237-40508 4 R0.5 40 3.2 3.8 12° 6 80
08-00237-41006 4 R1 8 3.2 3.8 12° 6 60
08-00237-41007 4 R1 10 3.2 3.8 12° 6 60
08-00237-41000 4 R1 12 3.2 3.8 12° 6 60
08-00237-41001 4 R1 16 3.2 3.8 12° 6 60
08-00237-41002 4 R1 20 3.2 3.8 12° 6 65
08-00237-41003 4 R1 24 3.2 3.8 12° 6 70
08-00237-41004 4 R1 28 3.2 3.8 12° 6 70
08-00237-41005 4 R1 32 3.2 3.8 12° 6 70
08-00237-41008 4 R1 40 3.2 3.8 12° 6 80
08-00237-50104 5 R0.1 10 4 4.75 12° 6 70
08-00237-50100 5 R0.1 15 4 4.75 12° 6 70
08-00237-50101 5 R0.1 20 4 4.75 12° 6 70
08-00237-50102 5 R0.1 30 4 4.75 12° 6 80
08-00237-50103 5 R0.1 40 4 4.75 12° 6 90
08-00237-50204 5 R0.2 10 4 4.75 12° 6 70
08-00237-50200 5 R0.2 15 4 4.75 12° 6 70
08-00237-50201 5 R0.2 20 4 4.75 12° 6 70
08-00237-50202 5 R0.2 30 4 4.75 12° 6 80
08-00237-50203 5 R0.2 40 4 4.75 12° 6 90
08-00237-50304 5 R0.3 10 4 4.75 12° 6 70
08-00237-50300 5 R0.3 15 4 4.75 12° 6 70
08-00237-50301 5 R0.3 20 4 4.75 12° 6 70
08-00237-50302 5 R0.3 30 4 4.75 12° 6 80
08-00237-50303 5 R0.3 40 4 4.75 12° 6 90
08-00237-50504 5 R0.5 10 4 4.75 12° 6 70
08-00237-50500 5 R0.5 15 4 4.75 12° 6 70
08-00237-50501 5 R0.5 20 4 4.75 12° 6 70
08-00237-50502 5 R0.5 30 4 4.75 12° 6 80
08-00237-50503 5 R0.5 40 4 4.75 12° 6 90
08-00237-51004 5 R1 10 4 4.75 12° 6 70
08-00237-51000 5 R1 15 4 4.75 12° 6 70
08-00237-51001 5 R1 20 4 4.75 12° 6 70
08-00237-51002 5 R1 30 4 4.75 12° 6 80
08-00237-51003 5 R1 40 4 4.75 12° 6 90
08-00237-60051 6 R0.05 12 5 5.7 － 6 70
08-00237-60052 6 R0.05 15 5 5.7 － 6 70
08-00237-60053 6 R0.05 18 5 5.7 － 6 90
08-00237-60054 6 R0.05 24 5 5.7 － 6 90
08-00237-60055 6 R0.05 30 5 5.7 － 6 90
08-00237-60056 6 R0.05 40 5 5.7 － 6 100
08-00237-60057 6 R0.05 48 5 5.7 － 6 110
08-00237-60104 6 R0.1 12 5 5.7 － 6 70
08-00237-60105 6 R0.1 15 5 5.7 － 6 70
08-00237-60100 6 R0.1 18 5 5.7 － 6 90
08-00237-60101 6 R0.1 24 5 5.7 － 6 90
08-00237-60102 6 R0.1 30 5 5.7 － 6 90
08-00237-60106 6 R0.1 40 5 5.7 － 6 100
08-00237-60103 6 R0.1 48 5 5.7 － 6 110
08-00237-60204 6 R0.2 12 5 5.7 － 6 70
08-00237-60205 6 R0.2 15 5 5.7 － 6 70
08-00237-60200 6 R0.2 18 5 5.7 － 6 90
08-00237-60201 6 R0.2 24 5 5.7 － 6 90
08-00237-60202 6 R0.2 30 5 5.7 － 6 90
08-00237-60206 6 R0.2 40 5 5.7 － 6 100
08-00237-60203 6 R0.2 48 5 5.7 － 6 110
08-00237-60304 6 R0.3 12 5 5.7 － 6 70
08-00237-60305 6 R0.3 15 5 5.7 － 6 70
08-00237-60300 6 R0.3 18 5 5.7 － 6 90
08-00237-60301 6 R0.3 24 5 5.7 － 6 90
08-00237-60302 6 R0.3 30 5 5.7 － 6 90
08-00237-60306 6 R0.3 40 5 5.7 － 6 100
08-00237-60303 6 R0.3 48 5 5.7 － 6 110
08-00237-60504 6 R0.5 12 5 5.7 － 6 70
08-00237-60505 6 R0.5 15 5 5.7 － 6 70
08-00237-60500 6 R0.5 18 5 5.7 － 6 90
08-00237-60501 6 R0.5 24 5 5.7 － 6 90
08-00237-60502 6 R0.5 30 5 5.7 － 6 90
08-00237-60506 6 R0.5 40 5 5.7 － 6 100
08-00237-60503 6 R0.5 48 5 5.7 － 6 110
08-00237-61004 6 R1 12 5 5.7 － 6 70
08-00237-61005 6 R1 15 5 5.7 － 6 70
08-00237-61000 6 R1 18 5 5.7 － 6 90
08-00237-61001 6 R1 24 5 5.7 － 6 90
08-00237-61002 6 R1 30 5 5.7 － 6 90
08-00237-61006 6 R1 40 5 5.7 － 6 100
08-00237-61003 6 R1 48 5 5.7 － 6 110
