MUGEN-COATING Flat Drill

MUGEN-COATING Flat Drill【MFD】Lineup Expansion in April, 2020.

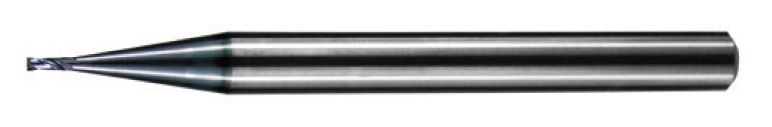

MUGEN-COATING Flat Drill【MFD】


Flat drill realized high efficient and stable drilling in various scenes such as inclined surface and curved surface.
The smallest diameter lineup from φ0.1!


MFD

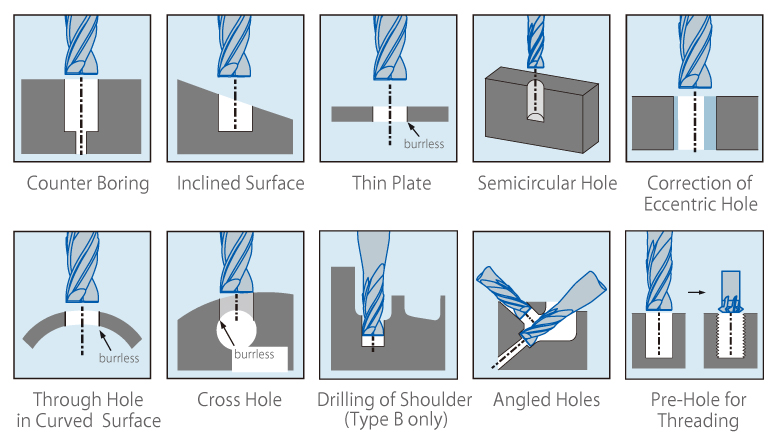

MFD makes much easier to drill to inclined surface and curved surface. Realizes stable and accurate drilling by adoption of thinning design (spiral thinning for φ1~φ2.9 / triple thinning for φ3~φ6), double margin (over φ2.6) and long neck design that developed to each size. With flat end teeth which flatten the bottom of blind hole, MFD is suitable for counter boring and pre holing of threading. Burr-less through holing is also available! MFD functions to improve efficiency and reduce work loadings of holing with reliable MUGEN-COATING for various scenes.


●MFD



Dia.:φ0.1~0.95(every 0.05 sizes from φ0.1~φ0.95)Lineup Expansion
   φ1~6(every 0.1 for over φ1)
Total 69 sizes

For details, pleaseclick

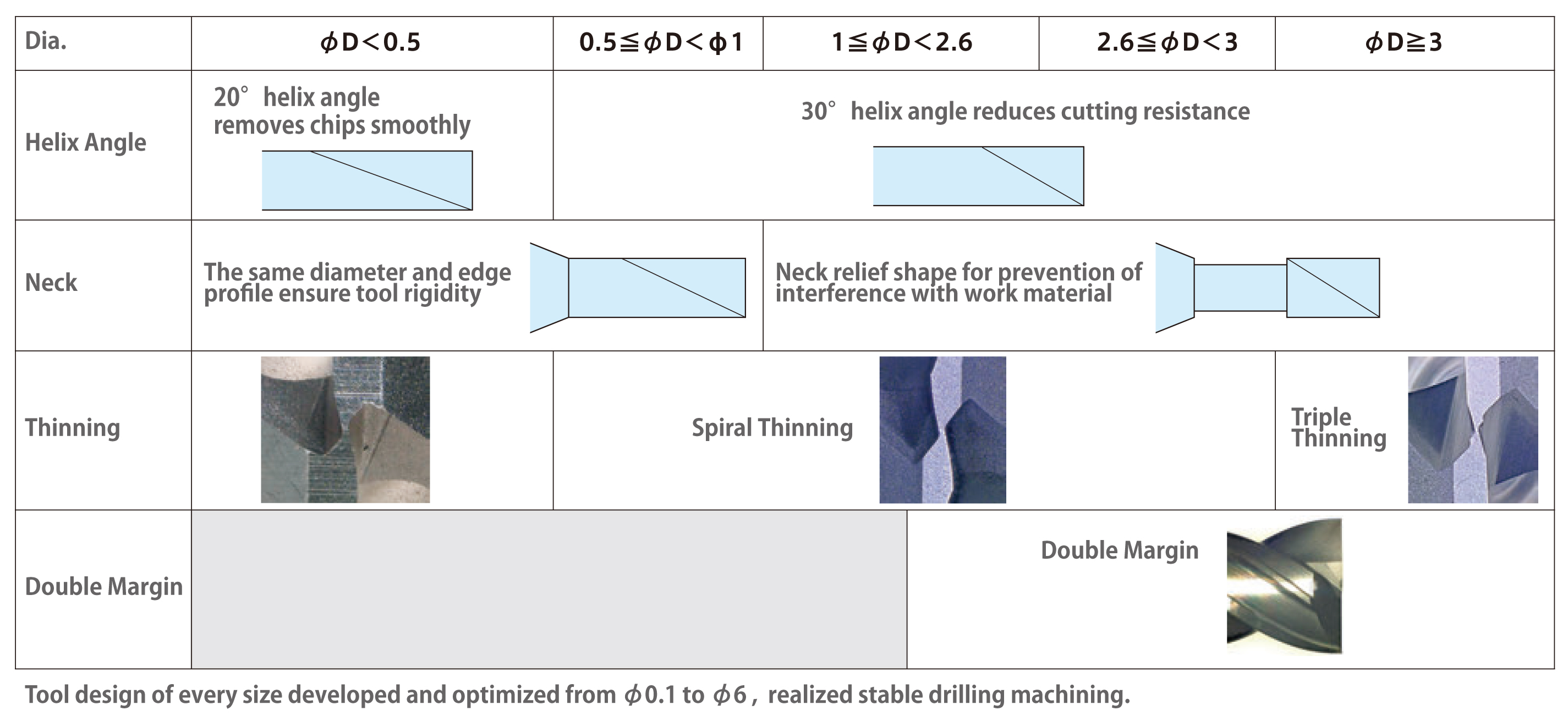

●Tool design enables stable drilling even with small diameters


●Optimized tool design by each tool size!


●High efficient and stable drilling is realized in various scenes!


Leaflet

MUGEN-COATING
Flat Drill

MFD_2004.pdf(1.3MB)

Cutting example

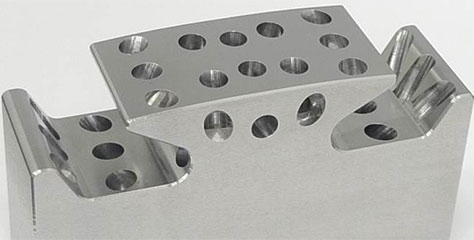

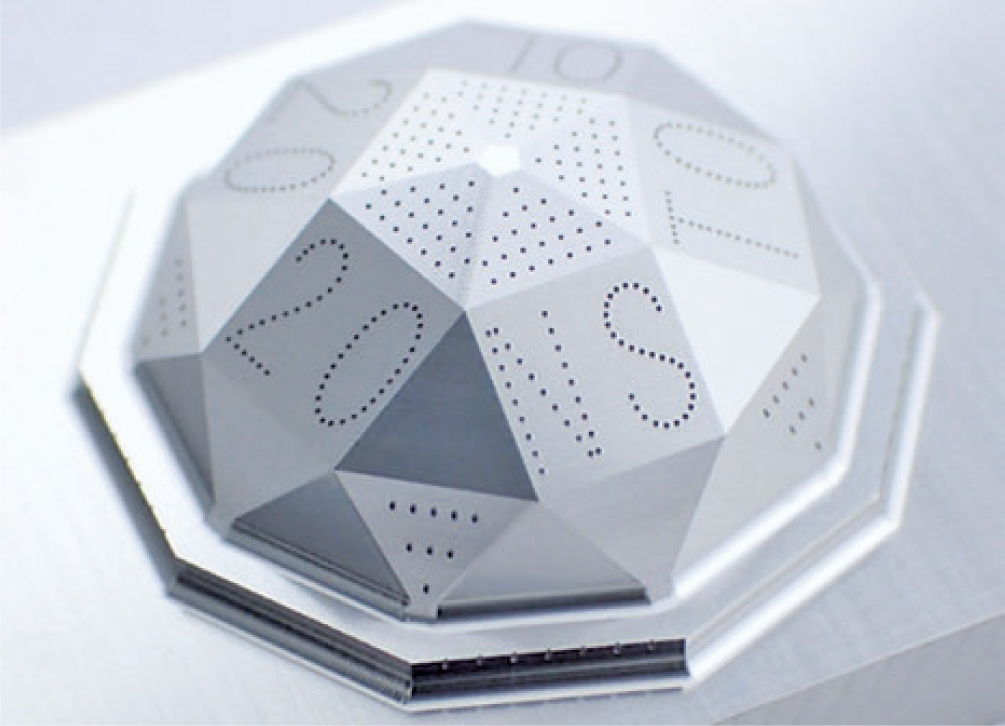

MFD Cutting example of drilling on the inclined surface.


Work size:20×30mmTotal cutting time: 1hr 10min (Drilling process only)

For details,pleaseclick

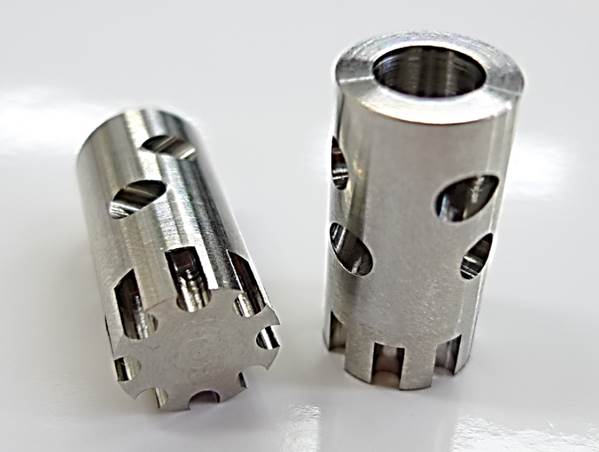

Automatic Lathe Model SUS304 MFD / Flat Drill


Work size:Φ10×20mm Total cutting time 3min 11sec

For details,pleaseclick



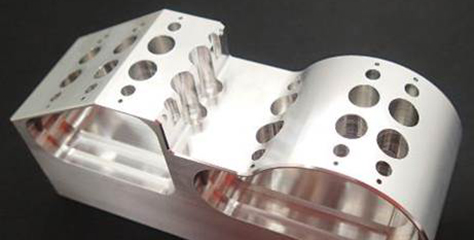

3-Axis Machining Model A5052 MFD / Flat Drill


Work size:30×100mm Total cutting time: 1min (Drilling process only)

For details,pleaseclick



5-Axis Drilling Sample S50C MFD / Flat Drill


Work size 30×100mm Total cutting time: 6min (Drilling process only)

For details,pleaseclick
