Micro End Mill・Micro Drill

End mill, drill micro end mill, and drill series with a cutter diameter of 0.01 mm or larger. Range of micro cutting processing using a machining center will be expanded!

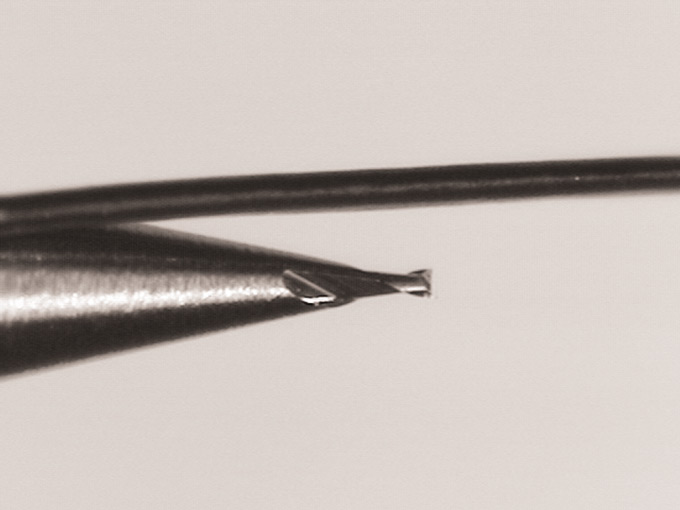

End mills thinner than hair (about 0.1 mm thick).

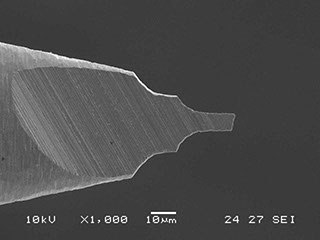

Micro end mill

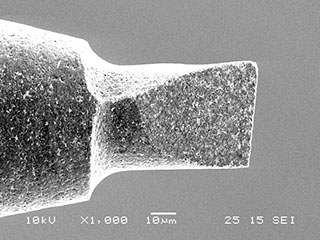

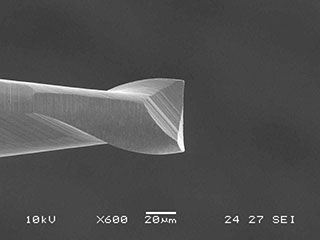

Square end mill

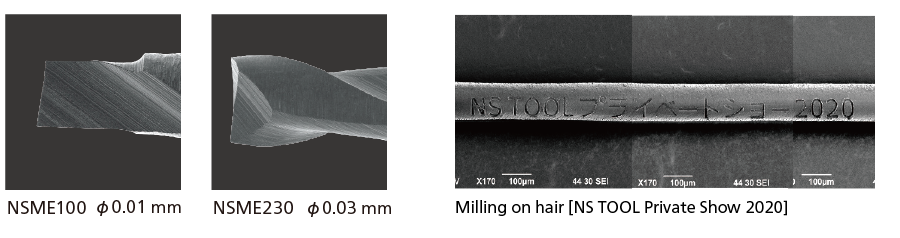

End mills standardized firstly in the world with a diameter of 0.01 mm or more.

Range of processing application

  • Cemented carbide: Aluminum to general steel
  • CBN: Applicable to high hardness materials with a hardness more than 60 HRC

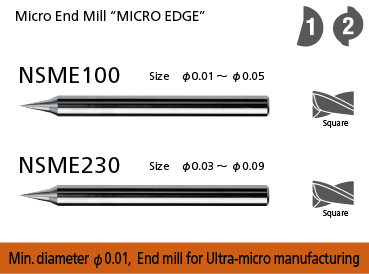

Cemented carbide 1 Flute
(φ0.01〜0.05)

Cemented carbide 2 Flute
(φ0.03〜0.09)

CBN
(φ0.03〜0.1)

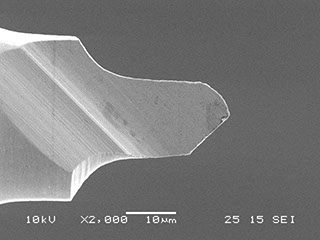

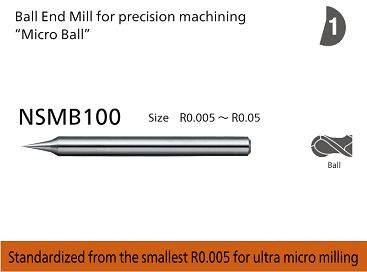

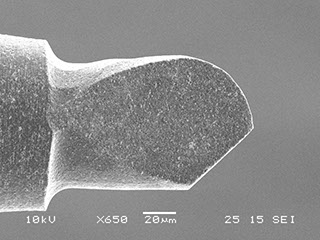

Ball end mill

Minimum size of 0.005 radius. Capable of forming a three-dimensional ultra-fine shape.

Range of processing application

  • Cemented carbide: Aluminum to general steel
  • CBN: Applicable to high hardness materials with a hardness more than 60 HRC

Cemented carbide
(R0.005〜0.05)

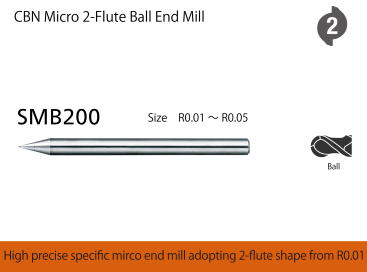

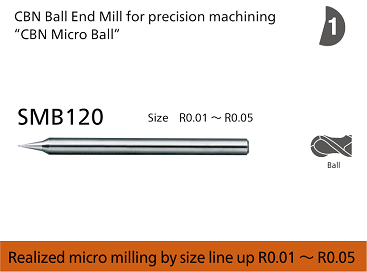

CBN
(R0.01〜0.05)

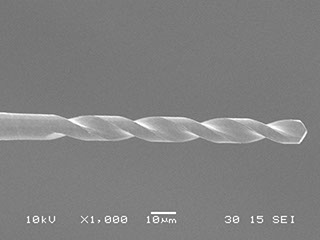

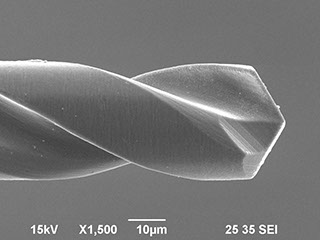

Micro drill

Ultra-fine hole processing was realized by cutting work. Coating type is applicable to difficult-to-machine materials, such as stainless steel.

Coated type
(φ0.01〜0.1)

L/D=10 standard type
(φ0.01〜0.1)

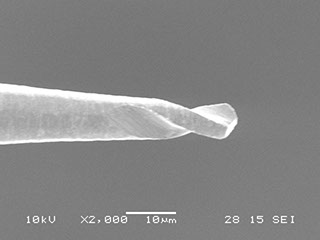

Micro point drill
(φ0.01〜0.1)

Technical data

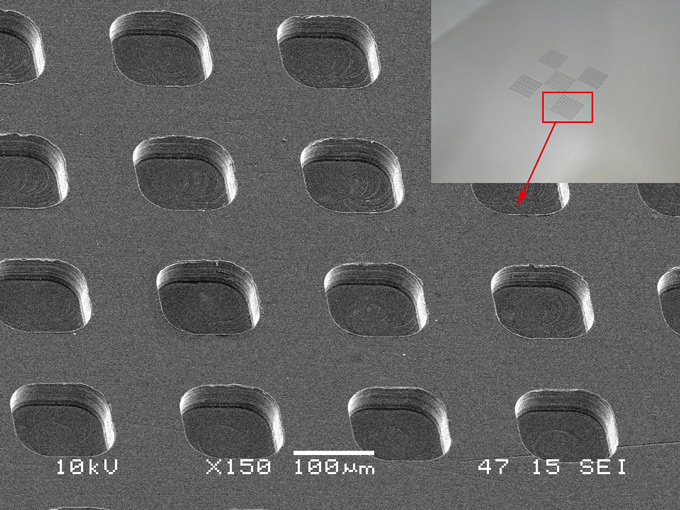

Cemented carbide 1 flute end mill (φ0.05)

A7075, 0.1mm square pocket milling (500 pockets)

Coated drill (φ0.03)

SUS304, Through hole depth: 0.3mm, Hole description: φ0.03 (189 holes)
