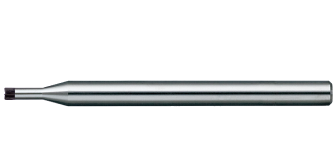

CBN 4-Flute Long Neck Corner Radius End Mill
SSR400
Product
CBN 4-Flute Long Neck
Corner Radius End Mill
SSR400
● 4-flute design realizes high feed rate even with small diameter.
● By providing corner R accuracy of ±2μm and actual outer diameter indication supports high precision machining.
Size details pleaseClick

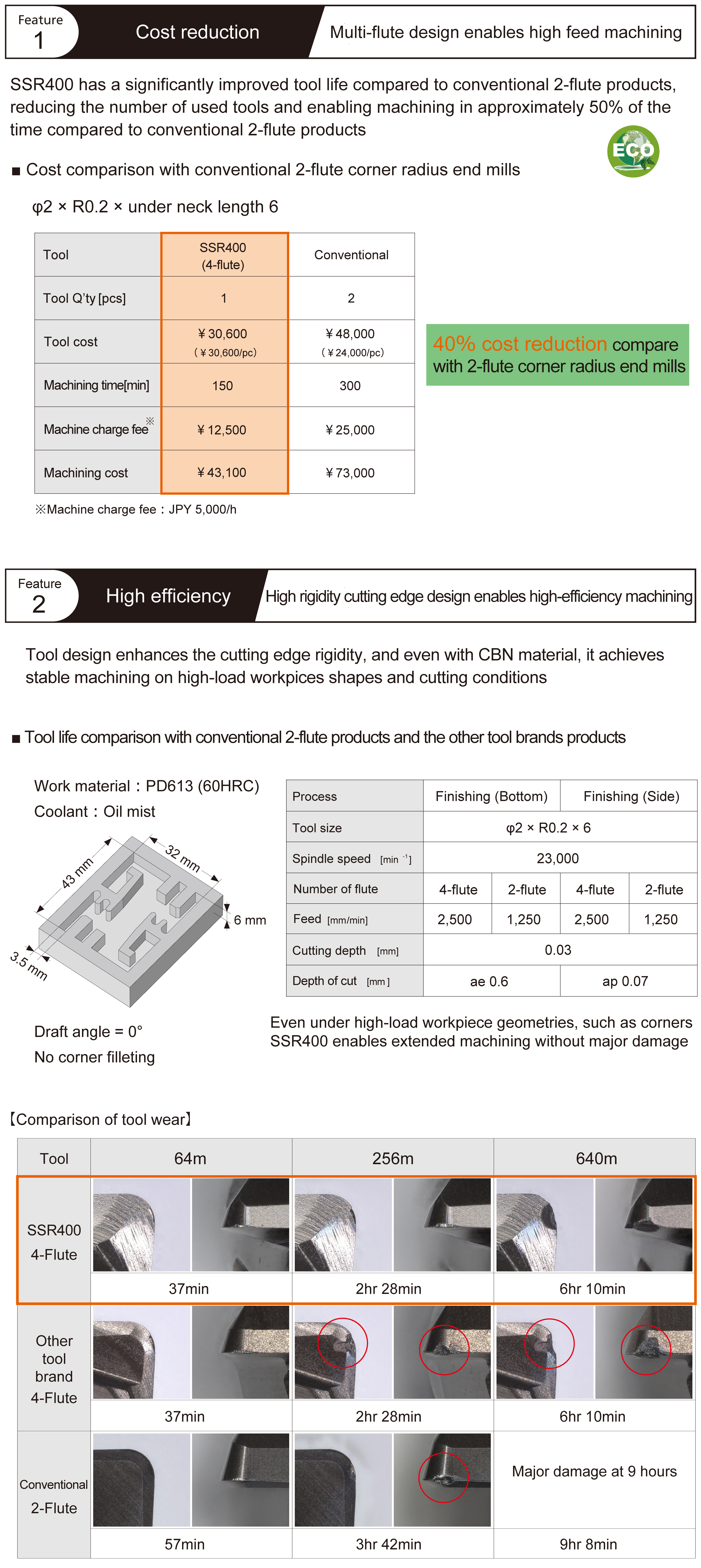

Features
Machining case

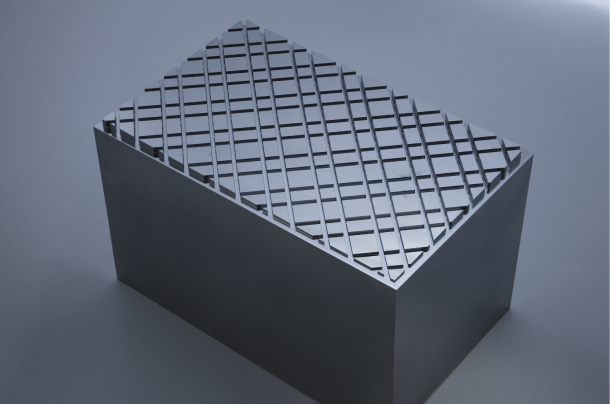

SSR400 Tartan Check Pattern Slotting
Work size：50×80×50mm, an example machining on PD613(57HRC) by SSR400.
For details, please check here.
