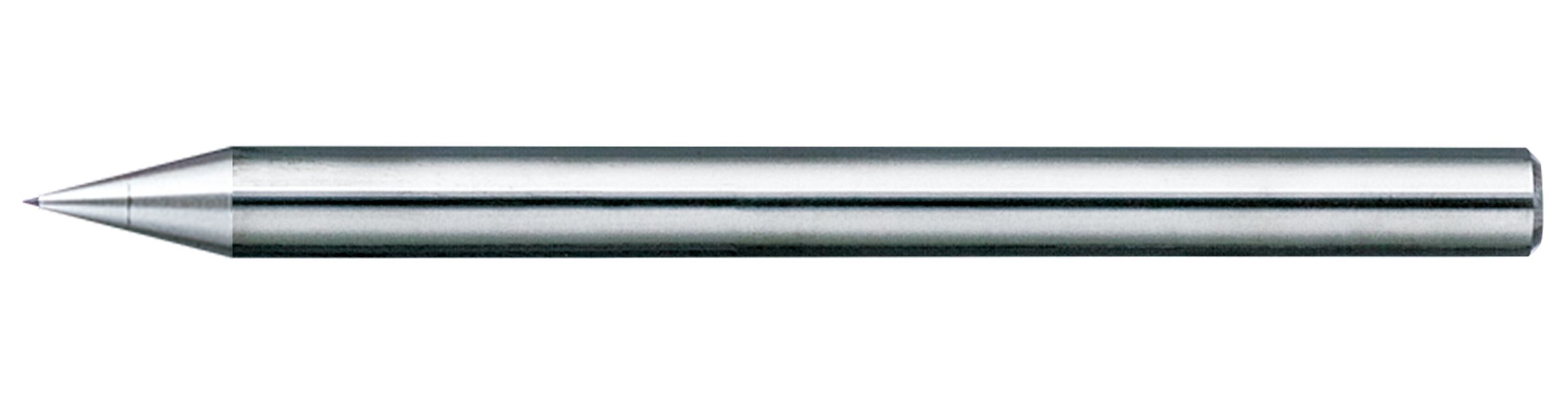

CBN Micro 2-Flute Ball End Mill
SMB200
Product
CBN Micro 2-Flute Ball End Mill
SMB200
● Adopting 2-flute shape from R0.01 enables more efficient machining than conventional products
● Realized sharp edge by maximizing features of CBN.

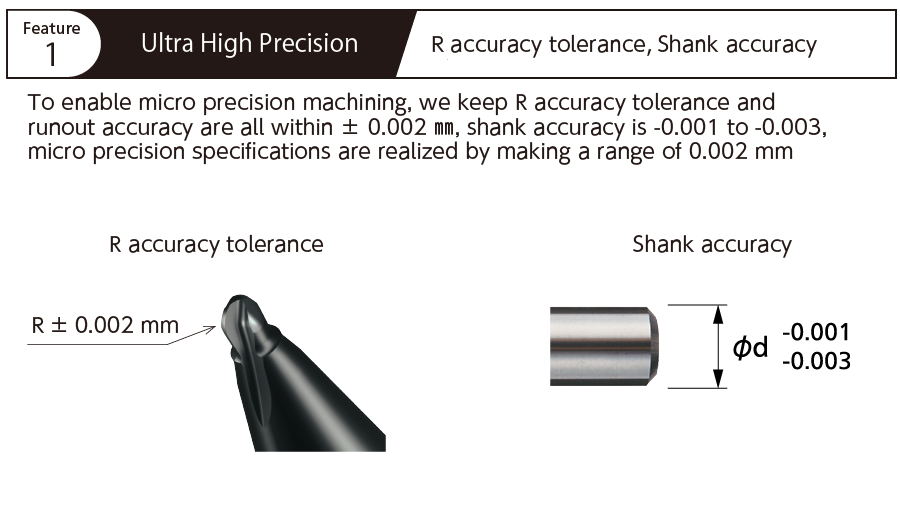

● Shank diameter tolerance is high accuracy type between -0.001mm and -0.003mm.
For size variation, please click
Feature
Machining case

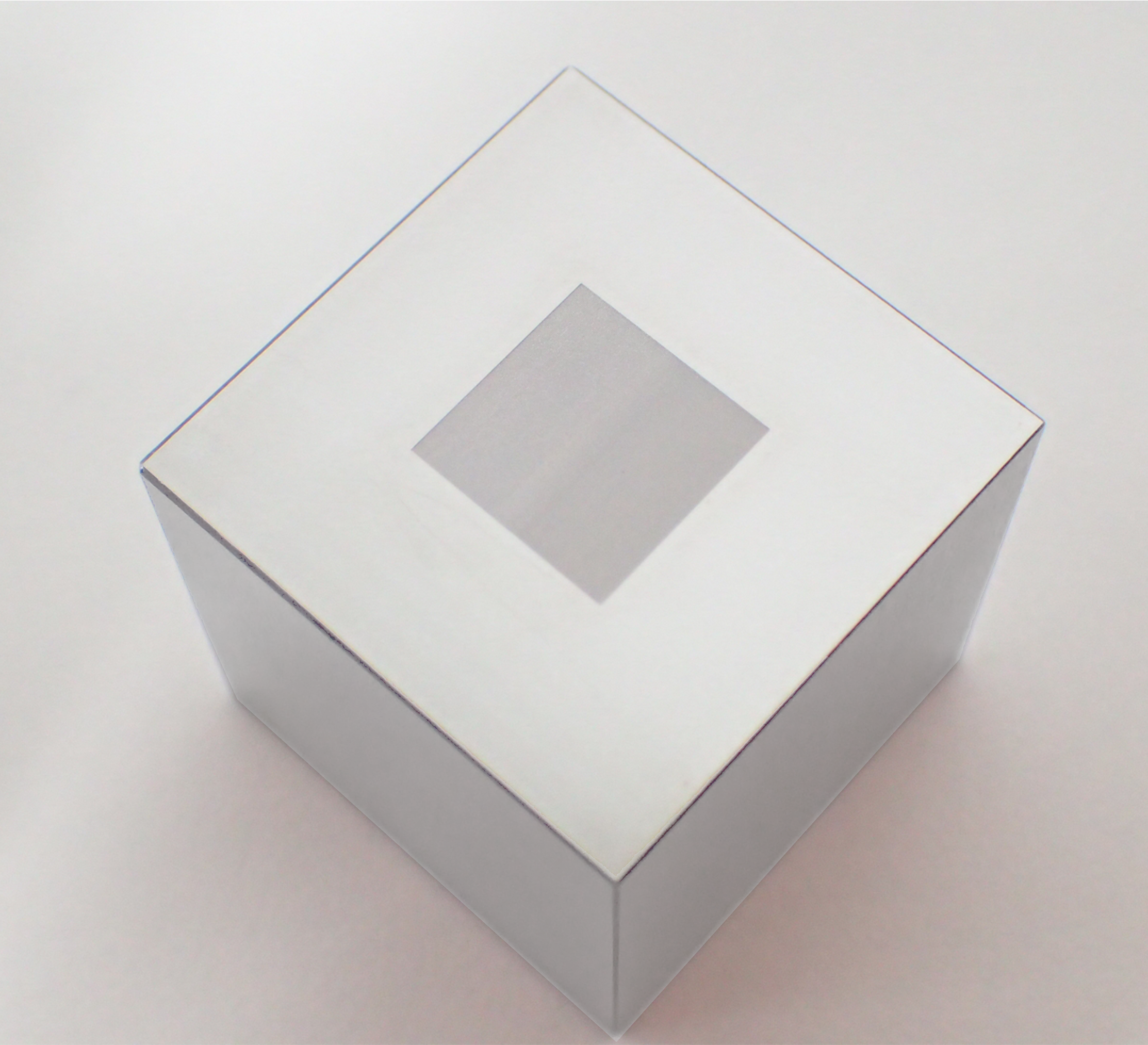

Micro Slot Shape
Work size: 30x30x15mm, finishing and stock removal on SLD-MAGIC by SMB200.
For details, please Click.
Micro lens array
Work size: 23x23mm, machining on STAVAX by SMB200.
For details, please Click.
Corner Seal
Work size: 23x23x60mm, 3-axis and 5-axis machining on STAVAX by SMB200.
For details, please Click.
