MMTU

MUGEN COATING PREMIUM Thread Cutting Tool (Unify: for Internal Thread)

●Improvement of cutting accuracy by adoption of tool design focusing on sharpness．
●MUGEN COATING PREMIUM realized long tool life．
●When the tool is broken during thread milling，the wreckages can be easily removed as the tool diameter is smaller than the pilot hole．

  • Coating
    MUGEN COATING PREMIUM

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 40HRC

  • Number of Flutes
    4 Flutes · 6 Flutes

  • φd h5

  • Applications
    Thread milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Leaflet

NC Code Generator For Thread Mill

Line up

Unit [size: mm]

Code

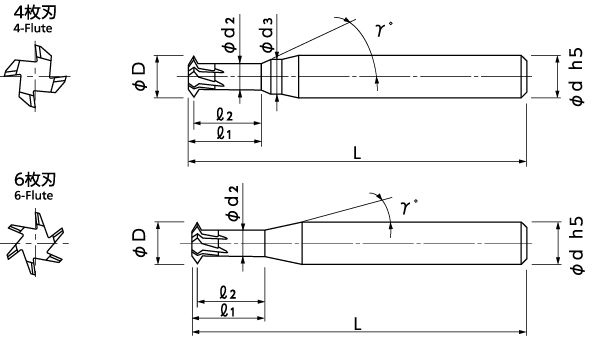

No.		 (U)Size (D)Dia. (l1)Under Neck Length (l2)Effective Thread Length (d2)Neck Dia. (d3)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Number of Flute Semi-standard
06-00003-00800 No.0-80UNF 1.16 3.28 3.05 0.72 1.19 30° 4 45 4 ■
06-00003-01640 No.1-64UNC 1.4 3.98 3.71 0.84 － 12° 4 45 6 ■
06-00003-01720 No.1-72UNF 1.45 3.97 3.71 0.93 － 12° 4 45 6 ■
06-00003-02560 No.2-56UNC 1.63 4.67 4.37 0.99 － 12° 4 45 6 ■
06-00003-02640 No.2-64UNF 1.69 4.67 4.37 1.11 － 12° 4 45 6 ■
06-00003-03480 No.3-48UNC 1.88 5.37 5.03 1.15 － 12° 4 45 6 ■
06-00003-03560 No.3-56UNF 1.96 5.36 5.03 1.31 － 12° 4 45 6 ■
06-00003-04400 No.4-40UNC 2.09 6.08 5.69 1.23 － 12° 4 45 6 ■
06-00003-04480 No.4-48UNF 2.21 6.06 5.69 1.46 － 12° 4 45 6 ■
06-00003-05400 No.5-40UNC 2.38 6.76 6.35 1.52 － 12° 4 45 6 ■
06-00003-05440 No.5-44UNF 2.45 6.75 6.35 1.65 － 12° 4 45 6 ■
06-00003-06320 No.6-32UNC 2.54 7.48 7.01 1.5 － 12° 4 45 6 ■
06-00003-06400 No.6-40UNF 2.72 7.45 7.01 1.86 － 12° 4 45 6 ■
06-00003-08320 No.8-32UNC 3.14 8.86 8.34 2.04 － 12° 6 60 6 ■
06-00003-08360 No.8-36UNF 3.24 8.84 8.34 2.24 － 12° 6 60 6 ■
06-00003-10240 No.10-24UNC 3.52 10.29 9.66 2.14 － 12° 6 60 6 ■
06-00003-10320 No.10-32UNF 3.8 10.22 9.66 2.7 － 12° 6 60 6 ■
06-00003-12240 No.12-24UNC 4.14 11.65 10.98 2.72 － 12° 6 60 6 ■
06-00003-12280 No.12-28UNF 4.29 11.62 10.98 3.02 － 12° 6 60 6 ■
06-00003-14200 1/4-20UNC 4.77 13.48 12.7 3.12 － 12° 6 60 6 ■
06-00003-14280 1/4-28UNF 5.16 13.39 12.7 3.89 － 12° 6 60 6 ■
