MUGEN COATING M-Thread Mill (for Internal Thread)

●Improvement of cutting accuracy by adoption of tool design focusing on sharpness．
●MUGEN COATING realized long tool life．
●When the tool is broken during thread milling，the wreckages can be easily removed as the tool diameter is smaller than the pilot hole．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 40HRC

  • Number of Flutes
    4 Flutes · 6 Flutes

  • φd h5

  • Applications
    Thread milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Leaflet

NC Code Generator For Thread Mill

Line up

Unit [size: mm]

Code

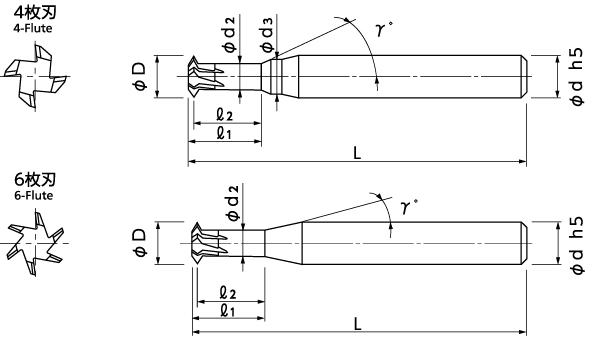

No.		 (M)Size (l1)Under Neck Length (l2)Effective Thread Length Pitch W (D)Dia. (d2)Neck Taper Angle (d)Shank Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Number of Flutes Semi-standard
06-00002-00100 M1 2.64 2.5 0.25 0.032 0.72 0.36 0.75 30° 4 45 4
NEW 06-00002-00101 M1 3.14 3 0.25 0.032 0.72 0.36 0.75 30° 4 45 4
NEW 06-00002-00102 M1 3.64 3.5 0.25 0.032 0.72 0.36 0.75 30° 4 45 4
06-00002-00120 M1.2 2.67 2.5 0.25 0.032 0.92 0.56 0.95 30° 4 45 4
NEW 06-00002-00121 M1.2 3.17 3 0.25 0.032 0.92 0.56 0.95 30° 4 45 4
NEW 06-00002-00122 M1.2 3.67 3.5 0.25 0.032 0.92 0.56 0.95 30° 4 45 4
06-00002-00140 M1.4 3.18 3 0.3 0.032 1.05 0.62 1.08 30° 4 45 4
NEW 06-00002-00141 M1.4 3.78 3.6 0.3 0.032 1.05 0.62 1.08 30° 4 45 4
NEW 06-00002-00142 M1.4 4.38 4.2 0.3 0.032 1.05 0.62 1.08 30° 4 45 4
06-00002-00160 M1.6 3.71 3.5 0.35 0.041 1.2 0.68 1.23 30° 4 45 4
NEW 06-00002-00161 M1.6 4.41 4.2 0.35 0.041 1.2 0.68 1.23 30° 4 45 4
NEW 06-00002-00162 M1.6 5.11 4.9 0.35 0.041 1.2 0.68 1.23 30° 4 45 4
06-00002-00170 M1.7 3.71 3.5 0.35 0.041 1.3 0.78 1.33 30° 4 45 4
NEW 06-00002-00171 M1.7 4.41 4.2 0.35 0.041 1.3 0.78 1.33 30° 4 45 4
NEW 06-00002-00172 M1.7 5.11 4.9 0.35 0.041 1.3 0.78 1.33 30° 4 45 4
06-00002-00200 M2 5.02 4.8 0.4 0.036 1.5 0.89 - 12° 4 45 6
NEW 06-00002-00201 M2 6.62 6.4 0.4 0.036 1.5 0.89 - 12° 4 45 6
NEW 06-00002-00202 M2 8.22 8 0.4 0.036 1.5 0.89 - 12° 4 45 6
06-00002-00250 M2.5 5.7 5.4 0.45 0.044 1.95 1.28 - 12° 4 45 6
NEW 06-00002-00251 M2.5 7.5 7.2 0.45 0.044 1.95 1.28 - 12° 4 45 6
NEW 06-00002-00252 M2.5 9.3 9 0.45 0.044 1.95 1.28 - 12° 4 45 6
06-00002-00300 M3 6.3 6 0.5 0.057 2.36 1.63 - 12° 4 45 6
NEW 06-00002-00301 M3 9.3 9 0.5 0.057 2.36 1.63 - 12° 4 45 6
NEW 06-00002-00302 M3 12.3 12 0.5 0.057 2.36 1.63 - 12° 4 45 6
06-00002-00400 M4 8.8 8.4 0.7 0.075 3.08 2.08 - 12° 6 60 6
NEW 06-00002-00401 M4 13 12.6 0.7 0.075 3.08 2.08 - 12° 6 60 6
NEW 06-00002-00402 M4 17.2 16.8 0.7 0.075 3.08 2.08 - 12° 6 60 6
06-00002-00500 M5 10.1 9.6 0.8 0.09 3.97 2.86 - 12° 6 60 6
NEW 06-00002-00501 M5 14.9 14.4 0.8 0.09 3.97 2.86 - 12° 6 60 6
NEW 06-00002-00502 M5 19.7 19.2 0.8 0.09 3.97 2.86 - 12° 6 60 6
06-00002-00600 M6 12.6 12 1 0.12 4.72 3.35 - 12° 6 60 6
NEW 06-00002-00601 M6 18.6 18 1 0.12 4.72 3.35 - 12° 6 60 6
NEW 06-00002-00602 M6 24.6 24 1 0.12 4.72 3.35 - 12° 6 60 6

NEW additional sizes
