MHRH430

MUGEN-COATING PREMIUM 4-Flute Long Neck End Mill for Hardened Steel

●MUGEN-COATING PREMIUM to improve accuracy and tool life on machining hardened steels!
●Improve tool rigidity for precision machining!
●Total 55 sizes!

  • Material
    Micro Grain Carbide

  • Helix Angle
    30°

  • Cutting Possibility of Work Material Hardness
    Up to 65HRC

  • Coating
    MUGEN-COATING PREMIUM

  • Number of Flutes
    4 Flutes

  • Applications
    Slot Milling

  • Applications
    Side Milling

  • Applications
    Face Milling

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

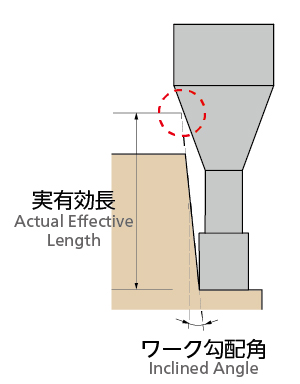

(D)Dia. (l1)Effective length (l)Length of Cut (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
08-00217-01004 1 4 0.8 0.95 12° 4 50 4,950
08-00217-01006 1 6 0.8 0.95 12° 4 50 4,950
08-00217-01008 1 8 0.8 0.95 12° 4 50 4,950
08-00217-01010 1 10 0.8 0.95 12° 4 50 4,950
08-00217-01206 1.2 6 1 1.15 12° 4 50 4,950
08-00217-01208 1.2 8 1 1.15 12° 4 50 4,950
08-00217-01210 1.2 10 1 1.15 12° 4 50 4,950
08-00217-01212 1.2 12 1 1.15 12° 4 50 4,950
08-00217-01506 1.5 6 1.2 1.45 12° 4 50 4,950
08-00217-01508 1.5 8 1.2 1.45 12° 4 50 4,950
08-00217-01510 1.5 10 1.2 1.45 12° 4 50 4,950
08-00217-01512 1.5 12 1.2 1.45 12° 4 50 4,950
08-00217-01514 1.5 14 1.2 1.45 12° 4 60 4,950
08-00217-01516 1.5 16 1.2 1.45 12° 4 60 4,950
08-00217-01806 1.8 6 1.4 1.74 12° 4 50 4,950
08-00217-01808 1.8 8 1.4 1.74 12° 4 50 4,950
08-00217-01810 1.8 10 1.4 1.74 12° 4 50 4,950
08-00217-01812 1.8 12 1.4 1.74 12° 4 50 4,950
08-00217-01814 1.8 14 1.4 1.74 12° 4 60 4,950
08-00217-01816 1.8 16 1.4 1.74 12° 4 60 4,950
08-00217-01818 1.8 18 1.4 1.74 12° 4 60 4,950
08-00217-02006 2 6 1.6 1.94 12° 4 50 4,950
08-00217-02008 2 8 1.6 1.94 12° 4 50 4,950
08-00217-02010 2 10 1.6 1.94 12° 4 50 4,950
08-00217-02012 2 12 1.6 1.94 12° 4 50 4,950
08-00217-02014 2 14 1.6 1.94 12° 4 60 4,950
08-00217-02016 2 16 1.6 1.94 12° 4 60 4,950
08-00217-02018 2 18 1.6 1.94 12° 4 60 4,950
08-00217-02020 2 20 1.6 1.94 12° 4 60 4,950
08-00217-02508 2.5 8 2 2.4 12° 4 50 4,950
08-00217-02512 2.5 12 2 2.4 12° 4 50 4,950
08-00217-02516 2.5 16 2 2.4 12° 4 60 4,950
08-00217-02520 2.5 20 2 2.4 12° 4 60 4,950
08-00217-02525 2.5 25 2 2.4 12° 4 70 5,300
08-00217-03008 3 8 4.5 2.85 12° 6 50 7,000
08-00217-03012 3 12 4.5 2.85 12° 6 50 7,000
08-00217-03016 3 16 4.5 2.85 12° 6 60 7,000
08-00217-03020 3 20 4.5 2.85 12° 6 60 7,000
08-00217-03025 3 25 4.5 2.85 12° 6 70 7,400
08-00217-03030 3 30 4.5 2.85 12° 6 70 8,000
08-00217-04012 4 12 6 3.8 12° 6 50 7,300
08-00217-04016 4 16 6 3.8 12° 6 60 7,300
08-00217-04020 4 20 6 3.8 12° 6 60 7,300
08-00217-04025 4 25 6 3.8 12° 6 70 7,700
08-00217-04030 4 30 6 3.8 12° 6 70 8,500
08-00217-04035 4 35 6 3.8 12° 6 80 9,200
08-00217-04040 4 40 6 3.8 12° 6 90 9,700
08-00217-05016 5 16 7.5 4.8 12° 6 60 9,200
08-00217-05025 5 25 7.5 4.8 12° 6 70 9,600
08-00217-05035 5 35 7.5 4.8 12° 6 80 10,000
08-00217-05050 5 50 7.5 4.8 12° 6 110 14,000
08-00217-06020 6 20 9 5.8 6 80 9,200
08-00217-06030 6 30 9 5.8 6 90 9,600
08-00217-06040 6 40 9 5.8 6 100 10,000
08-00217-06050 6 50 9 5.8 6 110 14,000
