MSCZ440-LN

MUGEN COATING 4-Flute Long Neck High Efficient ”Z” End Mill for Carbon Steels

●Unequal flute spacing，unequal helix angle and high rigid end profile design to minimize chatter realize high efficient machining．
●New developed special edge profile realized multi-functional performance of side milling，slot milling and plunging approaches on carbon steels．
●Long time stable machining is realized by adopting MUGEN COATING．
●Long neck type prevent interference with work material，the Under neck length lined up with L/D＝3 to 5．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 40HRC

  • Number of Flutes
    4 Flutes

  • Helix Angle
    40°/42°

  • φd-0.001/-0.003

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

  • Applications
    Pulunging Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Leaflet

Line up

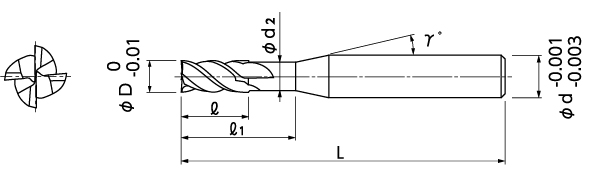

Unit [size: mm]

Code
No.		 (D)Dia. (l)Length of Cut (l1)Under Neck Length (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00136-01013 1 1.5 3 0.95 12° 4 50
08-00136-01014 1 1.5 4 0.95 12° 4 50
08-00136-01015 1 1.5 5 0.95 12° 4 50
08-00136-01513 1.5 2.3 4.5 1.45 12° 4 50
08-00136-01514 1.5 2.3 6 1.45 12° 4 50
08-00136-01515 1.5 2.3 7.5 1.45 12° 4 50
08-00136-02013 2 3 6 1.94 12° 6 50
08-00136-02014 2 3 8 1.94 12° 6 50
08-00136-02015 2 3 10 1.94 12° 6 50
08-00136-02513 2.5 3.8 7.5 2.4 12° 6 50
08-00136-02514 2.5 3.8 10 2.4 12° 6 50
08-00136-02515 2.5 3.8 12.5 2.4 12° 6 60
08-00136-03013 3 4.5 9 2.85 12° 6 50
08-00136-03014 3 4.5 12 2.85 12° 6 50
08-00136-03015 3 4.5 15 2.85 12° 6 60
08-00136-03513 3.5 5.3 10.5 3.35 12° 6 50
08-00136-03514 3.5 5.3 14 3.35 12° 6 60
08-00136-03515 3.5 5.3 17.5 3.35 12° 6 60
08-00136-04013 4 6 12 3.8 12° 6 50
08-00136-04014 4 6 16 3.8 12° 6 60
08-00136-04015 4 6 20 3.8 12° 6 60
08-00136-04513 4.5 6.8 13.5 4.3 12° 6 50
08-00136-04514 4.5 6.8 18 4.3 12° 6 60
08-00136-04515 4.5 6.8 22.5 4.3 12° 6 60
08-00136-05013 5 7.5 15 4.8 12° 6 50
08-00136-05014 5 7.5 20 4.8 12° 6 60
08-00136-05015 5 7.5 25 4.8 12° 6 60
08-00136-05513 5.5 8.3 16.5 5.3 12° 6 50
08-00136-05514 5.5 8.3 22 5.3 12° 6 60
08-00136-05515 5.5 8.3 27.5 5.3 12° 6 60
08-00136-06013 6 9 18 5.8 － 6 60
08-00136-06014 6 9 24 5.8 － 6 60
08-00136-06015 6 9 30 5.8 － 6 70
