MSCZ440

MUGEN COATING 4-Flute High Efficient ”Z” End Mill for Carbon Steels

●Unequal flute spacing，unequal helix angle and high rigid end profile design to minimize chatter realize high efficient machining．
●New developed special edge profile realized multi-functional performance of side milling，slot milling and plunging approaches on carbon steels．
●Long time stable machining is realized by adopting MUGEN COATING．
●Total 62 sizes，some sizes line up with L/D＝2 or 3．

  • Coating
    MUGEN COATING

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 40HRC

  • Number of Flutes
    4 Flutes

  • Helix Angle
    40°/42°

  • φd-0.001/-0.003

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

  • Applications
    Pulunging Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
～
52HRC		 ～
60HRC		 ～
65HRC		 ～
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel		 Copper
Hardened
Steel		 ～
52HRC		 Resin
～
60HRC		 Graphite
～
65HRC		 Hard Brittle
Material
～
70HRC		 Hard Brittle
Material
Stainless Steel

Leaflet

Machining Video

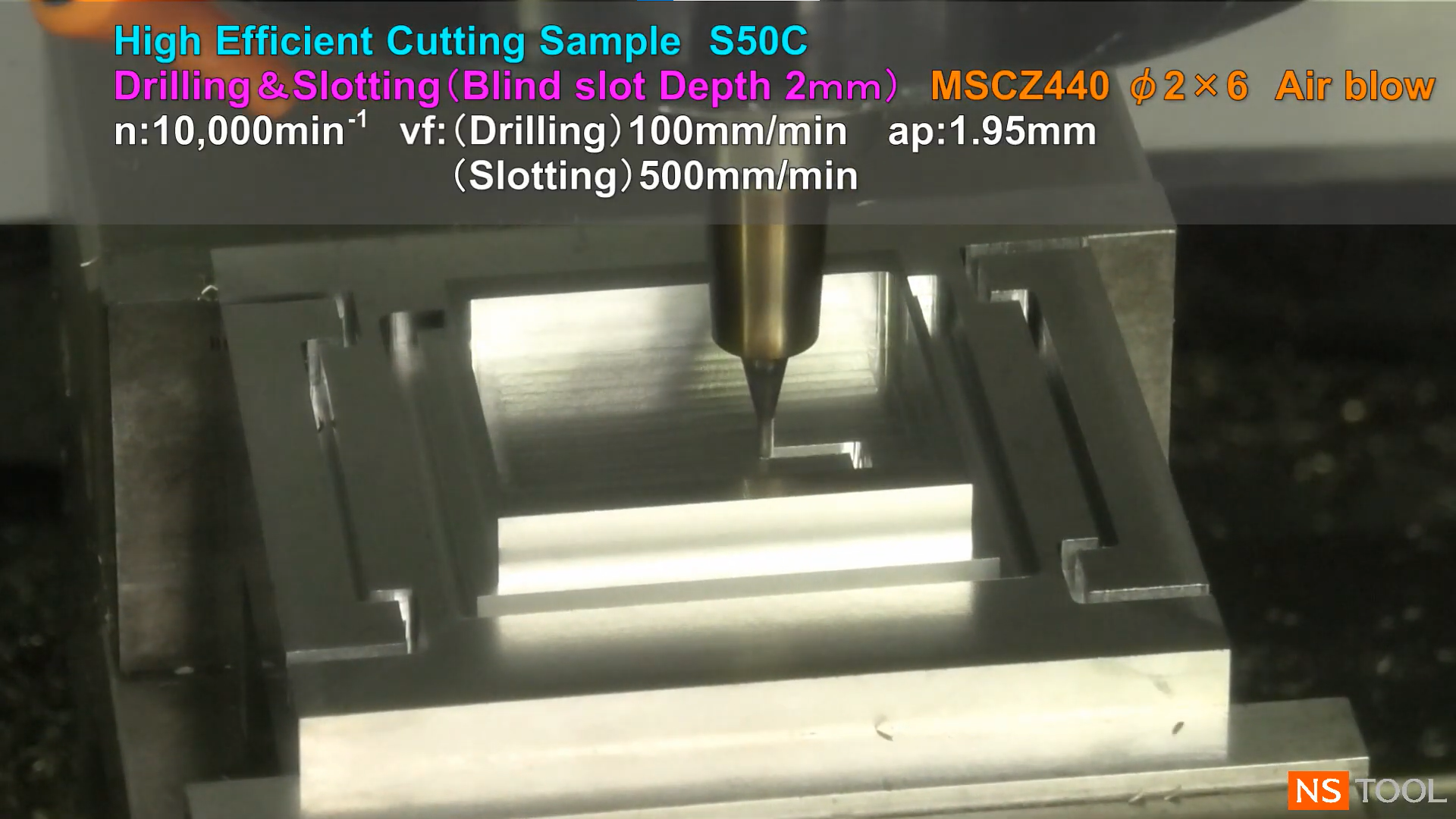

High Efficient Cutting Sample

High Efficient Cutting Sample

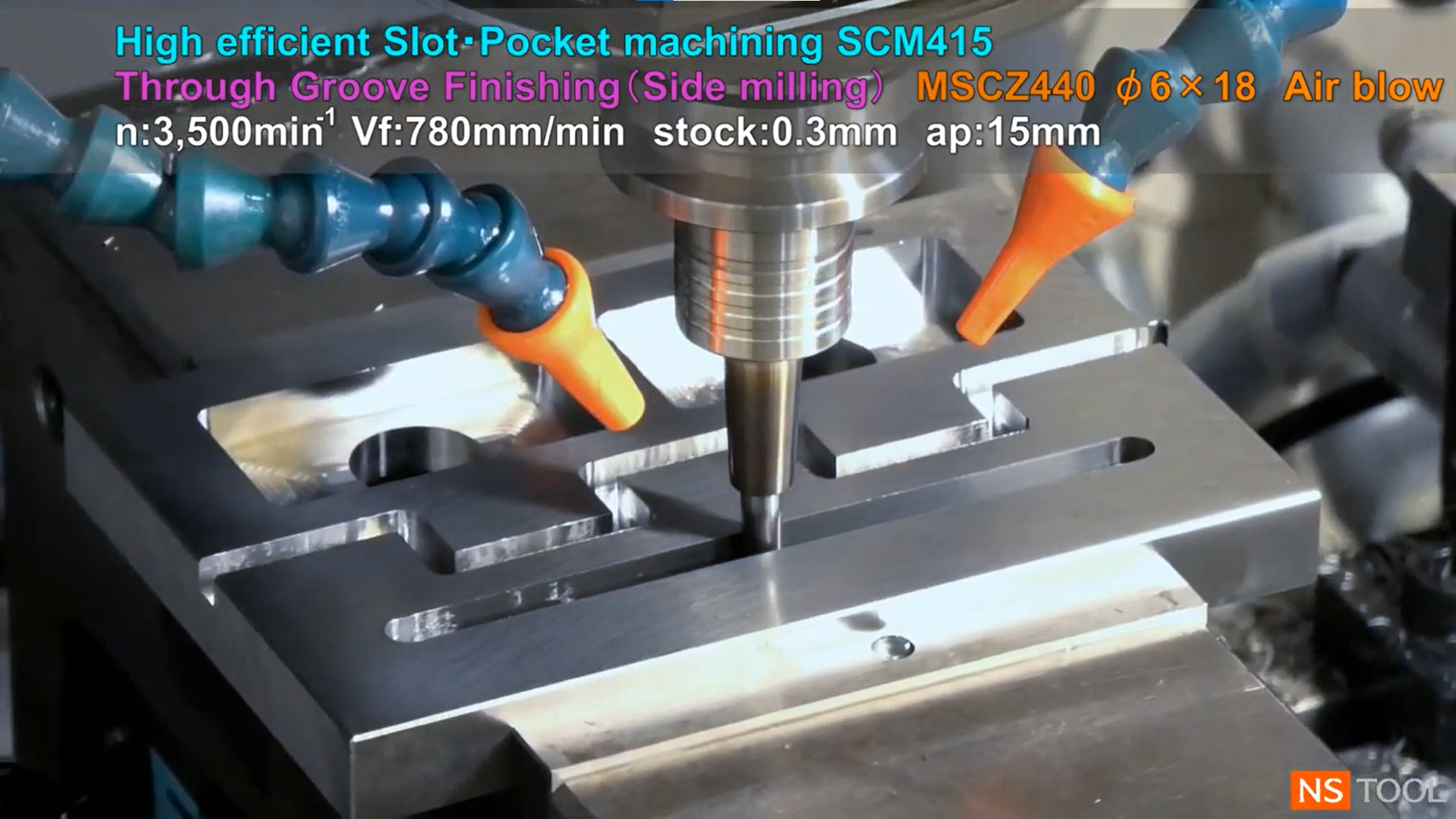

High efficient Slot Pocket Machining

High efficient Slot Pocket Machining

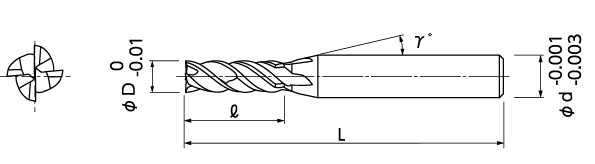

Line up

Unit [size: mm]

Code
No.		 (D)Dia. (l)Length of Cut (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00135-01020 1 2 12° 4 50
08-00135-01030 1 3 12° 4 50
08-00135-01120 1.1 2.2 12° 4 50
08-00135-01220 1.2 2.4 12° 4 50
08-00135-01320 1.3 2.6 12° 4 50
08-00135-01420 1.4 2.8 12° 4 50
08-00135-01520 1.5 3 12° 4 50
08-00135-01530 1.5 4.5 12° 4 50
08-00135-01620 1.6 3.2 12° 6 50
08-00135-01720 1.7 3.4 12° 6 50
08-00135-01820 1.8 3.6 12° 6 50
08-00135-01920 1.9 3.8 12° 6 50
08-00135-02020 2 4 12° 6 50
08-00135-02030 2 6 12° 6 60
08-00135-02120 2.1 4.2 12° 6 50
08-00135-02220 2.2 4.4 12° 6 50
08-00135-02320 2.3 4.6 12° 6 50
08-00135-02420 2.4 4.8 12° 6 50
08-00135-02520 2.5 5 12° 6 50
08-00135-02530 2.5 7.5 12° 6 60
08-00135-02620 2.6 5.2 12° 6 50
08-00135-02720 2.7 5.4 12° 6 50
08-00135-02820 2.8 5.6 12° 6 50
08-00135-02920 2.9 5.8 12° 6 50
08-00135-03020 3 6 12° 6 50
08-00135-03030 3 9 12° 6 60
08-00135-03120 3.1 6.2 12° 6 50
08-00135-03220 3.2 6.4 12° 6 50
08-00135-03320 3.3 6.6 12° 6 50
08-00135-03420 3.4 6.8 12° 6 50
08-00135-03520 3.5 7 12° 6 50
08-00135-03530 3.5 10.5 12° 6 60
08-00135-03620 3.6 7.2 12° 6 50
08-00135-03720 3.7 7.4 12° 6 50
08-00135-03820 3.8 7.6 12° 6 50
08-00135-03920 3.9 7.8 12° 6 50
08-00135-04020 4 8 12° 6 50
08-00135-04030 4 12 12° 6 60
08-00135-04120 4.1 8.2 12° 6 50
08-00135-04220 4.2 8.4 12° 6 50
08-00135-04320 4.3 8.6 12° 6 50
08-00135-04420 4.4 8.8 12° 6 50
08-00135-04520 4.5 9 12° 6 50
08-00135-04530 4.5 13.5 12° 6 60
08-00135-04620 4.6 9.2 12° 6 50
08-00135-04720 4.7 9.4 12° 6 50
08-00135-04820 4.8 9.6 12° 6 50
08-00135-04920 4.9 9.8 12° 6 50
08-00135-05020 5 10 12° 6 50
08-00135-05030 5 15 12° 6 60
08-00135-05120 5.1 10.2 12° 6 50
08-00135-05220 5.2 10.4 12° 6 50
08-00135-05320 5.3 10.6 12° 6 50
08-00135-05420 5.4 10.8 12° 6 50
08-00135-05520 5.5 11 12° 6 50
08-00135-05530 5.5 16.5 12° 6 60
08-00135-05620 5.6 11.2 12° 6 50
08-00135-05720 5.7 11.4 12° 6 50
08-00135-05820 5.8 11.6 12° 6 50
08-00135-05920 5.9 11.8 12° 6 50
08-00135-06020 6 12 － 6 60
08-00135-06030 6 18 － 6 60
