MSUSZ440

MUGEN COATING PREMIUM 4-Flute High Efficient ”Z” End Mill for Stainless Steels

●Unequal flute spacing，unequal helix angle and high rigid end profile design to minimize chatter realize high efficient machining．
●New developed special edge profile realized multi-functional performance of side milling，slot milling and plunging approaches on stainless steel．
●Optimized high heat-resistance MUGEN COATING PREMIUM to realize stable long time machining．
●Total 62 sizes，some sizes line up with L/D＝2 or 3．

Coating
MUGEN COATING PREMIUM
Material
Micro Grain Carbide
Cutting Possibility of Work Material Hardness
Up to 40HRC
Number of Flutes
4 Flutes
Helix Angle
40°/42°
φd-0.001/-0.003
Applications
Side Milling
Applications
Slot Milling
Applications
Face Milling
Applications
Pulunging Milling

Description of icons

Work Materials

Machinable indication by

Carbon Steel	Alloy Steel	Prehardened Steel	Hardened Steel				Stainless Steel	Heat Resistant Alloy	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material
Carbon Steel	Alloy Steel	Prehardened Steel	～ 52HRC	～ 60HRC	～ 65HRC	～ 70HRC	Stainless Steel	Heat Resistant Alloy	Aluminum Alloy	Copper	Resin	Graphite	Hard Brittle Material

Product Information
Cutting Data

Carbon Steel		Heat Resistant Alloy
Alloy Steel		Aluminum Alloy
Prehardened Steel		Copper
Hardened Steel	～ 52HRC	Resin
	～ 60HRC	Graphite
	～ 65HRC	Hard Brittle Material
	～ 70HRC	Hard Brittle Material
Stainless Steel

Leaflet

Machining Video

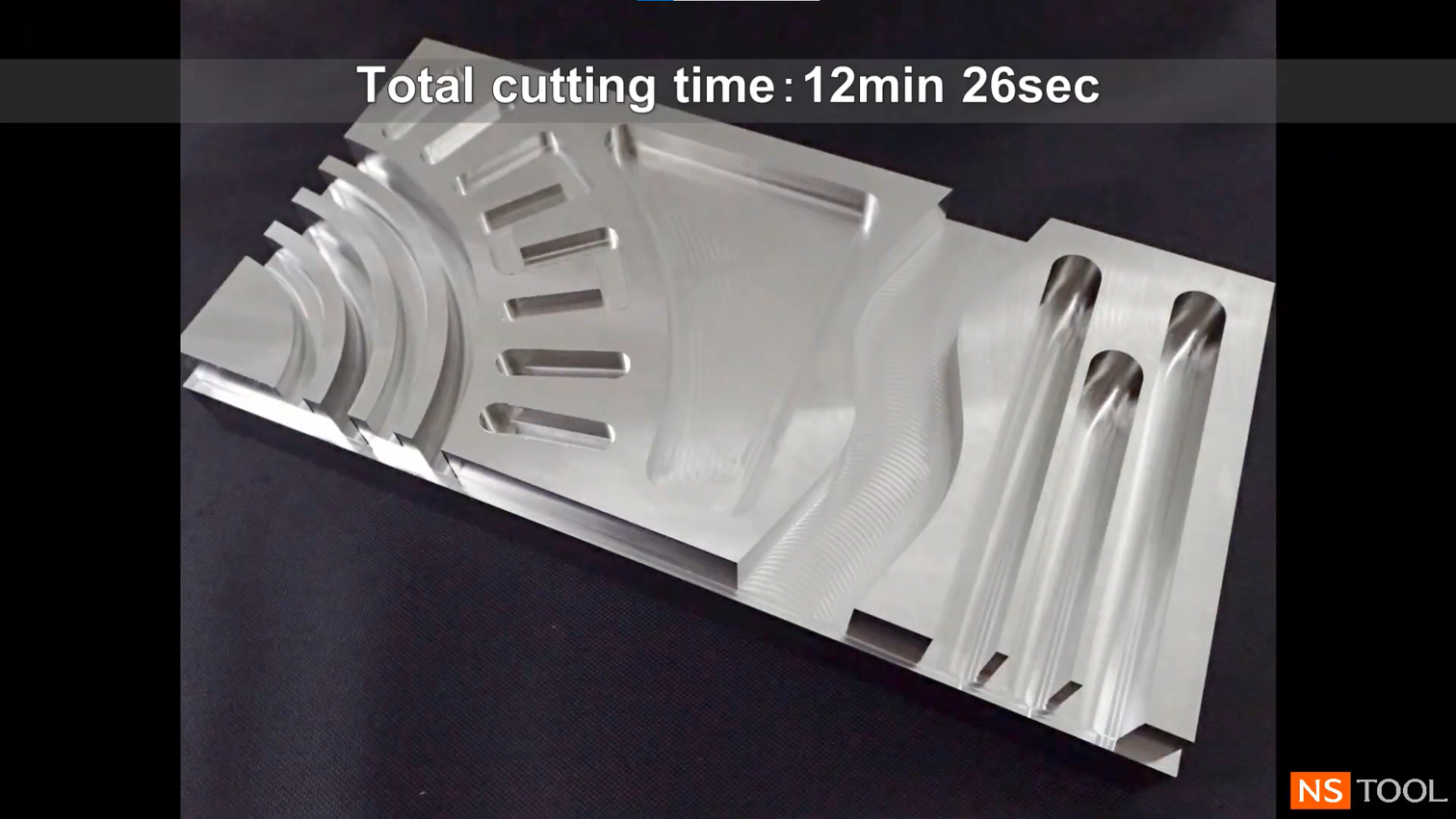

Cutting Example for Stainless Steel SUS304

Recommended Milling Conditions
DXF Data
※Please choose the short end tooth when measure the tool length.

Line up

Unit [size: mm]

Code No.	(D)Dia.	(l)Length of Cut	(γ)Neck Taper Angle	(d)Shank Dia.	(L)Overall Length
08-00152-01020	1	2	12°	4	50
08-00152-01030	1	3	12°	4	50
08-00152-01120	1.1	2.2	12°	4	50
08-00152-01220	1.2	2.4	12°	4	50
08-00152-01320	1.3	2.6	12°	4	50
08-00152-01420	1.4	2.8	12°	4	50
08-00152-01520	1.5	3	12°	4	50
08-00152-01530	1.5	4.5	12°	4	50
08-00152-01620	1.6	3.2	12°	6	50
08-00152-01720	1.7	3.4	12°	6	50
08-00152-01820	1.8	3.6	12°	6	50
08-00152-01920	1.9	3.8	12°	6	50
08-00152-02020	2	4	12°	6	50
08-00152-02030	2	6	12°	6	60
08-00152-02120	2.1	4.2	12°	6	50
08-00152-02220	2.2	4.4	12°	6	50
08-00152-02320	2.3	4.6	12°	6	50
08-00152-02420	2.4	4.8	12°	6	50
08-00152-02520	2.5	5	12°	6	50
08-00152-02530	2.5	7.5	12°	6	60
08-00152-02620	2.6	5.2	12°	6	50
08-00152-02720	2.7	5.4	12°	6	50
08-00152-02820	2.8	5.6	12°	6	50
08-00152-02920	2.9	5.8	12°	6	50
08-00152-03020	3	6	12°	6	50
08-00152-03030	3	9	12°	6	60
08-00152-03120	3.1	6.2	12°	6	50
08-00152-03220	3.2	6.4	12°	6	50
08-00152-03320	3.3	6.6	12°	6	50
08-00152-03420	3.4	6.8	12°	6	50
08-00152-03520	3.5	7	12°	6	50
08-00152-03530	3.5	10.5	12°	6	60
08-00152-03620	3.6	7.2	12°	6	50
08-00152-03720	3.7	7.4	12°	6	50
08-00152-03820	3.8	7.6	12°	6	50
08-00152-03920	3.9	7.8	12°	6	50
08-00152-04020	4	8	12°	6	50
08-00152-04030	4	12	12°	6	60
08-00152-04120	4.1	8.2	12°	6	50
08-00152-04220	4.2	8.4	12°	6	50
08-00152-04320	4.3	8.6	12°	6	50
08-00152-04420	4.4	8.8	12°	6	50
08-00152-04520	4.5	9	12°	6	50
08-00152-04530	4.5	13.5	12°	6	60
08-00152-04620	4.6	9.2	12°	6	50
08-00152-04720	4.7	9.4	12°	6	50
08-00152-04820	4.8	9.6	12°	6	50
08-00152-04920	4.9	9.8	12°	6	50
08-00152-05020	5	10	12°	6	50
08-00152-05030	5	15	12°	6	60
08-00152-05120	5.1	10.2	12°	6	50
08-00152-05220	5.2	10.4	12°	6	50
08-00152-05320	5.3	10.6	12°	6	50
08-00152-05420	5.4	10.8	12°	6	50
08-00152-05520	5.5	11	12°	6	50
08-00152-05530	5.5	16.5	12°	6	60
08-00152-05620	5.6	11.2	12°	6	50
08-00152-05720	5.7	11.4	12°	6	50
08-00152-05820	5.8	11.6	12°	6	50
08-00152-05920	5.9	11.8	12°	6	50
08-00152-06020	6	12	－	6	60
08-00152-06030	6	18	－	6	60
