MHR230R

無限コーティング 2枚刃ロングネックラジアスエンドミル

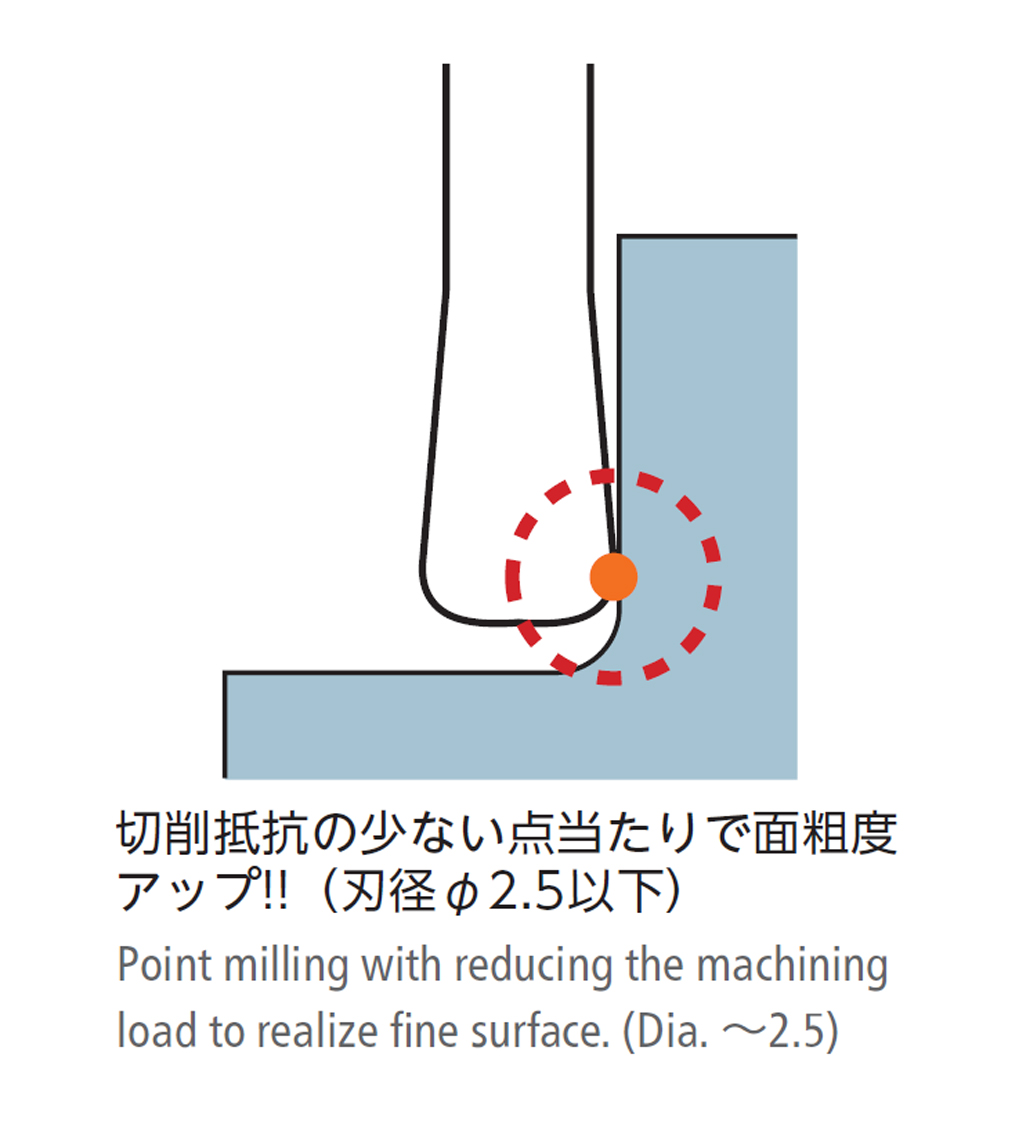

●外周刃はワークへの接触を最小限にした設計でびびりを抑制。
●ボールエンドミルと比べ、ピックフィードが大きく取れるため高能率加工を実現。
●コーナ半径精度は±5μmの高精度。(D2.5以下)
●チューニングされた無限コーティングにより、高硬度鋼・調質鋼の直彫り加工から銅電極加工まで、幅広い領域で威力を発揮。

  • 表面処理
    無限コーティング

  • 工具素材
    超微粒子超硬合金

  • 加工可能硬度
    55HRCまで

  • 刃数
    2枚刃

  • ねじれ角
    30°

  • コーナR公差
    ±0.005(D≦2.5)

  • 加工用途
    側面加工

  • 加工用途
    溝加工

  • 加工用途
    平面加工

各種アイコンの説明

対応被削材

:第1推奨  :第2推奨
炭素鋼 合金鋼 プリハー
ドン鋼
ステン
レス鋼
アルミ
合金
樹脂 グラフ
ァイト
硬脆材 チタン
合金・
耐熱合金
高硬度鋼

55HRC

65HRC

70HRC
炭素鋼 合金鋼
プリハー
ドン鋼
ステンレス鋼
アルミ
合金
銅合金
樹脂 グラフ
ァイト
硬脆材 チタン
合金・
耐熱合金




55HRC

65HRC

70HRC

製品ラインナップ

単位 [寸法:mm/価格 :円]

コード
No.
(D)外径 (R)コーナ半径 (l1)首下長 (l)刃長 (d2)首下径 (γ)首角 (d)シャンク径 (L)全長 標準
価格
本数 準標
準品
08-00221-02050 0.2 R0.05 0.5 0.15 0.18 12° 4 45 9,000
08-00220-02001 0.2 R0.05 0.5 0.15 0.18 12° 6 50 10,900
08-00221-02051 0.2 R0.05 1 0.15 0.18 12° 4 45 9,000
08-00220-02002 0.2 R0.05 1 0.15 0.18 12° 6 50 10,900
08-00221-02052 0.2 R0.05 1.5 0.15 0.18 12° 4 45 9,000
08-00221-02053 0.2 R0.05 2 0.15 0.18 12° 4 45 9,000
08-00221-03050 0.3 R0.05 1 0.25 0.28 12° 4 45 8,700
08-00220-03001 0.3 R0.05 1 0.25 0.28 12° 6 50 10,500
08-00221-03051 0.3 R0.05 1.5 0.25 0.28 12° 4 45 8,700
08-00221-03052 0.3 R0.05 2 0.25 0.28 12° 4 45 8,700
08-00220-03002 0.3 R0.05 2 0.25 0.28 12° 6 50 10,500
08-00221-03053 0.3 R0.05 2.5 0.25 0.28 12° 4 45 9,600
08-00221-03054 0.3 R0.05 3 0.25 0.28 12° 4 45 9,600
08-00221-04050 0.4 R0.05 1 0.3 0.37 12° 4 45 5,800
08-00221-04051 0.4 R0.05 1.5 0.3 0.37 12° 4 45 5,800
08-00221-04052 0.4 R0.05 2 0.3 0.37 12° 4 45 5,800
08-00220-04005 0.4 R0.05 2 0.3 0.37 12° 6 50 7,000
08-00221-04053 0.4 R0.05 3 0.3 0.37 12° 4 45 5,800
08-00220-04006 0.4 R0.05 3 0.3 0.37 12° 6 50 7,000
08-00221-04054 0.4 R0.05 4 0.3 0.37 12° 4 45 5,800
08-00220-04007 0.4 R0.05 4 0.3 0.37 12° 6 50 7,000
08-00221-04100 0.4 R0.1 1 0.3 0.37 12° 4 45 5,800
08-00221-04101 0.4 R0.1 1.5 0.3 0.37 12° 4 45 5,800
08-00221-04102 0.4 R0.1 2 0.3 0.37 12° 4 45 5,800
08-00220-04011 0.4 R0.1 2 0.3 0.37 12° 6 50 7,000
08-00221-04103 0.4 R0.1 3 0.3 0.37 12° 4 45 5,800
08-00220-04013 0.4 R0.1 3 0.3 0.37 12° 6 50 7,000
08-00221-04104 0.4 R0.1 4 0.3 0.37 12° 4 45 5,800
08-00220-04012 0.4 R0.1 4 0.3 0.37 12° 6 50 7,000
08-00221-05050 0.5 R0.05 1 0.4 0.46 12° 4 45 4,700
08-00221-05051 0.5 R0.05 2 0.4 0.46 12° 4 45 4,700
08-00220-05005 0.5 R0.05 2 0.4 0.46 12° 6 50 5,700
08-00221-05052 0.5 R0.05 3 0.4 0.46 12° 4 45 4,700
08-00220-05006 0.5 R0.05 3 0.4 0.46 12° 6 50 5,700
08-00221-05053 0.5 R0.05 4 0.4 0.46 12° 4 45 4,700
08-00220-05007 0.5 R0.05 4 0.4 0.46 12° 6 50 5,700
08-00221-05054 0.5 R0.05 5 0.4 0.46 12° 4 45 4,700
08-00220-05008 0.5 R0.05 5 0.4 0.46 12° 6 50 5,700
08-00221-05055 0.5 R0.05 6 0.4 0.46 12° 4 45 4,700
08-00221-05100 0.5 R0.1 1 0.4 0.46 12° 4 45 4,700
08-00221-05101 0.5 R0.1 2 0.4 0.46 12° 4 45 4,700
08-00220-05011 0.5 R0.1 2 0.4 0.46 12° 6 50 5,700
08-00221-05102 0.5 R0.1 3 0.4 0.46 12° 4 45 4,700
08-00220-05013 0.5 R0.1 3 0.4 0.46 12° 6 50 5,700
08-00221-05103 0.5 R0.1 4 0.4 0.46 12° 4 45 4,700
08-00220-05012 0.5 R0.1 4 0.4 0.46 12° 6 50 5,700
08-00221-05104 0.5 R0.1 5 0.4 0.46 12° 4 45 4,700
08-00220-05014 0.5 R0.1 5 0.4 0.46 12° 6 50 5,700
08-00221-05105 0.5 R0.1 6 0.4 0.46 12° 4 45 4,700
08-00221-06050 0.6 R0.05 2 0.5 0.56 12° 4 45 4,700
08-00220-06005 0.6 R0.05 2 0.5 0.56 12° 6 50 5,700
08-00221-06051 0.6 R0.05 3 0.5 0.56 12° 4 45 4,700
08-00221-06052 0.6 R0.05 4 0.5 0.56 12° 4 45 4,700
08-00220-06007 0.6 R0.05 4 0.5 0.56 12° 6 50 5,700
08-00221-06053 0.6 R0.05 6 0.5 0.56 12° 4 45 4,700
08-00220-06009 0.6 R0.05 6 0.5 0.56 12° 6 50 5,700
08-00221-06054 0.6 R0.05 8 0.5 0.56 12° 4 50 4,700
08-00221-06100 0.6 R0.1 2 0.5 0.56 12° 4 45 4,700
08-00221-06101 0.6 R0.1 3 0.5 0.56 12° 4 45 4,700
08-00221-06102 0.6 R0.1 4 0.5 0.56 12° 4 45 4,700
08-00220-06011 0.6 R0.1 4 0.5 0.56 12° 6 50 5,700
08-00221-06103 0.6 R0.1 6 0.5 0.56 12° 4 45 4,700
08-00220-06012 0.6 R0.1 6 0.5 0.56 12° 6 50 5,700
08-00221-06104 0.6 R0.1 8 0.5 0.56 12° 4 50 4,700
08-00221-06200 0.6 R0.2 2 0.5 0.56 12° 4 45 4,700
08-00221-06201 0.6 R0.2 3 0.5 0.56 12° 4 45 4,700
08-00221-06202 0.6 R0.2 4 0.5 0.56 12° 4 45 4,700
08-00221-06203 0.6 R0.2 6 0.5 0.56 12° 4 45 4,700
08-00221-06204 0.6 R0.2 8 0.5 0.56 12° 4 50 4,700
08-00221-07050 0.7 R0.05 4 0.55 0.66 12° 4 45 5,000
08-00220-07005 0.7 R0.05 4 0.55 0.66 12° 6 50 6,000
08-00221-07051 0.7 R0.05 6 0.55 0.66 12° 4 45 5,000
08-00220-07006 0.7 R0.05 6 0.55 0.66 12° 6 50 6,000
08-00221-07100 0.7 R0.1 4 0.55 0.66 12° 4 45 5,000
08-00220-07011 0.7 R0.1 4 0.55 0.66 12° 6 50 6,000
08-00221-07101 0.7 R0.1 6 0.55 0.66 12° 4 45 5,000
08-00220-07012 0.7 R0.1 6 0.55 0.66 12° 6 50 6,000
08-00221-08050 0.8 R0.05 4 0.65 0.76 12° 4 45 5,400
08-00220-08005 0.8 R0.05 4 0.65 0.76 12° 6 50 6,500
08-00221-08051 0.8 R0.05 6 0.65 0.76 12° 4 45 5,400
08-00220-08006 0.8 R0.05 6 0.65 0.76 12° 6 50 6,500
08-00221-08052 0.8 R0.05 8 0.65 0.76 12° 4 50 5,400
08-00220-08007 0.8 R0.05 8 0.65 0.76 12° 6 50 6,500
08-00221-08100 0.8 R0.1 4 0.65 0.76 12° 4 45 5,400
08-00220-08011 0.8 R0.1 4 0.65 0.76 12° 6 50 6,500
08-00221-08101 0.8 R0.1 6 0.65 0.76 12° 4 45 5,400
08-00220-08012 0.8 R0.1 6 0.65 0.76 12° 6 50 6,500
08-00221-08102 0.8 R0.1 8 0.65 0.76 12° 4 50 5,400
08-00220-08013 0.8 R0.1 8 0.65 0.76 12° 6 50 6,500
08-00221-08200 0.8 R0.2 4 0.65 0.76 12° 4 45 5,400
08-00220-08021 0.8 R0.2 4 0.65 0.76 12° 6 50 6,500
08-00221-08201 0.8 R0.2 6 0.65 0.76 12° 4 45 5,400
08-00220-08022 0.8 R0.2 6 0.65 0.76 12° 6 50 6,500
08-00221-08202 0.8 R0.2 8 0.65 0.76 12° 4 50 5,400
08-00220-08023 0.8 R0.2 8 0.65 0.76 12° 6 50 6,500
08-00221-09100 0.9 R0.1 4 0.7 0.85 12° 4 45 6,000
08-00220-09011 0.9 R0.1 4 0.7 0.85 12° 6 50 6,800
08-00221-09101 0.9 R0.1 8 0.7 0.85 12° 4 50 6,000
08-00220-09012 0.9 R0.1 8 0.7 0.85 12° 6 50 6,800
08-00221-10050 1 R0.05 2 0.8 0.95 12° 4 50 4,600
08-00221-10051 1 R0.05 3 0.8 0.95 12° 4 50 4,600
08-00220-10001 1 R0.05 3 0.8 0.95 12° 6 50 6,000
08-00221-10052 1 R0.05 4 0.8 0.95 12° 4 50 4,600
08-00220-10002 1 R0.05 4 0.8 0.95 12° 6 50 6,000
08-00221-10053 1 R0.05 5 0.8 0.95 12° 4 50 4,600
08-00220-10003 1 R0.05 5 0.8 0.95 12° 6 50 6,000
08-00221-10054 1 R0.05 6 0.8 0.95 12° 4 50 5,000
08-00220-10004 1 R0.05 6 0.8 0.95 12° 6 50 6,000
08-00221-10055 1 R0.05 8 0.8 0.95 12° 4 50 5,000
08-00220-10006 1 R0.05 8 0.8 0.95 12° 6 50 6,000
08-00221-10056 1 R0.05 10 0.8 0.95 12° 4 50 5,000
08-00220-10008 1 R0.05 10 0.8 0.95 12° 6 50 6,000
08-00221-10057 1 R0.05 12 0.8 0.95 12° 4 50 5,000
08-00220-10009 1 R0.05 12 0.8 0.95 12° 6 50 6,000
08-00221-10058 1 R0.05 16 0.8 0.95 12° 4 60 6,600
08-00221-10059 1 R0.05 20 0.8 0.95 12° 4 60 7,300
08-00221-10100 1 R0.1 2 0.8 0.95 12° 4 50 4,600
08-00221-10101 1 R0.1 3 0.8 0.95 12° 4 50 4,600
08-00220-10010 1 R0.1 3 0.8 0.95 12° 6 50 6,000
08-00221-10102 1 R0.1 4 0.8 0.95 12° 4 50 4,600
08-00220-10011 1 R0.1 4 0.8 0.95 12° 6 50 6,000
08-00221-10103 1 R0.1 5 0.8 0.95 12° 4 50 4,600
08-00220-10014 1 R0.1 5 0.8 0.95 12° 6 50 6,000
08-00221-10104 1 R0.1 6 0.8 0.95 12° 4 50 5,000
08-00220-10015 1 R0.1 6 0.8 0.95 12° 6 50 6,000
08-00221-10105 1 R0.1 8 0.8 0.95 12° 4 50 5,000
08-00220-10012 1 R0.1 8 0.8 0.95 12° 6 50 6,000
08-00221-10106 1 R0.1 10 0.8 0.95 12° 4 50 5,000
08-00220-10016 1 R0.1 10 0.8 0.95 12° 6 50 6,000
08-00221-10107 1 R0.1 12 0.8 0.95 12° 4 50 5,000
08-00220-10013 1 R0.1 12 0.8 0.95 12° 6 50 6,000
08-00221-10108 1 R0.1 16 0.8 0.95 12° 4 60 6,600
08-00221-10109 1 R0.1 20 0.8 0.95 12° 4 60 7,300
08-00221-10200 1 R0.2 2 0.8 0.95 12° 4 50 4,600
08-00221-10201 1 R0.2 3 0.8 0.95 12° 4 50 4,600
08-00220-10024 1 R0.2 3 0.8 0.95 12° 6 50 6,000
08-00221-10202 1 R0.2 4 0.8 0.95 12° 4 50 4,600
08-00220-10021 1 R0.2 4 0.8 0.95 12° 6 50 6,000
08-00221-10203 1 R0.2 5 0.8 0.95 12° 4 50 4,600
08-00220-10025 1 R0.2 5 0.8 0.95 12° 6 50 6,000
08-00221-10204 1 R0.2 6 0.8 0.95 12° 4 50 5,000
08-00220-10026 1 R0.2 6 0.8 0.95 12° 6 50 6,000
08-00221-10205 1 R0.2 8 0.8 0.95 12° 4 50 5,000
08-00220-10022 1 R0.2 8 0.8 0.95 12° 6 50 6,000
08-00221-10206 1 R0.2 10 0.8 0.95 12° 4 50 5,000
08-00220-10027 1 R0.2 10 0.8 0.95 12° 6 50 6,000
08-00221-10207 1 R0.2 12 0.8 0.95 12° 4 50 5,000
08-00220-10023 1 R0.2 12 0.8 0.95 12° 6 50 6,000
08-00221-10208 1 R0.2 16 0.8 0.95 12° 4 60 6,600
08-00221-10209 1 R0.2 20 0.8 0.95 12° 4 60 7,300
08-00221-10300 1 R0.3 2 0.8 0.95 12° 4 50 4,600
08-00221-10301 1 R0.3 3 0.8 0.95 12° 4 50 4,600
08-00220-10034 1 R0.3 3 0.8 0.95 12° 6 50 6,000
08-00221-10302 1 R0.3 4 0.8 0.95 12° 4 50 4,600
08-00220-10031 1 R0.3 4 0.8 0.95 12° 6 50 6,000
08-00221-10303 1 R0.3 5 0.8 0.95 12° 4 50 4,600
08-00220-10035 1 R0.3 5 0.8 0.95 12° 6 50 6,000
08-00221-10304 1 R0.3 6 0.8 0.95 12° 4 50 5,000
08-00220-10036 1 R0.3 6 0.8 0.95 12° 6 50 6,000
08-00221-10305 1 R0.3 8 0.8 0.95 12° 4 50 5,000
08-00220-10032 1 R0.3 8 0.8 0.95 12° 6 50 6,000
08-00221-10306 1 R0.3 10 0.8 0.95 12° 4 50 5,000
08-00220-10037 1 R0.3 10 0.8 0.95 12° 6 50 6,000
08-00221-10307 1 R0.3 12 0.8 0.95 12° 4 50 5,000
08-00220-10033 1 R0.3 12 0.8 0.95 12° 6 50 6,000
08-00221-10308 1 R0.3 16 0.8 0.95 12° 4 60 6,600
08-00221-10309 1 R0.3 20 0.8 0.95 12° 4 60 7,300
08-00220-12011 1.2 R0.1 5 1 1.14 12° 6 50 6,200
08-00221-12100 1.2 R0.1 6 1 1.14 12° 4 50 5,100
08-00221-12101 1.2 R0.1 8 1 1.14 12° 4 50 5,100
08-00221-12102 1.2 R0.1 10 1 1.14 12° 4 50 5,100
08-00220-12013 1.2 R0.1 10 1 1.14 12° 6 50 6,200
08-00221-12103 1.2 R0.1 12 1 1.14 12° 4 50 5,100
08-00220-12015 1.2 R0.1 15 1 1.14 12° 6 60 9,100
08-00221-12104 1.2 R0.1 16 1 1.14 12° 4 60 5,100
08-00221-12105 1.2 R0.1 20 1 1.14 12° 4 60 7,800
08-00220-12021 1.2 R0.2 5 1 1.14 12° 6 50 6,200
08-00221-12200 1.2 R0.2 6 1 1.14 12° 4 50 5,100
08-00221-12201 1.2 R0.2 8 1 1.14 12° 4 50 5,100
08-00221-12202 1.2 R0.2 10 1 1.14 12° 4 50 5,100
08-00220-12022 1.2 R0.2 10 1 1.14 12° 6 50 6,200
08-00221-12203 1.2 R0.2 12 1 1.14 12° 4 50 5,100
08-00220-12023 1.2 R0.2 15 1 1.14 12° 6 60 9,400
08-00221-12204 1.2 R0.2 16 1 1.14 12° 4 60 5,100
08-00221-12205 1.2 R0.2 20 1 1.14 12° 4 60 7,800
08-00220-12031 1.2 R0.3 5 1 1.14 12° 6 50 6,200
08-00221-12300 1.2 R0.3 6 1 1.14 12° 4 50 5,100
08-00221-12301 1.2 R0.3 8 1 1.14 12° 4 50 5,100
08-00221-12302 1.2 R0.3 10 1 1.14 12° 4 50 5,100
08-00220-12032 1.2 R0.3 10 1 1.14 12° 6 50 6,200
08-00221-12303 1.2 R0.3 12 1 1.14 12° 4 50 5,100
08-00220-12033 1.2 R0.3 15 1 1.14 12° 6 60 9,100
08-00221-12304 1.2 R0.3 16 1 1.14 12° 4 60 5,100
08-00221-12305 1.2 R0.3 20 1 1.14 12° 4 60 7,800
08-00221-15100 1.5 R0.1 4 1.2 1.45 12° 4 50 4,900
08-00221-15101 1.5 R0.1 6 1.2 1.45 12° 4 50 4,900
08-00220-15011 1.5 R0.1 6 1.2 1.45 12° 6 50 6,200
08-00221-15102 1.5 R0.1 8 1.2 1.45 12° 4 50 5,100
08-00221-15103 1.5 R0.1 10 1.2 1.45 12° 4 50 5,100
08-00221-15104 1.5 R0.1 12 1.2 1.45 12° 4 50 5,100
08-00220-15013 1.5 R0.1 12 1.2 1.45 12° 6 50 6,200
08-00221-15105 1.5 R0.1 16 1.2 1.45 12° 4 60 5,100
08-00221-15106 1.5 R0.1 18 1.2 1.45 12° 4 60 5,100
08-00220-15015 1.5 R0.1 18 1.2 1.45 12° 6 60 6,200
08-00221-15107 1.5 R0.1 20 1.2 1.45 12° 4 60 5,100
08-00221-15200 1.5 R0.2 4 1.2 1.45 12° 4 50 4,900
08-00221-15201 1.5 R0.2 6 1.2 1.45 12° 4 50 4,900
08-00220-15021 1.5 R0.2 6 1.2 1.45 12° 6 50 6,200
08-00221-15202 1.5 R0.2 8 1.2 1.45 12° 4 50 5,100
08-00221-15203 1.5 R0.2 10 1.2 1.45 12° 4 50 5,100
08-00221-15204 1.5 R0.2 12 1.2 1.45 12° 4 50 5,100
08-00220-15023 1.5 R0.2 12 1.2 1.45 12° 6 50 6,200
08-00221-15205 1.5 R0.2 16 1.2 1.45 12° 4 60 5,100
08-00221-15206 1.5 R0.2 18 1.2 1.45 12° 4 60 5,100
08-00220-15025 1.5 R0.2 18 1.2 1.45 12° 6 60 6,200
08-00221-15207 1.5 R0.2 20 1.2 1.45 12° 4 60 5,100
08-00221-15300 1.5 R0.3 4 1.2 1.45 12° 4 50 4,900
08-00221-15301 1.5 R0.3 6 1.2 1.45 12° 4 50 4,900
08-00220-15031 1.5 R0.3 6 1.2 1.45 12° 6 50 6,200
08-00221-15302 1.5 R0.3 8 1.2 1.45 12° 4 50 5,100
08-00221-15303 1.5 R0.3 10 1.2 1.45 12° 4 50 5,100
08-00221-15304 1.5 R0.3 12 1.2 1.45 12° 4 50 5,100
08-00220-15032 1.5 R0.3 12 1.2 1.45 12° 6 50 6,200
08-00221-15305 1.5 R0.3 16 1.2 1.45 12° 4 60 5,100
08-00221-15306 1.5 R0.3 18 1.2 1.45 12° 4 60 5,100
08-00220-15033 1.5 R0.3 18 1.2 1.45 12° 6 60 6,200
08-00221-15307 1.5 R0.3 20 1.2 1.45 12° 4 60 5,100
08-00221-15500 1.5 R0.5 4 1.2 1.45 12° 4 50 4,900
08-00221-15501 1.5 R0.5 6 1.2 1.45 12° 4 50 4,900
08-00220-15051 1.5 R0.5 6 1.2 1.45 12° 6 50 6,200
08-00221-15502 1.5 R0.5 8 1.2 1.45 12° 4 50 5,100
08-00221-15503 1.5 R0.5 10 1.2 1.45 12° 4 50 5,100
08-00221-15504 1.5 R0.5 12 1.2 1.45 12° 4 50 5,100
08-00220-15052 1.5 R0.5 12 1.2 1.45 12° 6 50 6,200
08-00221-15505 1.5 R0.5 16 1.2 1.45 12° 4 60 5,100
08-00221-15506 1.5 R0.5 18 1.2 1.45 12° 4 60 5,100
08-00220-15053 1.5 R0.5 18 1.2 1.45 12° 6 60 6,200
08-00221-15507 1.5 R0.5 20 1.2 1.45 12° 4 60 5,100
08-00221-20100 2 R0.1 4 1.6 1.91 12° 4 50 4,900
08-00221-20101 2 R0.1 6 1.6 1.91 12° 4 50 4,900
08-00221-20102 2 R0.1 8 1.6 1.91 12° 4 50 5,100
08-00220-20011 2 R0.1 8 1.6 1.91 12° 6 50 6,300
08-00221-20103 2 R0.1 10 1.6 1.91 12° 4 50 5,100
08-00221-20104 2 R0.1 12 1.6 1.91 12° 4 50 5,100
08-00220-20014 2 R0.1 12 1.6 1.91 12° 6 50 6,300
08-00221-20105 2 R0.1 16 1.6 1.91 12° 4 60 5,100
08-00220-20012 2 R0.1 16 1.6 1.91 12° 6 60 6,300
08-00221-20106 2 R0.1 20 1.6 1.91 12° 4 60 5,100
08-00220-20015 2 R0.1 20 1.6 1.91 12° 6 60 6,300
08-00221-20107 2 R0.1 24 1.6 1.91 12° 4 70 5,100
08-00220-20013 2 R0.1 24 1.6 1.91 12° 6 70 6,300
08-00221-20108 2 R0.1 26 1.6 1.91 12° 4 70 5,100
08-00221-20109 2 R0.1 30 1.6 1.91 12° 4 70 5,100
08-00221-20200 2 R0.2 4 1.6 1.91 12° 4 50 4,900
08-00221-20201 2 R0.2 6 1.6 1.91 12° 4 50 4,900
08-00221-20202 2 R0.2 8 1.6 1.91 12° 4 50 5,100
08-00220-20021 2 R0.2 8 1.6 1.91 12° 6 50 6,300
08-00221-20203 2 R0.2 10 1.6 1.91 12° 4 50 5,100
08-00221-20204 2 R0.2 12 1.6 1.91 12° 4 50 5,100
08-00220-20023 2 R0.2 12 1.6 1.91 12° 6 50 6,300
08-00221-20205 2 R0.2 16 1.6 1.91 12° 4 60 5,100
08-00220-20025 2 R0.2 16 1.6 1.91 12° 6 60 6,300
08-00221-20206 2 R0.2 20 1.6 1.91 12° 4 60 5,100
08-00220-20027 2 R0.2 20 1.6 1.91 12° 6 60 6,300
08-00221-20207 2 R0.2 24 1.6 1.91 12° 4 70 5,100
08-00220-20029 2 R0.2 24 1.6 1.91 12° 6 70 6,300
08-00221-20208 2 R0.2 26 1.6 1.91 12° 4 70 5,100
08-00221-20209 2 R0.2 30 1.6 1.91 12° 4 70 5,100
08-00221-20300 2 R0.3 4 1.6 1.91 12° 4 50 4,900
08-00221-20301 2 R0.3 6 1.6 1.91 12° 4 50 4,900
08-00221-20302 2 R0.3 8 1.6 1.91 12° 4 50 5,100
08-00220-20031 2 R0.3 8 1.6 1.91 12° 6 50 6,300
08-00221-20303 2 R0.3 10 1.6 1.91 12° 4 50 5,100
08-00221-20304 2 R0.3 12 1.6 1.91 12° 4 50 5,100
08-00220-20034 2 R0.3 12 1.6 1.91 12° 6 50 6,300
08-00221-20305 2 R0.3 16 1.6 1.91 12° 4 60 5,100
08-00220-20032 2 R0.3 16 1.6 1.91 12° 6 60 6,300
08-00221-20306 2 R0.3 20 1.6 1.91 12° 4 60 5,100
08-00220-20035 2 R0.3 20 1.6 1.91 12° 6 60 6,300
08-00221-20307 2 R0.3 24 1.6 1.91 12° 4 70 5,100
08-00220-20033 2 R0.3 24 1.6 1.91 12° 6 70 6,300
08-00221-20308 2 R0.3 26 1.6 1.91 12° 4 70 5,100
08-00221-20309 2 R0.3 30 1.6 1.91 12° 4 70 5,100
08-00221-20500 2 R0.5 4 1.6 1.91 12° 4 50 4,900
08-00221-20501 2 R0.5 6 1.6 1.91 12° 4 50 4,900
08-00221-20502 2 R0.5 8 1.6 1.91 12° 4 50 5,100
08-00220-20051 2 R0.5 8 1.6 1.91 12° 6 50 6,300
08-00221-20503 2 R0.5 10 1.6 1.91 12° 4 50 5,100
08-00221-20504 2 R0.5 12 1.6 1.91 12° 4 50 5,100
08-00220-20054 2 R0.5 12 1.6 1.91 12° 6 50 6,300
08-00221-20505 2 R0.5 16 1.6 1.91 12° 4 60 5,100
08-00220-20052 2 R0.5 16 1.6 1.91 12° 6 60 6,300
08-00221-20506 2 R0.5 20 1.6 1.91 12° 4 60 5,100
08-00220-20055 2 R0.5 20 1.6 1.91 12° 6 60 6,300
08-00221-20507 2 R0.5 24 1.6 1.91 12° 4 70 5,100
08-00220-20053 2 R0.5 24 1.6 1.91 12° 6 70 6,300
08-00221-20508 2 R0.5 26 1.6 1.91 12° 4 70 5,100
08-00221-20509 2 R0.5 30 1.6 1.91 12° 4 70 5,100
08-00221-25100 2.5 R0.1 10 2 2.39 12° 4 50 5,400
08-00220-25011 2.5 R0.1 10 2 2.39 12° 6 50 6,500
08-00221-25101 2.5 R0.1 20 2 2.39 12° 4 60 5,500
08-00220-25013 2.5 R0.1 20 2 2.39 12° 6 60 6,700
08-00221-25102 2.5 R0.1 30 2 2.39 12° 4 70 5,700
08-00220-25015 2.5 R0.1 30 2 2.39 12° 6 70 7,000
08-00221-25200 2.5 R0.2 10 2 2.39 12° 4 50 5,400
08-00220-25021 2.5 R0.2 10 2 2.39 12° 6 50 6,500
08-00221-25201 2.5 R0.2 20 2 2.39 12° 4 60 5,500
08-00220-25023 2.5 R0.2 20 2 2.39 12° 6 60 6,700
08-00221-25202 2.5 R0.2 30 2 2.39 12° 4 70 5,700
08-00220-25025 2.5 R0.2 30 2 2.39 12° 6 70 7,000
08-00221-25300 2.5 R0.3 10 2 2.39 12° 4 50 5,400
08-00220-25031 2.5 R0.3 10 2 2.39 12° 6 50 6,500
08-00221-25301 2.5 R0.3 20 2 2.39 12° 4 60 5,500
08-00220-25032 2.5 R0.3 20 2 2.39 12° 6 60 6,700
08-00221-25302 2.5 R0.3 30 2 2.39 12° 4 70 5,700
08-00220-25033 2.5 R0.3 30 2 2.39 12° 6 70 6,900
08-00221-25500 2.5 R0.5 10 2 2.39 12° 4 50 5,400
08-00220-25051 2.5 R0.5 10 2 2.39 12° 6 50 6,500
08-00221-25501 2.5 R0.5 20 2 2.39 12° 4 60 5,500
08-00220-25052 2.5 R0.5 20 2 2.39 12° 6 60 6,700
08-00221-25502 2.5 R0.5 30 2 2.39 12° 4 70 5,700
08-00220-25053 2.5 R0.5 30 2 2.39 12° 6 70 6,900
08-00220-30011 3 R0.1 12 4.5 2.85 12° 6 50 8,600
08-00220-30013 3 R0.1 18 4.5 2.85 12° 6 60 8,800
08-00220-30015 3 R0.1 24 4.5 2.85 12° 6 70 9,100
08-00220-30017 3 R0.1 30 4.5 2.85 12° 6 70 9,500
08-00220-30019 3 R0.1 36 4.5 2.85 12° 6 80 9,500
08-00220-30021 3 R0.2 12 4.5 2.85 12° 6 50 8,600
08-00220-30023 3 R0.2 18 4.5 2.85 12° 6 60 8,800
08-00220-30025 3 R0.2 24 4.5 2.85 12° 6 70 9,100
08-00220-30027 3 R0.2 30 4.5 2.85 12° 6 70 9,500
08-00220-30029 3 R0.2 36 4.5 2.85 12° 6 80 9,500
08-00220-30031 3 R0.3 12 4.5 2.85 12° 6 50 8,600
08-00220-30034 3 R0.3 18 4.5 2.85 12° 6 60 8,800
08-00220-30032 3 R0.3 24 4.5 2.85 12° 6 70 9,100
08-00220-30035 3 R0.3 30 4.5 2.85 12° 6 70 9,500
08-00220-30033 3 R0.3 36 4.5 2.85 12° 6 80 9,500
08-00220-30051 3 R0.5 12 4.5 2.85 12° 6 50 8,600
08-00220-30054 3 R0.5 18 4.5 2.85 12° 6 60 8,800
08-00220-30052 3 R0.5 24 4.5 2.85 12° 6 70 9,100
08-00220-30055 3 R0.5 30 4.5 2.85 12° 6 70 9,500
08-00220-30053 3 R0.5 36 4.5 2.85 12° 6 80 9,500
08-00220-30101 3 R1 12 4.5 2.85 12° 6 50 8,600
08-00220-30104 3 R1 18 4.5 2.85 12° 6 60 8,800
08-00220-30102 3 R1 24 4.5 2.85 12° 6 70 9,100
08-00220-30105 3 R1 30 4.5 2.85 12° 6 70 9,500
08-00220-30103 3 R1 36 4.5 2.85 12° 6 80 9,500
08-00220-40011 4 R0.1 16 6 3.8 12° 6 60 8,600
08-00220-40013 4 R0.1 24 6 3.8 12° 6 70 8,600
08-00220-40015 4 R0.1 32 6 3.8 12° 6 70 8,600
08-00220-40017 4 R0.1 48 6 3.8 12° 6 100 13,700
08-00220-40021 4 R0.2 16 6 3.8 12° 6 60 8,600
08-00220-40023 4 R0.2 24 6 3.8 12° 6 70 8,600
08-00220-40025 4 R0.2 32 6 3.8 12° 6 70 8,600
08-00220-40027 4 R0.2 48 6 3.8 12° 6 100 13,700
08-00220-40031 4 R0.3 16 6 3.8 12° 6 60 8,600
08-00220-40034 4 R0.3 24 6 3.8 12° 6 70 8,600
08-00220-40032 4 R0.3 32 6 3.8 12° 6 70 8,600
08-00220-40033 4 R0.3 48 6 3.8 12° 6 100 13,700
08-00220-40051 4 R0.5 16 6 3.8 12° 6 60 8,600
08-00220-40054 4 R0.5 24 6 3.8 12° 6 70 8,600
08-00220-40052 4 R0.5 32 6 3.8 12° 6 70 8,600
08-00220-40053 4 R0.5 48 6 3.8 12° 6 100 13,700
08-00220-40101 4 R1 16 6 3.8 12° 6 60 8,600
08-00220-40104 4 R1 24 6 3.8 12° 6 70 8,600
08-00220-40102 4 R1 32 6 3.8 12° 6 70 8,600
08-00220-40103 4 R1 48 6 3.8 12° 6 100 13,700
08-00220-50011 5 R0.1 20 7.5 4.8 12° 6 70 10,900
08-00220-50013 5 R0.1 40 7.5 4.8 12° 6 90 13,700
08-00220-50021 5 R0.2 20 7.5 4.8 12° 6 70 10,900
08-00220-50023 5 R0.2 40 7.5 4.8 12° 6 90 13,700
08-00220-50031 5 R0.3 20 7.5 4.8 12° 6 70 10,900
08-00220-50032 5 R0.3 40 7.5 4.8 12° 6 90 13,700
08-00220-50051 5 R0.5 20 7.5 4.8 12° 6 70 10,900
08-00220-50052 5 R0.5 40 7.5 4.8 12° 6 90 13,700
08-00220-50101 5 R1 20 7.5 4.8 12° 6 70 10,900
08-00220-50102 5 R1 40 7.5 4.8 12° 6 90 13,700
08-00220-60011 6 R0.1 24 9 5.8 6 90 10,900
08-00220-60013 6 R0.1 48 9 5.8 6 110 17,100
08-00220-60021 6 R0.2 24 9 5.8 6 90 10,900
08-00220-60023 6 R0.2 48 9 5.8 6 110 17,100
08-00220-60031 6 R0.3 24 9 5.8 6 90 10,900
08-00220-60032 6 R0.3 48 9 5.8 6 110 17,100
08-00220-60051 6 R0.5 24 9 5.8 6 90 10,900
08-00220-60052 6 R0.5 48 9 5.8 6 110 17,100
08-00220-60101 6 R1 24 9 5.8 6 90 10,900
08-00220-60102 6 R1 48 9 5.8 6 110 17,100
