MSBSH330-5X

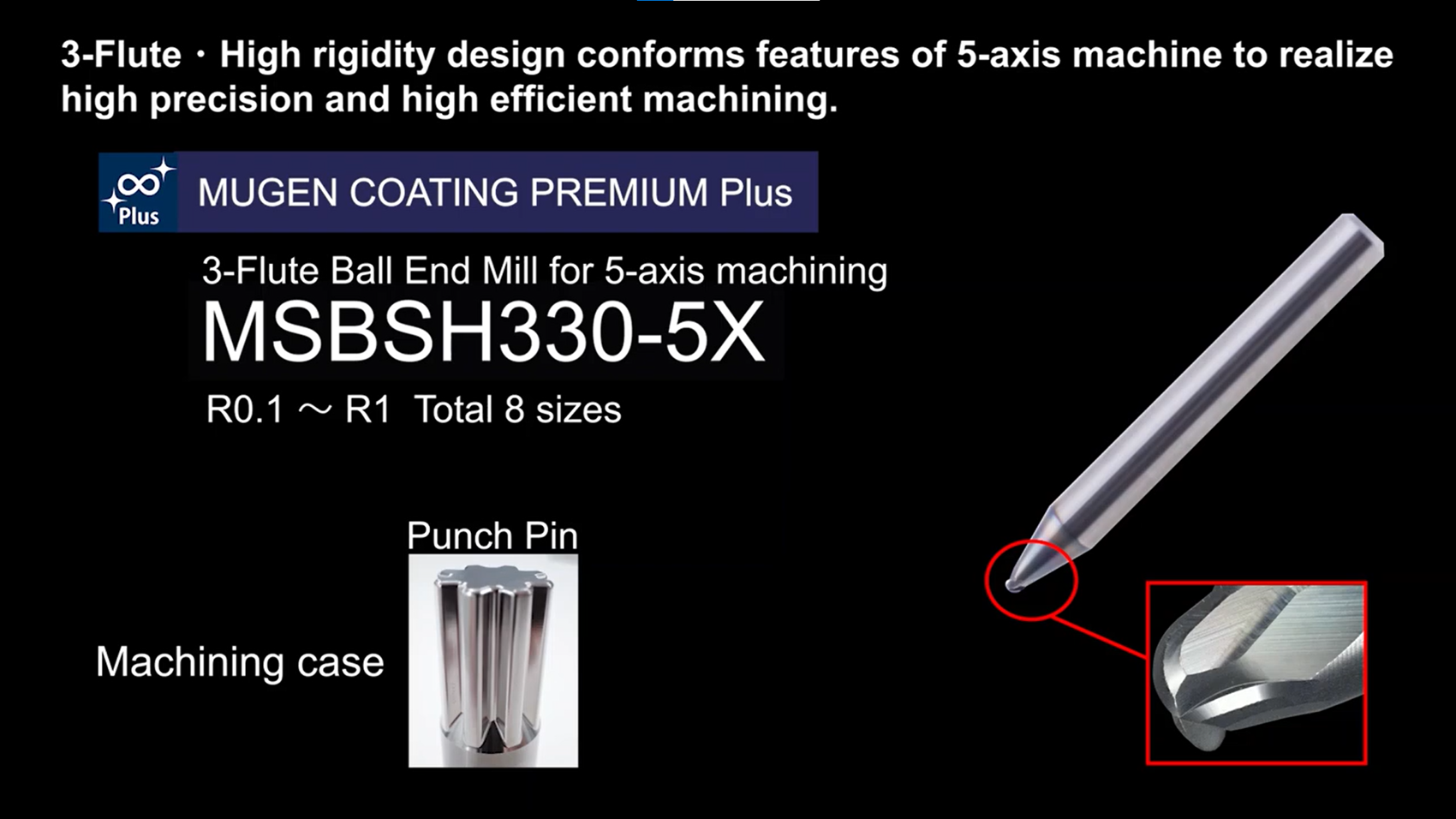

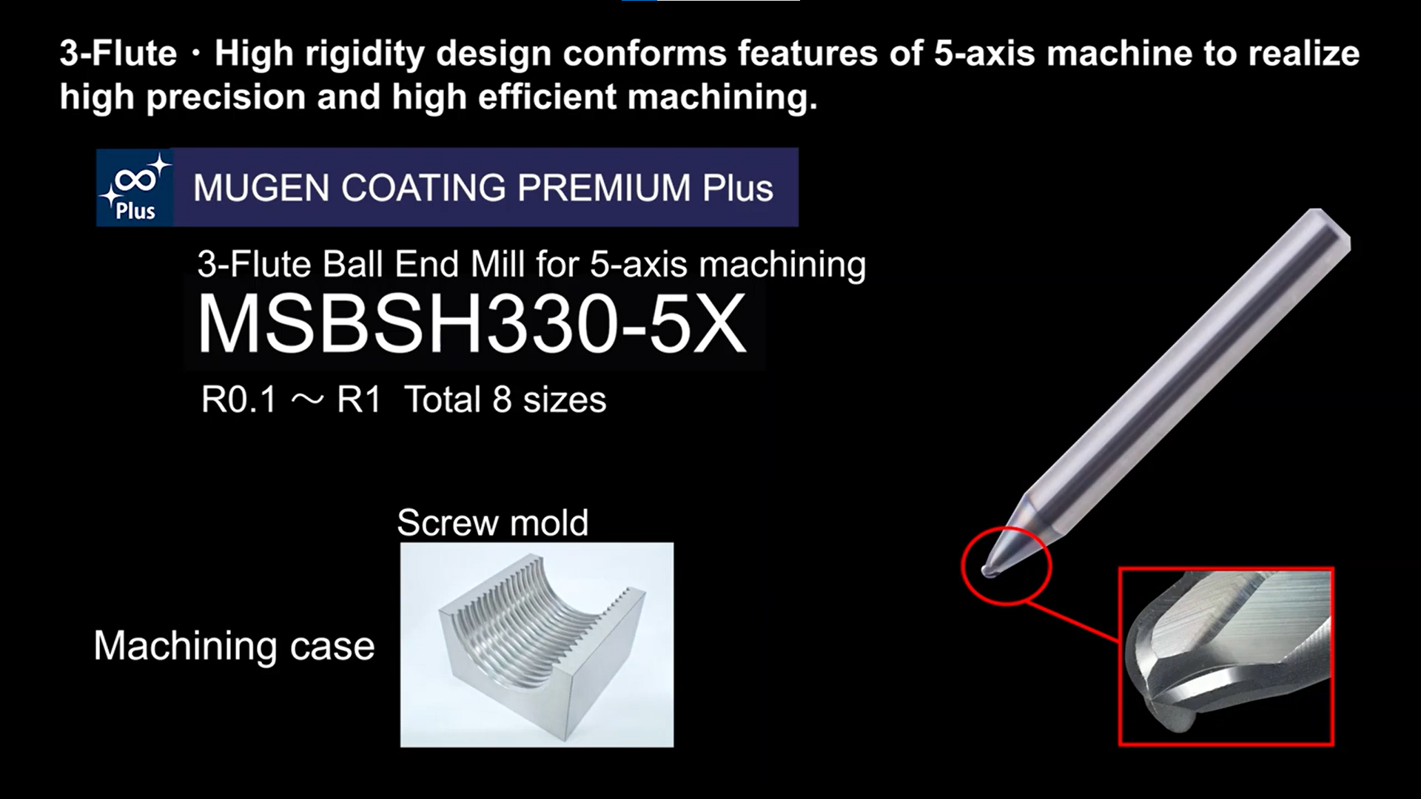

MUGEN COATING PREMIUM Plus 3-Flute Ball End Mill for 5-Axis Machining

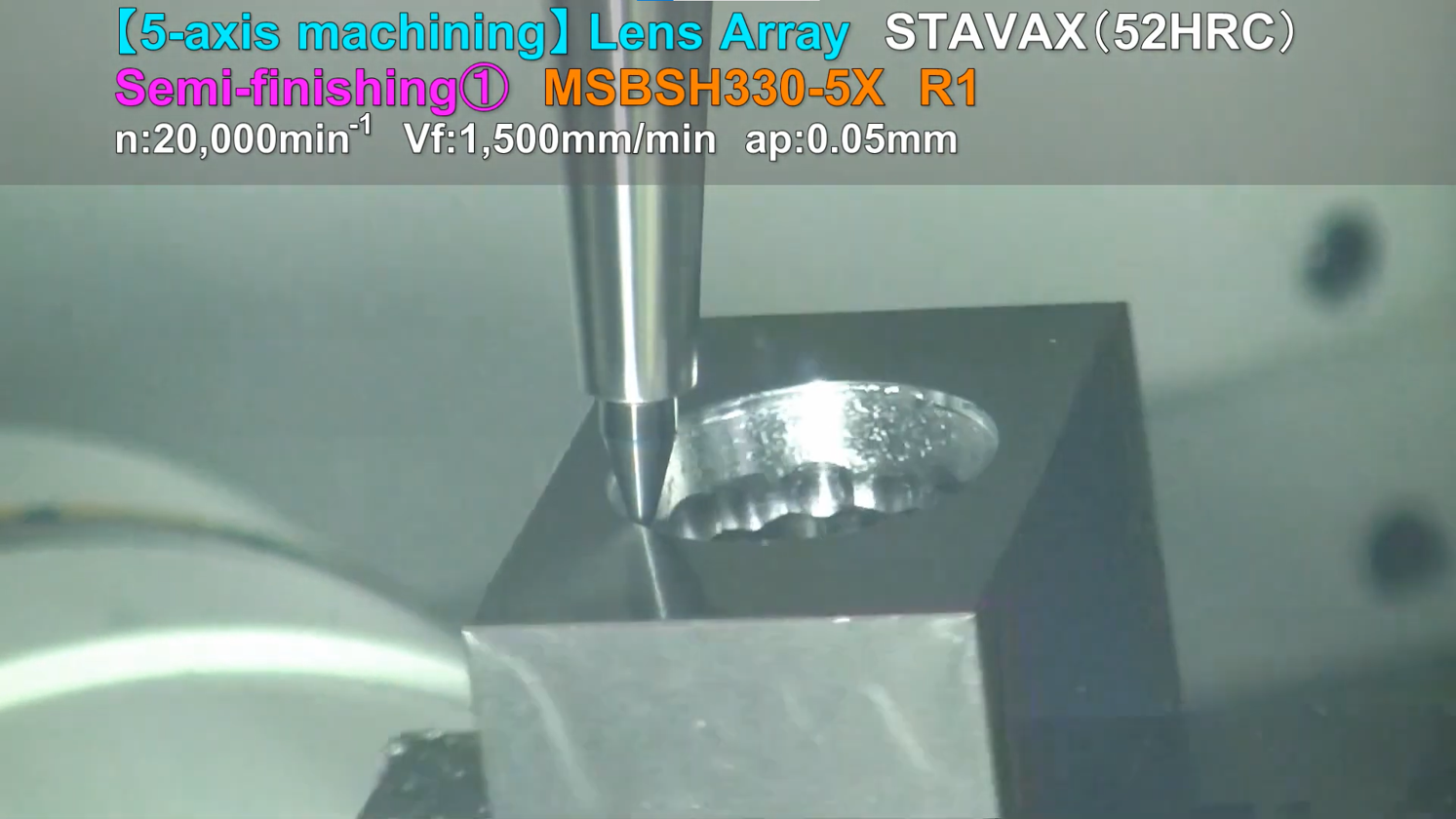

●3-flute high rigidity ball design conforms features of 5-axis machine to reduce total manufacturing cost with high precision and high efficiency machining.
●Even hardened steel of 52 to 70HRC can be machining with long tool life and high efficiency.
●By adopting positive cutting edge for carbide material emphasized breakage resistance that suppresses chattering by 3-flute and unequal flute.
●R accuracy is ±0.005mm (R accuracy is based on a half value of actual diameter).
●Shank diameter tolerance,high accuracy type,is - 0.001mm ~ - 0.003mm.

  • Coating
    MUGEN COATING PREMIUM Plus

  • Material
    Super Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 70HRC

  • Number of Flutes
    3 Flutes

  • Helix Angle
    30°

  • Conner
    ±0.005

  • φd-0.001/-0.003

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
~
52HRC
~
60HRC
~
65HRC
~
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel
~
52HRC
Resin
~
60HRC
Graphite
~
65HRC
Hard Brittle
Material
~
70HRC
Hard Brittle
Material
Stainless Steel

Line up

Unit [size: mm]

Code
No.

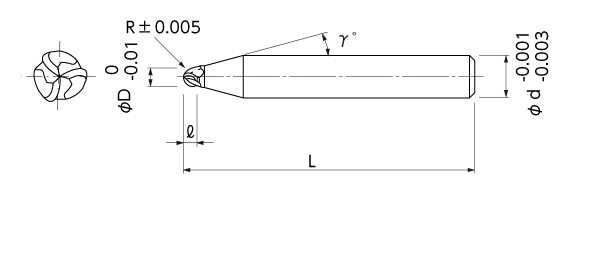

(R)Radius (l)Length of Cut (D)Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
08-00610-00100 R0.1 0.12 0.2 15° 6 50
08-00610-00150 R0.15 0.18 0.3 15° 6 50
08-00610-00200 R0.2 0.24 0.4 15° 6 50
08-00610-00250 R0.25 0.3 0.5 15° 6 50
08-00610-00300 R0.3 0.36 0.6 15° 6 50
08-00610-00500 R0.5 0.6 1 15° 6 50
08-00610-00750 R0.75 0.9 1.5 15° 6 50
08-00610-01000 R1 1.2 2 15° 6 50
