PCDRB

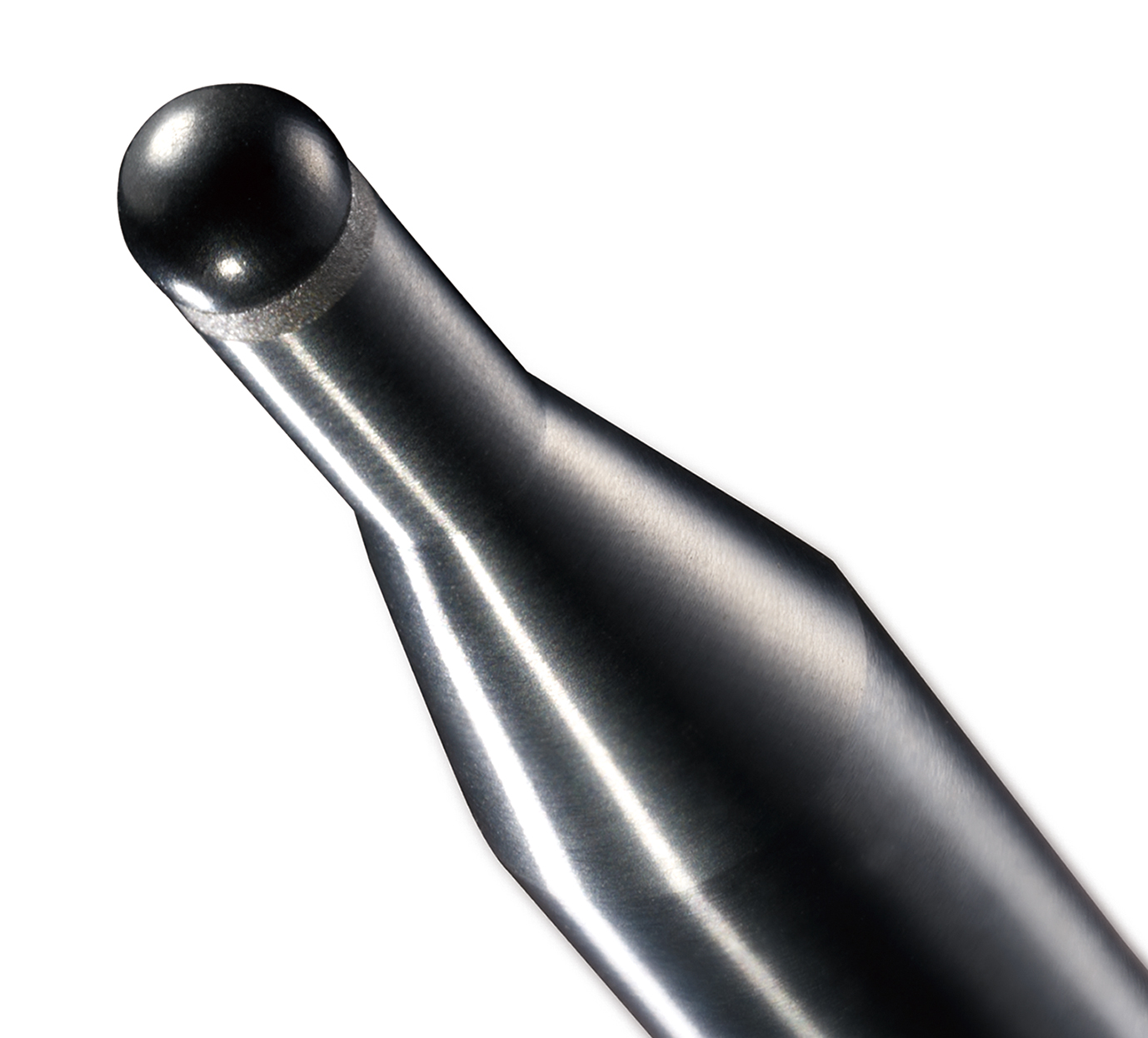

PCD Ball End Mill

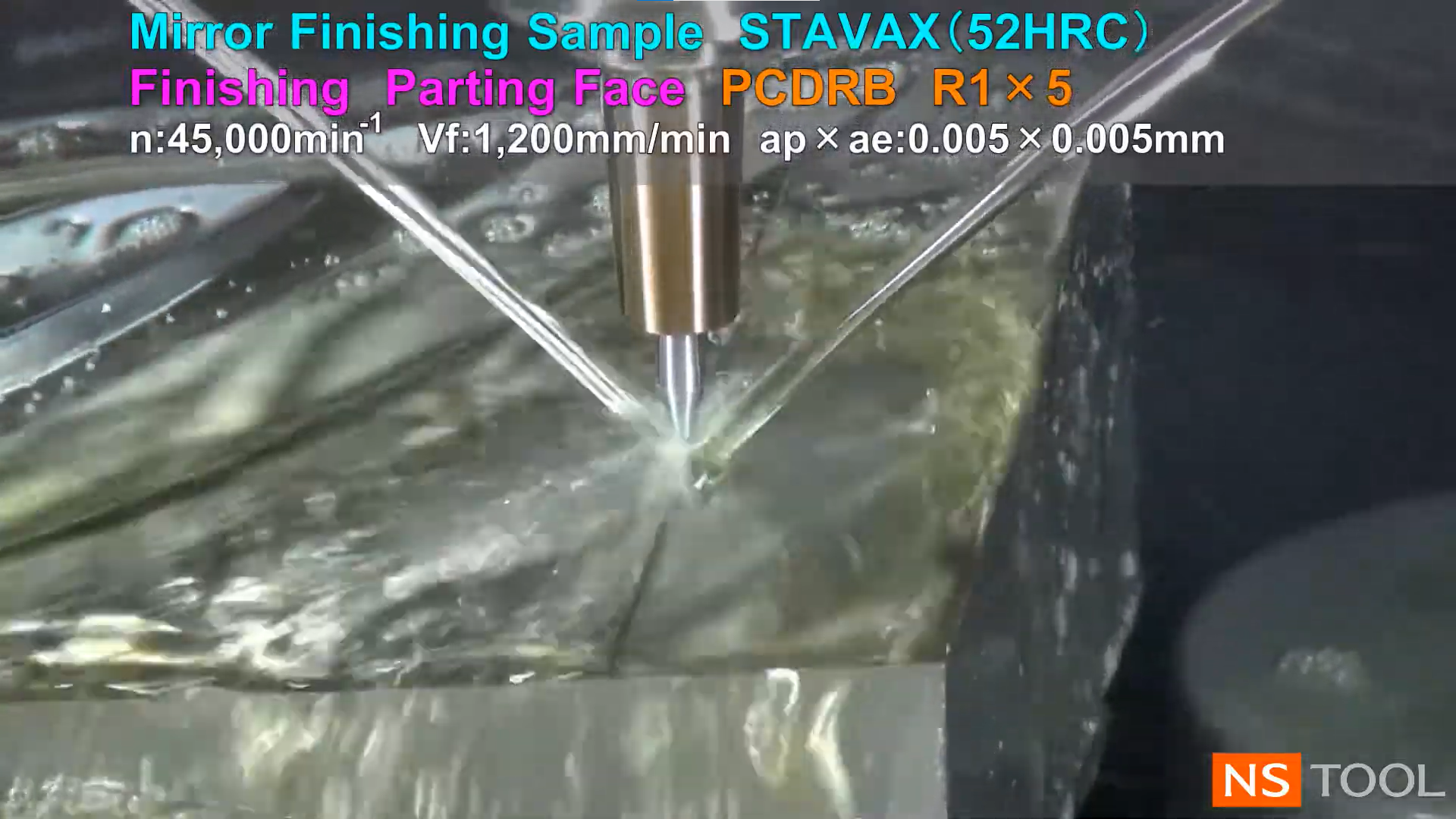

●Unique tool geometry makes stable surface.
●Polish-less machining become reality by nano-level roughness on profiling finish.
●Upgraded tool edge design makes stable high quality surface.

  • Material
    Polycrystalline Diamond

  • Cutting Possibility of Work Material Hardness
    Up to 92.5HRA

  • Conner
    ±0.003

  • φd h3

  • Applications
    3D Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Hardened Steel Stainless Steel Heat Resistant Alloy Aluminum Alloy Copper Resin Graphite Hard Brittle Material
~
52HRC
~
60HRC
~
65HRC
~
70HRC

Carbon Steel Heat Resistant
Alloy
Alloy Steel Aluminum Alloy
Prehardened
Steel
Copper
Hardened
Steel
~
52HRC
Resin
~
60HRC
Graphite
~
65HRC
Hard Brittle
Material
~
70HRC
Hard Brittle
Material
Stainless Steel

Leaflet

Line up

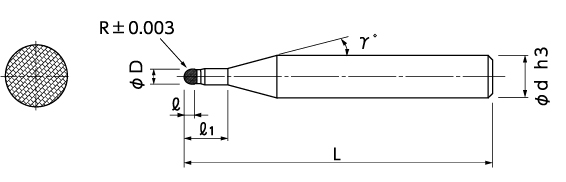

Unit [size: mm]

Code
No.
(R)Radius (l1)Under Neck Length (l)Length of Cut (D)Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Semi-standard
04-00500-00501 R0.05 0.15 0.05 0.1 15° 4 48
04-00500-00502 R0.05 0.25 0.05 0.1 15° 4 48
04-00500-00751 R0.075 0.23 0.075 0.15 15° 4 48
04-00500-00752 R0.075 0.38 0.075 0.15 15° 4 48
04-00500-01001 R0.1 0.5 0.1 0.2 15° 4 48
04-00500-01501 R0.15 0.75 0.15 0.3 15° 4 48
04-00500-02001 R0.2 1 0.2 0.4 15° 4 48
04-00500-02501 R0.25 1.25 0.25 0.5 15° 4 48
04-00500-03001 R0.3 1.5 0.3 0.6 15° 4 48
04-00500-05001 R0.5 2.5 0.5 1 15° 4 50
04-00500-07501 R0.75 3.8 0.75 1.5 15° 4 48
04-00500-10001 R1 5 1 2 15° 4 48
04-00500-15001 R1.5 7.5 1.5 3 15° 6 59
04-00500-20001 R2 10 2 4 15° 6 60
04-00500-30001 R3 15 3 6 - 6 62
