MSUSZ440-LN

MUGEN COATING PREMIUM 4-Flute Long Neck High Efficient ”Z” End Mill for Stainless Steels

●Unequal flute spacing,unequal helix angle and high rigid end profile design to minimize chatter realize high efficient machining.
●Newly developed special edge profile increase the multi-functional performance of side milling,slot milling and drilling on stainless steels.
●Optimized high heat-resistance MUGEN COATING PREMIUM to realize stable long time machining.
●Long neck type prevent interference with work material,the effective length lined up with L/D=3 to 5.

  • Coating
    MUGEN COATING PREMIUM

  • Material
    Micro Grain Carbide

  • Cutting Possibility of Work Material Hardness
    Up to 40HRC

  • Number of Flutes
    4 Flutes

  • Helix Angle
    40°/42°

  • φd-0.001/-0.003

  • Applications
    Side Milling

  • Applications
    Slot Milling

  • Applications
    Face Milling

  • Applications
    Pulunging Milling

Description of icons

Work Materials

Machinable indication by ,
Carbon Steel Alloy Steel Prehardened Steel Stainless Steel Aluminum Alloy Copper Resin Graphite Hard Brittle Material Heat Resistant Alloy Hardened Steel

55HRC

65HRC

70HRC
Carbon Steel Alloy Steel
Prehardened
Steel
Stainless Steel
Aluminum Alloy Copper
Resin Graphite
Hard Brittle Material Heat Resistant
Alloy
Hardened
Steel

55HRC

65HRC

70HRC

Leaflet

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

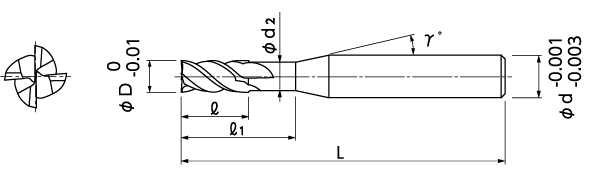

(D)Dia. (l)Length of Cut (l1)Under Neck Length (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
08-00153-01013 1 1.5 3 0.95 12° 4 50 5,100
08-00153-01014 1 1.5 4 0.95 12° 4 50 5,200
08-00153-01015 1 1.5 5 0.95 12° 4 50 5,400
08-00153-01513 1.5 2.3 4.5 1.45 12° 4 50 6,000
08-00153-01514 1.5 2.3 6 1.45 12° 4 50 6,300
08-00153-01515 1.5 2.3 7.5 1.45 12° 4 50 6,600
08-00153-02013 2 3 6 1.94 12° 6 50 6,300
08-00153-02014 2 3 8 1.94 12° 6 50 6,600
08-00153-02015 2 3 10 1.94 12° 6 50 6,900
08-00153-02513 2.5 3.8 7.5 2.4 12° 6 50 6,300
08-00153-02514 2.5 3.8 10 2.4 12° 6 50 6,700
08-00153-02515 2.5 3.8 12.5 2.4 12° 6 60 7,200
08-00153-03013 3 4.5 9 2.85 12° 6 50 6,300
08-00153-03014 3 4.5 12 2.85 12° 6 50 6,600
08-00153-03015 3 4.5 15 2.85 12° 6 60 6,900
08-00153-03513 3.5 5.3 10.5 3.35 12° 6 50 6,600
08-00153-03514 3.5 5.3 14 3.35 12° 6 60 7,200
08-00153-03515 3.5 5.3 17.5 3.35 12° 6 60 7,600
08-00153-04013 4 6 12 3.8 12° 6 50 6,600
08-00153-04014 4 6 16 3.8 12° 6 60 7,000
08-00153-04015 4 6 20 3.8 12° 6 60 7,300
08-00153-04513 4.5 6.8 13.5 4.3 12° 6 50 7,000
08-00153-04514 4.5 6.8 18 4.3 12° 6 60 7,600
08-00153-04515 4.5 6.8 22.5 4.3 12° 6 60 8,000
08-00153-05013 5 7.5 15 4.8 12° 6 50 7,000
08-00153-05014 5 7.5 20 4.8 12° 6 60 7,400
08-00153-05015 5 7.5 25 4.8 12° 6 60 7,700
08-00153-05513 5.5 8.3 16.5 5.3 12° 6 50 7,600
08-00153-05514 5.5 8.3 22 5.3 12° 6 60 8,200
08-00153-05515 5.5 8.3 27.5 5.3 12° 6 60 8,600
08-00153-06013 6 9 18 5.8 6 60 7,600
08-00153-06014 6 9 24 5.8 6 60 8,000
08-00153-06015 6 9 30 5.8 6 70 8,400
