RSE230

End Mill for Resin

●Available for the suitable L/D (3D,5D and 10D) and with or without Effective Length!
●Applicable to nonferrous material such as Aluminum and Copper.
●Total 135 size!

  • Material
    Micro Grain Carbide

  • Helix Angle
    30°

  • Number of Flutes
    2 Flutes

  • Applications
    Slot Milling

  • Applications
    Side Milling

  • Applications
    Face Milling

  • Corner Shape
    Sharp Edge

Description of icons

Carbon Steels Alloy Steels / Tool Steels Prehardened Steels Hardened Steels Stainless Steels Heat Resistance Alloys Titanium Aluminum Copper Plastic Graphite Brittle Materials / Cemented Carbide

55HRC
55HRC
Carbon Steels Titanium
Alloy Steels
/ Tool Steels
Aluminum
Prehardened
Steels
Copper
Hardened
Steels

55HRC
Plastic
55HRC
Graphite
Stainless Steels Brittle Materials
/ Cemented
Carbide
Heat Resistance
Alloys

Line up

Unit [size: mm / Retail Price: JPY]

Code
No.

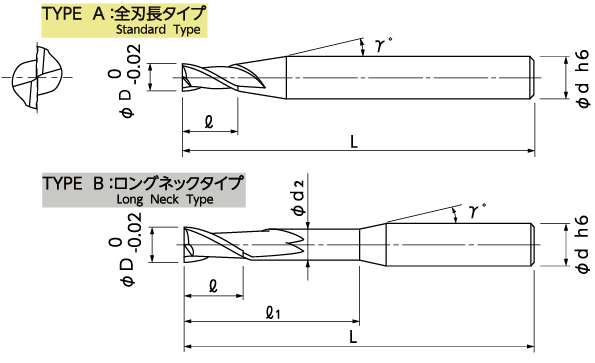

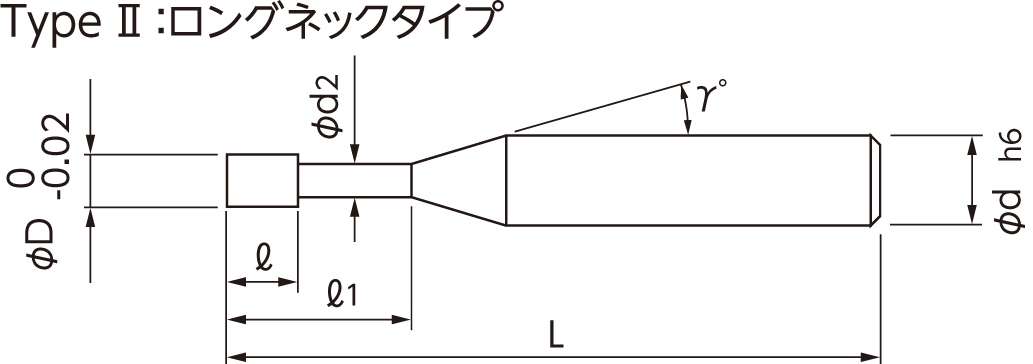

(D)Dia. (l)Length of Cut (l1)Effective Length Type (d2)Neck Dia. (γ)Neck Taper Angle (d)Shank Dia. (L)Overall Length Retail
Price
Quantity Semi-standard
01-00644-00100 0.1 0.3 4 45 7,000
01-00644-00108 0.1 0.3 0.8 0.085 12° 4 45 8,400
01-00644-00110 0.1 0.3 1 0.085 12° 4 45 11,000
01-00644-00150 0.15 0.45 4 45 6,400
01-00644-00151 0.15 0.45 1 0.13 12° 4 45 8,000
01-00644-00152 0.15 0.45 1.5 0.13 12° 4 45 10,000
01-00644-00200 0.2 0.6 4 45 6,100
01-00644-00201 0.2 1 10° 4 45 7,000
01-00644-00203 0.2 0.6 1 0.18 12° 4 45 7,400
01-00644-00204 0.2 0.6 1.5 0.18 12° 4 45 9,000
01-00644-00202 0.2 0.6 2 0.18 12° 4 45 12,000
01-00644-00300 0.3 0.9 4 45 5,400
01-00644-00301 0.3 1.5 4 45 6,000
01-00644-00302 0.3 2 4 45 6,700
01-00644-00304 0.3 0.9 1.5 0.28 12° 4 45 6,500
01-00644-00305 0.3 0.9 2 0.28 12° 4 45 7,200
01-00644-00306 0.3 0.9 2.5 0.28 12° 4 45 8,800
01-00644-00303 0.3 0.9 3 0.28 12° 4 45 11,500
01-00644-00400 0.4 1.2 4 45 5,900
01-00644-00401 0.4 2 10° 4 45 7,000
01-00644-00402 0.4 3 4 45 8,000
01-00644-00403 0.4 1.2 2 0.37 12° 4 45 6,200
01-00644-00406 0.4 1.2 2.5 0.37 12° 4 45 6,200
01-00644-00407 0.4 1.2 3 0.37 12° 4 45 6,200
01-00644-00404 0.4 1.2 4 0.37 12° 4 45 6,800
01-00644-00405 0.4 1.2 5 0.37 12° 4 45 7,500
01-00644-00500 0.5 1.5 4 45 4,000
01-00644-00501 0.5 2.5 4 45 4,800
01-00644-00502 0.5 5 4 45 6,000
01-00644-00503 0.5 1.5 3 0.46 12° 4 45 4,200
01-00644-00504 0.5 1.5 4 0.46 12° 4 45 4,200
01-00644-00506 0.5 1.5 6 0.46 12° 4 45 4,200
01-00644-00508 0.5 1.5 8 0.46 12° 4 50 6,500
01-00644-00510 0.5 1.5 10 0.46 12° 4 50 8,000
01-00644-00512 0.5 1.5 12 0.46 12° 4 50 8,500
01-00644-00515 0.5 1.5 15 0.46 12° 4 50 9,000
01-00644-00520 0.5 1.5 20 0.46 12° 4 50 10,500
01-00644-00600 0.6 1.8 4 45 4,600
01-00644-00601 0.6 3 4 45 5,600
01-00644-00602 0.6 4 4 45 6,000
01-00644-00604 0.6 1.8 4 0.56 12° 4 45 4,700
01-00644-00606 0.6 1.8 6 0.56 12° 4 45 5,000
01-00644-00608 0.6 1.8 8 0.56 12° 4 50 7,200
01-00644-00610 0.6 1.8 10 0.56 12° 4 50 7,800
01-00644-00612 0.6 1.8 12 0.56 12° 4 50 8,500
01-00644-00800 0.8 2.4 4 45 4,600
01-00644-00801 0.8 4 4 45 5,600
01-00644-00802 0.8 6 4 45 6,000
01-00644-00806 0.8 2.4 6 0.76 12° 4 45 4,700
01-00644-00808 0.8 2.4 8 0.76 12° 4 50 4,900
01-00644-00810 0.8 2.4 10 0.76 12° 4 50 5,400
01-00644-00812 0.8 2.4 12 0.76 12° 4 50 5,900
01-00644-00816 0.8 2.4 16 0.76 12° 4 60 6,400
01-00644-01000 1 3 4 45 3,200
01-00644-01001 1 5 4 50 4,000
01-00644-01003 1 7.5 4 50 4,600
01-00644-01002 1 10 4 50 7,600
01-00644-01006 1 3 6 0.95 12° 4 50 3,600
01-00644-01008 1 3 8 0.95 12° 4 50 3,600
01-00644-01010 1 3 10 0.95 12° 4 50 4,200
01-00644-01012 1 3 12 0.95 12° 4 50 4,200
01-00644-01015 1 3 15 0.95 12° 4 60 4,200
01-00644-01020 1 3 20 0.95 12° 4 60 5,000
01-00644-01025 1 3 25 0.95 12° 4 70 6,000
01-00644-01030 1 3 30 0.95 12° 4 70 7,500
01-00644-01035 1 3 35 0.95 12° 4 80 10,000
01-00644-01500 1.5 4.5 4 45 3,500
01-00644-01501 1.5 7.5 4 50 4,200
01-00644-01502 1.5 15 4 60 7,800
01-00644-01510 1.5 4.5 10 1.45 12° 4 50 3,800
01-00644-01512 1.5 4.5 12 1.45 12° 4 50 3,800
01-00644-01515 1.5 4.5 15 1.45 12° 4 60 4,300
01-00644-01518 1.5 4.5 18 1.45 12° 4 60 4,300
01-00644-01523 1.5 4.5 23 1.45 12° 4 70 5,800
01-00644-01530 1.5 4.5 30 1.45 12° 4 70 7,000
01-00644-01538 1.5 4.5 38 1.45 12° 4 80 8,500
01-00644-01545 1.5 4.5 45 1.45 12° 4 90 10,000
01-00644-01553 1.5 4.5 53 1.45 12° 4 90 11,000
01-00644-02000 2 6 4 50 3,500
01-00644-02001 2 10 4 50 4,200
01-00644-02003 2 15 4 60 6,600
01-00644-02002 2 20 4 60 7,800
01-00644-02012 2 6 12 1.94 12° 4 60 3,800
01-00644-02015 2 6 15 1.94 12° 4 60 3,800
01-00644-02020 2 6 20 1.94 12° 4 60 4,200
01-00644-02024 2 6 24 1.94 12° 4 70 5,000
01-00644-02030 2 6 30 1.94 12° 4 80 5,100
01-00644-02040 2 6 40 1.94 12° 4 90 7,900
01-00644-02050 2 6 50 1.94 12° 4 110 9,800
01-00644-02060 2 6 60 1.94 12° 4 110 11,000
01-00644-02070 2 6 70 1.94 12° 4 110 12,000
01-00644-03000 3 9 3 100 6,500
01-00644-03001 3 9 6 50 4,500
01-00644-03003 3 15 3 100 7,000
01-00644-03002 3 15 6 60 5,000
01-00644-03004 3 20 6 60 6,000
01-00644-03005 3 25 6 70 6,300
01-00644-03006 3 30 6 70 6,500
01-00644-03015 3 9 15 2.85 12° 6 60 5,000
01-00644-03020 3 9 20 2.85 12° 6 60 5,500
01-00644-03024 3 9 24 2.85 12° 6 70 6,000
01-00644-03030 3 9 30 2.85 12° 6 70 6,000
01-00644-03036 3 9 36 2.85 12° 6 80 6,500
01-00644-03045 3 9 45 2.85 12° 6 90 7,000
01-00644-03060 3 9 60 2.85 12° 6 110 11,000
01-00644-03075 3 9 75 2.85 12° 6 120 13,500
01-00644-04000 4 12 4 120 7,800
01-00644-04001 4 12 6 50 4,500
01-00644-04003 4 20 4 120 10,000
01-00644-04002 4 20 6 60 5,800
01-00644-04004 4 30 6 70 6,300
01-00644-04005 4 40 6 90 6,800
01-00644-04020 4 12 20 3.8 12° 6 60 5,400
01-00644-04030 4 12 30 3.8 12° 6 70 6,000
01-00644-04040 4 12 40 3.8 12° 6 90 6,300
01-00644-04055 4 12 55 3.8 12° 6 110 11,000
01-00644-04070 4 12 70 3.8 12° 6 120 13,500
01-00644-05002 5 10 6 60 4,800
01-00644-05000 5 15 6 70 5,200
01-00644-05001 5 25 6 80 7,000
01-00644-05003 5 35 6 90 7,400
01-00644-05004 5 40 6 100 8,500
01-00644-05030 5 15 30 4.8 12° 6 90 6,500
01-00644-05040 5 15 40 4.8 12° 6 100 6,800
01-00644-05055 5 15 55 4.8 12° 6 120 10,000
01-00644-05070 5 15 70 4.8 12° 6 130 14,000
01-00644-06002 6 12 6 70 5,000
01-00644-06000 6 18 6 80 5,500
01-00644-06003 6 25 6 80 6,500
01-00644-06001 6 30 6 90 7,000
01-00644-06004 6 40 6 100 7,800
01-00644-06005 6 50 6 120 9,000
01-00644-06040 6 18 40 5.8 6 100 7,300
01-00644-06060 6 18 60 5.8 6 120 9,600
01-00644-06080 6 18 80 5.8 6 130 14,500
